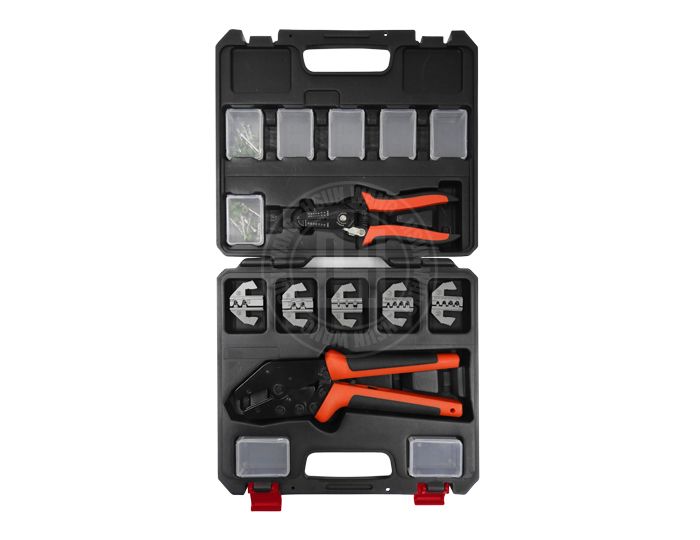

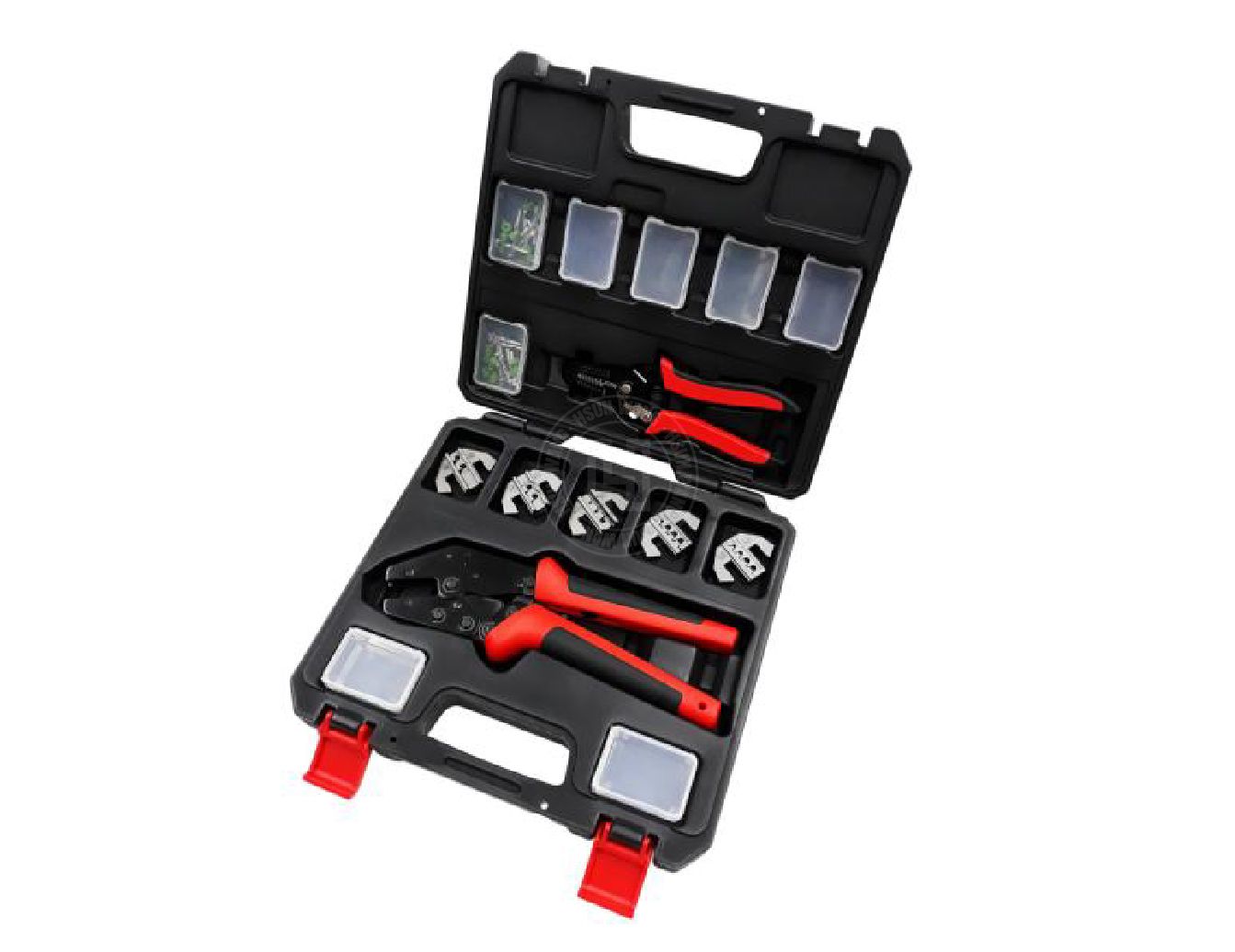

Item No: JD47BD27 47PCE 9" Plus Quick Change Ratchet Crimper Kit
JPT: Junior Power Timer
MCP:Multiple Contact Point
For TE JPT tab contacts & MCP
For TE JPT tab contacts : 963745, 963746, 963748, 963749
Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .
Applicable: AUTO / HOME APPLIANCE CONTROL
●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It also conveniently enables you to secure a wire connector in the die before inserting the stripped wire into the barrel.
●Adjustable Compression Wheel- Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist right to tighten and left to loosen.Adjustable crimp height of star wheel,to ensure the right amount of crimping force.The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.No tools required. These dies are not compatible with the fixed die crimping tools.
HIGH LEVERAGE CRIMPING TOOL - 9" Crimping tool can crimp larger diameter terminals - up to 4 AWG.
INCREASED CRIMPING ANGLE - Allows to crimp large diameter wire connectors with less effort. Crimps 26 - 4 AWG terminals.
ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.
PROFESSIONAL CRIMPING TOOL - Precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
●CHANGE CRIMPING DIES IN SECONDS - Create Your Own Crimping Tool Set: The no-dies ratchet crimping tool match any LiCrim quick change crimping dies you need.
●Handily Crimping: Replace the required crimping dies just a few seconds.The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan .
Packing List: 10/CTN/16/17/KGS/2.1'

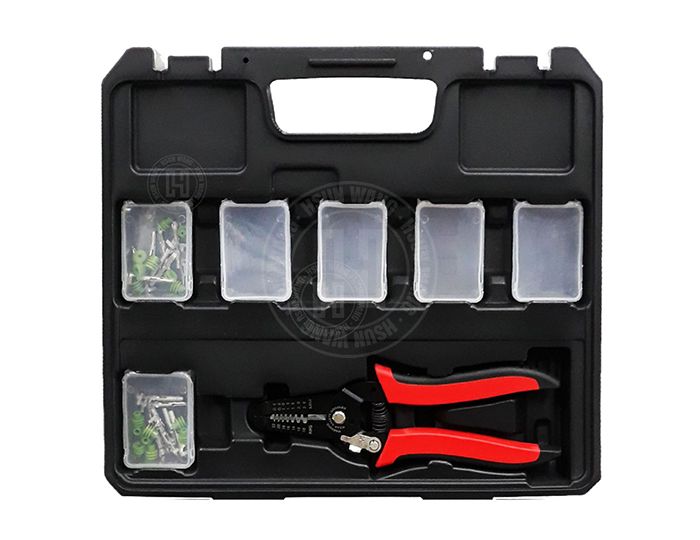

Blow Case and Color Sleeve
Blow Case Size: 28.3 x 26.1 x 6.8 cm
Unit Weight: 1.6 kgs
