Quality Testing & Verification
Ensuring Consistent Crimping Performance Through Measurable Standards
Crimping quality cannot be evaluated by appearance alone.
Reliable electrical connections require measurable validation to ensure both mechanical strength and electrical performance.
Industry standards define several key testing methods to verify crimp quality, ensuring consistency, safety, and long-term reliability.
Key Crimping Quality Tests

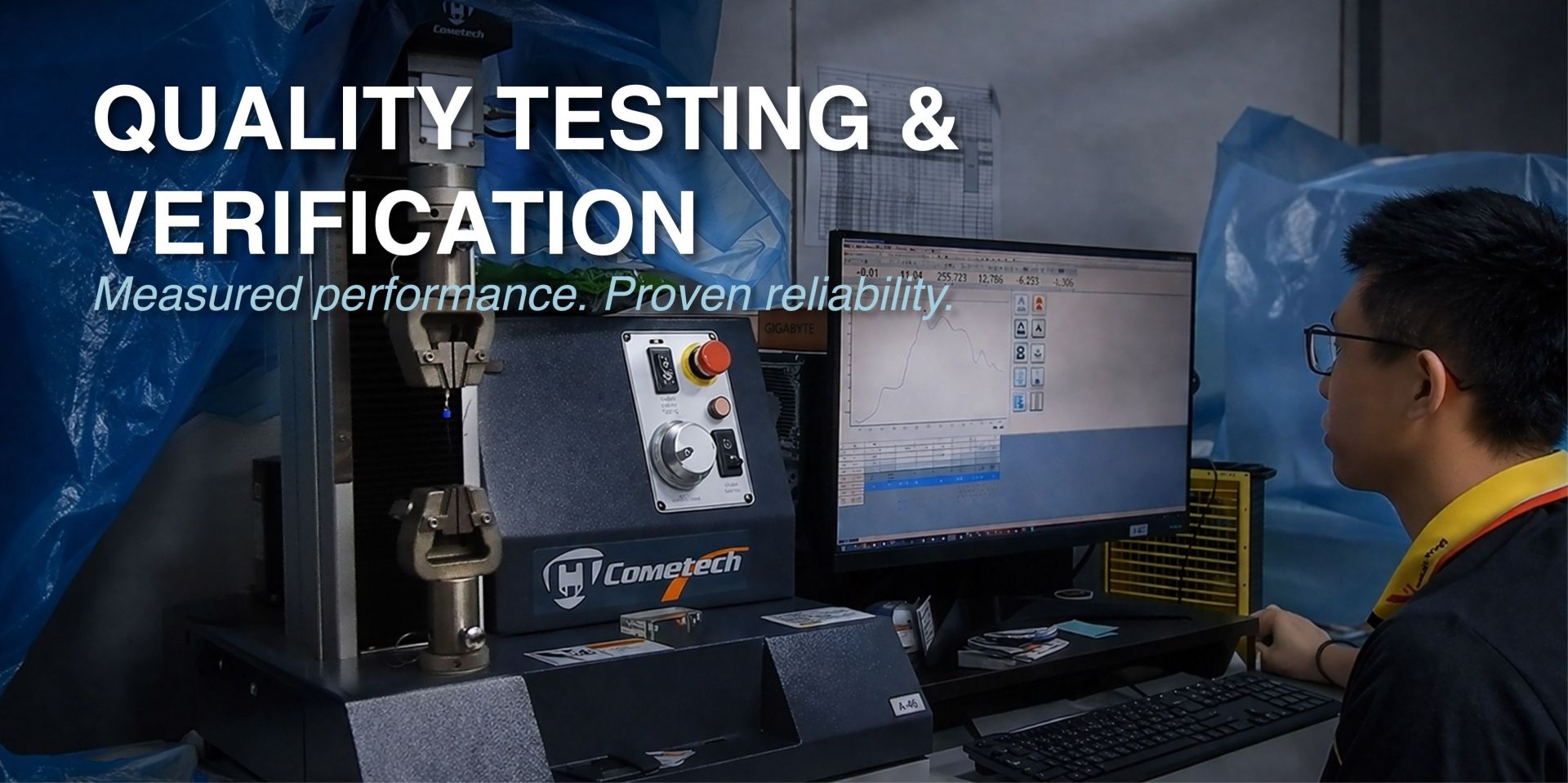

1. Pull Force Testing
Measures the force required to separate the wire from the terminal.
This test verifies the mechanical strength and integrity of the crimped connection.
2. Electrical Resistance Testing
Evaluates conductivity across the crimped joint.
Low resistance indicates proper metal-to-metal contact, while high resistance suggests poor compression or internal gaps.
3. Cross-Section Analysis
Examines the internal structure of the crimped connection.
This method reveals strand distribution, compression uniformity, and potential defects such as voids or over-crimping.
4. Visual Inspection
Checks external geometry and workmanship, including alignment, insulation support, and terminal deformation.
Critical Quality Parameters
In addition to testing, several measurable parameters must be controlled:
- Crimp height and dimensional accuracy
- Conductor compression and strand distribution
- Insulation support and positioning
- Terminal alignment and deformation
These parameters directly influence both mechanical strength and electrical performance.
Process Control and Consistency
Consistent crimping quality is achieved through controlled processes, not individual operations.
Key practices include:
- Using calibrated tools and matched dies
- Monitoring crimp force and process variation
- Performing regular inspection and validation
- Following standardized operating procedures
From Testing to Reliable Performance
Quality testing is not only about detecting defects —
it ensures that every crimp meets defined performance standards before failure occurs.
At Hsun Wang, we integrate testing and process control into our crimping solutions to:
- Maintain consistent crimp quality
- Reduce variation and defects
- Improve production reliability
- Support demanding industrial applications
Crimping Test Standards Reference
Overview of international pull-out and crimp validation standards used across different terminal applications
