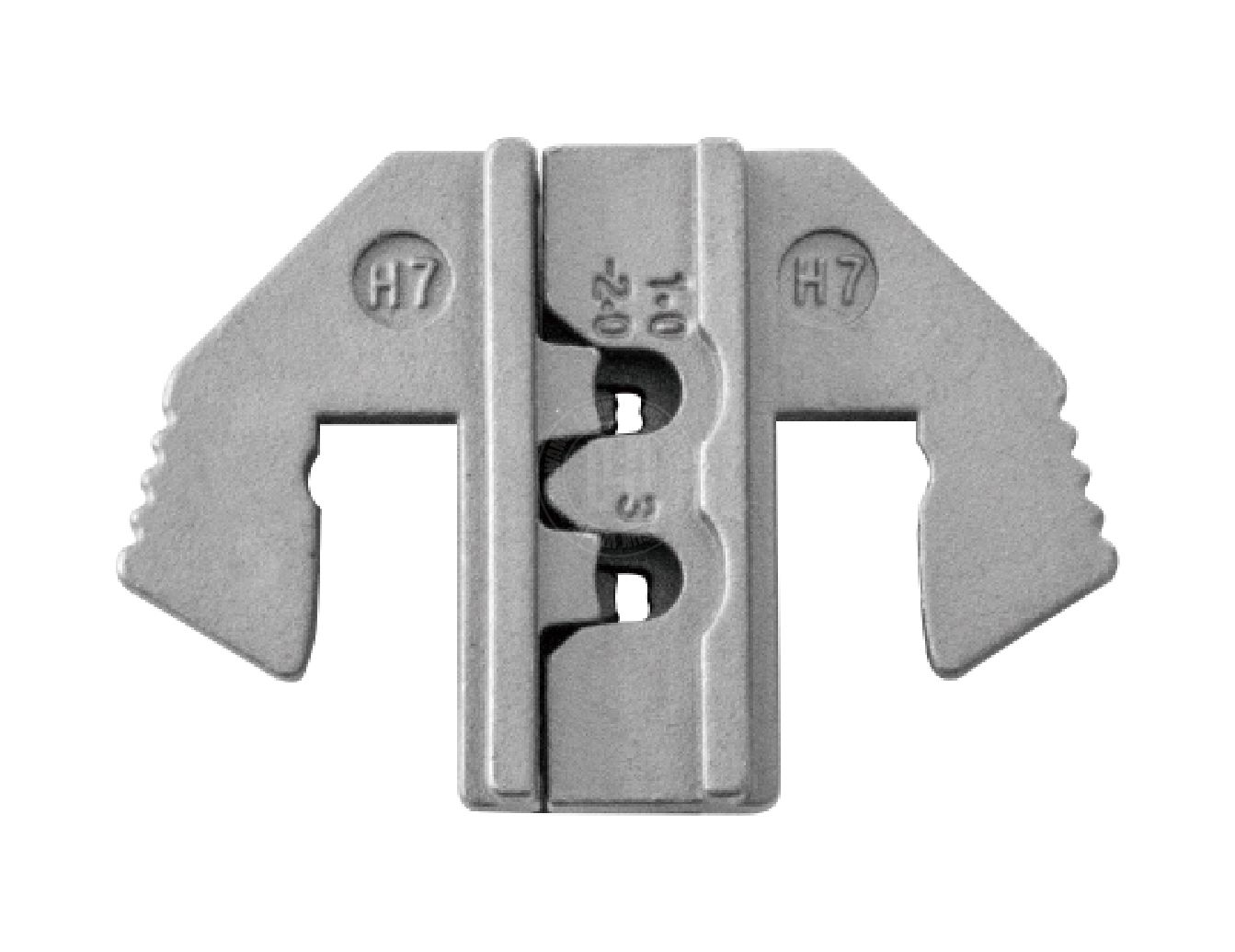

Die for Delphi Weather Pack Terminal (1.0-3.0mm²) / Item No. : J12JH7

  • Quick Change Crimping Jaw  j12
  • Jaw for Delphi Weather Pack Terminal J12JH7
  • Jaw for Delphi Weather Pack Terminal j12
  • Delphi Weather Pack Terminal J12JH7
  • Designed by Germany J12JH7
For Waterproof Contacts

Die for Delphi Weather Pack Terminal (1.0-3.0mm²) / Item No. : J12JH7

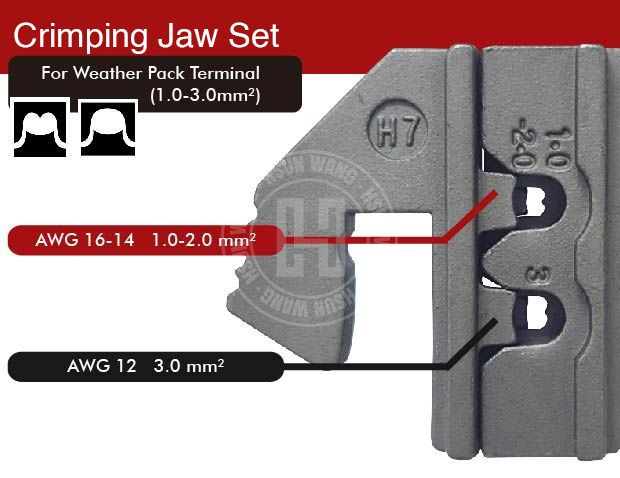

Jaw for Delphi Weather Pack Terminal -AWG 16-14/12
Item No. : J12JH7

Product Introduction

Item No. : J12JH7 Quick Change Crimping Jaw for Delphi Weather Pack Terminal -AWG 16-14/12

Suitable for
● AWG 16-14/12

● DIN 1.0-2.0/3.0 mm2

Confined crimp for: B Crimp(F Crimp)& Overlap crimp

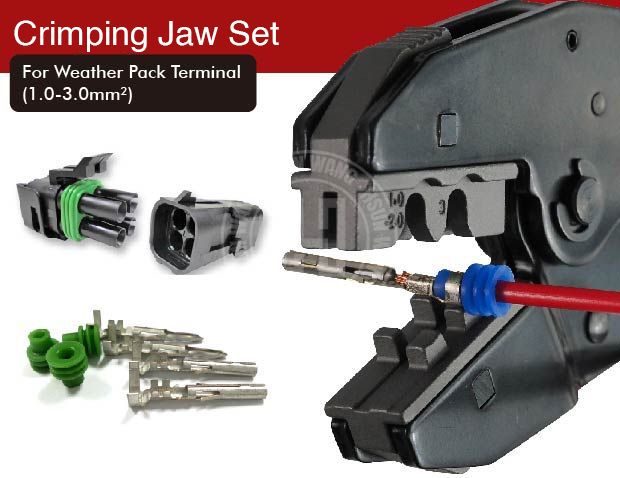

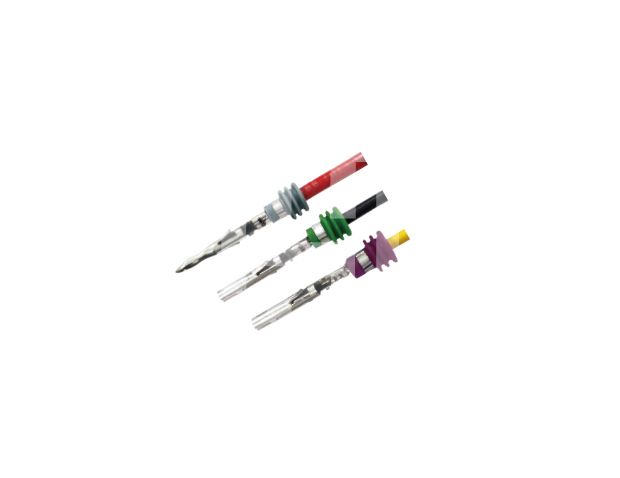

For Delphi Weather Pack Terminal &Metric-Pack 150 & 280 Seals
The jaw structure is precise to ensure firmly grasps the wires after crimping .

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural

For Delphi Weather Pack Terminal
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/16.1/17.1/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  66.9g
