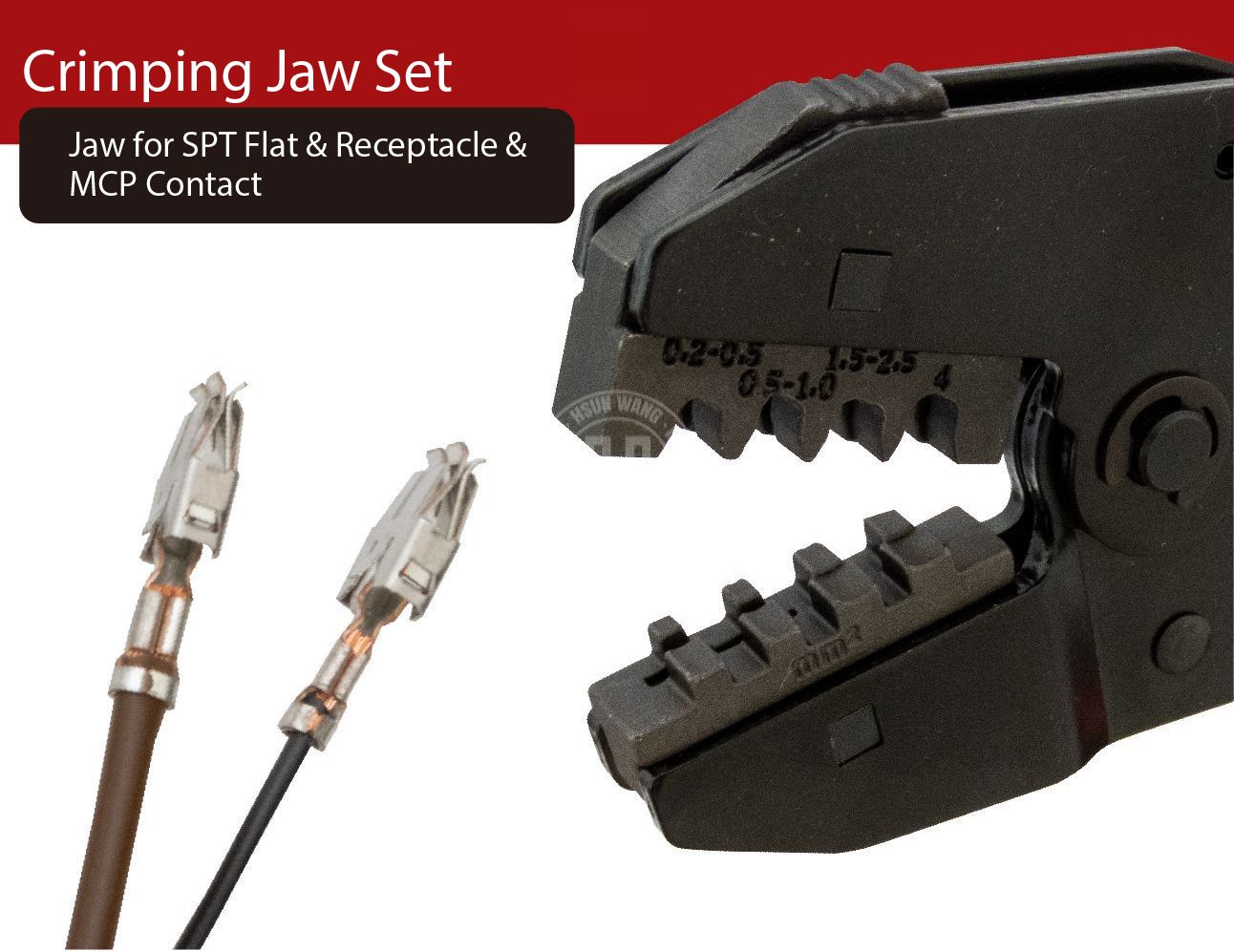

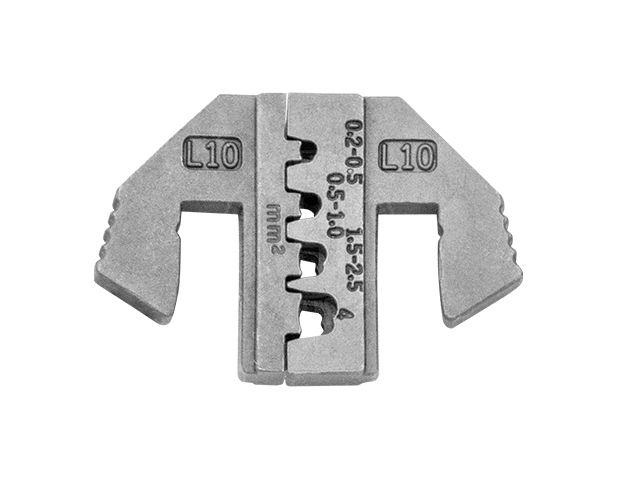

Jaw for SPT Flat & Receptacle & MCP Contact / Item No.: J12JL10

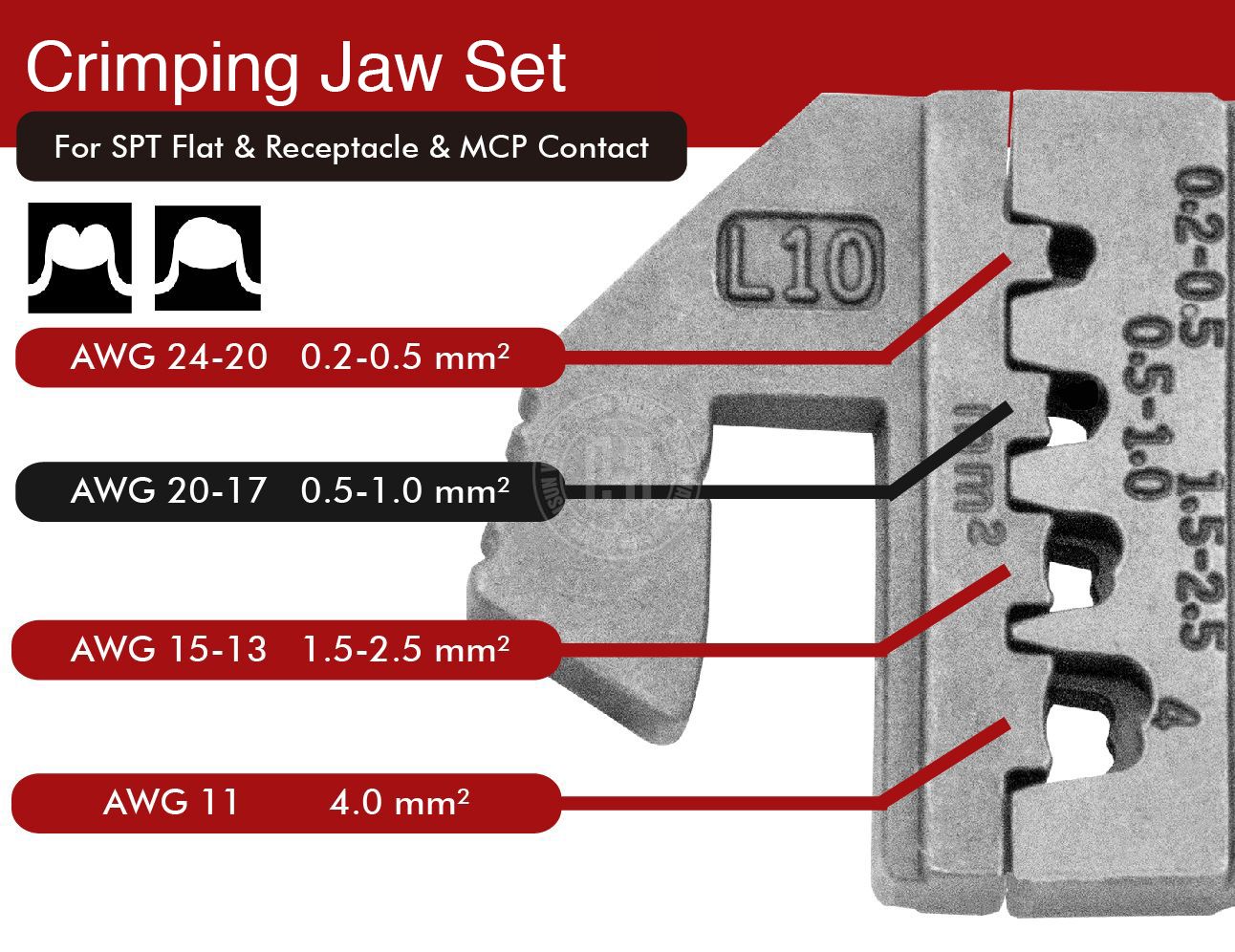

Item No. :J12JL10  Quick Change Crimping Jaw for SPT Flat & Receptacle & MCP Contact -AWG 24-20/20-17/15-13/11

Suitable for
● AWG 24-20/20-17/15-13/11

● DIN 0.2-0.5/0.5-1.0/1.5-2.5/4.0 mm²

Applicable: AUTO & HOME APPLIANCE CONTROL

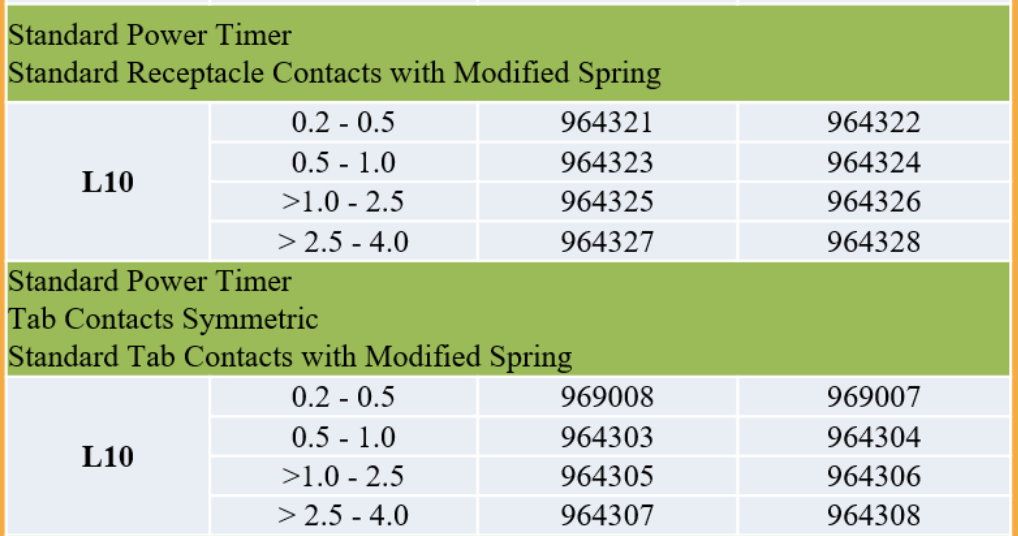

SPT:Standard Power Timer
MCP:Multiple Contact Point

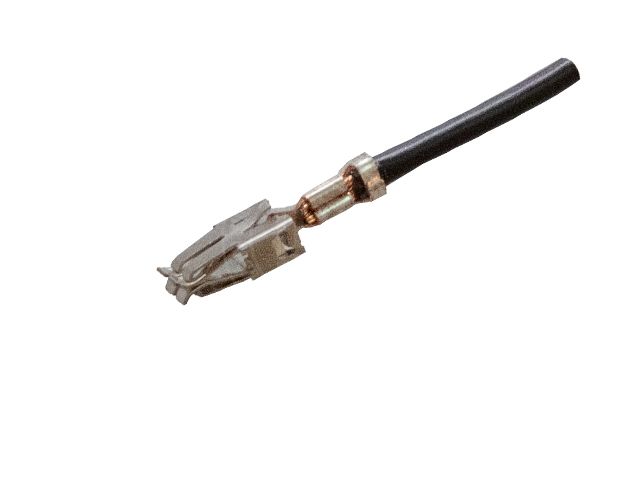

For TE SPT receptacle & tab contact and MCP contact

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/14.9/15.9/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm

For more information please contact us.
