Die for SPT Receptacle Contact(SWS) / Item No. :J12JL11

  •  quick change crimper jaw J12
  • Jaw for TE SPT Receptacle Contact J12JL11
  • J12JL11 Quick Change Crimping Jaw
  • TE SPT receptacle contacts J12JL11
  • made in taiwan J12JL11
For TE Timer Series

Die for SPT Receptacle Contact(SWS) / Item No. :J12JL11

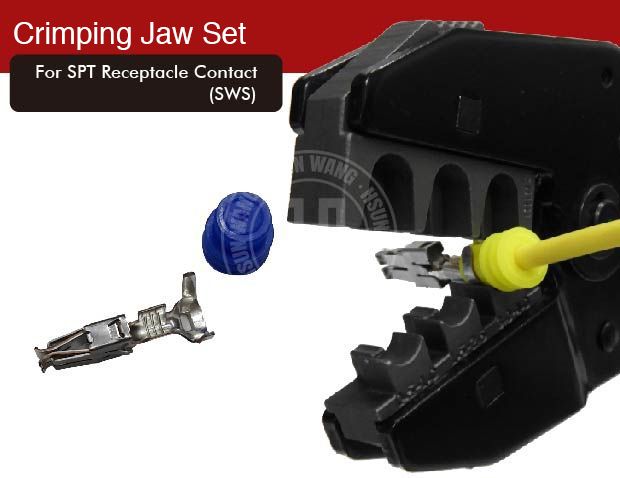

Quick Change Crimping Jaw for TE SPT Receptacle Contact(SWS) -AWG 20-17/17-13/13-11
Item No. :J12JL11

Product Introduction

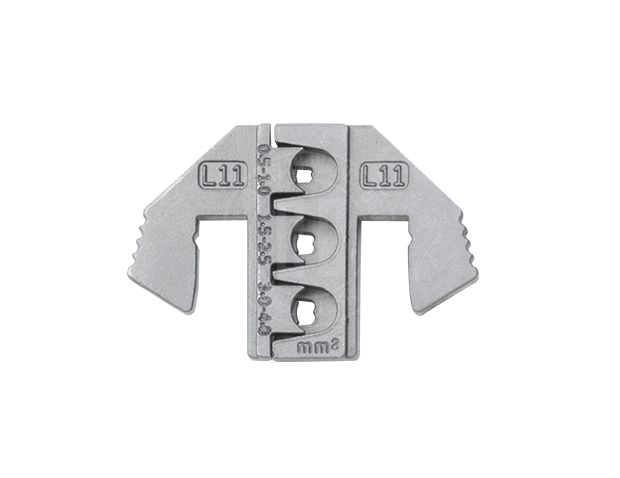

 Item No. :J12JL11 Quick Change Crimping Jaw for TE SPT Receptacle Contact(SWS) ★AWG 20-17/17-13/13-11

Suitable for

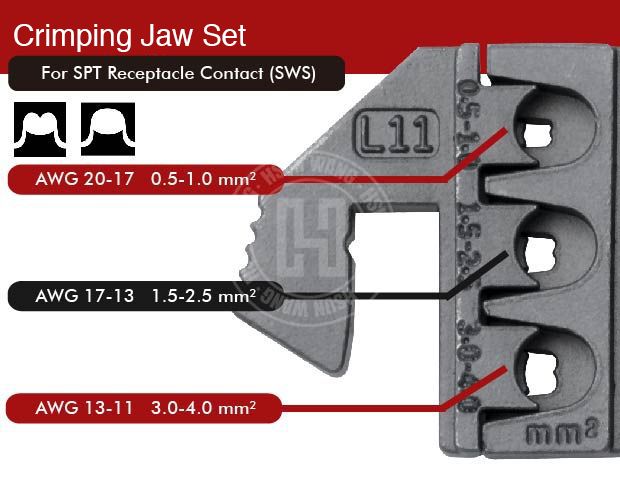

● AWG 20-17/17-13/13-11

● DIN 0.5-1.0/1.5-2.5/3.0-4.0 mm2

Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .

Applicable: AUTO & HOME APPLIANCE CONTROL

SPT:Standard Power Timer(SWS)

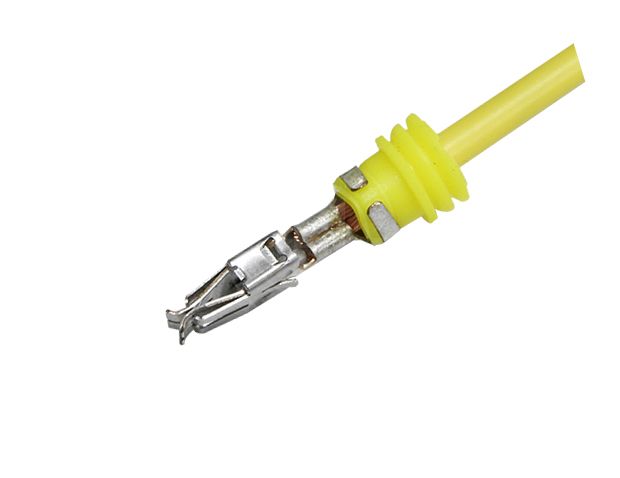

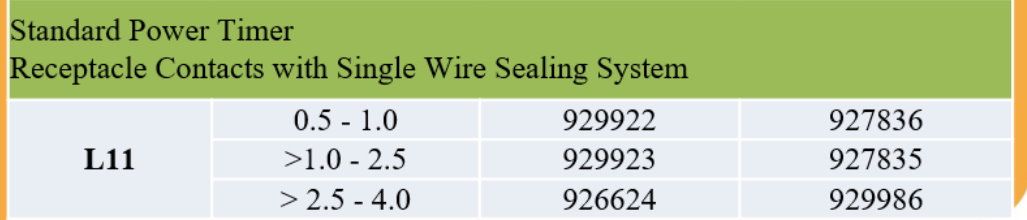

For TE SPT receptacle contacts :929922, 929923, 929924

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/14.9/15.9/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  62.2g
