For TE Timer Series
Product Introduction

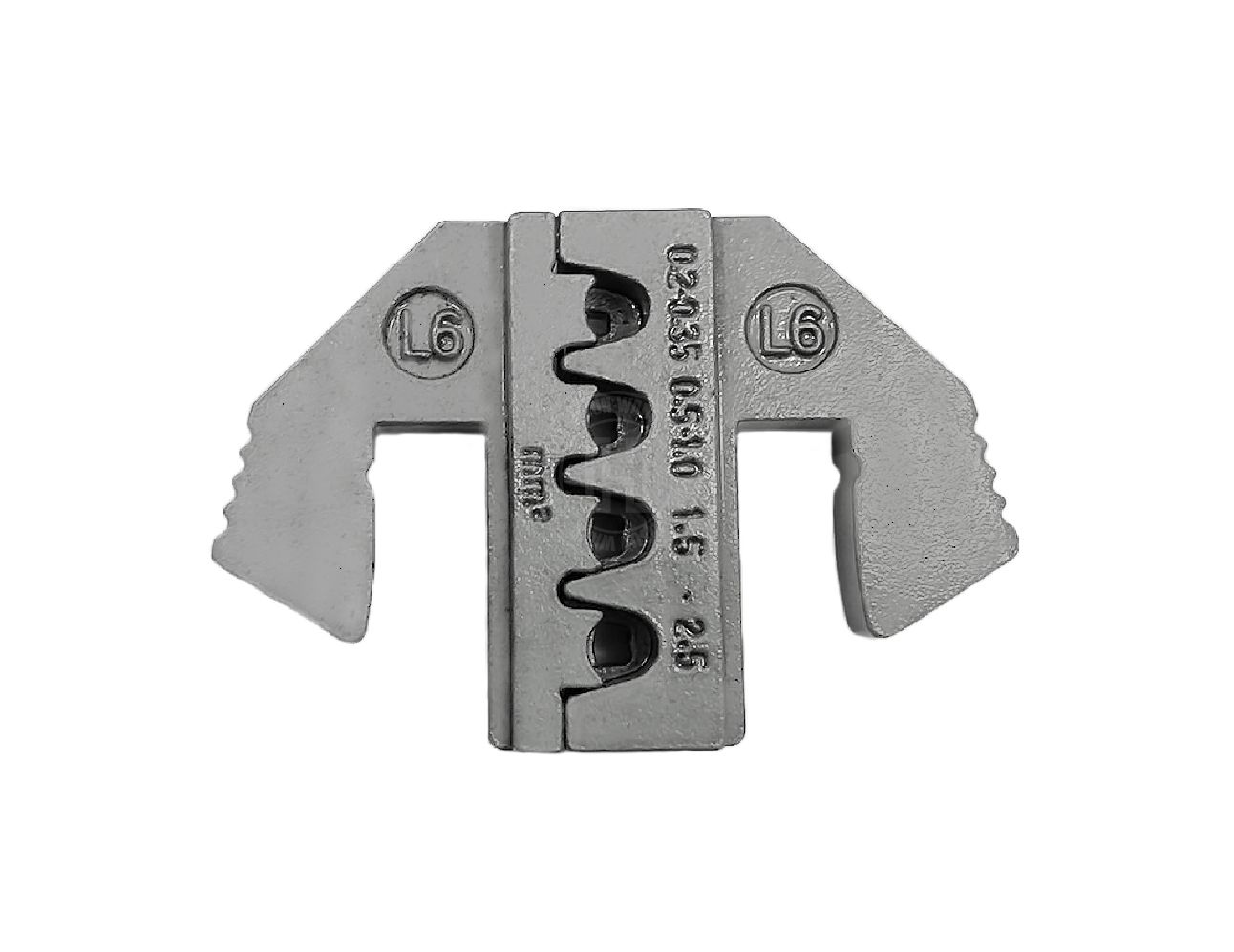

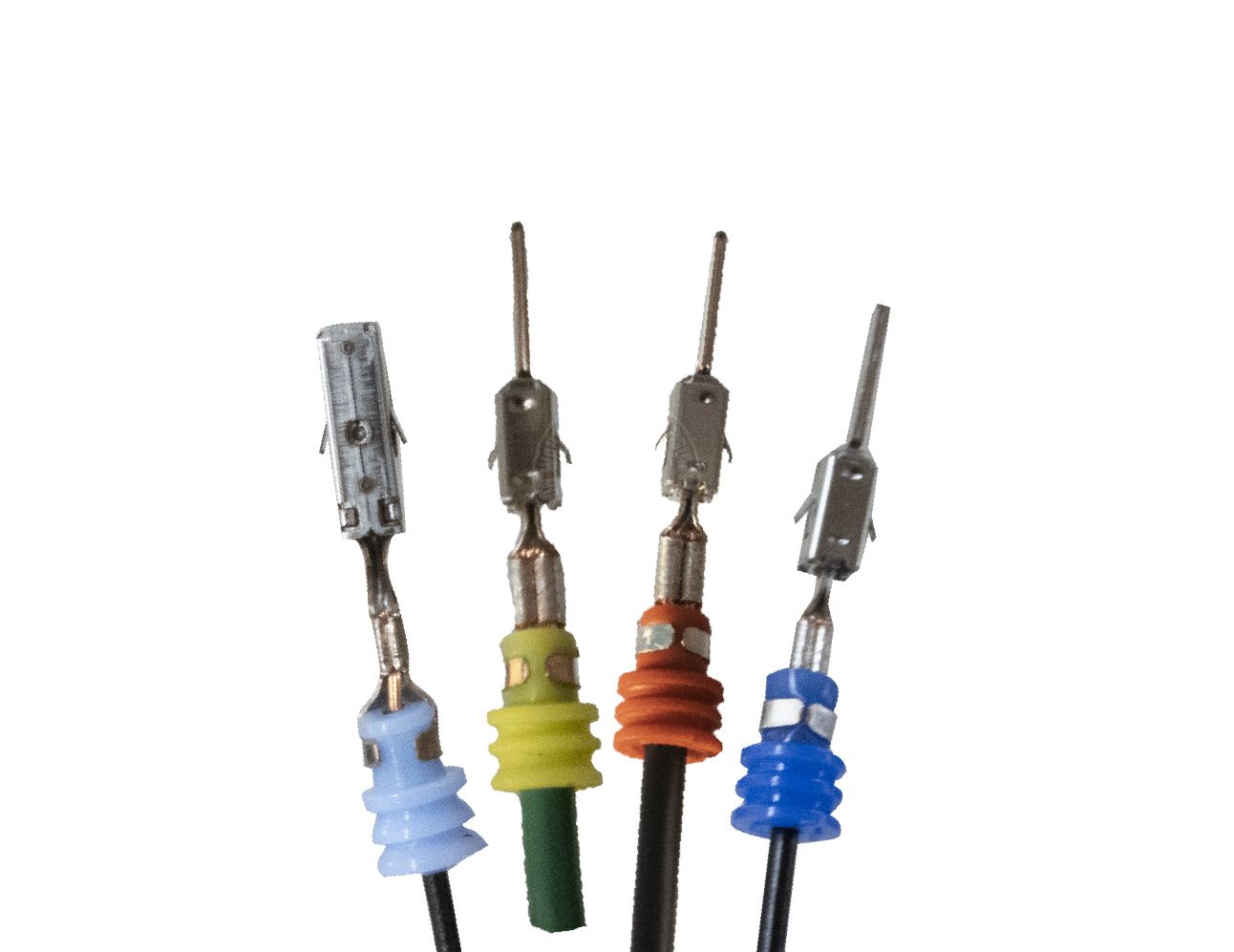

Item No. :J12JL6 Quick Change Crimping For MCP 2.8, JPT and Sensor Series Contact
Suitable for

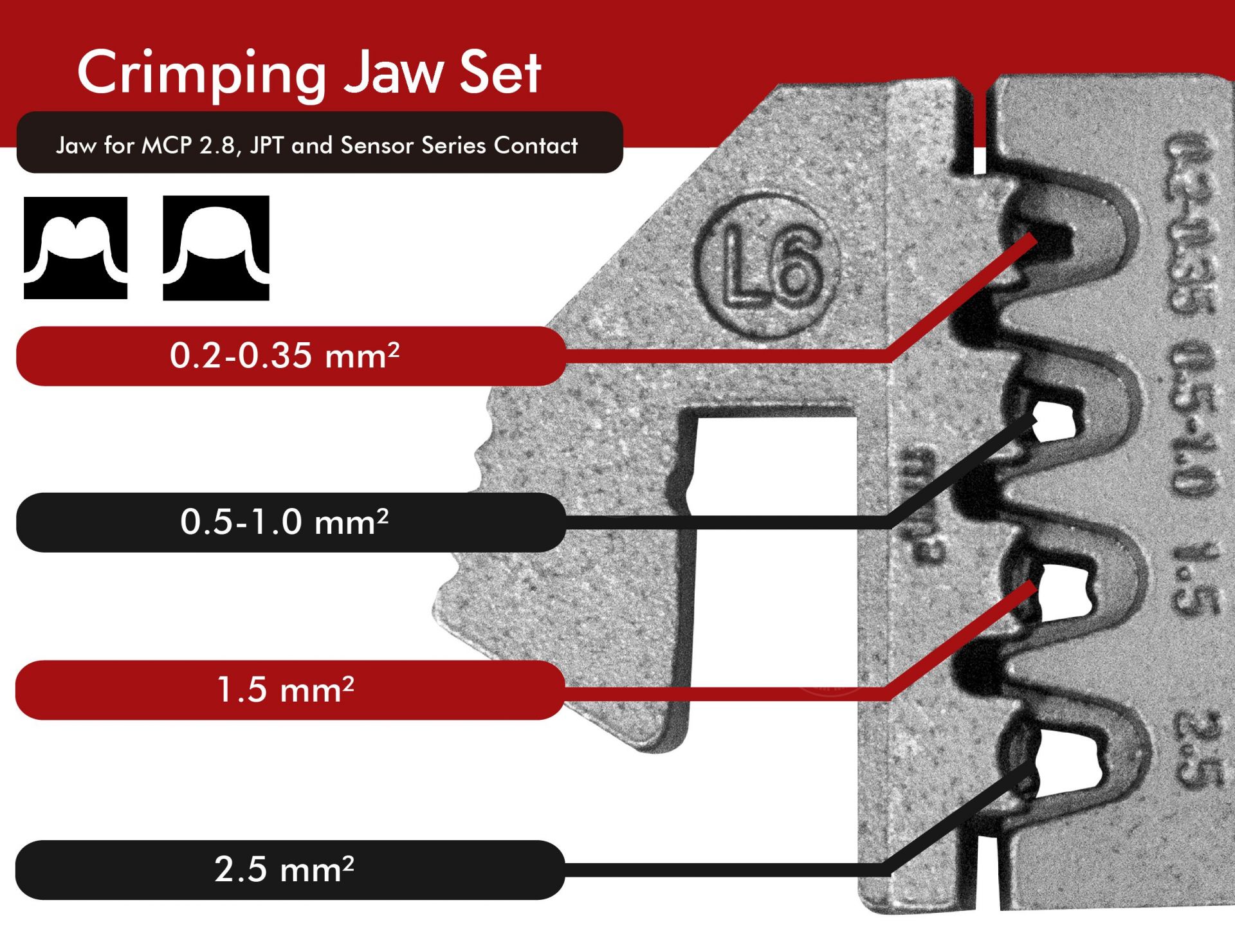

● DIN 0.2-0.35/0.5-1.0/1.5/2.5 mm2
Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .
Applicable: AUTO / HOME APPLIANCE CONTROL
Compatible with LiCrim Quick Change crimper frames system as below:
- 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
- 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
- 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
- 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
- 9" Professional Parallel Ratchet Crimper / Item No.: JFP

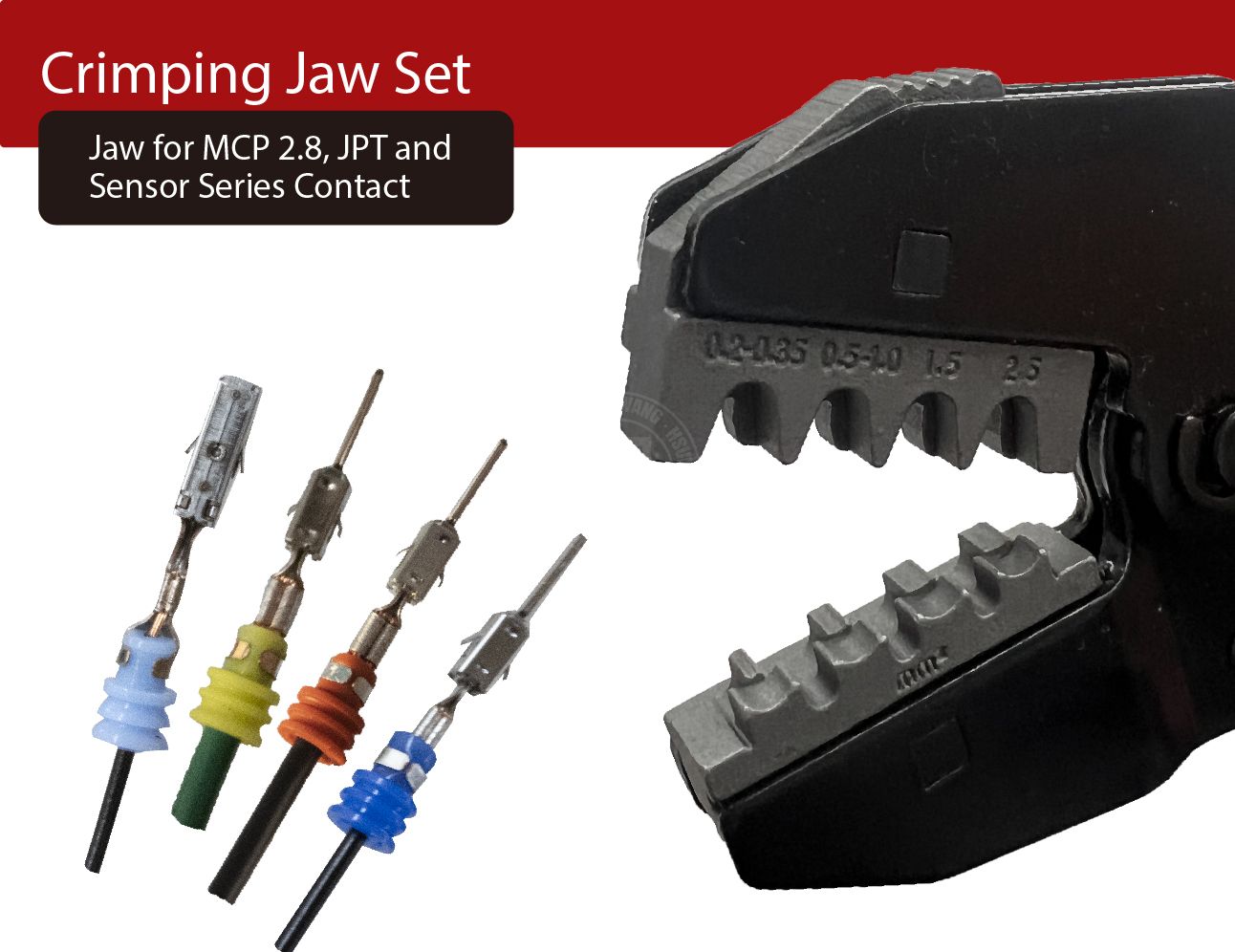

J12JL6 jaw is designed for versatile crimping of MCP 2.8, JPT, and sensor contacts. It supports multiple wire sizes from 0.2 to 2.5 mm² and delivers secure B/F and overlap crimps. Ideal for automotive and appliance control systems, this jaw ensures stable wire retention and consistent crimping performance across various terminal types.
Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan
Packing List: 120/240/CTN/14.6/15.6/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 60.8g
