Jaw for Yazaki YES/YESC 1.5 Sealed Terminal- Hsun Wang

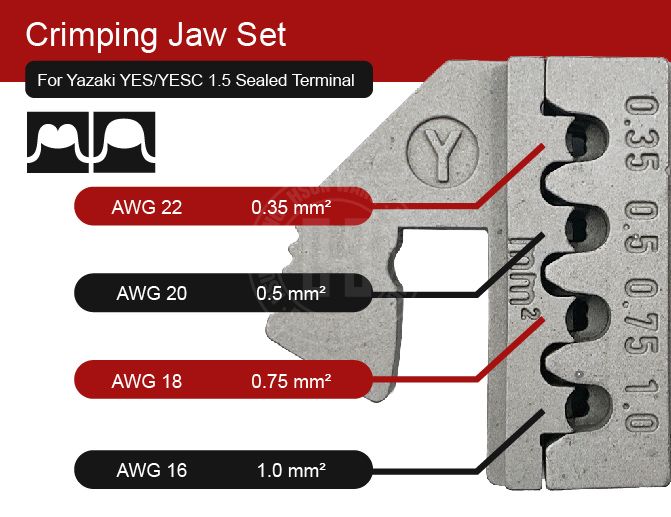

Item No. :J12JY Quick Change Crimping Jaw for Yazaki YES/YESC 1.5 Sealed Terminal - AWG 22/20/18/16

Suitable for
● AWG 22/20/18/16

● DIN 0.35/0.5/0.75/1.0 mm²

Confined crimp For B Crimp(F Crimp) .The jaw structure is precise to ensure firmly grasps the wires after crimping .

Applicable: AUTO

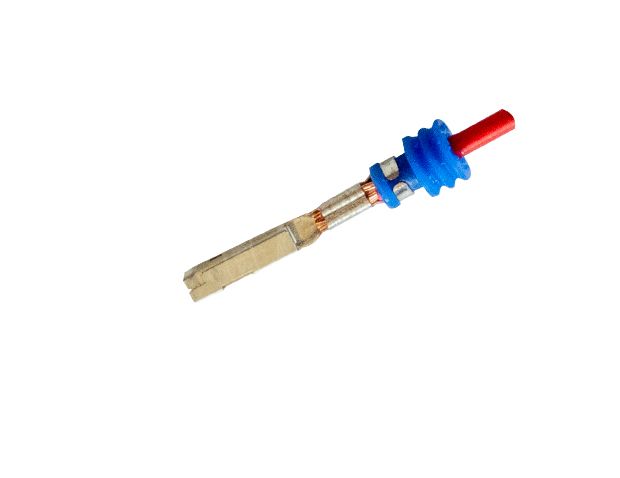

For Yazaki YES/YESC 1.5 Sealed Terminal ( Yazaki 1.5 x 0.8 Series terminals)

Compatible with LiCrim Quick Change crimper frames system as below:

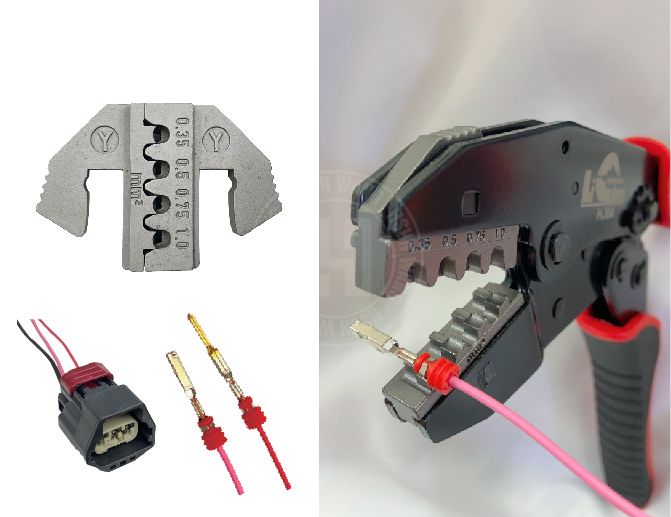

The J12JY Quick Change Crimping Jaw is precisely engineered for Yazaki YES/YESC 1.5 sealed terminals (1.5 × 0.8 mm series), supporting wire sizes AWG 22 to 16 (DIN 0.35–1.0 mm²). Designed for automotive wiring applications, this jaw delivers stable and secure B-type (F-crimp) connections, ensuring firm wire retention without damage. Compatible with all LiCrim Quick Change crimper frames (JD, JB, JE, JC, and JFP series), the J12JY enables fast, tool-free jaw replacement in just seconds—ideal for field technicians and production-line use.

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List: 120/240/CTN/14.9/15.9/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm

For more information please contact us.
