Jaw for Yazaki YES/YESC 1.5 Unsealed Terminal / Item No. :J12JY4

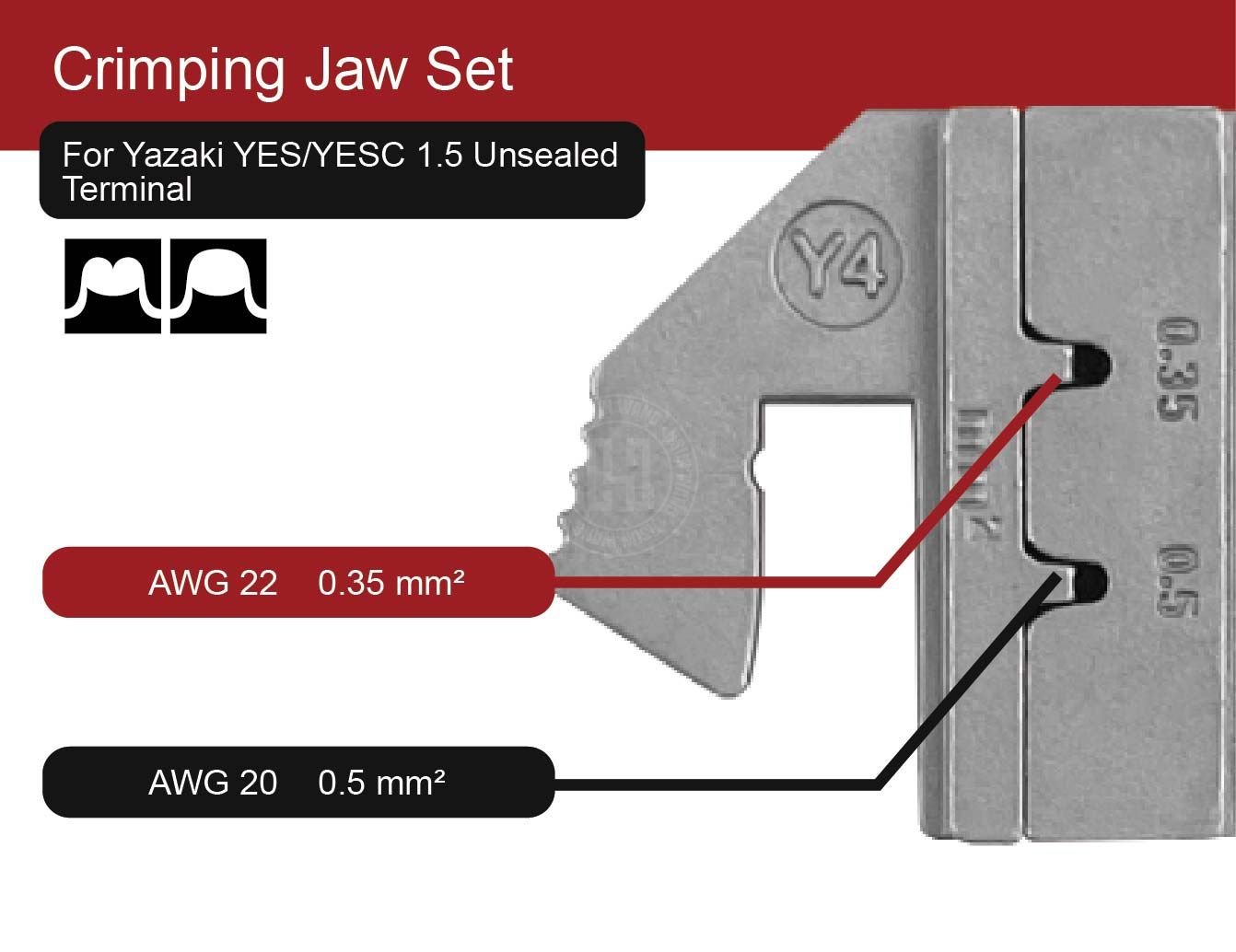

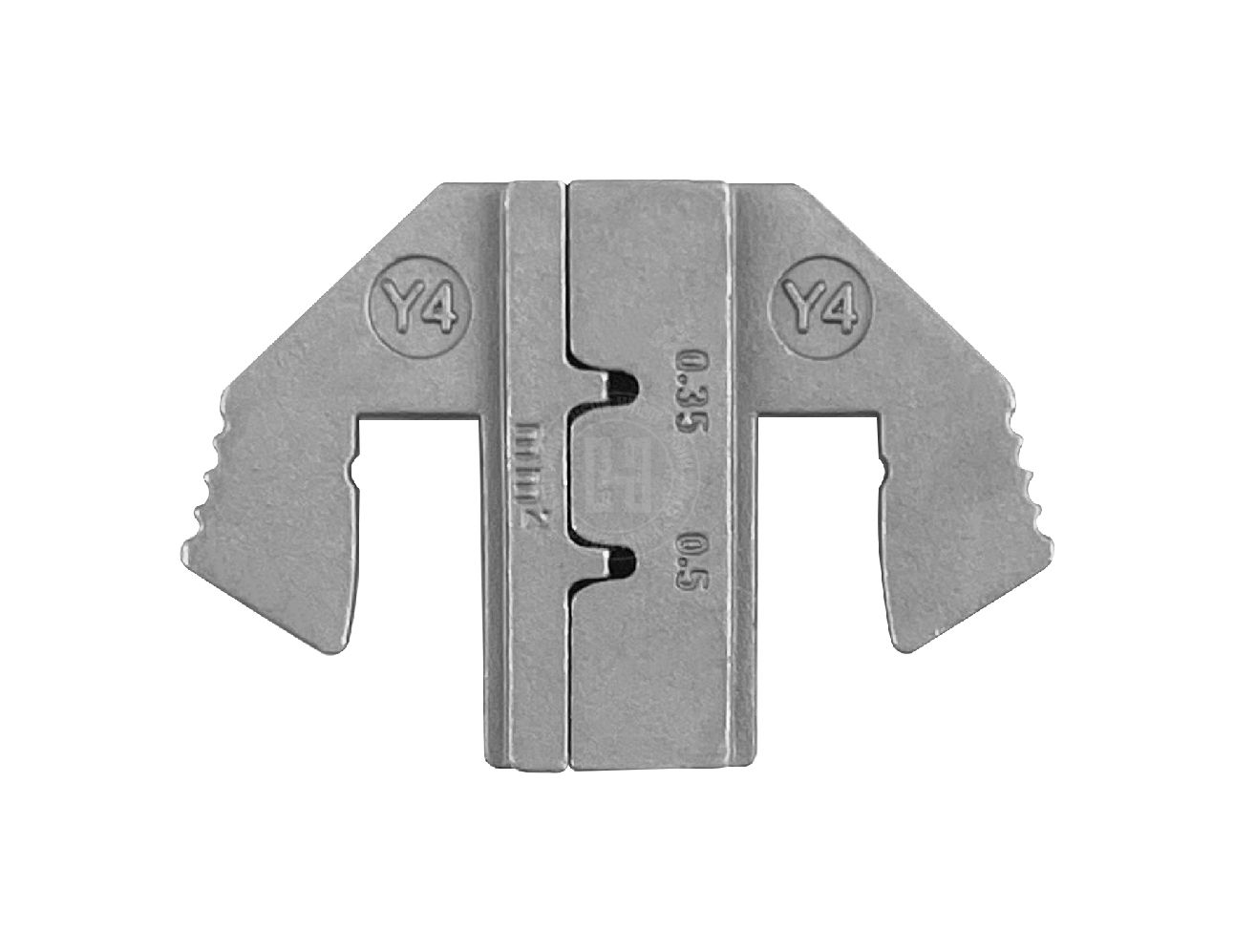

Item No.: J12JY4   Quick Change Crimping Jaw for Yazaki YES/YESC 1.5 Unsealed Terminal -AWG 16/14

Suitable for

● DIN 0.35/0.5 mm²

Confined crimp for wrap over crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping.

Applicable: AUTO

for Yazaki YES/YESC 1.5 Unsealed Terminal

Feature: Rennsteig jaw set P/N 624 1657 3 01 style

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
• 9" Professional Parallel Ratchet Crimper / Item No.: JFP

Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

The J12JY4 Quick Change Crimping Jaw is specially designed for Yazaki YES/YESC 1.5 unsealed terminals, supporting fine wire sizes from DIN 0.35 to 0.5 mm² (AWG 16/14). Featuring a confined wrap-over crimp cavity, this jaw ensures stable wire retention and consistent electrical contact without damaging the insulation.

Compatible with all LiCrim Quick Change crimping frames—JD, JB, JE, JC, and JFP series—this system allows fast jaw replacements in just 5 seconds without tools.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment .Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.

Designed in Germany. Made in Taiwan. Patented in the USA, Germany, China, and Taiwan.
Note: This jaw is not compatible with fixed die crimpers.

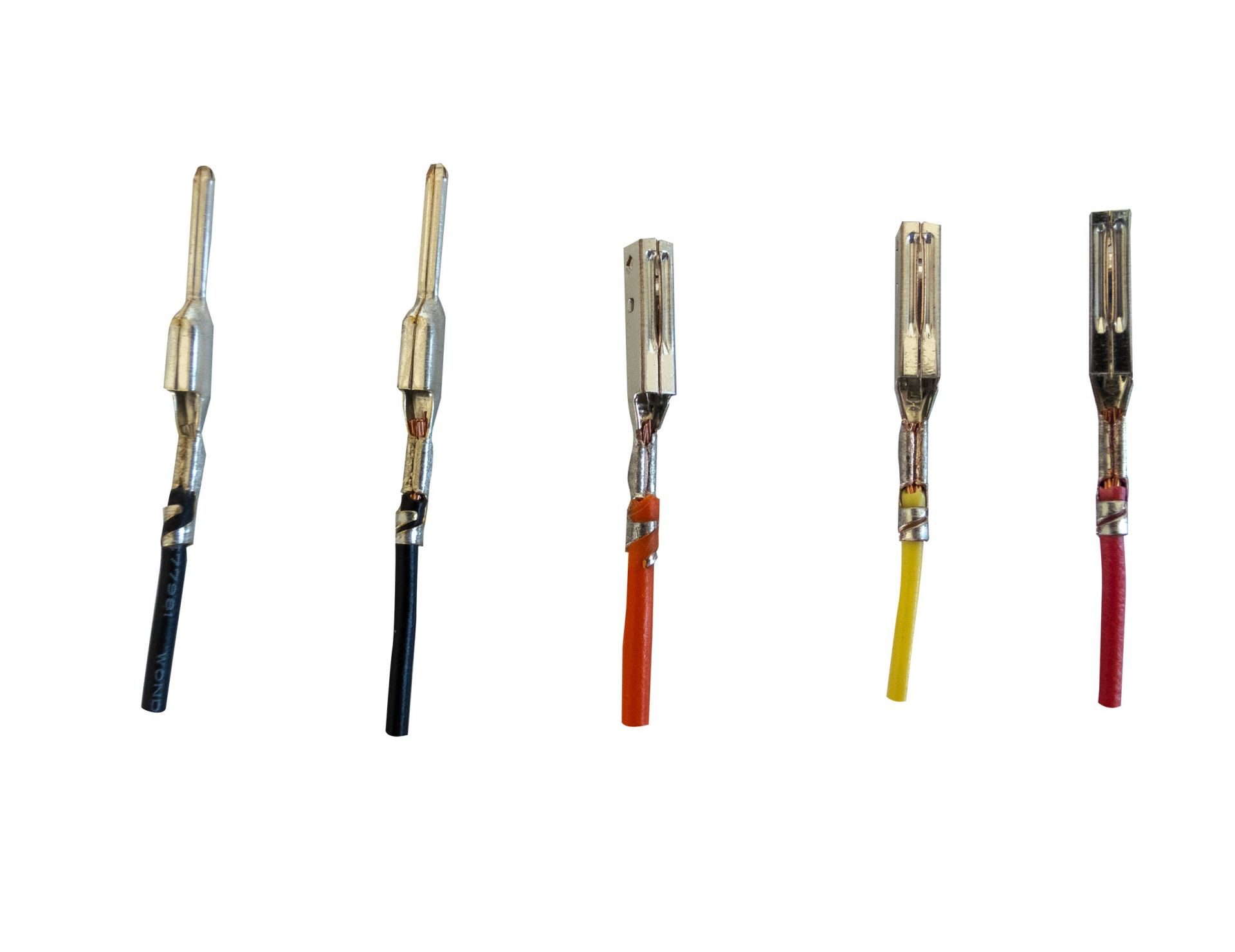

How to crimp Yazaki YES/YESC 1.5 Unsealed connectors ( Y4 jaw) Quick Change Ratchet Crimper Series

Packing List:  120/240/CTN/16.2/17.2/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm

For more information please contact us.
