Jaw for Yazaki YES/YESC 0.64x0.64 Unsealed Terminal/ Item No.: J12JY5

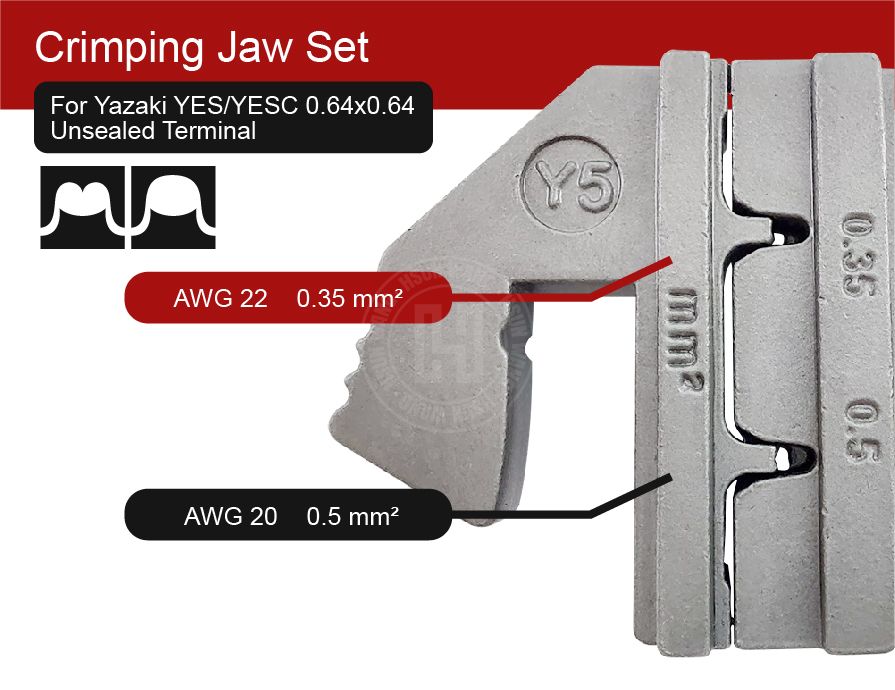

Item No. J12JY5       Jaw for Yazaki YES/YESC 0.64x0.64 Unsealed Terminal

Suitable for

• AWG 22/20
• DIN 0.35/0.5 mm²

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
• 9" Professional Parallel Ratchet Crimper / Item No.: JFP

Confined crimp For B Crimp (F Crimp). The jaw structure is precise to ensure firmly grasps the wires after crimping.

Applicable: AUTO

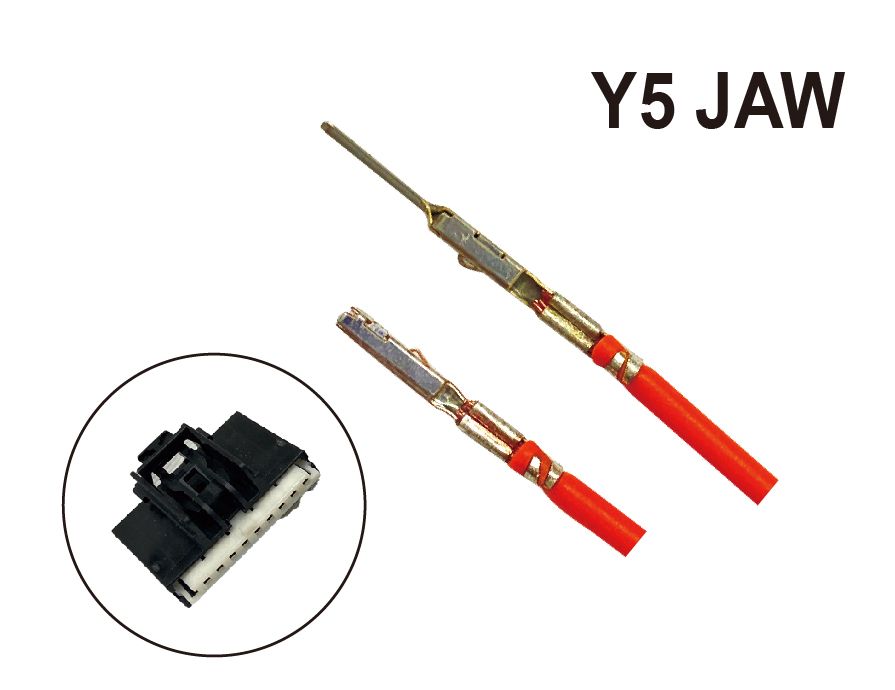

This precision-engineered crimping jaw is specifically designed for Yazaki YES/YESC 0.64x0.64 unsealed terminals, ensuring stable B-crimp (F-crimp) performance with excellent wire retention.

Supports wire sizes AWG 22 / 20 and DIN 0.35 / 0.5 mm², making it ideal for automotive wiring applications.
The quick-change mechanism allows tool-free jaw replacement in under 5 seconds—slide in, slide out.
Patented in the USA, Germany, China, and Taiwan.
Designed in Germany, made in Taiwan.

Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment

Packing List: 120/240/CTN/15.7/16.7/KGS/1.2'
                       Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 65.4g

For more information please contact us.
