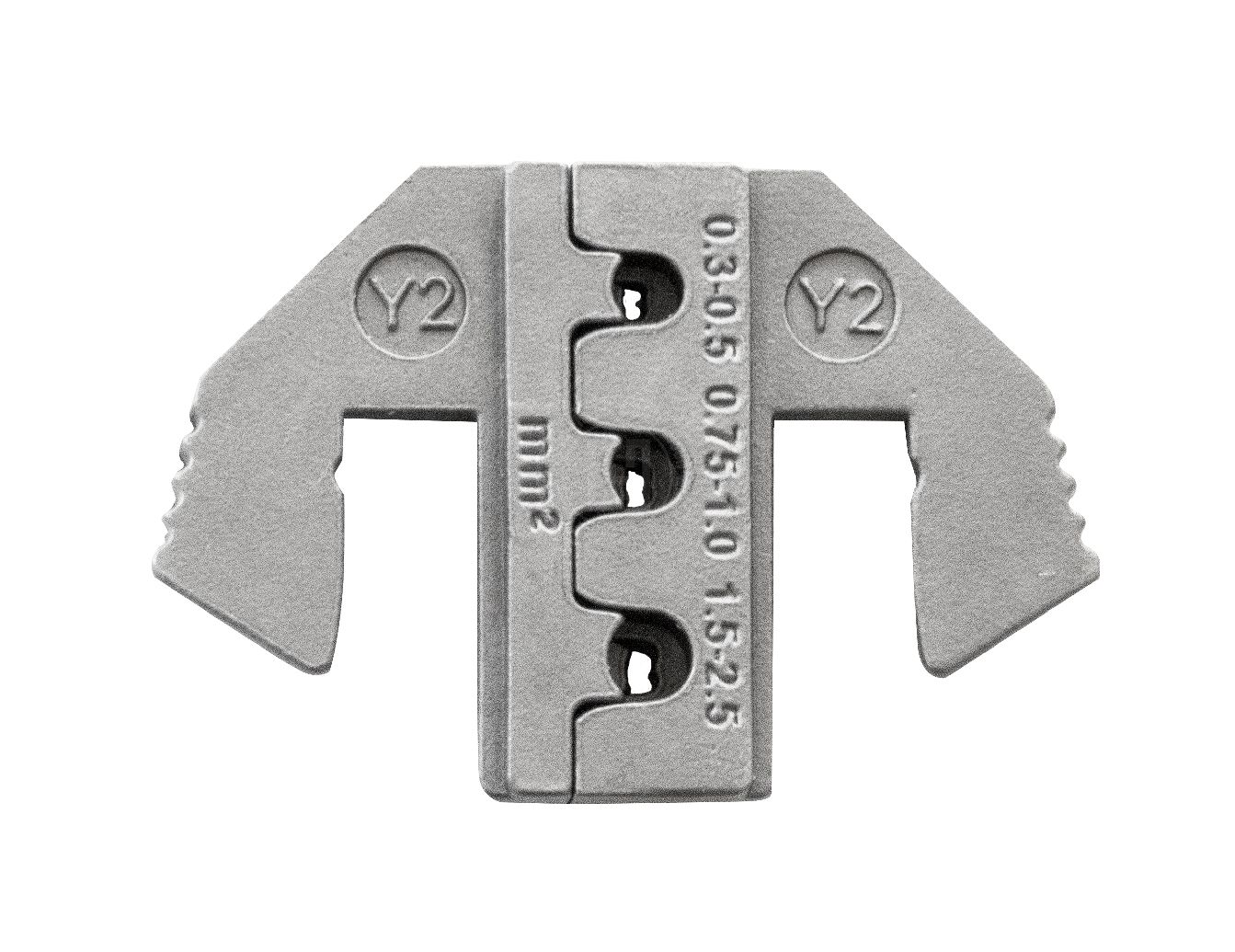

Item No. :J12JY2 Quick Change Crimping Jaw for Yazaki YES/YESC 2.8 Sealed Terminal
Suitable for

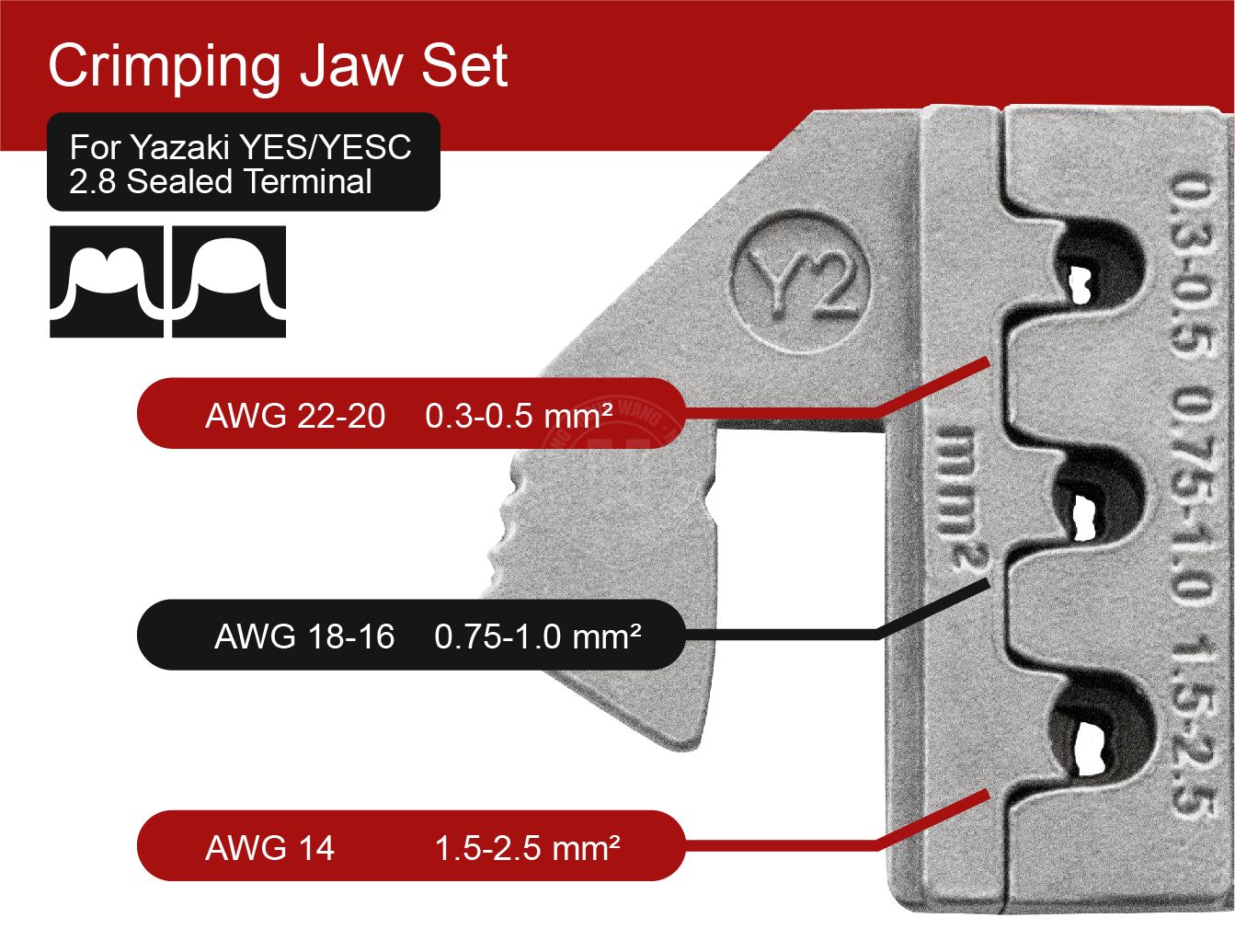

● AWG 22-20/18-16/14
● DIN 0.3-0.5/0.75-1.0/1.5-2.5 mm2
Confined crimp For B Crimp(F Crimp). The jaw structure is precise to ensure firmly grasps the wires after crimping .
Applicable: AUTO

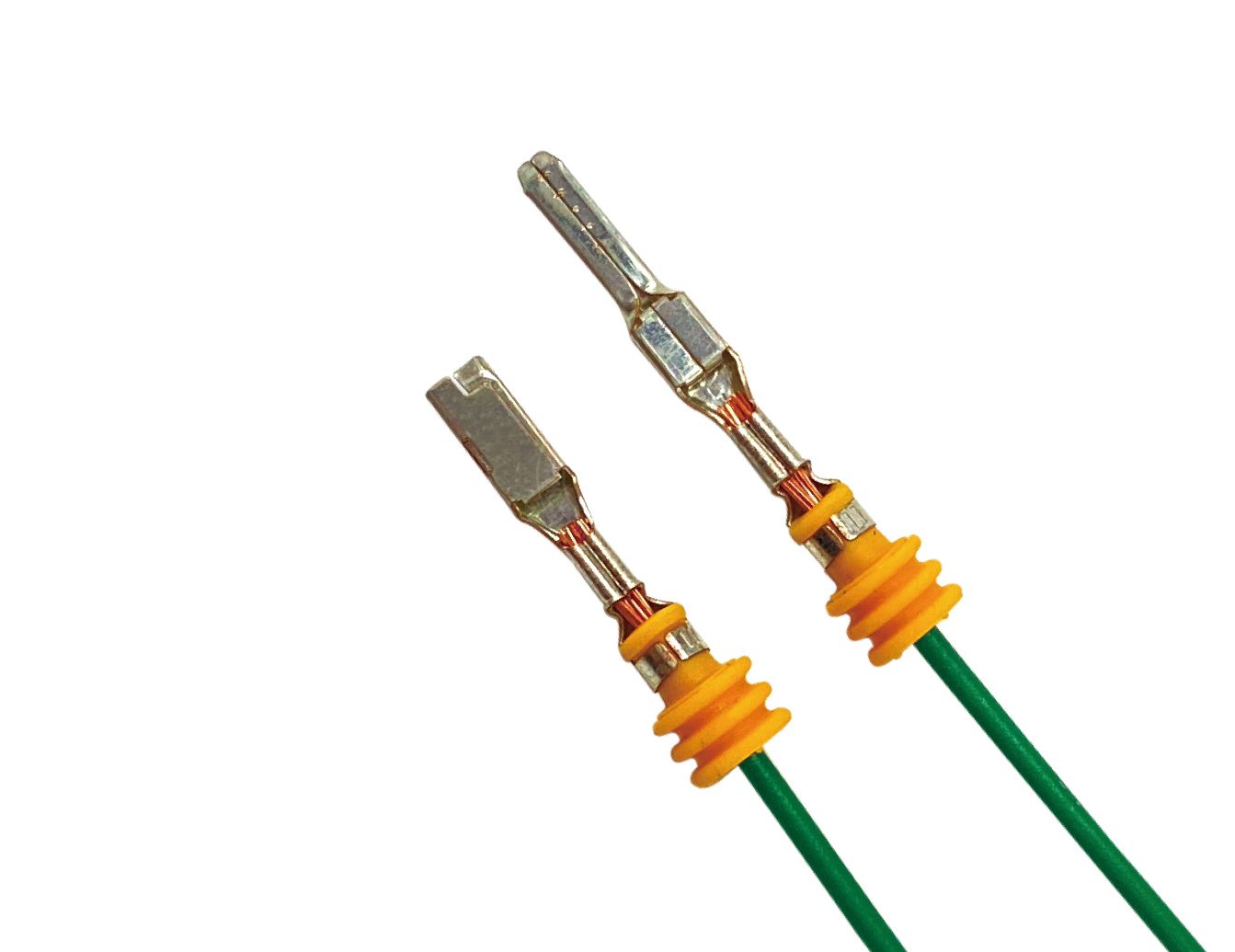

The J12JY2 crimping jaw is specifically designed for secure and precise crimping of Yazaki YES/YESC 2.8 sealed terminals. It supports a wide conductor range from AWG 22 to 14 (DIN 0.3–2.5 mm²), making it ideal for automotive applications that demand high reliability.
Featuring a B Crimp (F Crimp) cavity, this jaw ensures full conductor contact, optimal grip, and seal integrity without damaging the insulation. The quick-change design allows users to replace jaws in just 5 seconds—no tools required.
Compatible with LiCrim Quick Change crimper frames system as below:
●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed in Germany, Made in Taiwan.
Patented in the USA, Germany, China, and Taiwan.
Packing List: 120/240/CTN/17.1/18.1/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 71.1g
For more information please contact us.
