For Yazaki Contacts
Product Introduction

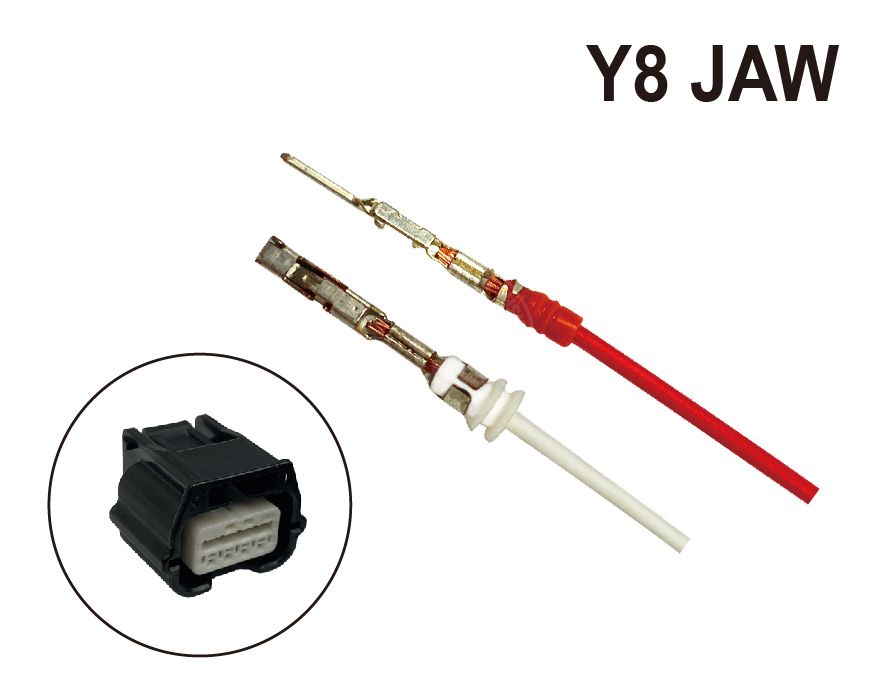

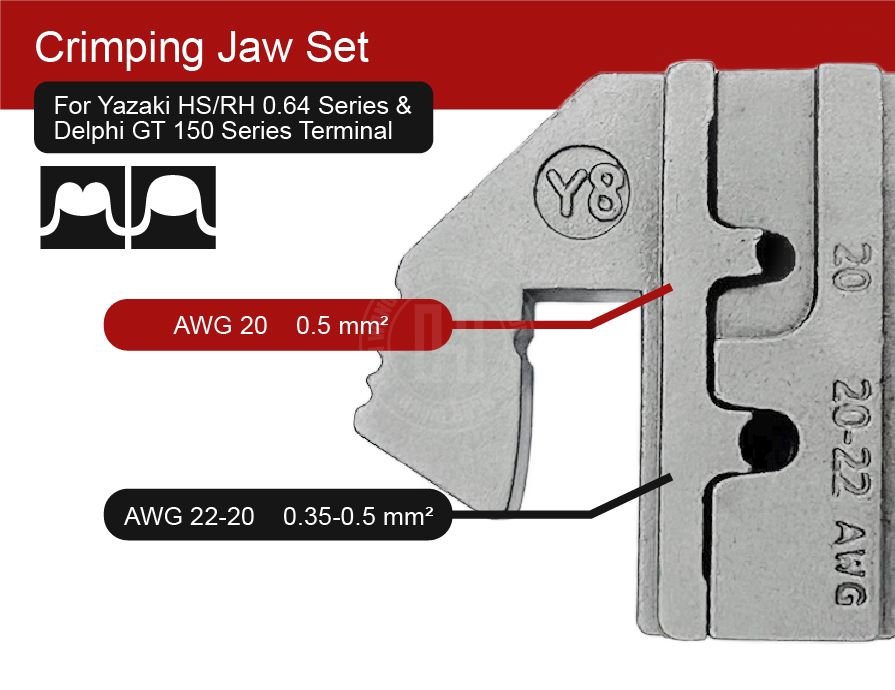

Item No. J12JY8 Jaw for Yazaki HS/RH 0.64 Series & Delphi GT 150 Series Terminal
Suitable for
● AWG 20/22-20
● DIN 0.5/0.35-0.5 mm2
Confined crimp For B Crimp(F Crimp) .The jaw structure is precise to ensure firmly grasps the wires after crimping .
Applicable: AUTO
This precision-engineered jaw is designed for Yazaki HS/RH 0.64 Series terminals and Delphi GT 150 Series terminals, supporting confined B-crimp (F-crimp) applications for secure and reliable wire connections. It is ideal for automotive electrical systems, and supports AWG 20–22 to 20 and DIN 0.35–0.5 mm² wire sizes.
Compatible with LiCrim Quick Change crimper frames system as below:
- 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
- 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
- 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
- 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
- 9" Professional Parallel Ratchet Crimper / Item No.: JFP
●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
Packing List: 120/240/CTN/15.9/16.9/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 66.3g
