For Yazaki From 0.64 to 2.8 Seal Series Kit / Item No. : JFBC20

Item No.: JFBC20     For Yazaki From 0.64 to 2.8 Seal Series Kit

• Jaw for Yazaki YES/YESC 1.5 Sealed Terminal (J12-Y) ★

• Jaw for Yazaki YES/YESC 2.8 Sealed Terminal (J12-Y2) ★

• Jaw for Yazaki & Sumitomo 2.3II/ TS90II-Series Terminal (J12-Y6) ★

• Jaw for Yazaki HS/RH 0.64 Series & Delphi GT 150 Series Terminal (J12-Y8) ★

• 9" Pro Quick Change Ratchet Crimper (JF)

 ★Designed by Germany. Made in Taiwan.

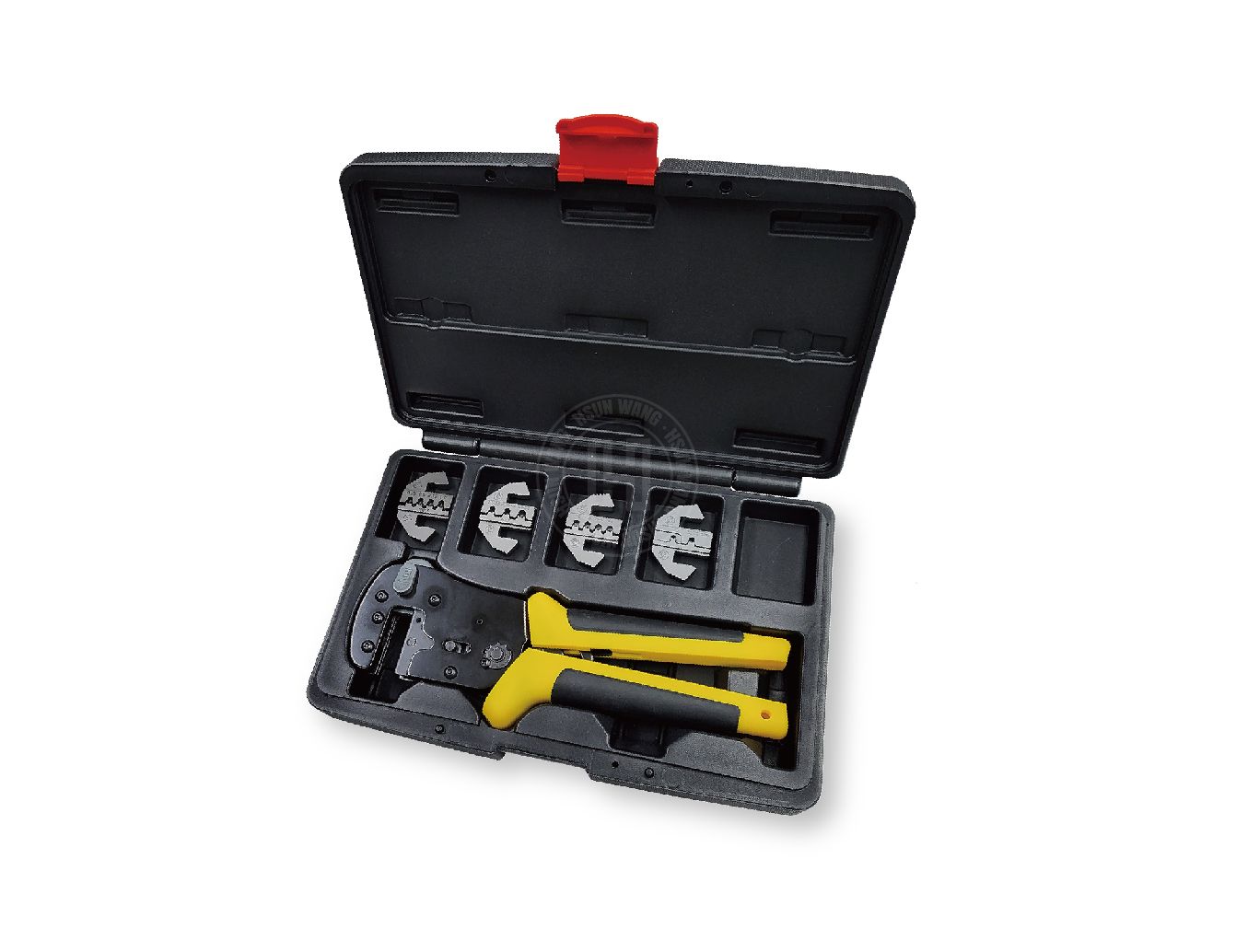

The JFBC20 Ratchet Crimping Kit is specially designed for secure and precise crimping of Yazaki YES/YESC, Sumitomo TS90II, and Delphi GT 150 sealed terminals. This professional-grade set includes four interchangeable jaws (J12-Y, Y2, Y6, Y8), supporting a wide range of AWG 22 to 14 / DIN 0.35 to 2.5 mm² terminals.

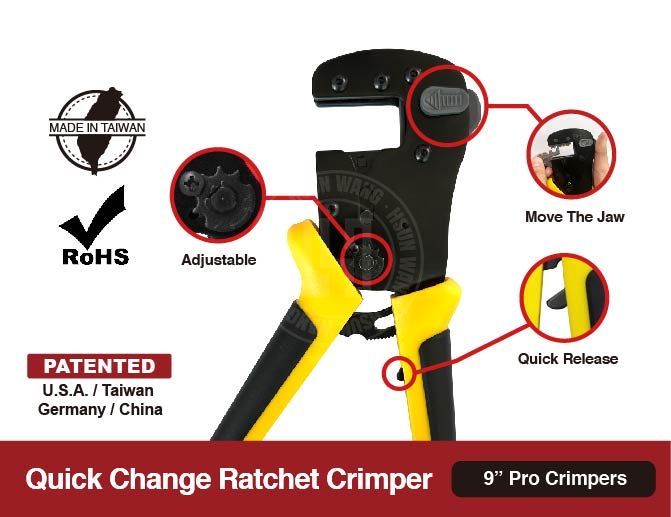

Equipped with a 90-degree crimping head, this tool is designed to eliminate the rotational angle misalignment between the crimping jaw and terminal during operation—ensuring more accurate alignment and consistent crimping results, especially in confined spaces. The quick-change jaw system allows users to replace jaws within seconds, without the need for extra tools.

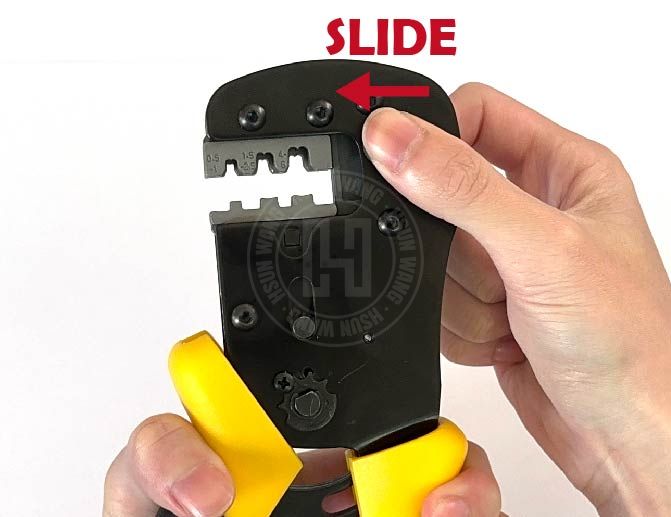

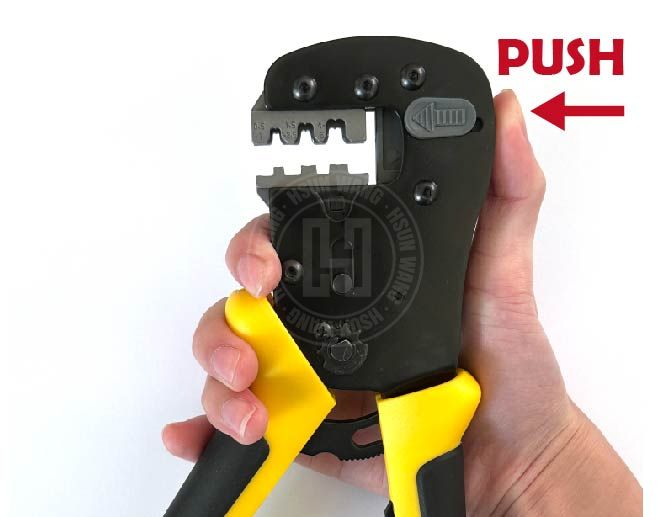

For best performance, we recommend using open barrel-type terminals, which pair perfectly with the tool's vertical jaw motion to avoid rotational misalignment during crimping. The tool also features a dual-mode jaw release—choose between push-button or slide-switch ejection for fast, user-friendly operation.

All jaws are designed in Germany and manufactured in Taiwan, ensuring long-lasting precision and durability.

Key Features:

• 90° angled crimping head to reduce terminal-jaw rotation misalignment

• Includes jaws for Yazaki 0.64 to 2.8 mm and Delphi GT 150 terminals

• Supports AWG 22–14 / DIN 0.35–2.5 mm²

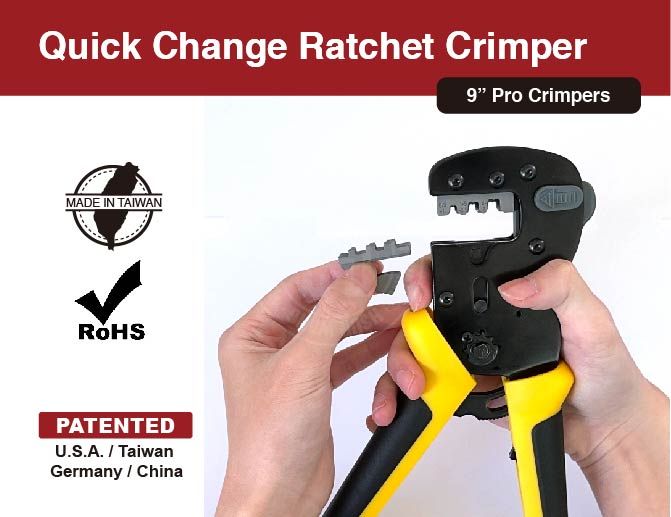

• Quick-change jaw system; no tools required

• Dual jaw release: push-button and slide-switch

• Recommended for open barrel sealed terminals

• Designed in Germany. Made in Taiwan.

Packing List: 10/CTN/12.4/13.4/KGS/1.2'

                        Blow Case and Color Sleeve

Blow Case Size: 28 x 19.5 x 5 cm

Unit Weight: 1.24kgs

For more information, please contact us.
