For Yazaki Contacts
Product Introduction

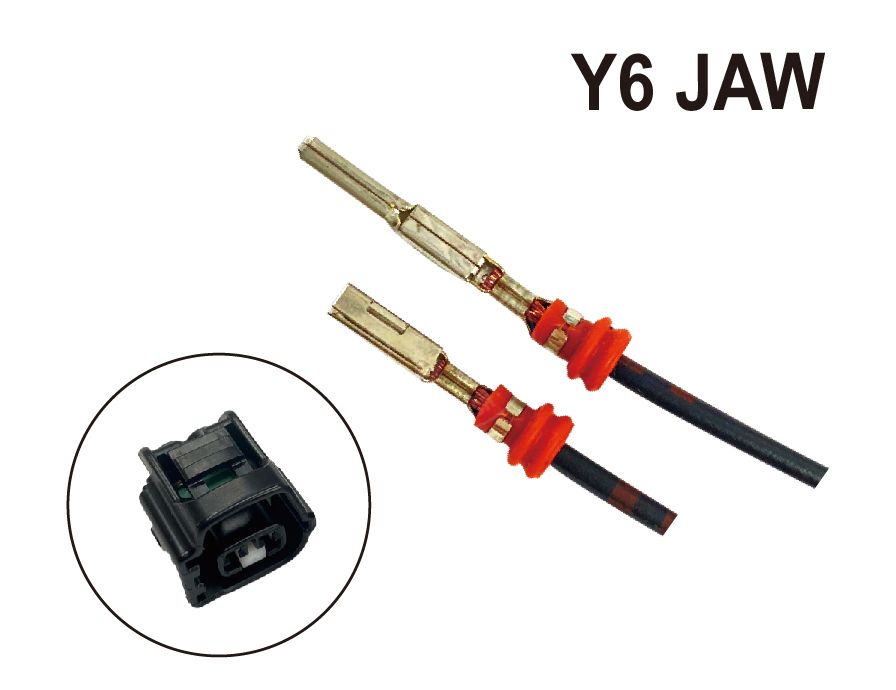

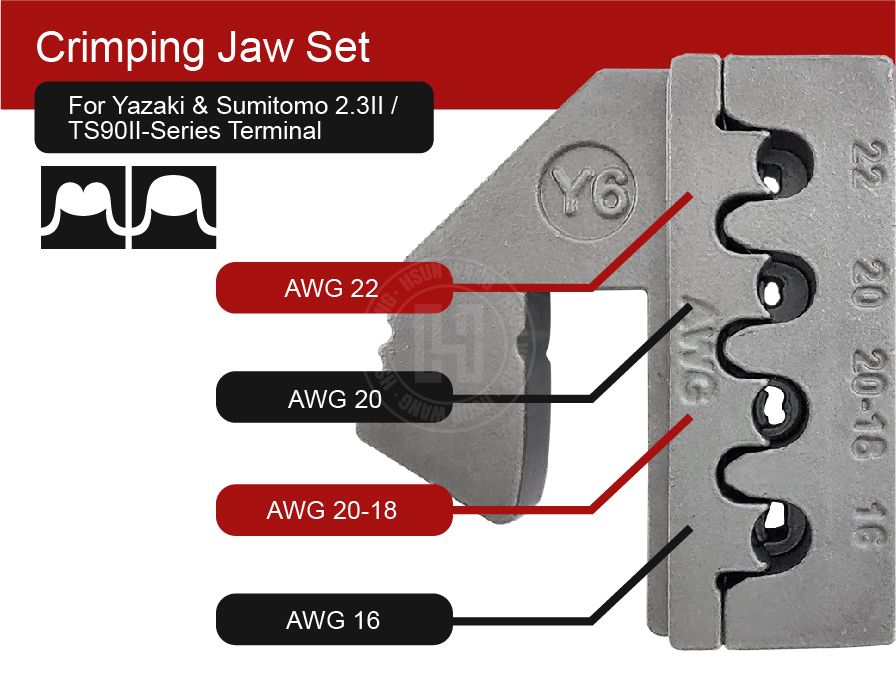

Item No. J12JY6 Jaw for Yazaki & Sumitomo 2.3II/ TS90II-Series Terminal
Suitable for
● AWG 22/20/20-18/16
Confined crimp For B Crimp(F Crimp) .The jaw structure is precise to ensure firmly grasps the wires after crimping .
Applicable: AUTO
Compatible with LiCrim Quick Change crimper frames system as below:
- 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
- 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
- 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
- 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
- 9" Professional Parallel Ratchet Crimper / Item No.: JFP
●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
The J12JY6 Quick Change Crimping Jaw is engineered for precise and secure crimping of Yazaki and Sumitomo 2.3II / TS90II-Series terminals, supporting a wide wire range of AWG 22 to 16. Its confined B Crimp (F Crimp) cavity ensures full conductor contact and reliable electrical performance without damaging insulation.
Compatible with all LiCrim quick-change crimping frames—including JD, JB, JE, JC, and JFP series—this jaw enables tool-free replacement in just 5 seconds.
Designed in Germany. Made in Taiwan.
Patented in the USA, Germany, China, and Taiwan.
Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Packing List: 120/240/CTN/15.1/16.1/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 63g
For more information please contact us.
