Die for Deutsch Contact DTM(Stamped & Formed) / Item No. :J12JK5

  • deutsch Stamped & Formed J12JK5 Quick Change Crimping Jaw
  • Deutsch DTM connector crimper J12JK5 Stamped & Formed
  • Jaw for  TE Deutsch Contact J12JK5 Stamped & Formed
  • J12JK5 DTM crimper deutsch Stamped & Formed
  • Deutsch DTM connector  crimper J12JK5 Stamped & Formed
  • Overlap crimp J12JK5 deutsch Stamped & Formed
  • Made in Taiwan J12JK5
For TE Deutsch Contacts

Die for Deutsch Contact DTM(Stamped & Formed) / Item No. :J12JK5

Quick Change Crimping Jaw for TE Deutsch Contact(Stamped & Formed) (DTM) -AWG 20/18/16
Item No. :J12JK5

Product Introduction

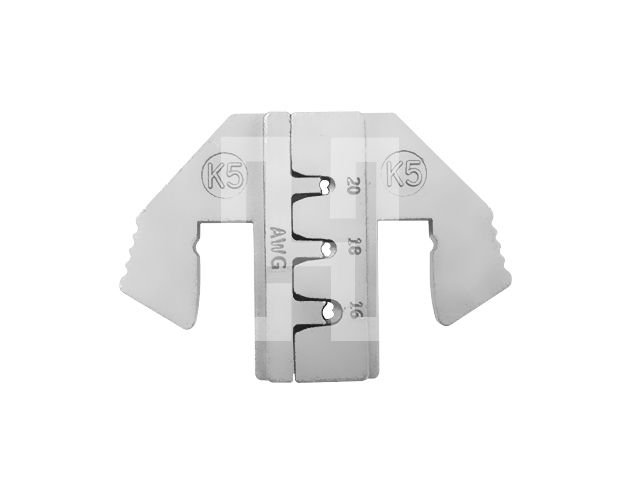

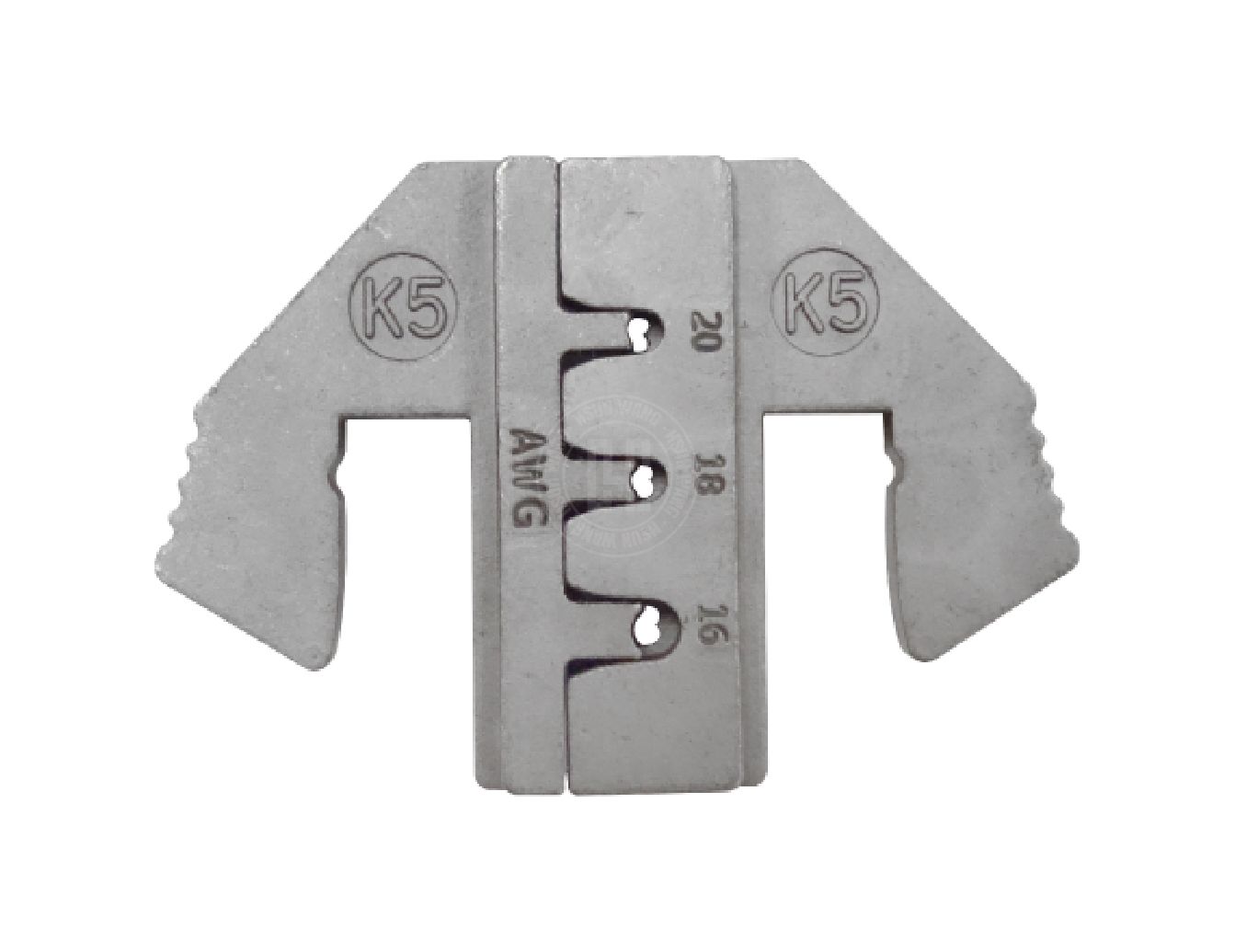

 Item No. :J12JK5 Quick Change Crimping Jaw for  TE Deutsch Contact(Stamped & Formed) (DTM) - AWG 20/18/16

Suitable for

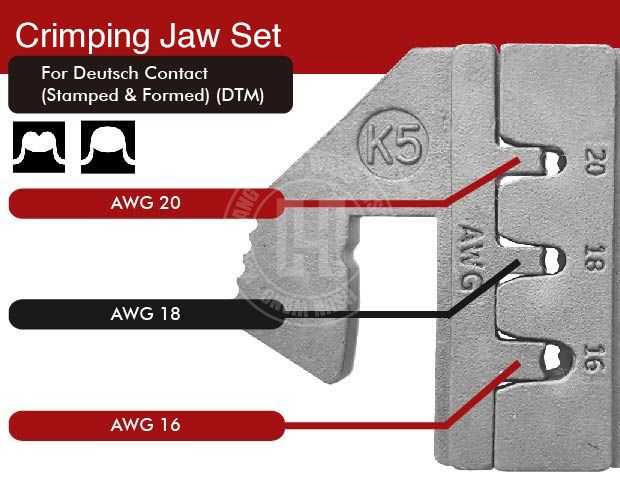

● AWG 20/18/16

● For DTM

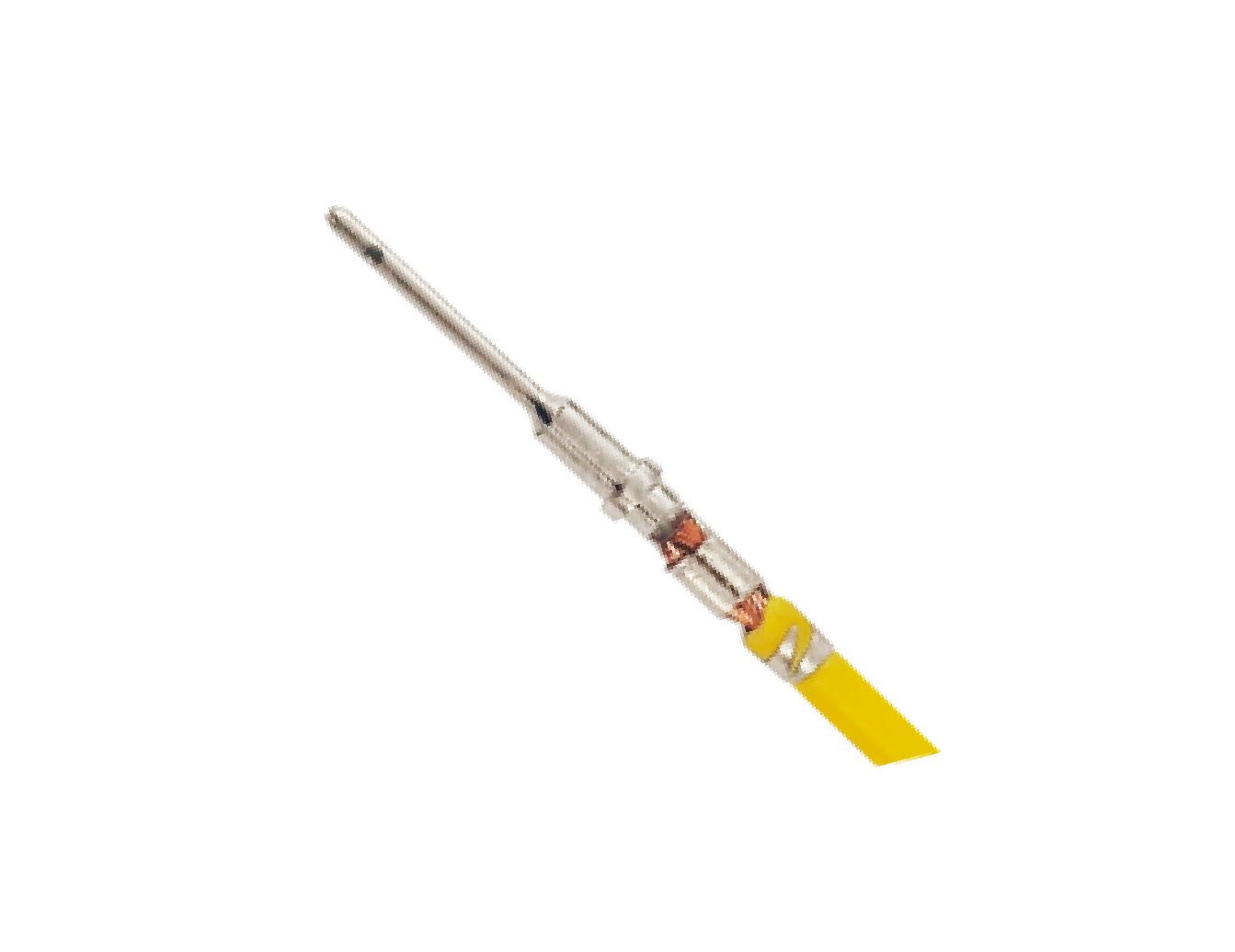

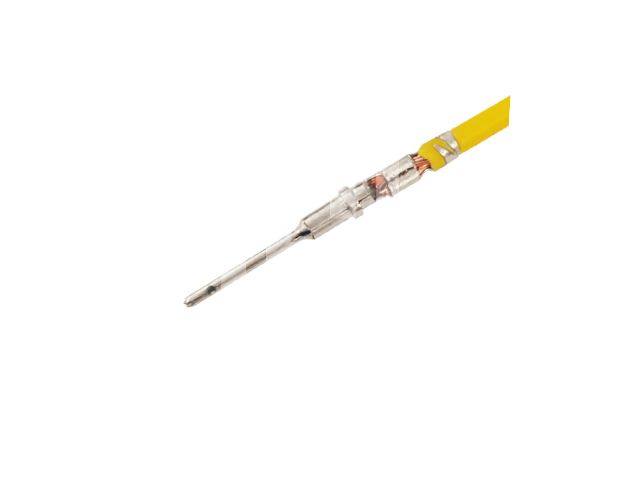

Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .
contact size 20

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agriculturalx

For Deutsch Stamped & Formed type Disconnector (DRB,DTM,HD30,HD20 Series Connector)
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

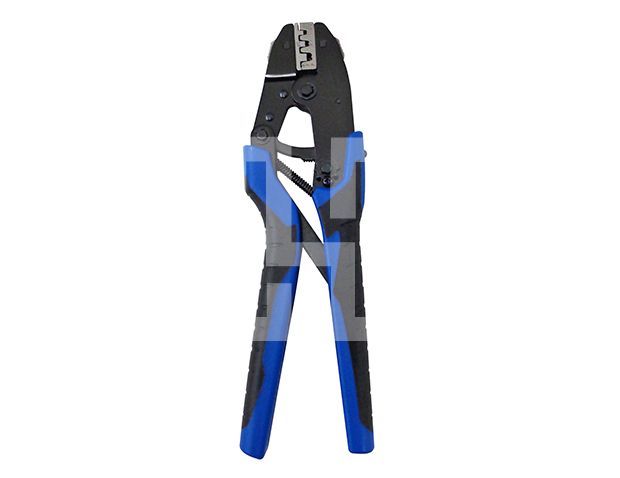

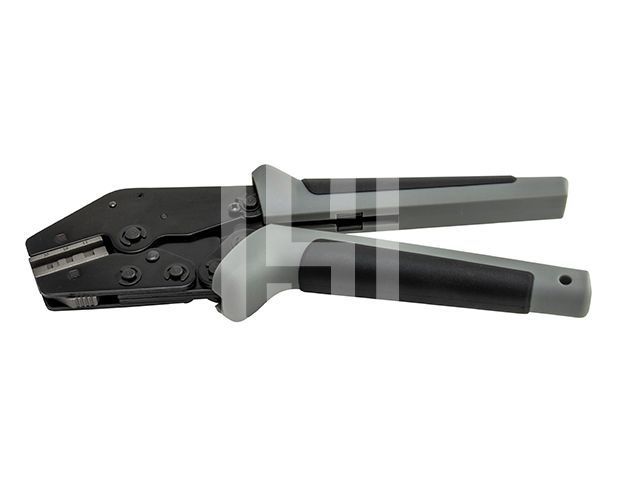

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

J12JK Series Quick Change Crimping Jaw for TE Deutsch Contact

J12JK Quick Change Crimping Jaw for TE Deutsch Contact

J12JK Quick Change Crimping Jaw for TE Deutsch Contact

Packing List:  120/240/CTN/15.3/16.3/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  63.9g
