For TE Deutsch Contacts

Jaw for Deutsch Contact DT(Stamped & Formed) / Item No. : J12JK4

For Deutsch Stamped & Formed type Disconnector (AEC,DRB,DRC,DT,DTV,HD10,HD30,HDP20 Series Connector)
Item No. : J12JK4

Product Introduction

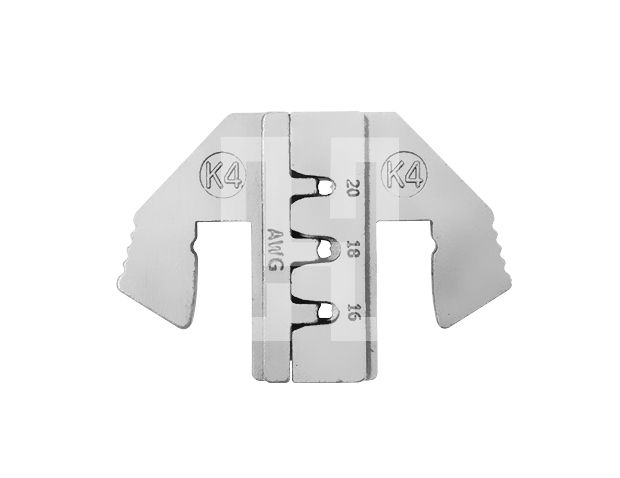

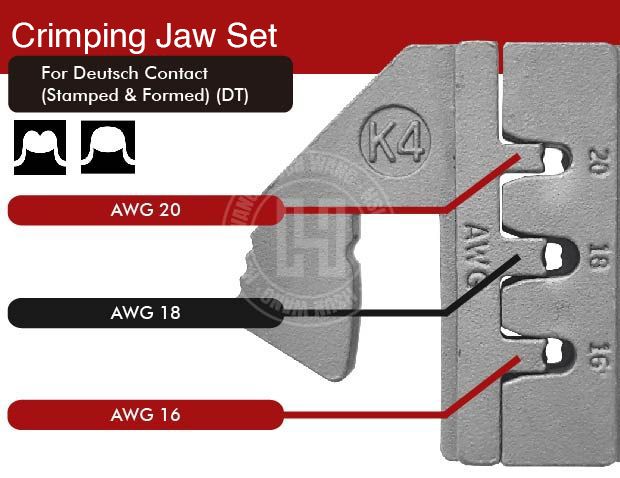

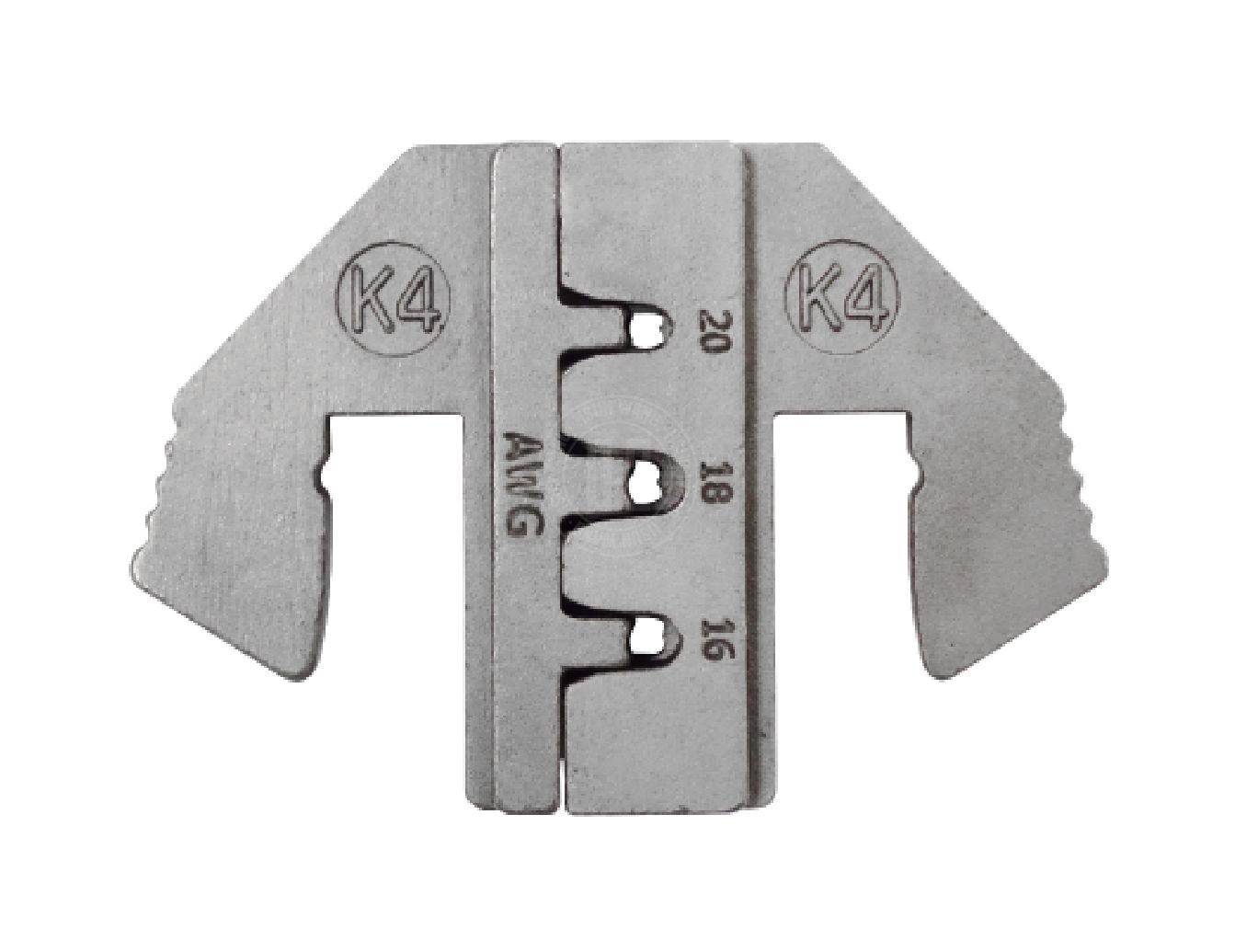

Item No. : J12JK4 Quick Change Crimping Jaw for TE Deutsch Contact(Stamped & Formed) (DT) AWG 20/18/16

Suitable for
● AWG  20/18/16

●For DT

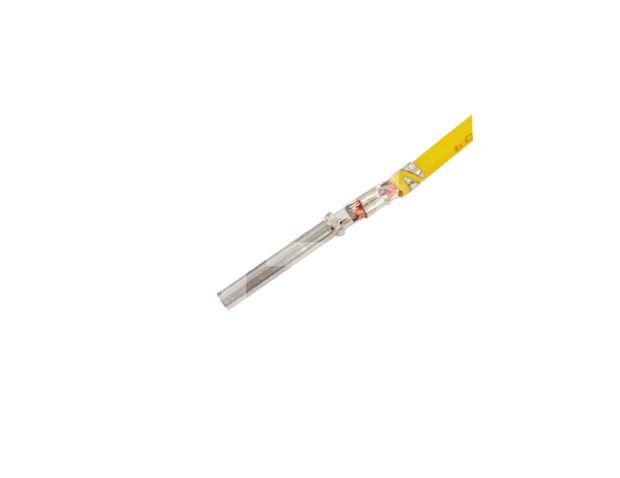

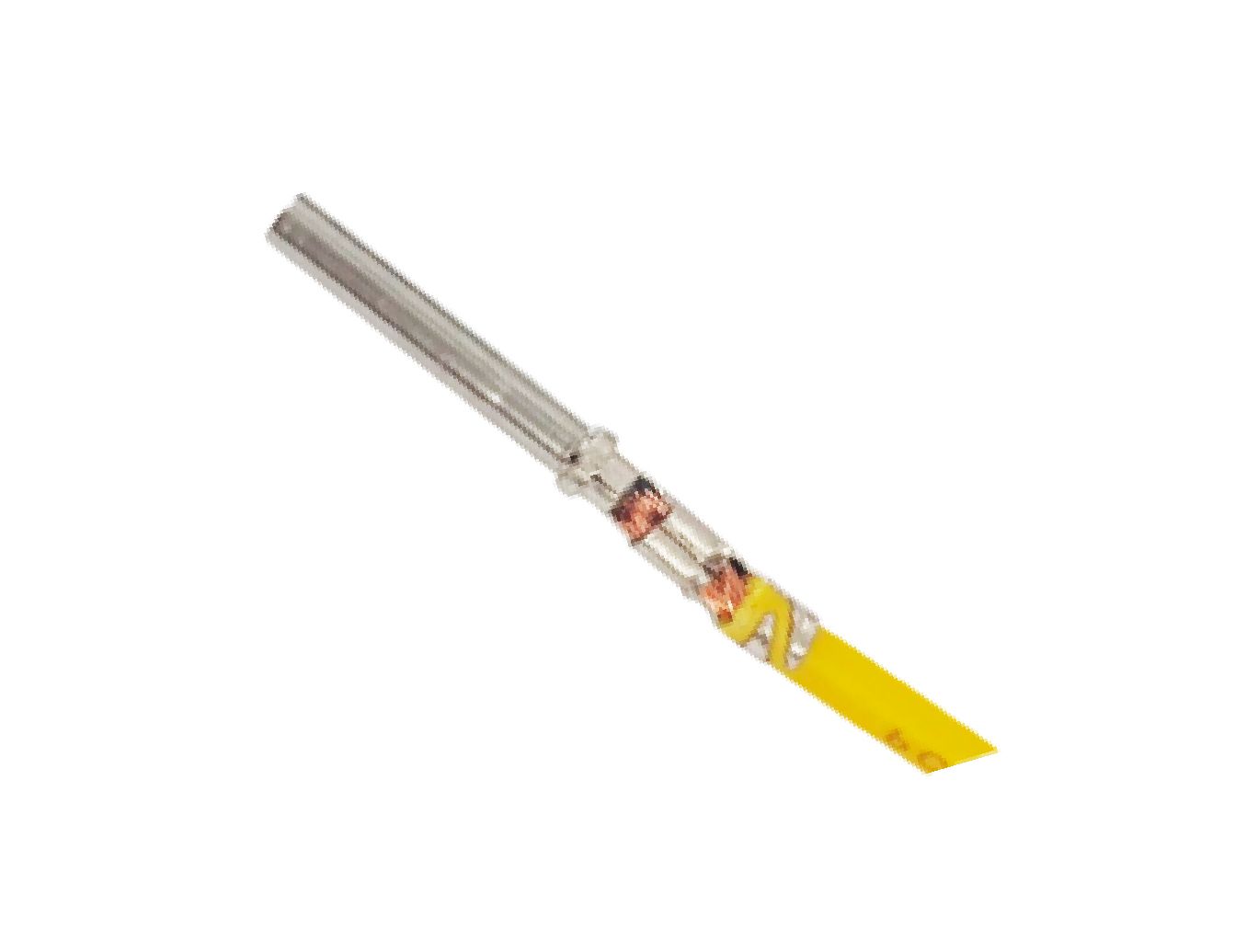

Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .
contact size 16

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural

For Deutsch Stamped & Formed type Disconnector (AEC,DRB,DRC,DT,DTV,HD10,HD30,HDP20 Series Connector)
These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

J12JK Series Quick Change Crimping Jaw for TE Deutsch Contact

J12JK Quick Change Crimping Jaw for TE Deutsch Contact

Amphenol crimping tool  -licrimJ12JK series

Packing List:  120/240/CTN/15.8/16.8/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  65.9g
