Die for Deutsch Contact DT (Stamped & Formed) / Item No. :J12JK6

  • J12JK6 deutsch Stamped & Formed Quick Change Crimping Jaw
  • deutsch Stamped & Formed J12JK6 Jaw for TE Deutsch Contact
  • J12  quick change Jaw for TE Deutsch Contact Stamped & Formed
  • J12JK6  for DT Deutsch Contact Stamped & Formed
  • Quick Change Crimping Jaw J12JK6  deutsch Stamped & Formed
  • Overlap crimp J12JK6  deutsch Stamped & Formed
  • Made in Taiwan J12JK6
For TE Deutsch Contacts

Die for Deutsch Contact DT (Stamped & Formed) / Item No. :J12JK6

Quick Change Crimping Jaw for TE Deutsch Contact(Stamped & Formed) (DT) -AWG 16/14/12
Item No. :J12JK6

Product Introduction

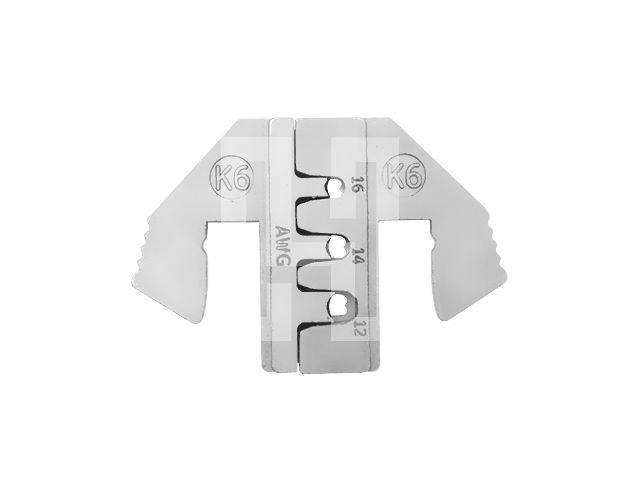

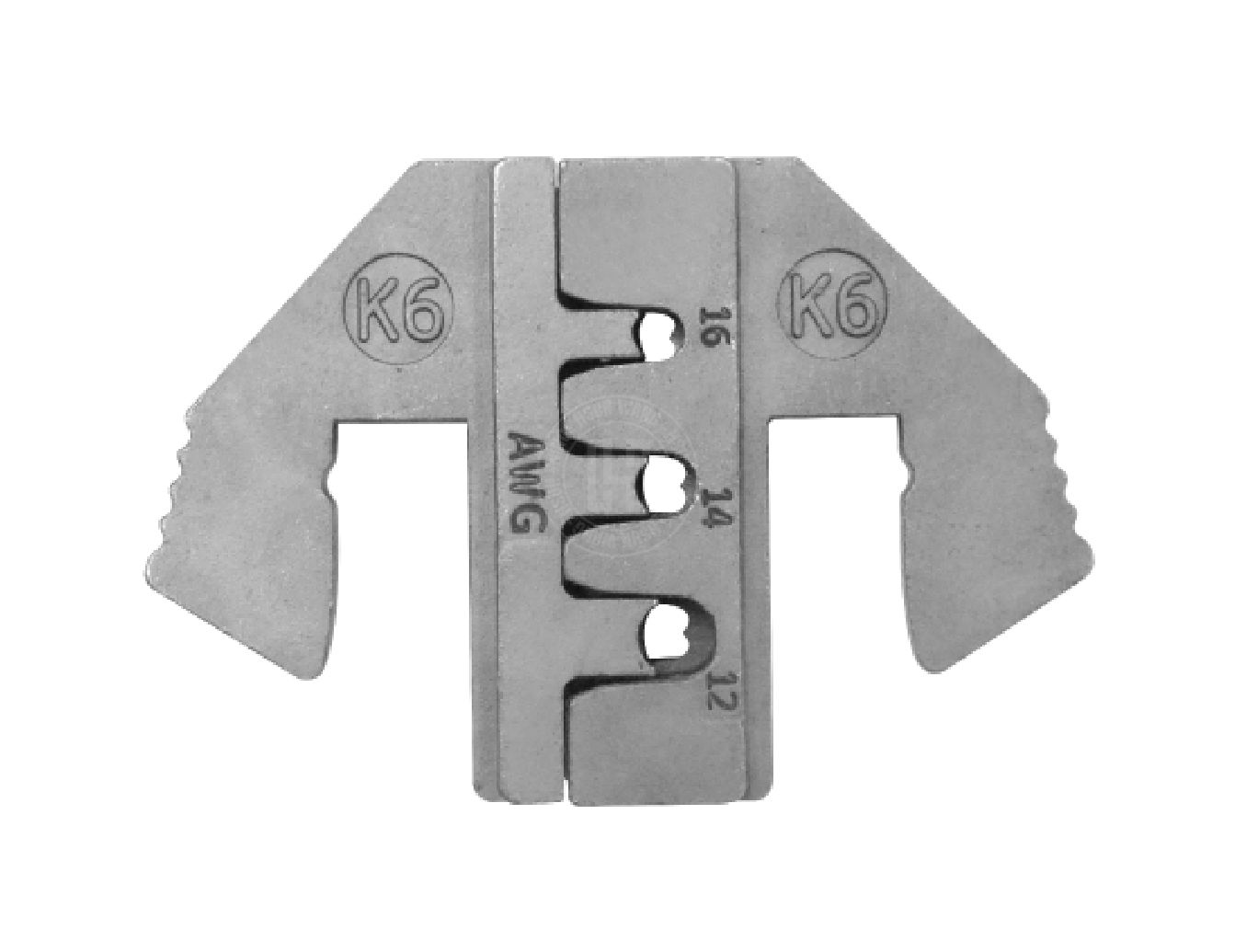

 Item No. :J12JK6 Quick Change Crimping Jaw for  TE Deutsch Contact(Stamped & Formed) (DT) AWG 16/14/12

Suitable for

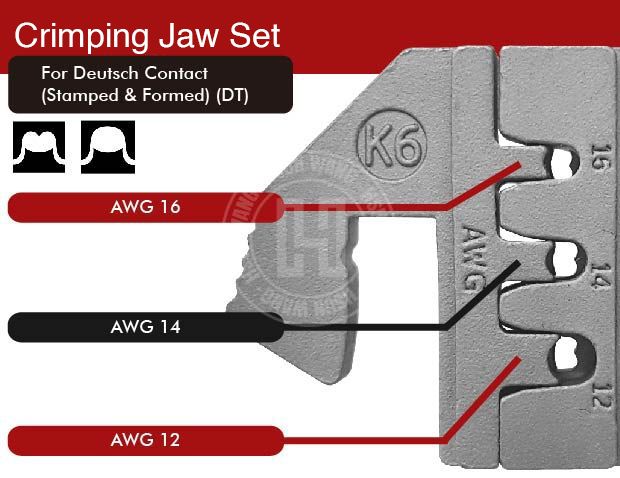

● AWG  16/14/12

● For DT

Confined crimp For B Crimp(F Crimp) / Overlap crimp.The jaw structure is precise to ensure firmly grasps the wires after crimping .

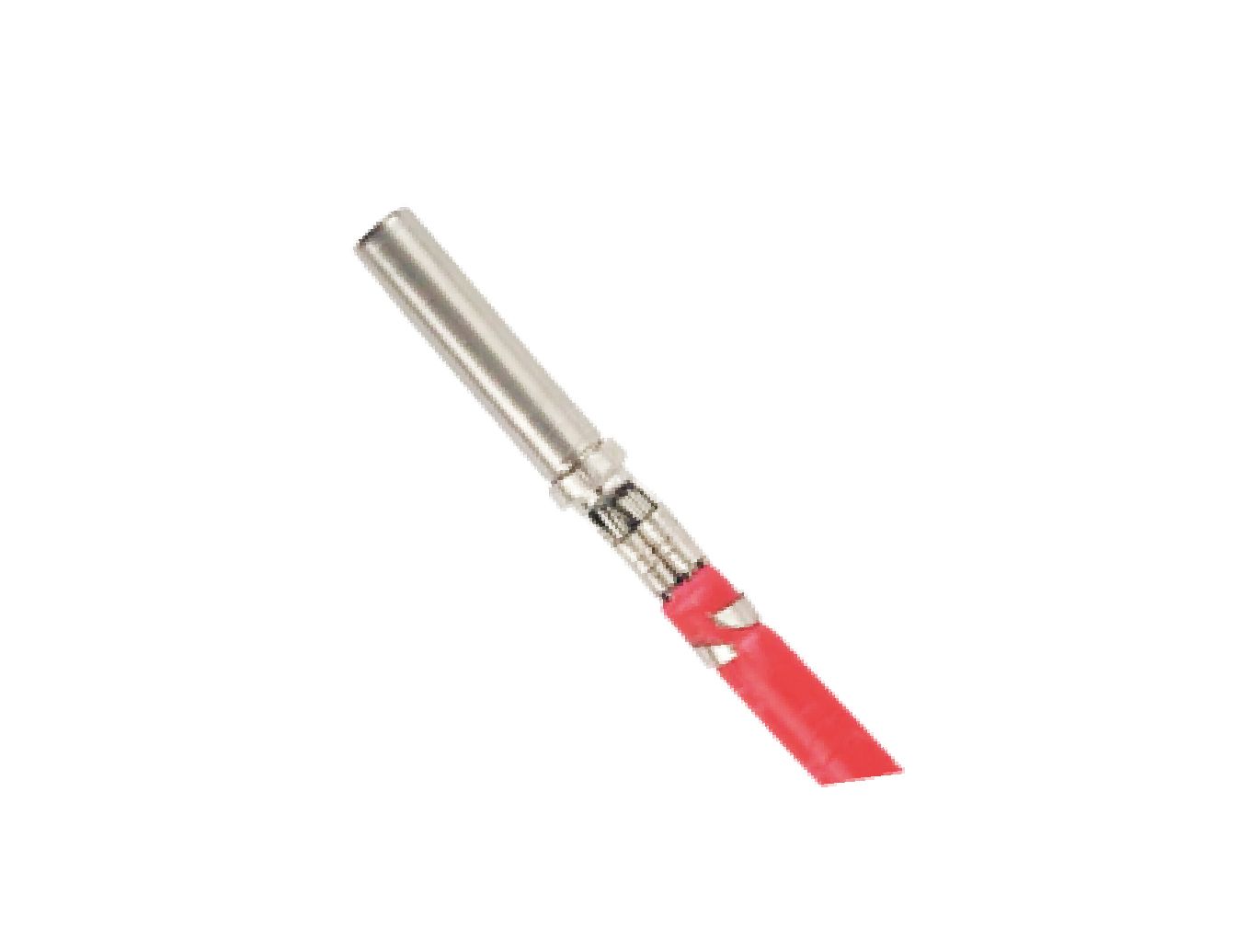

contact size 12

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural

For Deutsch Stamped & Formed type Disconnector (AEC,DRB,DRC,DT,DTV,HD10,HD30,HDP20 Series Connector)
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

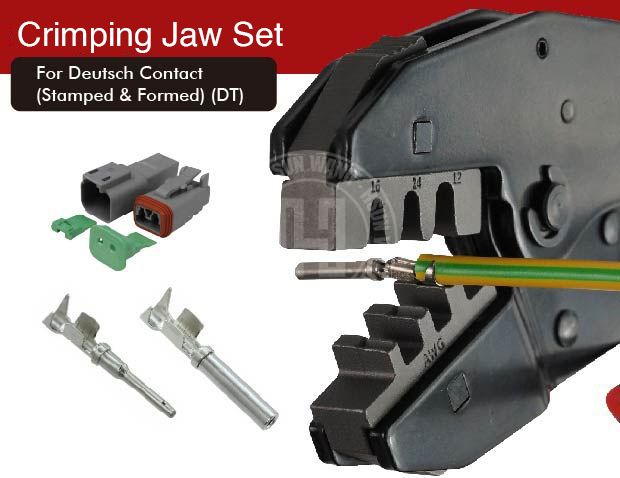

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

J12JK Series Quick Change Crimping Jaw for TE Deutsch Contact

J12JK Quick Change Crimping Jaw for TE Deutsch Contact

J12JK Quick Change Crimping Jaw for TE Deutsch Contact

Packing List:  120/240/CTN/15.8/16.8/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  65.7g
