Heat Shrink Tube Series
Product Introduction

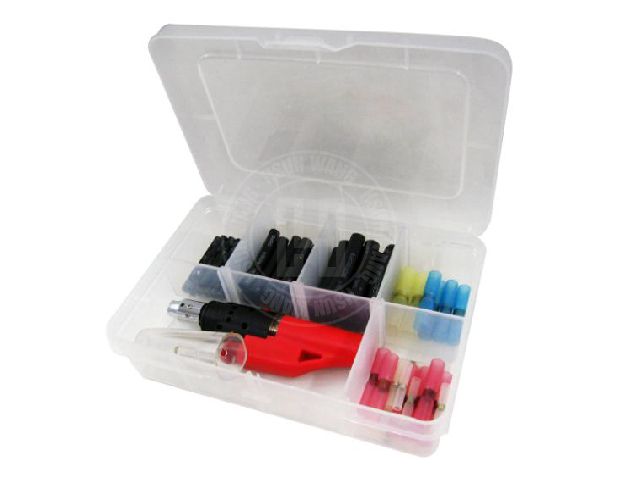

Item No: S0266KC1 66PCE Heat Shrink Tube Kit
- Dual Wall Heat Shrink Tube - Black
- Heat Shrink Tin Butt Connector - Red
- Heat Shrink Tin Butt Connector - Blue
- Heat Shrink Tin Butt Connector - Yellow
- Heat Shrink Tin Butt Connector - Clear
- Flameless Heat Blower
Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks radially when exposed to heat. Produced using a two-step process, heat shrink is available in a wide range of materials to suit almost any application. Heat shrink tubing has many useful applications, including to provide electrical insulation to wires, connections, joints, terminals, and splices, as well as bundling loose items such as wires and as a protective covering.
Heat Shrink Tin Butt Connector:
Terminal Material: Tin
Insulation Material: PE
- Operating Temperature: -40°C~ +105°C
- Shrink Ratio: 3:1
- Maximum Electrical Rating: 600 Volts
- Waterproof
Dual Wall Heat Shrink Tube:
Material: Polyolefin
- Operating Temperature: -45°C~ +125°C
- Shrink Temperature: Start at 70°C ; Shrunk totally at 125°C
- Shrink Ratio: 3:1
- Maximum Electrical Rating: 600 Volts
- Waterproof
Flameless Heat Blower:
Specification:
- Fuel: Butane
- Gas container capacity: 6 ml
- Operating time: 20 minutes
- Approximate Temperature: Up to 450°C
Features:
- Protection and insulation of components and wires.
- Adhesive Lined inner wall seals and protects against moisture ingress preventing corrosion.
- Quickly & simply shrink by Heat gun.
- Waterproof
- Great variety of top pro-quality heat shrink tubing.Heat activated adhesive lining provides impermeable seal to salt water and other liquids.
- Includes handy plastic container for easy organization and storage.
- 3:1 heat shrink ratio. Will shrink up to 1/3 of original diameter.
More LiCrim Crimper information : Please Press the button "Download" to get it.
Packing List: 10/40/CTN/9/10/KGS/1.8'
PP Box & Label
PP box Size: 17.5 x 13 x 4.5 cm
Unit Weight: 211g
For more information please contact us.
