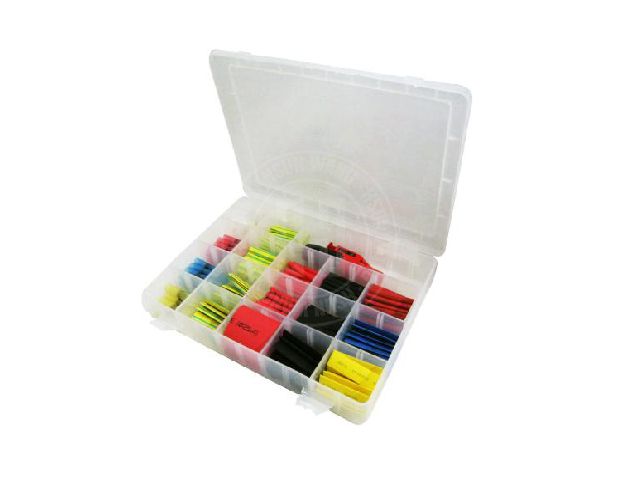

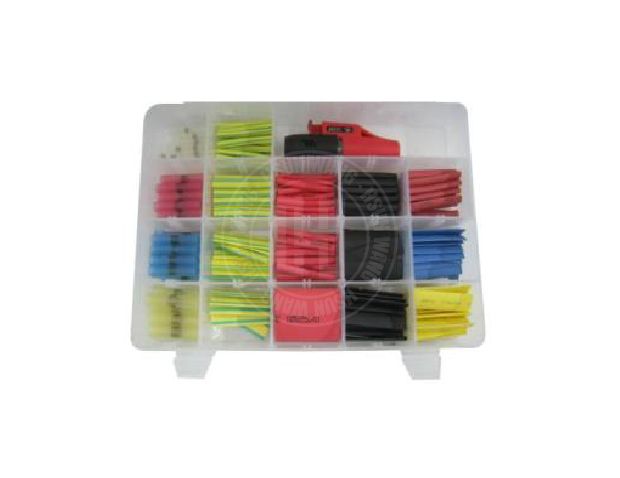

191PCE Colorful Heat Shrink Tube Kit / Item No: S02191KC

Item No: S02191KC  191PCE Colorful Heat Shrink Tube Kit

• Heat Shrink Tin Butt Connector-Clear
• Heat Shrink Tin Butt Connector-Red
• Heat Shrink Tin Butt Connector-Blue
• Heat Shrink Tin Butt Connector-Yellow
• Yellow/Green Heat Shrink Tube
• Dual Wall Heat Shrink Tube - Red
• Heat Shrink Tube - Black
• Heat Shrink Tube - Red
• Heat Shrink Tube - Blue
• Heat Shrink Tube - Yellow
• Mini Torch

Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks radially when exposed to heat. Produced using a two-step process, heat shrink is available in a wide range of materials to suit almost any application. Heat shrink tubing has many useful applications, including to provide electrical insulation to wires, connections, joints, terminals, and splices, as well as bundling loose items such as wires and as a protective covering.

Heat Shrink Tin Butt Connector:

Terminal Material: Tin

Insulation Material: PE

1. Operating Temperature: -40°C~ +105°C
2. Shrink Ratio: 3:1
3. Maximum Electrical Rating: 600 Volts
4. Waterproof

Heat Shrink Tube:

Material: Polyolefin

1. Operating Temperature: -55°C~ +125°C
2. Shrink Temperature: Start at 70°C ; Shrunk totally at 125°C
3. Shrink Ratio: 2:1
4. Maximum Electrical Rating: 600 Volts

Dual Wall Heat Shrink Tube:

Material: Polyolefin

1. Operating Temperature: -45°C~ +125°C
2. Shrink Temperature: Start at 70°C ; Shrunk totally at 125°C
3. Shrink Ratio: 3:1
4. Maximum Electrical Rating: 600 Volts
5. Waterproof

Mini Torch:

Specification:

1. Fuel: Butane
2. Gas container capacity: 6 ml
3. Operating time: 20 minutes
4. Approximate Temperature: Up to 1300°C

Packing List : 30/CTN/13/14/KGS/2.5'

                 PP Box & Label

PP Box Size : 25.4 x 19.5 x 4.4 cm

Unit Weight : 426g

For more information please contact us.
