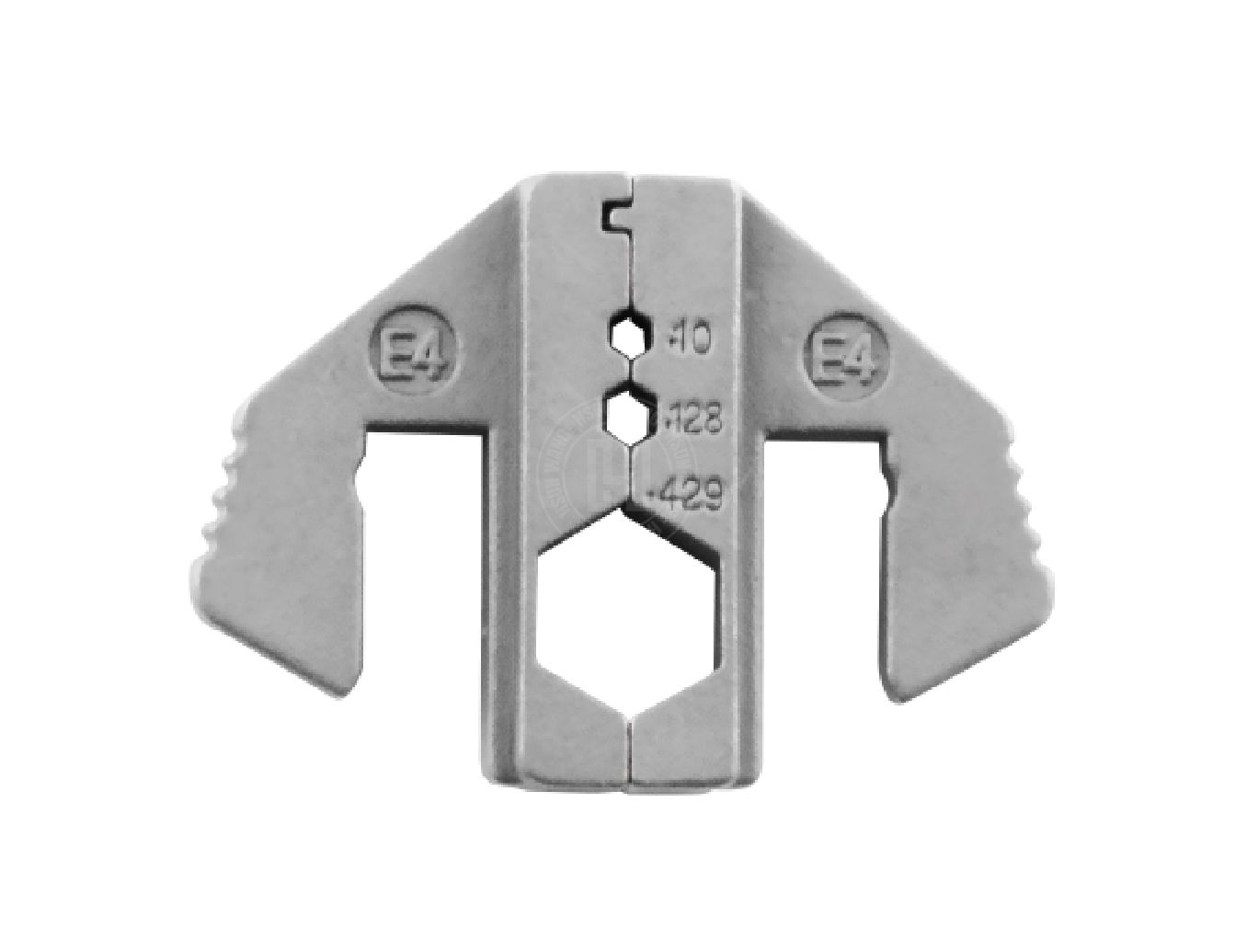

Die for RG Type Coaxial Cable Connector / Item No. : J12JE4

  • Quick Change Crimping Jaw J12JE4
  • J12JE4 Quick Change Crimping Jaw
  • Jaw for RG Type Coaxial Cable Connector J12JE4
  • J12JE4
  • J12JE4

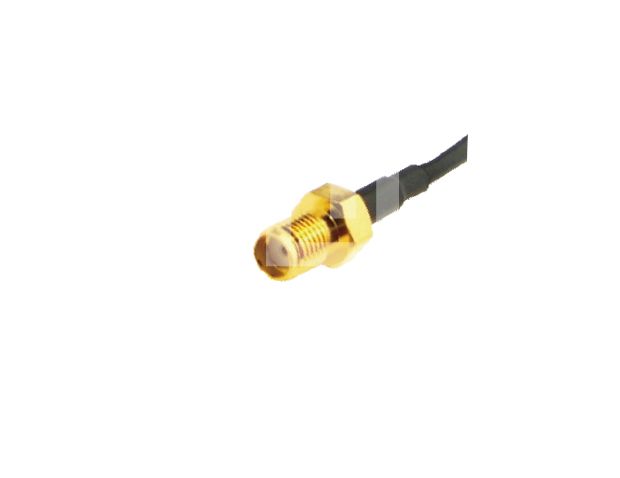

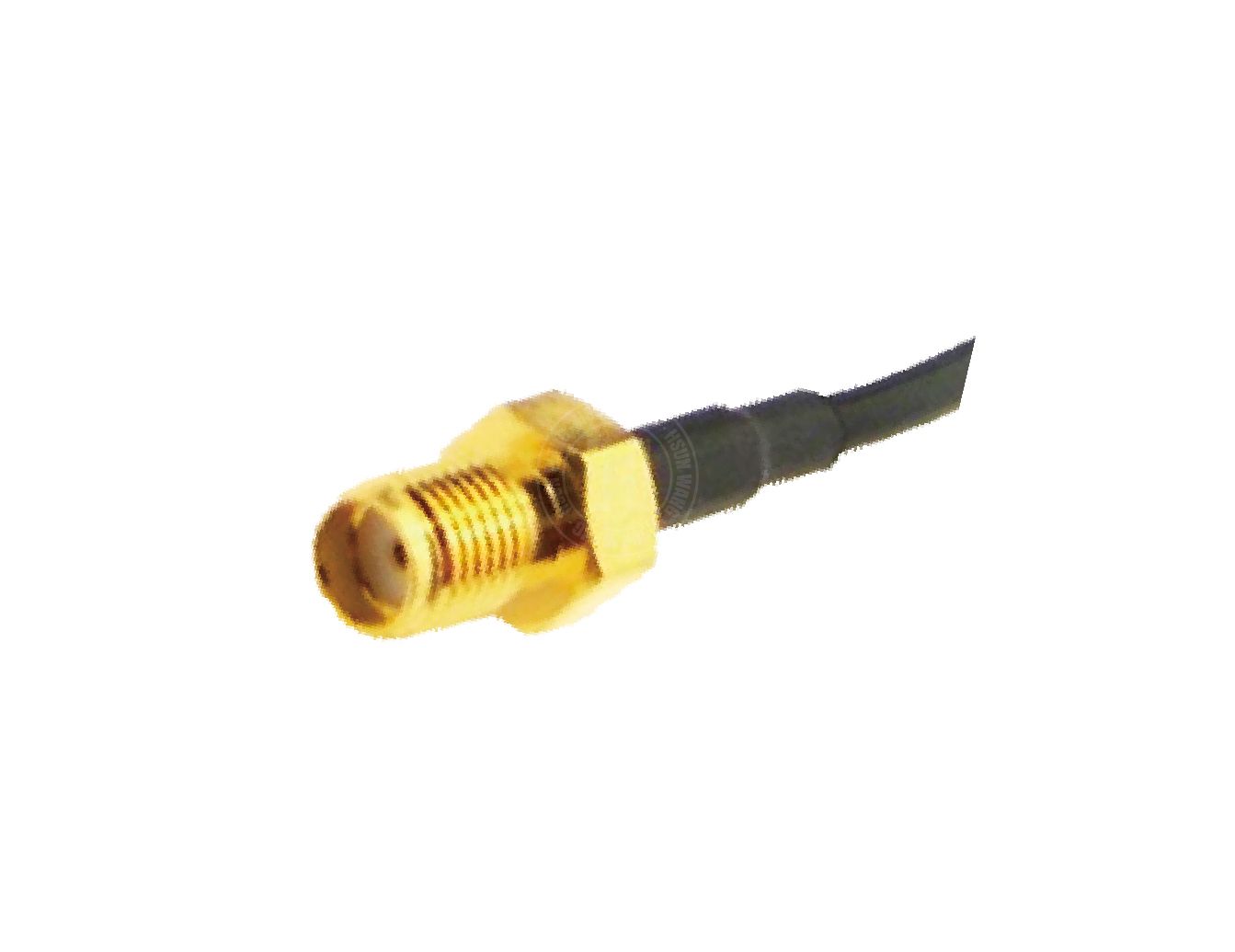

For BNC Connector

Die for RG Type Coaxial Cable Connector / Item No. : J12JE4

Jaw for RG Type Coaxial Cable Connector:RG type 8,11,174,179,213
Item No. : J12JE4

Product Introduction

 Item No. : J12JE4  Quick Change Crimping Jaw for RG Type Coaxial Cable Connector:RG type 8,11,174,179,213

Suitable for

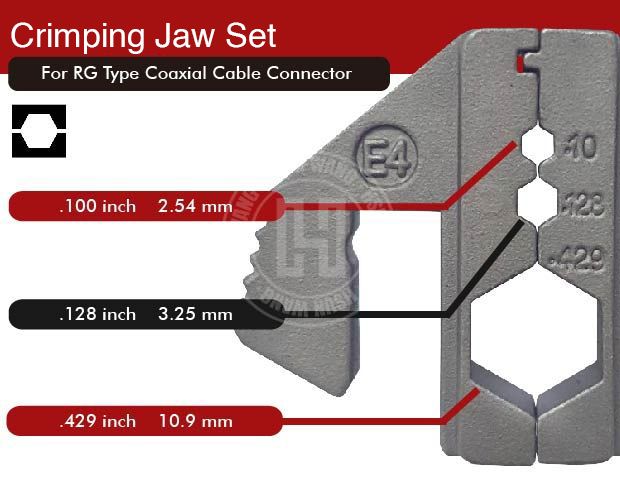

●  [ .100"/.128"/.429"]

●  [2.54/3.25/10.9 mm]

●  RG type 8, 11, 174, 179, 213

Confined crimp :HEX-Crimp ( Hexagonal crimp )
Applicable:
CCTV / DTV / Raido / DTS / GRS / SATELLITE TV /GPS / NAVIGATION

DESIGNED FOR RG TYPE COAXIAL CABLE CONNECTORS - Works with RG type coaxial cable RG type 8,11,174,179,213
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

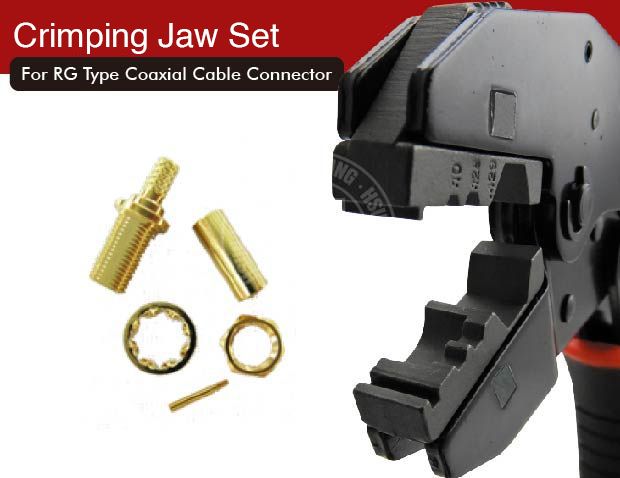

J12JE Series Quick Change Crimping Jaw for RG Type Coaxial Cable Connector

J12JE Quick Change Crimping Jaw for RG Type Coaxial Cable Connector

Packing List:  120/240/CTN/14.9/15.9/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  62.2g
