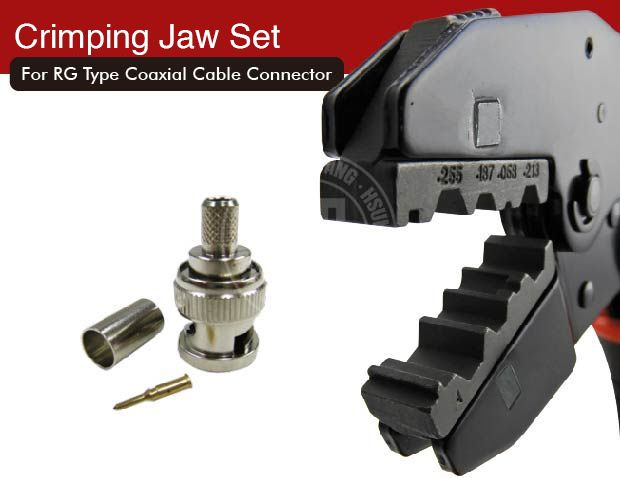

Die for RG Type Coaxial Cable Connector / Item No. : J12JE1

  • J12JE1  Quick Change Crimping  Jaw for RG Type Coaxial Cable Connector
  •  Jaw for RG Type Coaxial Cable Connector  J12JE1
  • RG Type Coaxial Cable  Connector  J12JE1
  • J12JE1 Quick Change Crimping Jaw
  • Quick Change Crimping  Jaw J12JE1

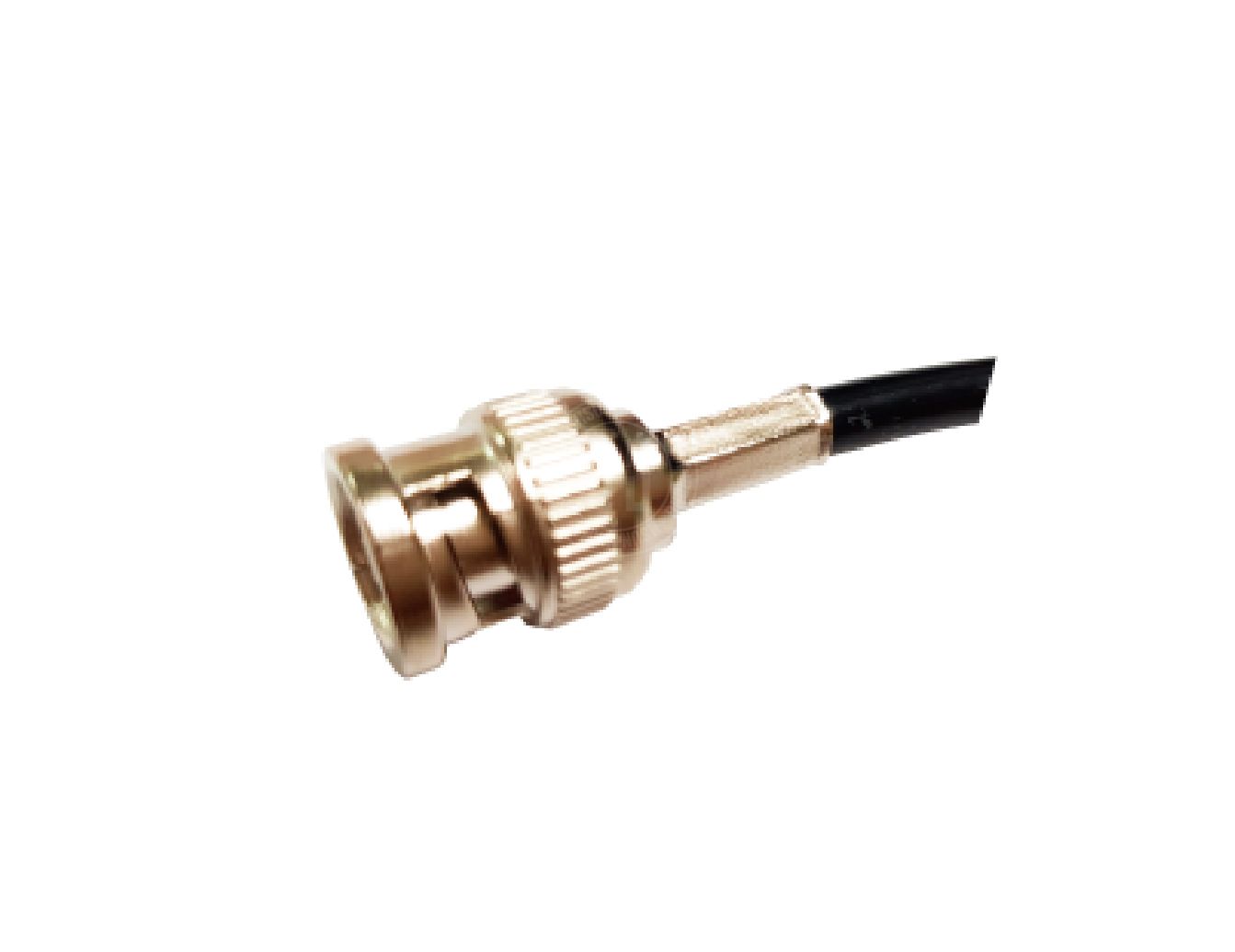

For BNC Connector

Die for RG Type Coaxial Cable Connector / Item No. : J12JE1

Quick Change Crimping Jaw for RG Type Coaxial Cable Connector : RG type 58, 59, 62, 174
Item No. : J12JE1

Product Introduction

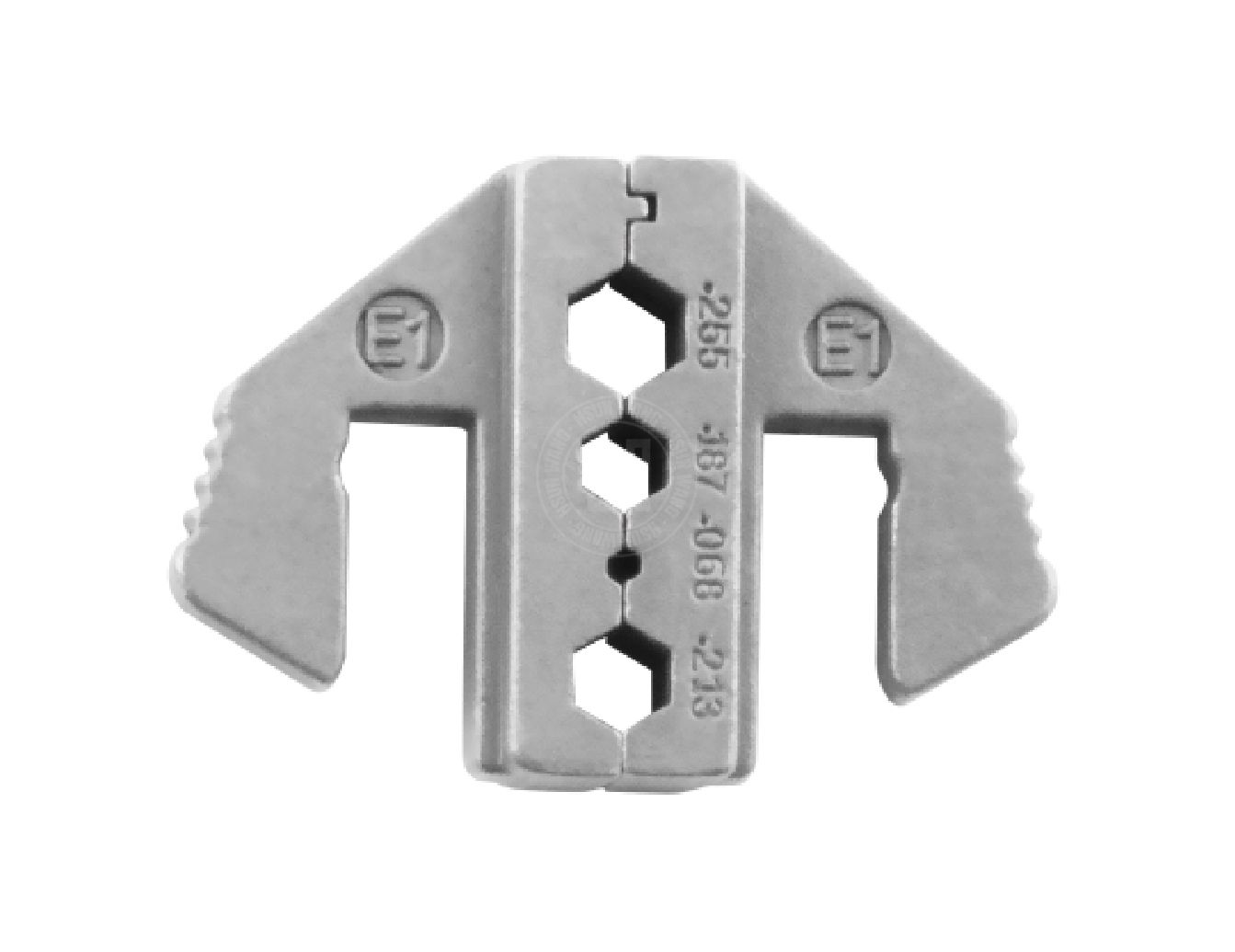

 Item No. : J12JE1 Quick Change Crimping Jaw for RG Type Coaxial Cable Connector:RG type 58, 59, 62, 174

Suitable for

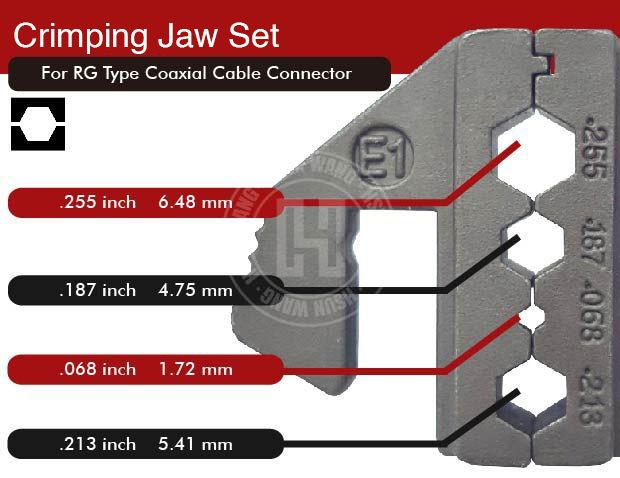

● [ .255"/.187"/.068"/.213"]

● [6.48/4.75/1.72/5.41 mm]

● RG type 58, 59, 62, 174  HEX-Crimp

Applicable: CCTV / DTV / Raido / DTS / GRS / SATELLITE TV /GPS / NAVIGATION

DESIGNED FOR RG TYPE COAXIAL CABLE CONNECTORS - Works with RG type coaxial cable RG 58, 59, 62, 174
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

J12JE Quick Change Crimping Jaw for RG Type Coaxial Cable Connector

J12JE Quick Change Crimping Jaw for RG Type Coaxial Cable Connector

Packing List:  120/240/CTN/16.7/17.7/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  69.7g
