For BNC Connector

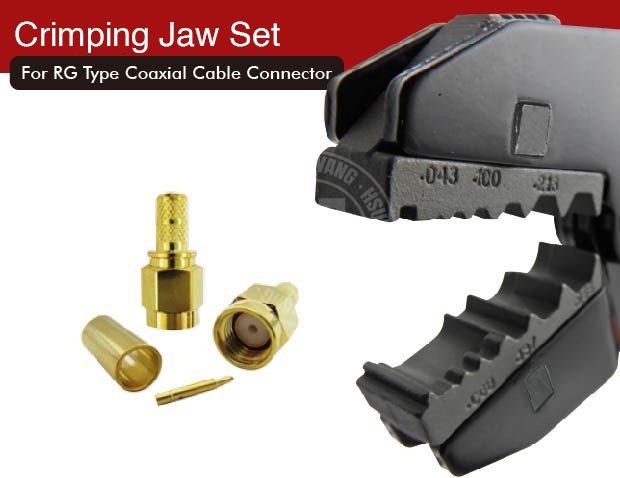

Jaw for RG Type Coaxial Cable Connector / Item No. : J12JE3

Jaw for RG Type Coaxial Cable Connector: RG type 58, 59, 62, 174, Fiber Optic

Product Introduction

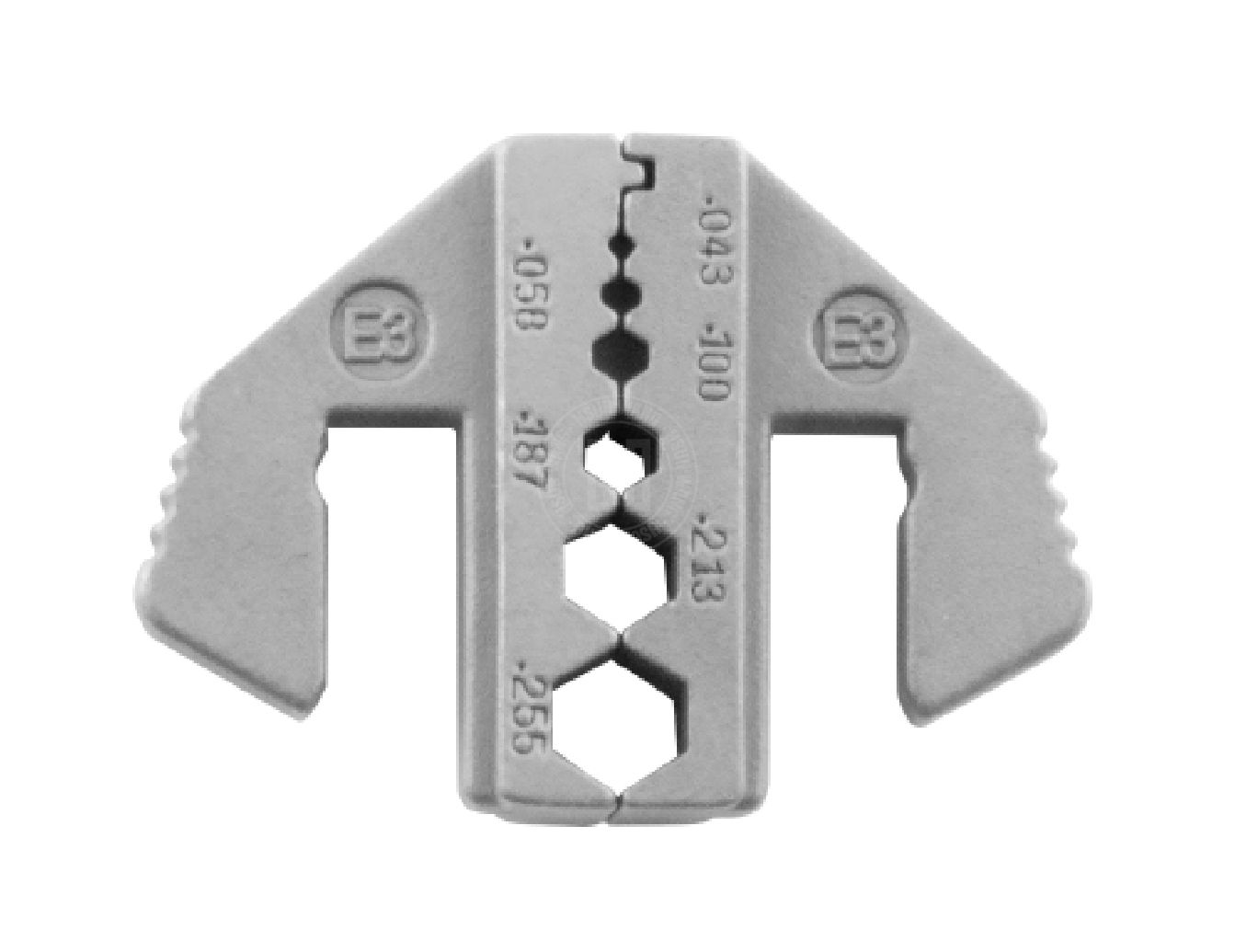

Item No. : J12JE3   Quick Change Crimping Jaw for RG Type Coaxial Cable Connector: RG type 58, 59, 62, 174, Fiber Optic

Suitable for

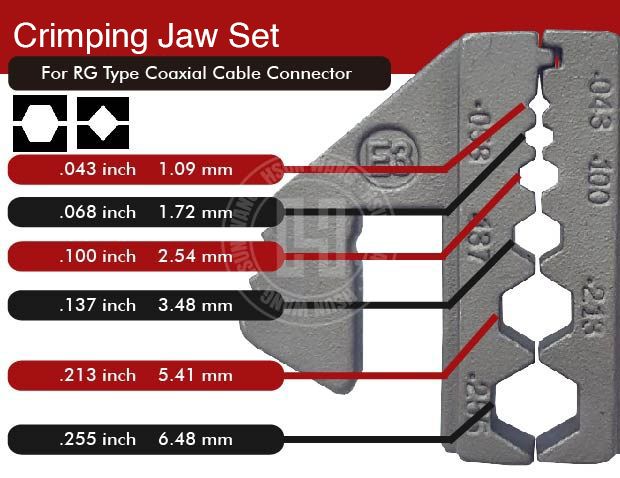

●  [ .043"/.068"/.100"/.137"/.213"/.255"]

●  [1.09/1.72/2.54/3.48/5.41/6.48 mm]

●  RG type 58, 59, 62, 174, Fiber Optic

Confined crimp :HEX-Crimp & Square-Crimp

Applicable: CCTV / DTV / Radio / DTS / GRS / SATELLITE TV /GPS / NAVIGATION

DESIGNED FOR RG TYPE COAXIAL CABLE CONNECTORS - Works with RG type coaxial cable RG type 58, 59, 62, 174, Fiber Optic. These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan


Quick Change Crimping Jaw for RG Type Coaxial Cable Connector

E-series-JAW_E-6



Packing List:  120/240/CTN/16.2/17.2/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  67.5g
