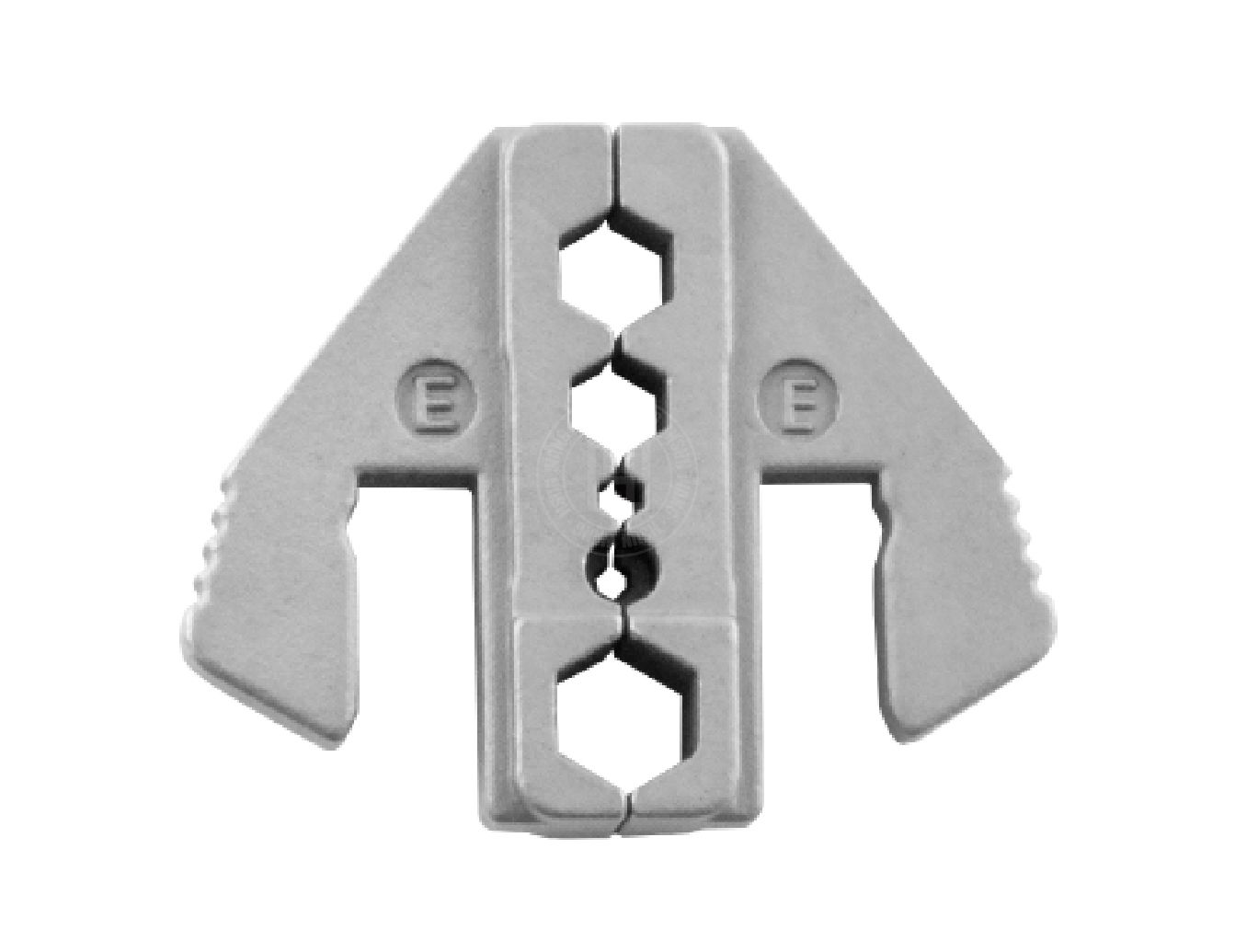

Die for RG Type Coaxial Cable Connector / Item No. : J12JE

  • J12JE  Quick Change Crimping Jaw for RG Type Coaxial Cable Connector
  •  Crimping Jaw for RG Type Coaxial Cable Connector  J12JE
  •  Jaw for RG Type Coaxial Cable Connector  J12JE
  • HEX-Crimp  J12JE
  • RG type coaxial cable J12JE

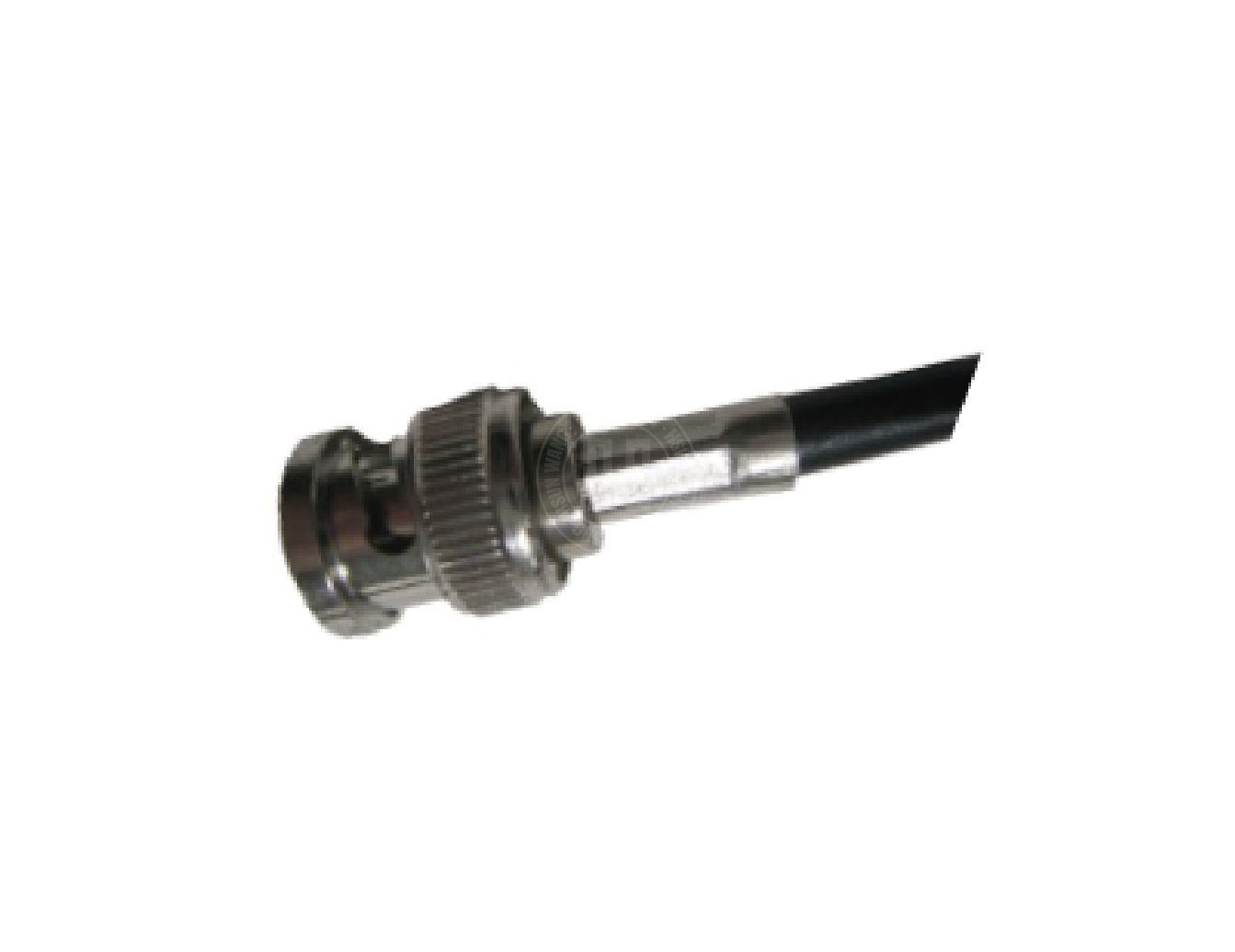

For BNC Connector

Die for RG Type Coaxial Cable Connector / Item No. : J12JE

J12JE Quick Change Crimping Jaw for RG Type Coaxial Cable Connector: RG type 58, 59, 62, 6
Item No. : J12JE

Product Introduction

 Item No. : J12JE Quick Change Crimping Jaw for RG Type Coaxial Cable Connector:RG type 58, 59, 62, 6

Suitable for

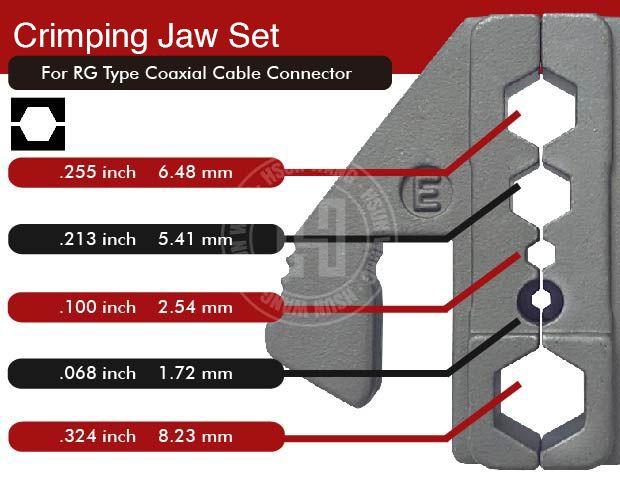

●  [ .255"/.213"/.100"/.068"/.324"]

●  [6.48/5.41/2.54/1.72/8.23 mm]

●  RG type 58, 59, 62, 6

HEX-Crimp

Applicable: CCTV / DTV / Raido / DTS / GRS / SATELLITE TV /GPS / NAVIGATION

DESIGNED FOR RG TYPE COAXIAL CABLE CONNECTORS - Works with RG type coaxial cable RG 58, 59, 62, 6.
These dies are not compatible with the fixed die crimping tools. Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

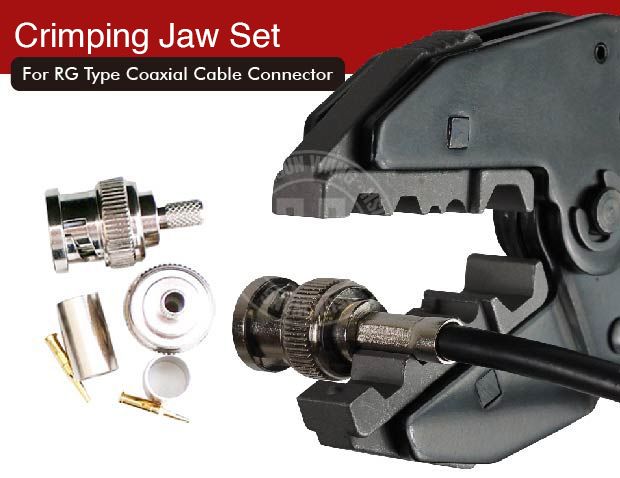

Quick Change Crimping Jaw for RG Type Coaxial Cable Connector

J12JE Quick Change Crimping Jaw for RG Type Coaxial Cable Connector



Packing List:  120/240/CTN/17.6/18.6/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  73.3g
