10" 7PCE Quick Change Ratchet Crimper Kit / Item No: JEBE5

Item No: JEBE5 Die for Insulated Terminal/ Non-Insulated Terminal / Open Barrel Terminal / D-SUB, V.35 / Spark Plug Connector

Product Introduction

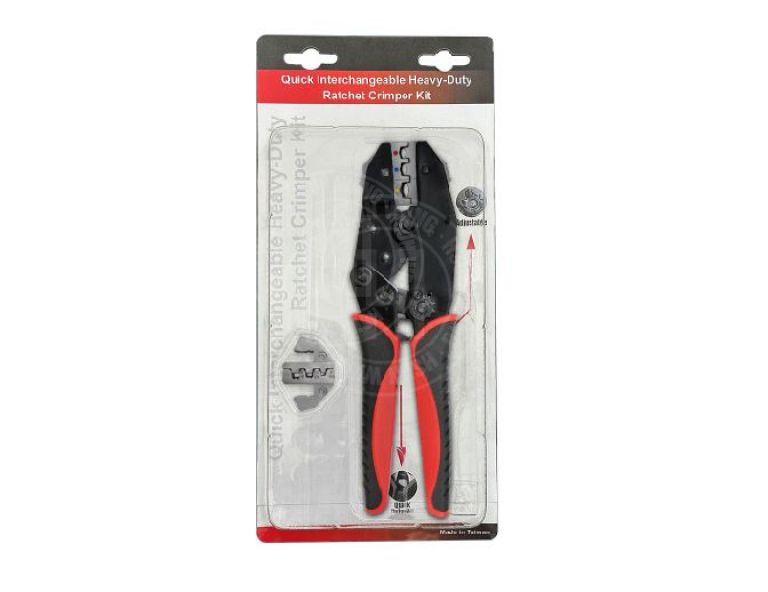

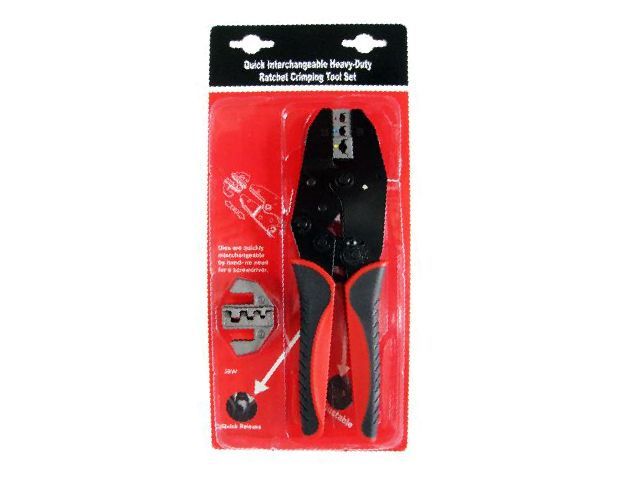

Item No: JEBE5 10" 7PCE Quick Change Ratchet Crimper Kit

  • A Die for Insulated Terminal (AWG 20-18/16-14/12-10   0.5-1.0/1.5-2.5/4.0-6.0 mm²)
  • B Die for Non-Insulated Terminal(AWG 20-16/16-14/12-10/8   0.5-1.5/1.5-2.5/4.0-6.0/10 mm²)
  • C Die for Open Barrel Terminal (0.5-6.0mm²) (AWG 20-18 /16-14/12-10   0.5-1.0/1.5-2.5/4.0-6.0 mm²)
  • C1 Die for Open Barrel Terminal (0.1-1.0mm²) (AWG 26-24/24-22/22-18   0.1-0.25/0.25-0.5/0.5-1.0 mm²)
  • H Die for Open Barrel Terminal & D-SUB, V.35 (AWG 14/22/8-6   2.5/0.5/8.0-1.0 mm²)
  • H1 Die for Spark Plug Connector (AWG 17   1.0 mm²)
  • 10" Quick Change Ratchet Crimper:

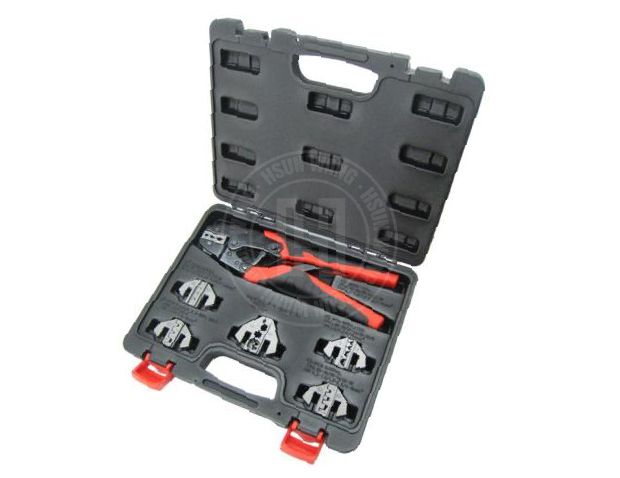

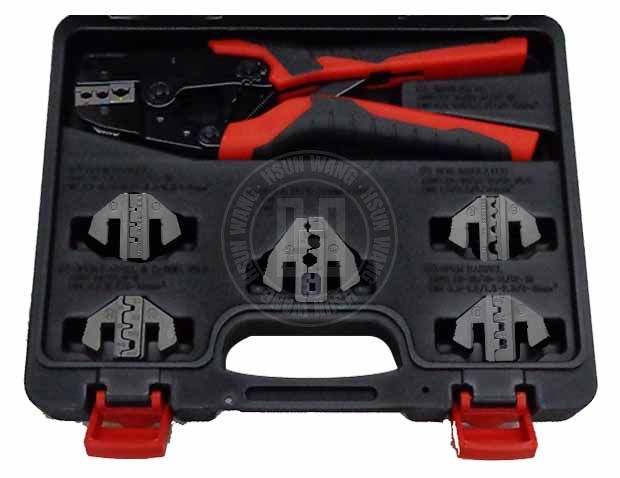

  • Storage case

High-Performance And Valuable Crimping Tool Set For Multi-Scenario Applications The kit include crimper tool with interchangeable crimp dies and 6 types crimping dies works with  Insulated Terminal/ Non-Insulated Terminal / Open Barrel Terminal  /  D-SUB, V.35 and spark plug ignition wiret wire terminals.
Handily Crimping Replace the required crimping dies just a few seconds.
Precise Ratchet Structure According to the pressure needed to crimp products of different sizes, the built-in thickened ratchet automatically adjusts to the appropriate position to ensure the safe completion of crimping with easy release of the handle. The crimp height of the star wheel is adjustable to ensure the right amount of crimping force.
Ergonomic Design The non-slip handle ensures comfortable and swift operation. There is a quick-release lever on the inside of the handle that opens the jaws.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism. These dies are not compatible with the fixed die crimping tools.

●Made in TAIWAN-More LiCrim Crimper information : Please Press the button "Download" to get it.

Jaw:
Material: AISI- 4140
Procedure: Precision and Wax-Lost Casting
Treatment: Finished with Heat Treatment
Surface treatment : Zinc Phosphate

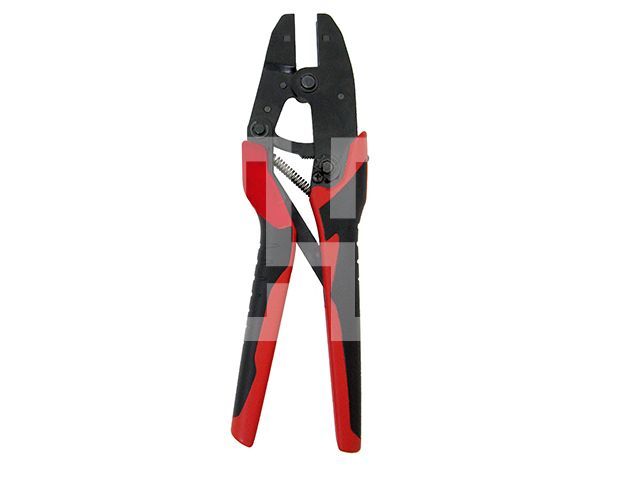

10" Quick Change Ratchet Crimper:
Material:
Body: Carbon Steel
Handle: PP+TPR(PAHs Approved)

Packing List:
10/CTN/13.5/14.5/KGS/1.6'

                        Blow Case and Color Sleeve

Blow Case Size:  29.5 x 24 x 5.4 cm
Unit Weight:  1.35 kgs
