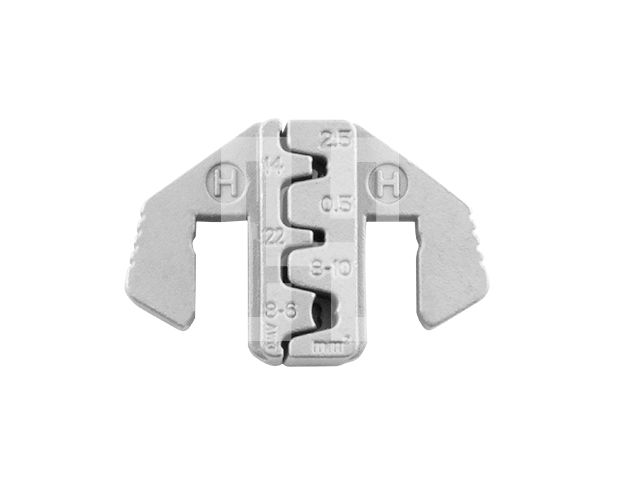

Jaw for Open Barrel Terminal & D-SUB, V.35 (2.5-10mm²) / Item No. : J12JH

Item No. : J12JH    Quick Change Crimping Jaw for Open Barrel Terminal & D-Sub, V.35-AWG 14/22/8-6

Suitable for
● AWG 14/22/8-6

● DIN  2.5/0.5/8-10 mm²

Confined crimp for B Crimp(F Crimp)

Applicable: AUTO / RADIO

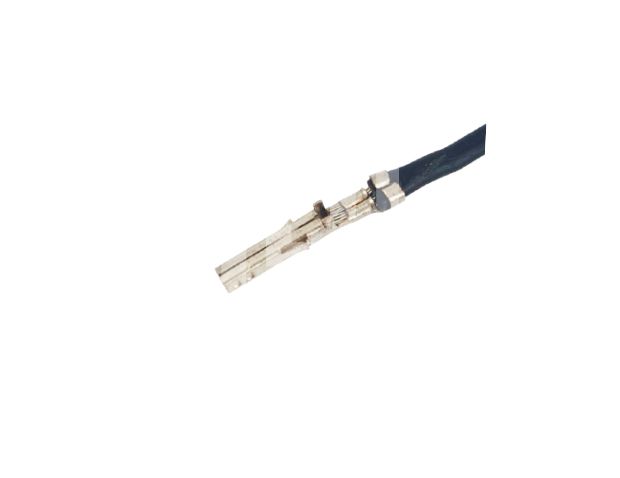

For Open Barrel Terminal & D-Sub, V.35
These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/17.9/18.9/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  74.5g
