Die for Insulated Terminal / Item No. : J12JA

  • Quick Change Crimping Jaw J12JA
  • Jaw for Insulated Terminal  J12JA
  • J12JA INSULATED COPPER TERMINALS
  • Vinyl Insulated (Single Crimp) J12JA
  • Designed by Germany, Made in Taiwan
For Insulated Contacts

Die for Insulated Terminal / Item No. : J12JA

Vinyl Insulated (Single Crimp) & Insulated Copper Terminals.
Item No. : J12JA

Product Introduction

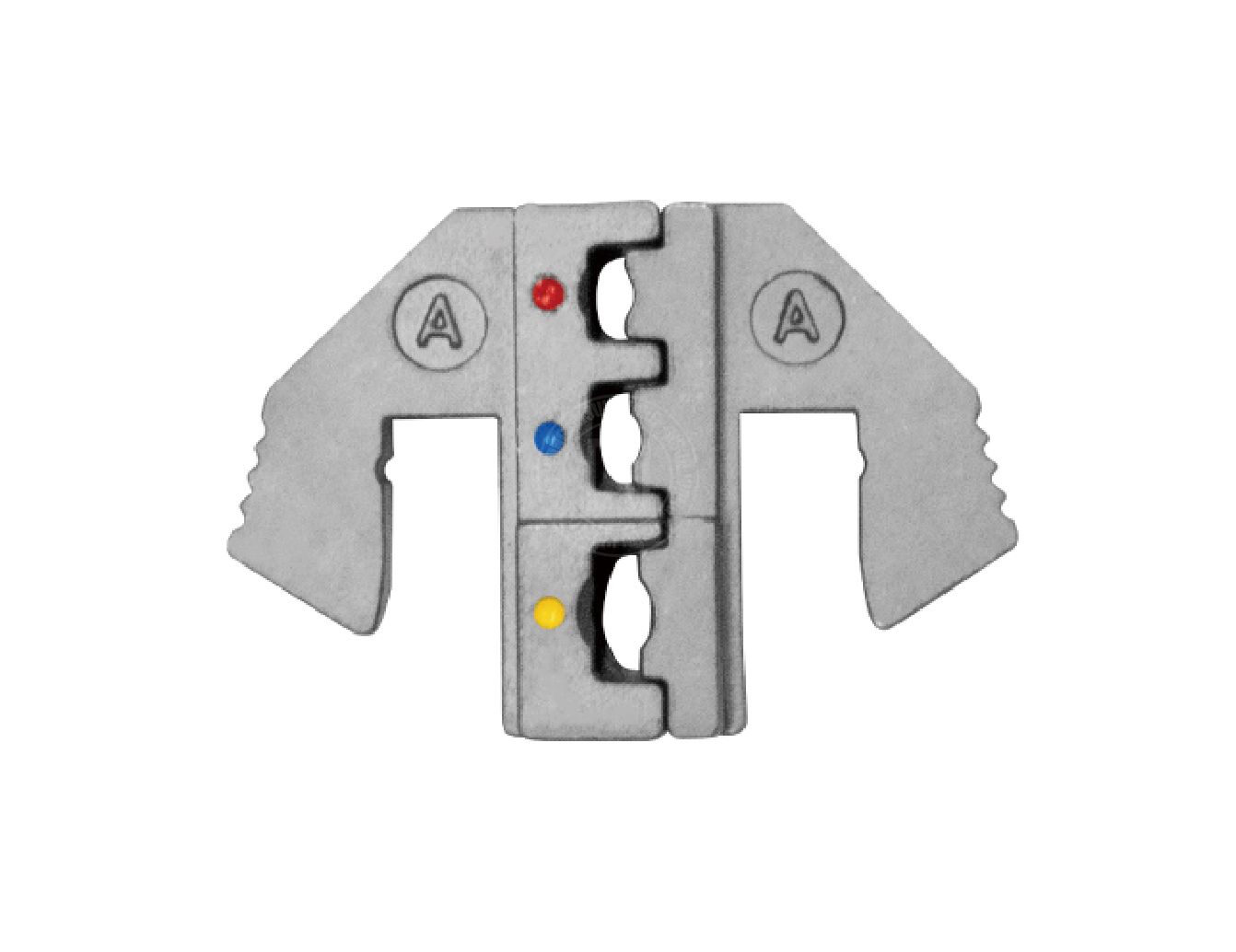

 Item No. : J12JA  Quick Change Crimping Jaw for Insulated Terminal AWG 22-10

Suitable for

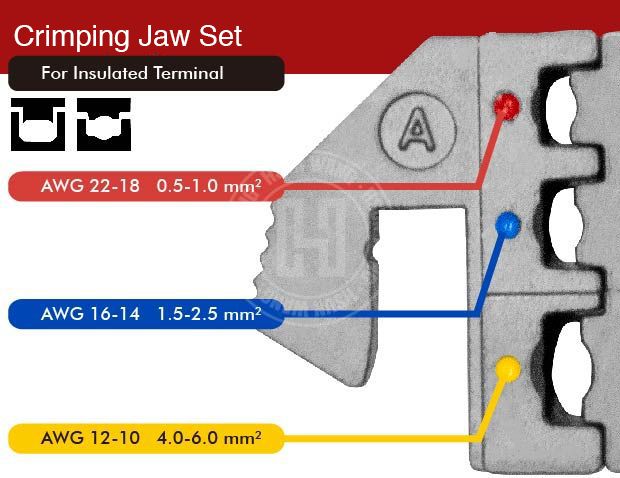

● AWG 22-18/16-14/12-10
● DIN 0.5-1.0/1.5-2.5/4-6 mm2

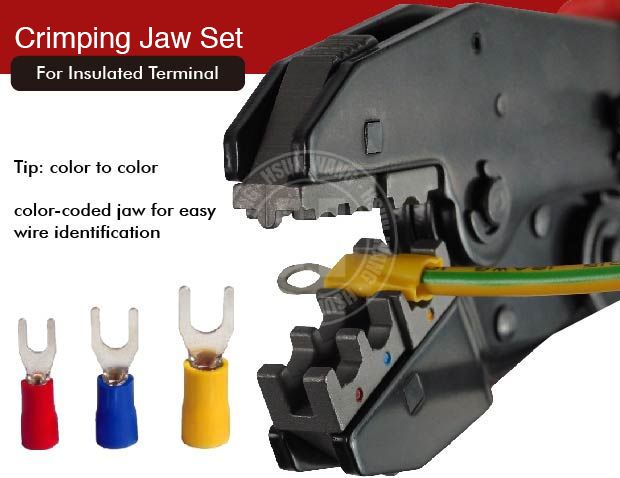

The jaws is marked with red/blue/yellow for easy identification.

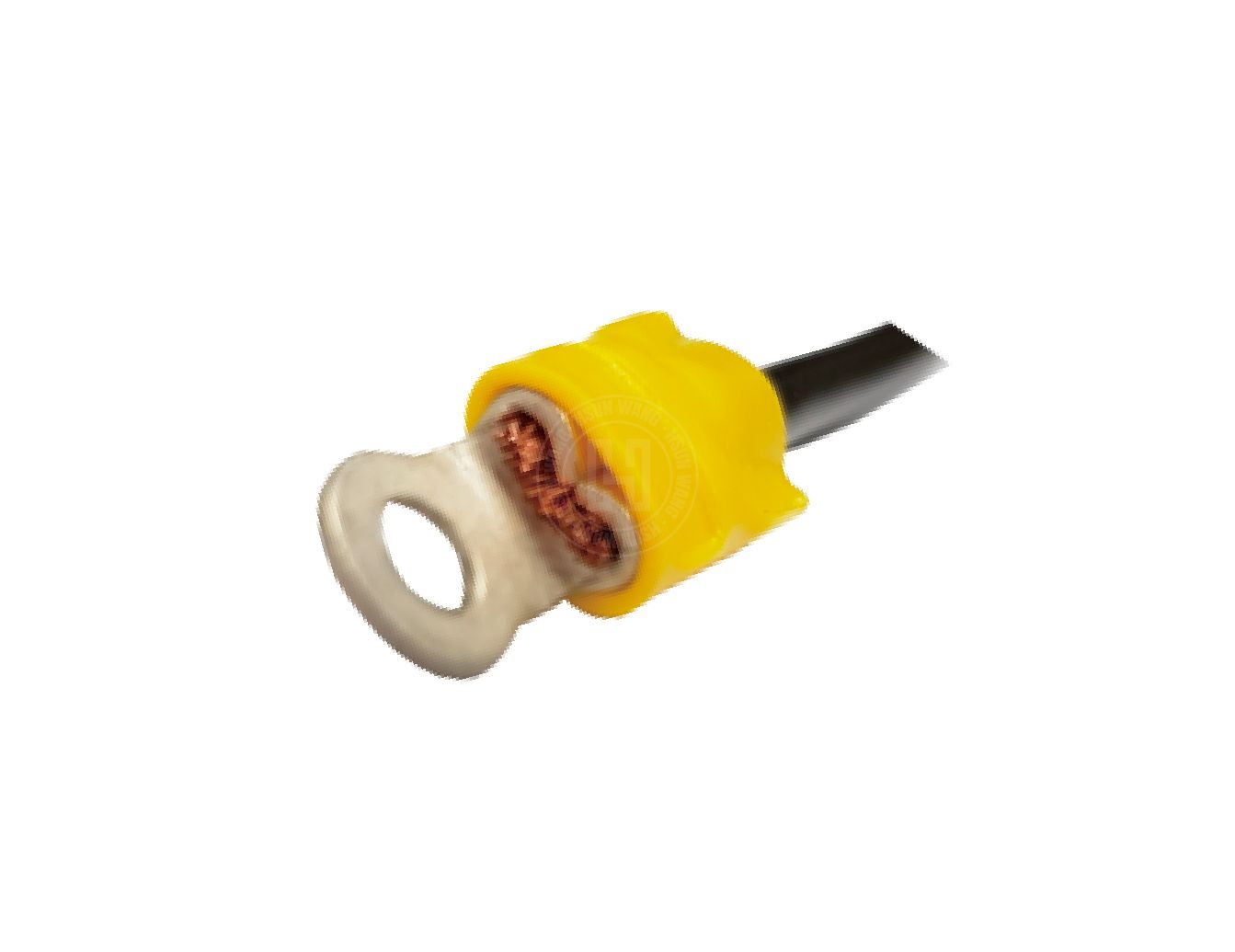

Confined crimp for closed barrel terminals: Indent-Crimp
For: Vinyl Insulated (Single Crimp) & Insulated Copper Terminals.

Applicable:Auto & Machine Wiring & Electrical & ElectronicDevice

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 DIES - AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism. These dies are not compatible with the fixed die crimping tools.No tools required.

The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan


Packing List:  120/240/CTN/15.3/16.3/KGS/1.2'    Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  63.6g
