Die for Non-Insulated Terminal / Item No. : J12JB

  • Quick Change Crimping Jaw J12JB
  • J12JB  Non-Insulated Terminal crimping tool
  • J12JB
  • Non-Insulated Terminal
  • Designed by Germany J12JB
For Non-Insulated Contacts

Die for Non-Insulated Terminal / Item No. : J12JB

For Non-Insulated Terminals & Non-Insulated Copper Terminals-AWG 20-16/16-14/12-10/8
Item No. : J12JB

Product Introduction

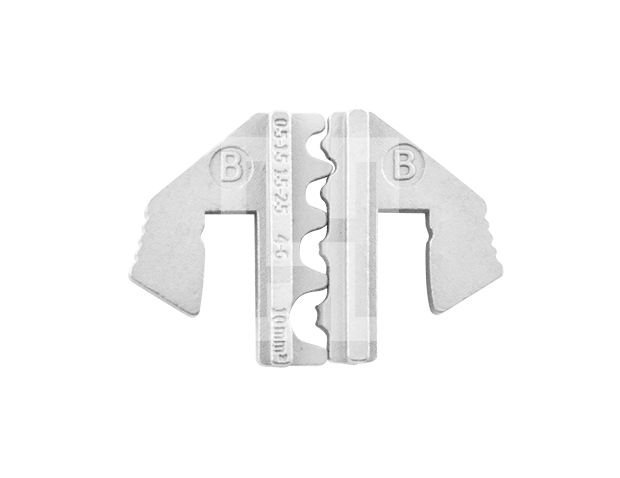

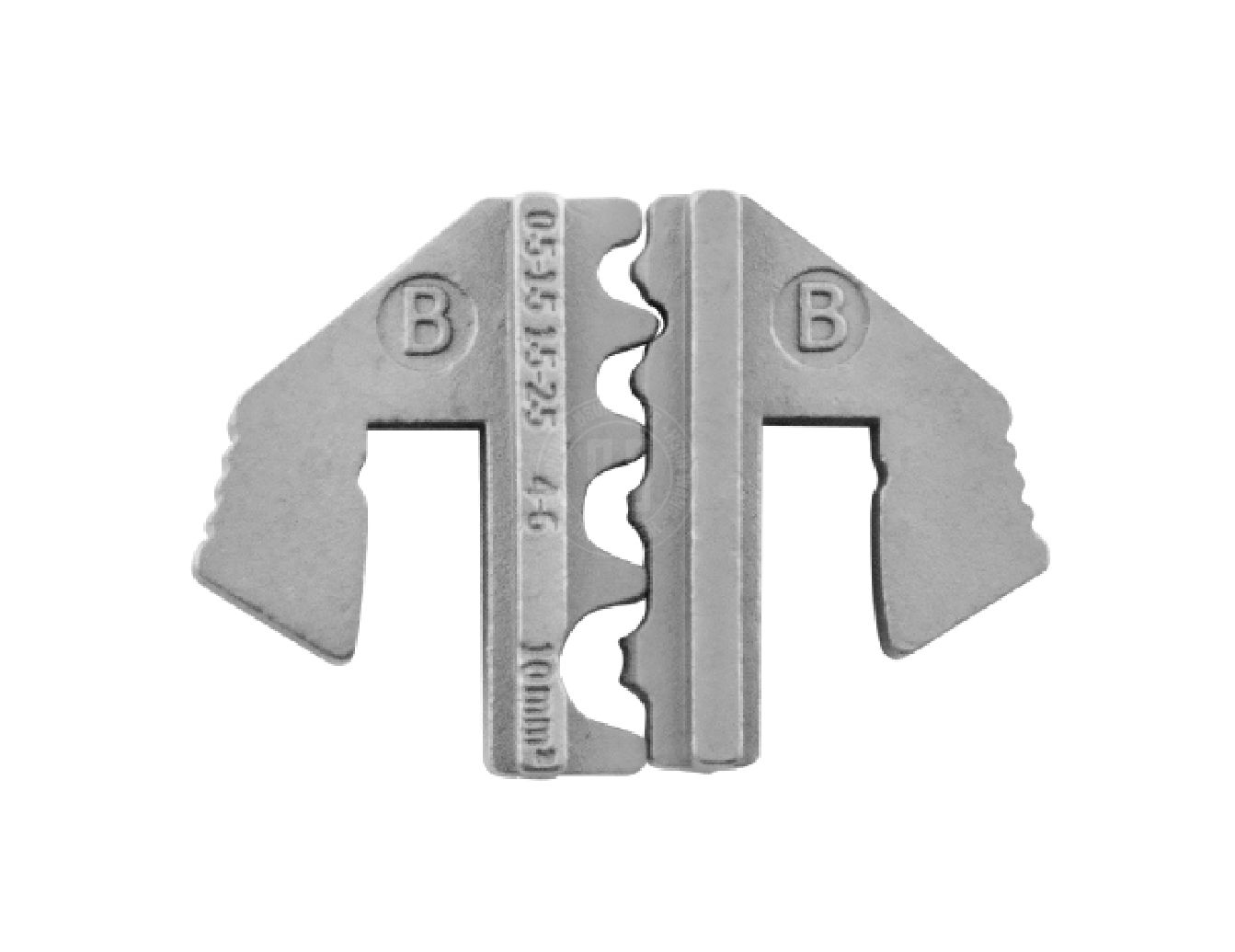

 Item No. : J12JB Quick Change Crimping Jaw for Non-Insulated Terminal (1.5-10mm²/20-8AWG)

Suitable for

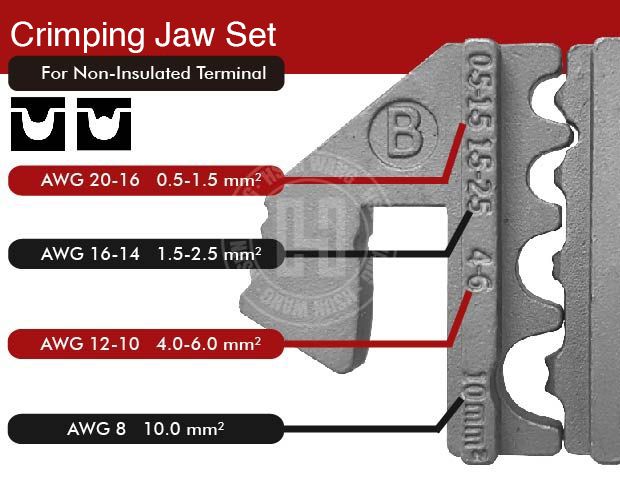

● AWG 20-16/16-14/12-10/8

● DIN 0.5-1.5/1.5-2.5/4-6/10 mm2

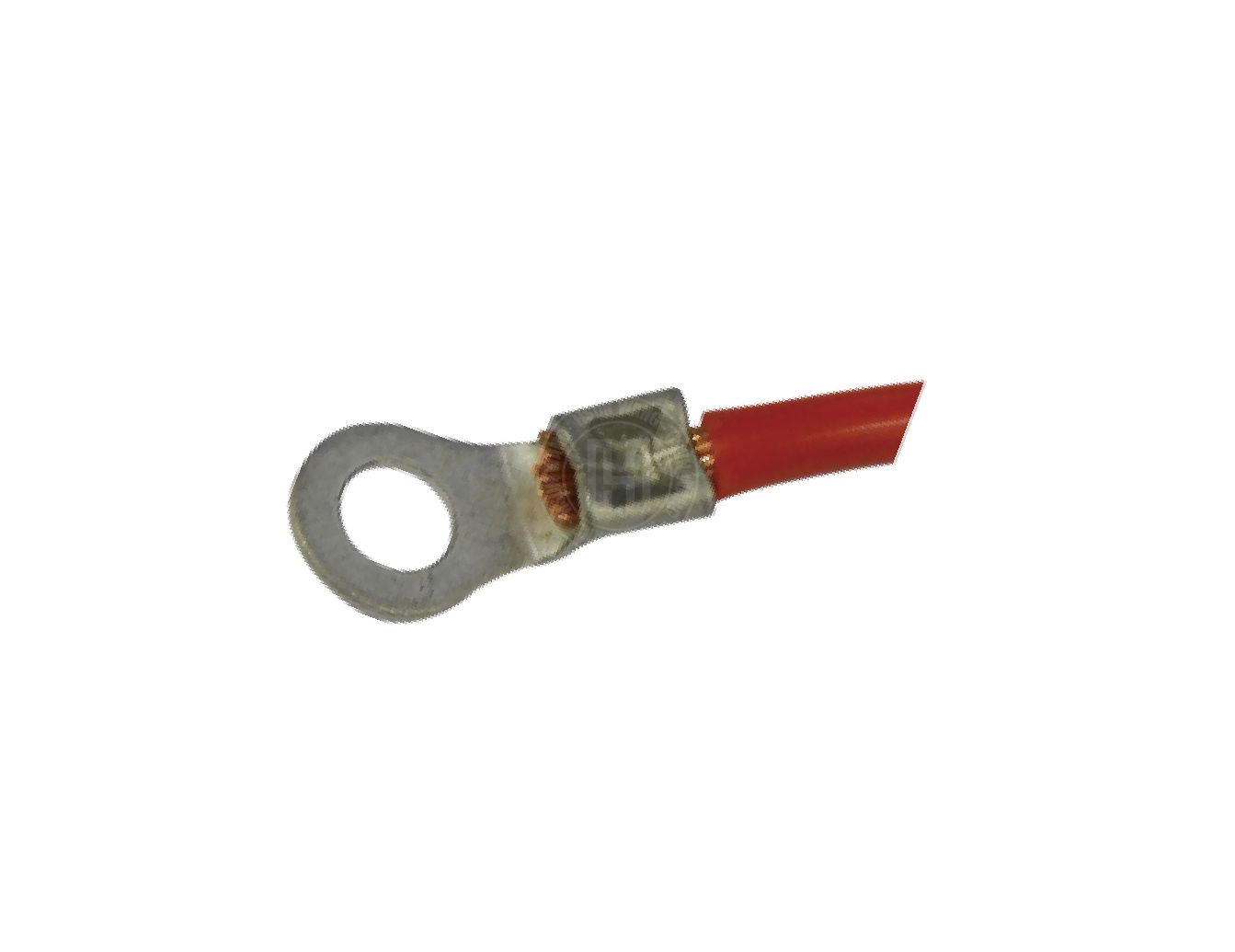

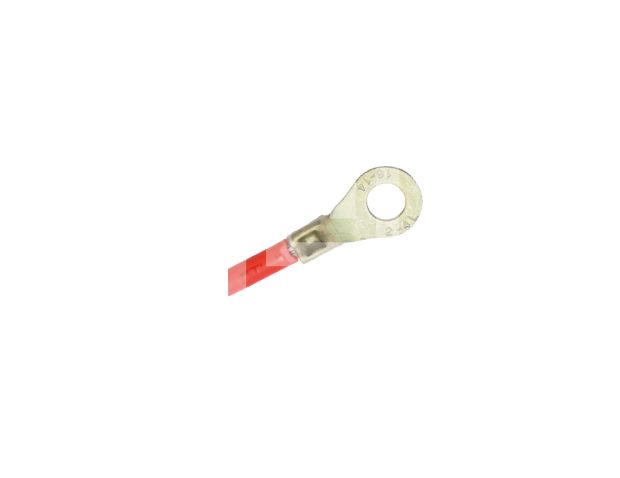

Confined crimp for closed barrel terminals: Indent-Crimp & Double-Indent-Crimp
Strong, uniform crimps,Cosistent and uniform crimps. Crimps the entire area of the terminal barrel.

FOR: Non-Insulated Terminals & Non-Insulated Copper Terminals

DESIGNED FOR NON INSULATED TERMINALS - Makes a single 3D crimp which ensures maximum crimping strength for non-insulated terminals 20-8 gauge and anderson powerpole terminals #6/8/10-12. These dies are not compatible with the fixed die crimping tools.

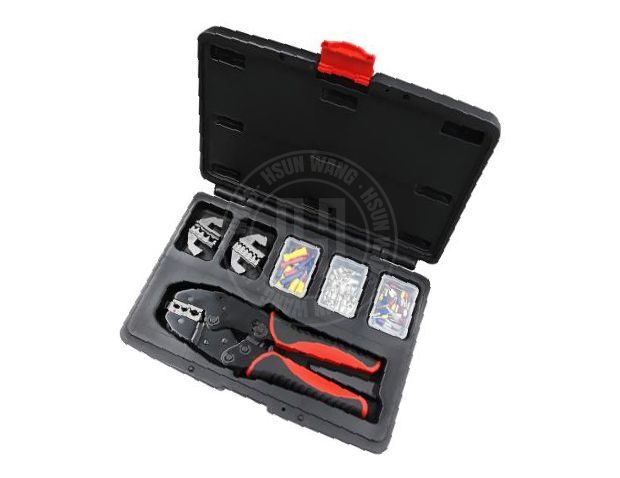

Compatible with LiCrim Quick Change crimper frames system as below:

Applicable: Auto Repair /Machine Wiring /Electrical & ElectronicDevice

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

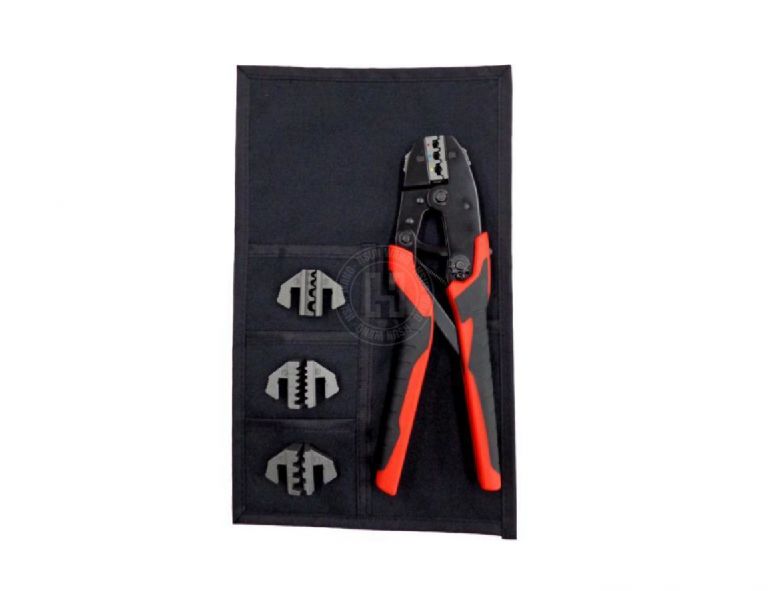

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/14.6/15.6/KGS/1.2'
                          Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  60.8g
