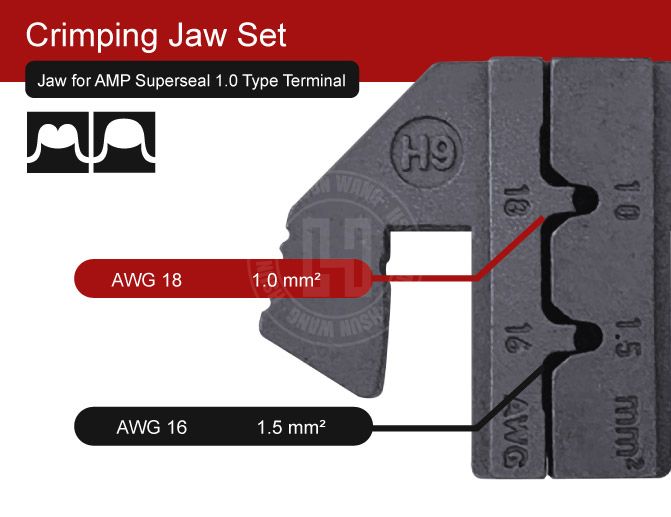

Item No.: J12JH9 Quick Change Crimping Jaw for AMP Superseal 1.0 Terminal – AWG 18–16
Suitable for
● AWG 18–16
● DIN 1.0–1.5 mm²
● JIS 0.85–1.25 mm²
Confined crimp for: B Crimp (F Crimp) & Overlap crimp
For AMP Superseal 1.0 Terminal
The J12JH9 Quick Change Crimping Jaw is designed for AMP Superseal 1.0 terminals, supporting wire sizes from AWG 18–16 (DIN 1.0–1.5 mm² / JIS 0.85–1.25 mm²).

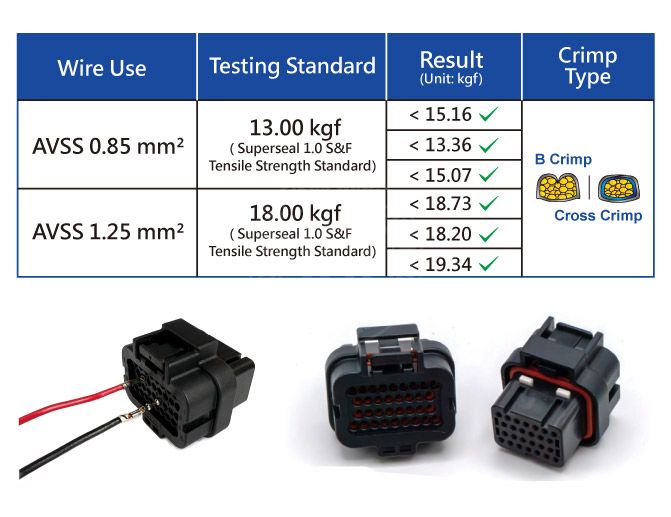

It supports both B-crimp (F-crimp) and overlap crimping, delivering stable and consistent crimping results for sealed terminal connections.
Ideal for automotive wiring repairs, wiring harnesses, and sensor or power connections, the J12JH9 ensures reliable and repeatable performance in everyday professional use.
Compatible with LiCrim Quick Change crimper frames system as below:
Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
Material: AISI 4140
Procedure: Precision Wax-Lost Casting
Treatment: Heat Treated
Surface Treatment: Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and finished with a zinc phosphate surface treatment.
Jaw replacement is tool-free and takes only 5 seconds — slide in, slide out.
(Not compatible with fixed-jaw crimpers.)
Designed in Germany.
Made in Taiwan.
Patented in the USA, Germany, China, and Taiwan.
Packing List: 120/240/CTN / 15.8/16.8 KGS / 1.2'
Sliding Card
Sliding Card Size: 11.3 × 8.3 × 1.5 cm
Unit Weight: 65.8 g
For more information please contact us.
