Light Quick Change Ratchet Crimper for Superseal 1.0 Terminal / Item No.: JCBA35

Item No.: JCBA35   Light Quick Change Ratchet Crimper for Superseal 1.0 Terminal

• Light Quick Change Ratchet Crimper / Item No.:JCI
• Jaw for Superseal 1.0 Terminal / Item No.: J12H8
• Jaw for Superseal 1.0 Terminal / Item No.: J12H9

The JCBA35 is a dedicated Superseal 1.0 crimp tool engineered specifically for AMP Superseal 1.0 open barrel terminals.

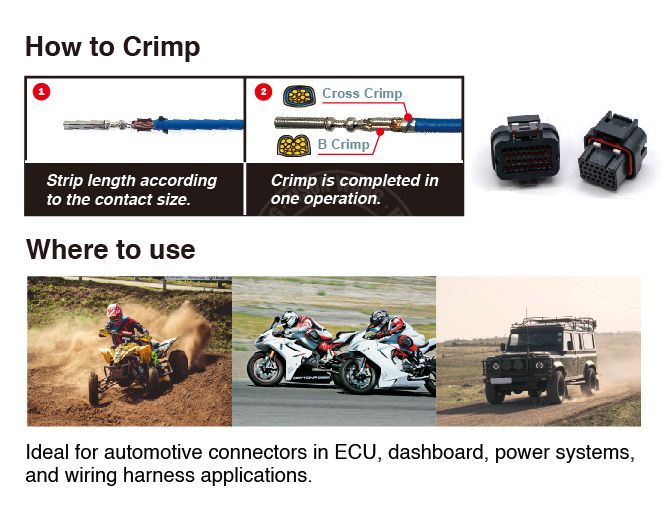

This tool ensures precise conductor crimp and insulation support crimp in a single ratchet cycle, delivering stable electrical and mechanical performance.

In the Superseal 1.0 connector system, the waterproof performance is achieved by the pre-installed silicone sealing structure integrated inside the connector housing. The crimped terminal itself does not provide sealing. Once properly crimped and inserted into the housing, the complete connector assembly offers dustproof and waterproof protection.

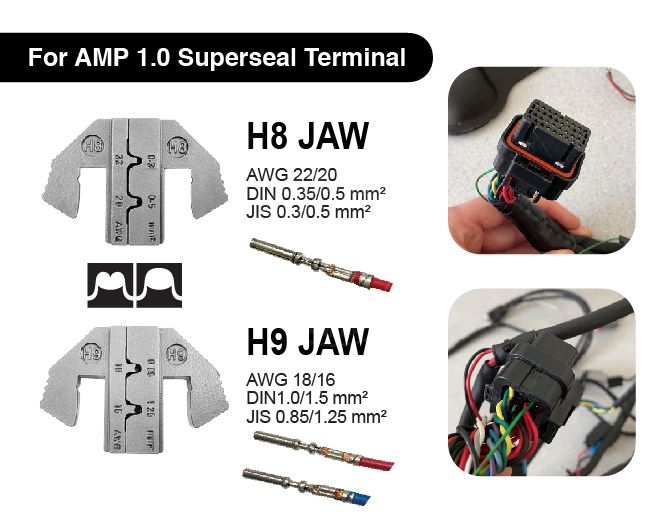

Dedicated Superseal 1.0 Jaw System (H8 & H9)
This Superseal 1.0 terminal crimper set includes two precision jaws designed exclusively for the 1.0 series:

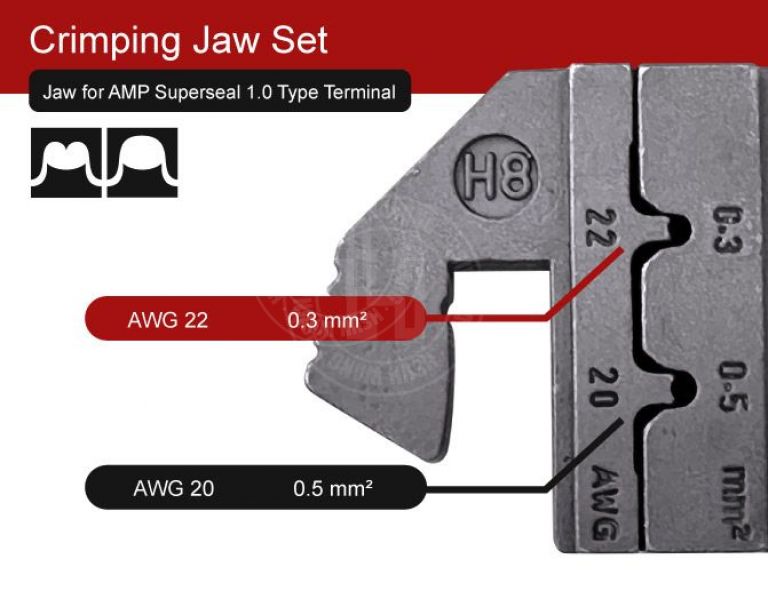

H8 Jaw – For Superseal 1.0
• AWG 22 / 20
• DIN 0.35 / 0.5 mm²
• JIS 0.3 / 0.5 mm²

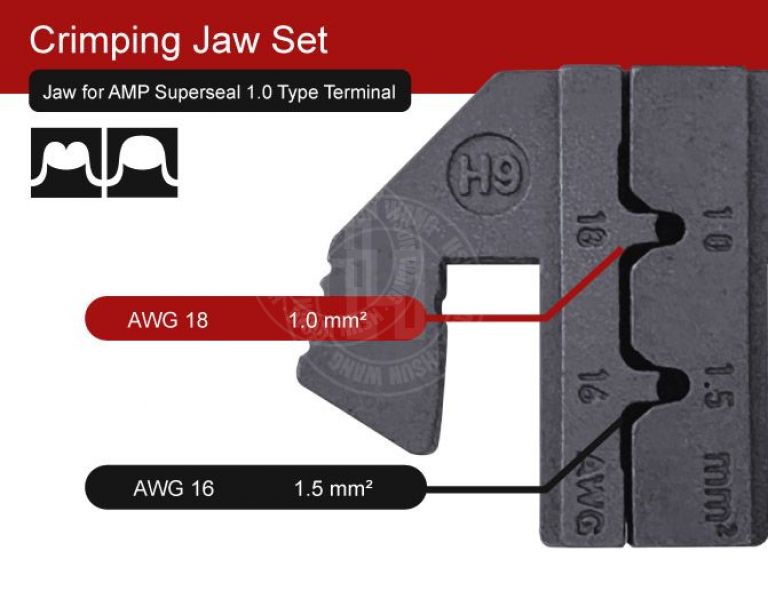

H9 Jaw – For Superseal 1.0
• AWG 18 / 16
• DIN 1.0 / 1.5 mm²
• JIS 0.85 / 1.25 mm²

The jaws are made from high-strength alloy steel, heat-treated for durability and finished for long-term reliability.

Designed by Germany. Made in Taiwan.

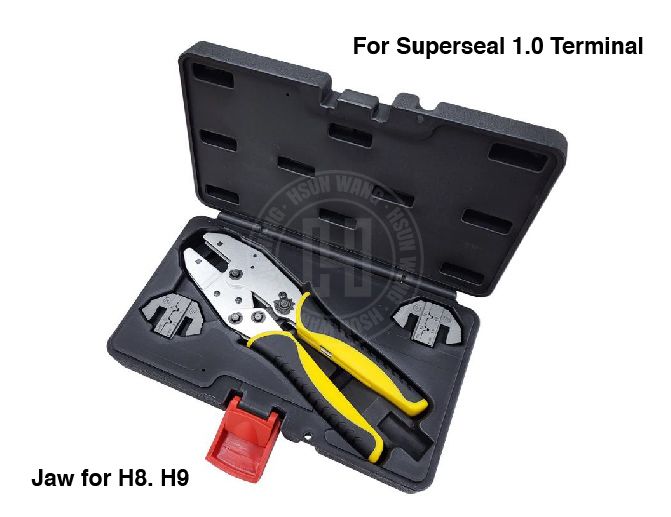

Engineered for lightweight handling and reliable performance, this Quick-Change Aluminum Crimping Tool features a 6061 aluminum body with a strengthened pivot structure for enhanced stability and durability.

Precision-machined reinforcement rings provide additional support at the critical pivot area, while the patented structural design delivers a durable platform for professional crimping applications. The interchangeable jaw system also allows quick jaw changes for greater flexibility across different terminal applications.

Applications – Superseal 1.0 Automotive Use

This Superseal 1.0 crimping tool is widely used in automotive electrical systems, including:

• ECU connectors

• Dashboard systems

• Power distribution modules

• Sensors

• CAN keypad systems

• Automotive wiring harness assembly

Suitable for passenger vehicles, motorcycles, off-road vehicles, and industrial automotive equipment.

Packing List : 20/CTN/12.2/13.2/KGS/1.7'

                        Blow Case and Color Sleeve
Blow Case Size : 24.5 x 15.2 x 5.3 cm
Unit Weight : 0.61 kgs
