Quick-Change Crimping Jaws for AMP Superseal 1.0 Terminals / Item No. :J12JH8

Item No.: J12JH8   Quick Change Crimping Jaw for AMP Superseal 1.0 Terminal – AWG 22–20

Suitable for

● AWG 22–20
● DIN 0.35–0.5 mm²
● JIS 0.3–0.5 mm²

Confined crimp for:

B Crimp (F Crimp) & Overlap Crimp

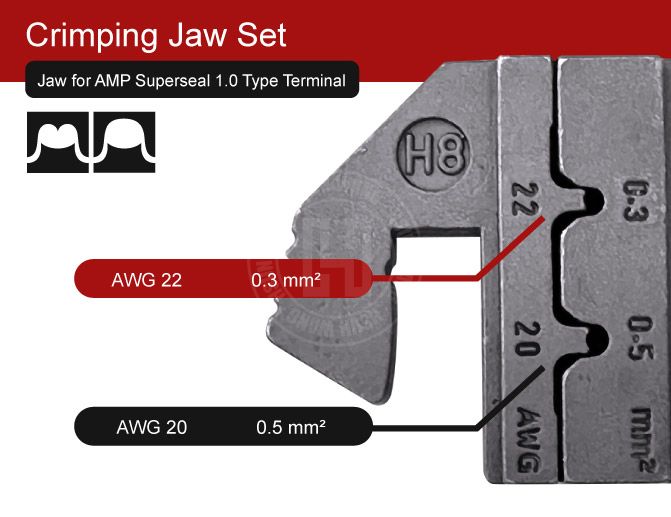

The J12JH8 Quick Change Crimping Jaw is designed for AMP Superseal 1.0 terminals, supporting smaller wire sizes from AWG 22–20 (DIN 0.35–0.5 mm² / JIS 0.3–0.5 mm²).

It supports both B-crimp (F-crimp) and overlap crimping, delivering stable and consistent crimping results for sealed terminal connections.

Ideal for automotive wiring repairs, sensor connections, and low-current applications, the J12JH8 ensures reliable and repeatable performance in everyday professional use.

Compatible with LiCrim Quick Change crimper frames system as below:

• 9 plus Quick Change Ratchet Crimper JD series (Tools Only or With Contacts )
• 8.7" Quick Change Ratchet Crimper JB series (Tools Only or With Contacts )
• 10" Quick Change Ratchet Crimper JE series (Tools Only or With Contacts )
• 8.7" Light Quick Change Ratchet Crimper JC series (Tools Only or With Contacts )
• 9" Professional Parallel Ratchet Crimper / Item No.: JFP

Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material & Manufacturing

• Material: AISI 4140 (Chromium-Molybdenum Alloy Steel)
• Process: Precision Wax-Lost Casting
• Heat Treatment: Applied for strength and durability
• Surface Treatment: Zinc Phosphate

AISI 4140 provides excellent hardness penetration and strength, ensuring long-term durability and consistent crimping performance.

Features:

• Quick-change design – tool-free replacement within 5 seconds
• Stable and repeatable crimping quality
• Designed for sealed terminal applications
• Compatible with Quick Change crimping systems, supporting both manual crimpers and pneumatic crimping machines

Origin & Patent

• Designed in Germany
• Made in Taiwan
• Patented in the USA, Germany, China, and Taiwan

Packing List: 120/240/CTN / 15.5/16.5 KGS / 1.2'

                         Sliding Card
Sliding Card Size: 11.3 × 8.3 × 1.5 cm

Unit Weight: 64.7 g

For more information please contact us.
