For Tyco Solar System with Spanner Tool Set

Item No. : JB5JA30 For Tyco Solar System with Spanner Tool Set

Jaw for MC4 S&F Solar Connector and TE PV4-S S&F Connector / Item No.: J12JIQ2
Jaw for Tyco SOLARLOK HVT Connector / Item No.: J12JIQ3
8.7” Quick Change Ratchet Crimper / Item No.:JBI
Solar Spanner Tool for Tyco SOLARLOK PV4-S

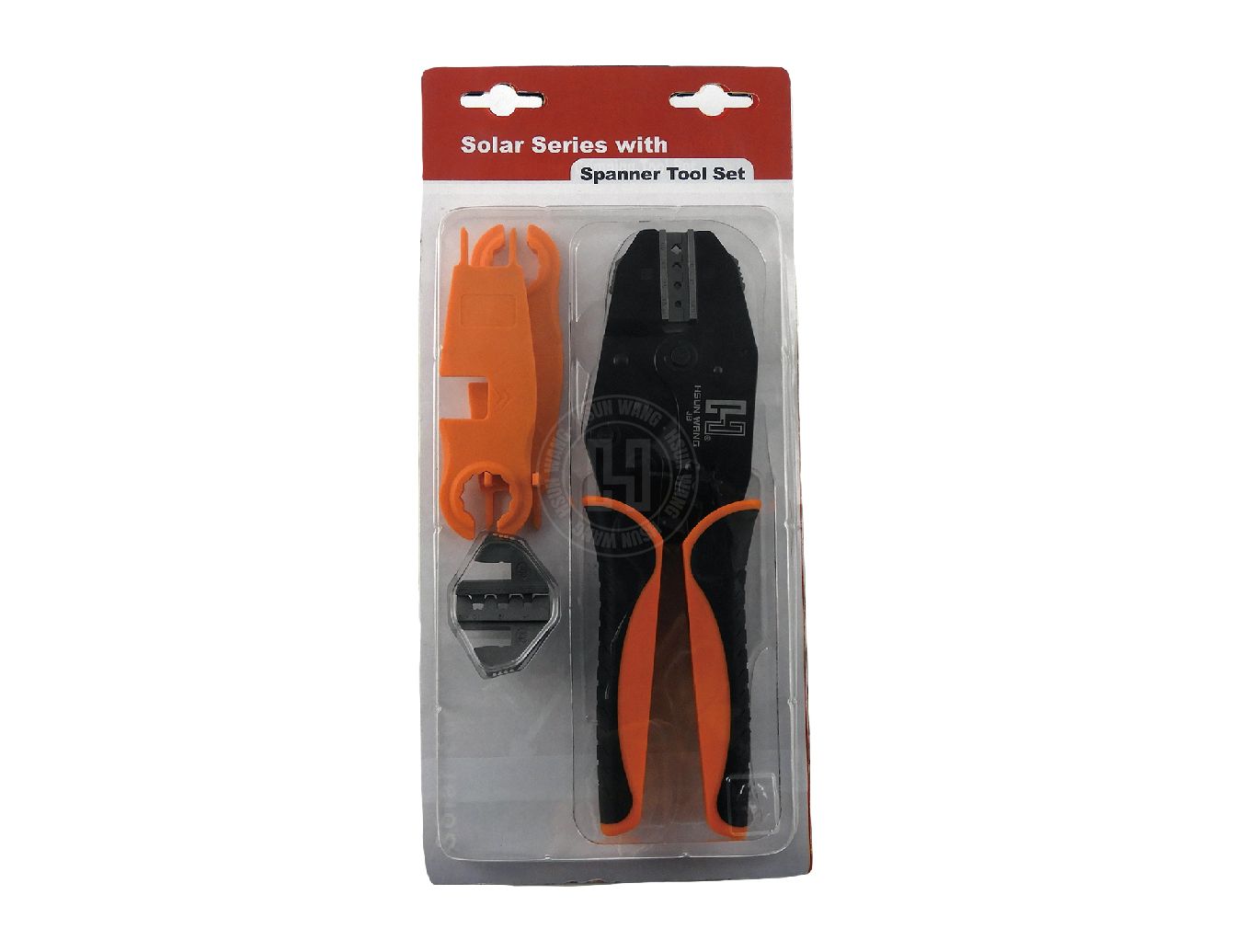

Solar crimp tool set, include jaws IQ2, IQ3 and solar spanner tool for Tyco solar system.

IQ2 Jaw

For MC4 S&F Solar Connector and TE PV4-S S&F Connector
Confined crimp for B Crimp(F Crimp) Single Crimp

Works with solar connectors 14/12/10 AWG.

IQ3 Jaw

For Tyco SOLARLOK HVT Connector

Confined crimp for 4 Indent-Crimp

Works with solar connectors AWG 15-10

Feature :

The smooth finish and user-friendly grip helps you in properly tightening the connectors.

The solar spanner is made of quality material and will not break easily. These are stronger and more durable than other alternatives in the market and have a longer service life.

These spanners are simple/ easy to use, saving time and manpower during installation. They make it easier to quickly connect and disconnect MC4 connectors.

Applications:

For solar panel connection of household, and solar power station generator, boat, RV and camping.

Jaw:

Material: AISI-4140

Procedure: Metal Injection Molding (MIM)

Treatment: Finished with Heat Treatment

Surface Treatment: Zinc Phosphate

★Designed by Germany. Made in Taiwan.

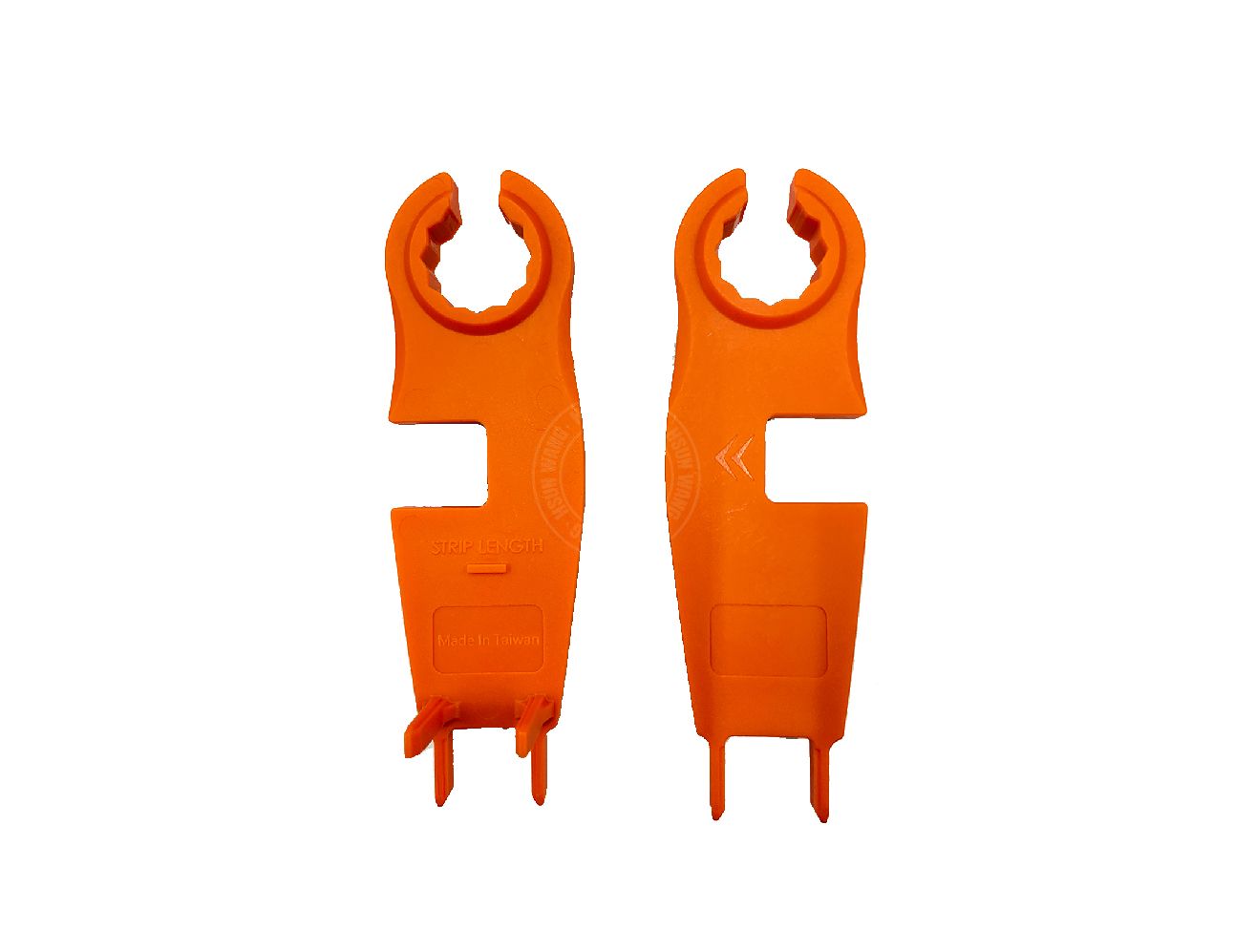

Solar Spanner Tool:

For Tyco SOLARLOK PV4-S

Material: PA66

Handily Crimping - Replace the required crimping jaws just a few seconds. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan.
PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.
EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.
Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loosen. Adjustable crimp height of star wheel, to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition. No tools required. These jaws are not compatible with the fixed jaw crimping tools.
