Die for MC4 Solar Connector / Item No. :J12JIQ2

  • Quick Change Crimping Jaw
  • J12JIQ2
  • Jaw For MC4 Solar Connector
  • MC4 Solar Connector
  • Designed by Germany, Made in Taiwan
For Solar Connector

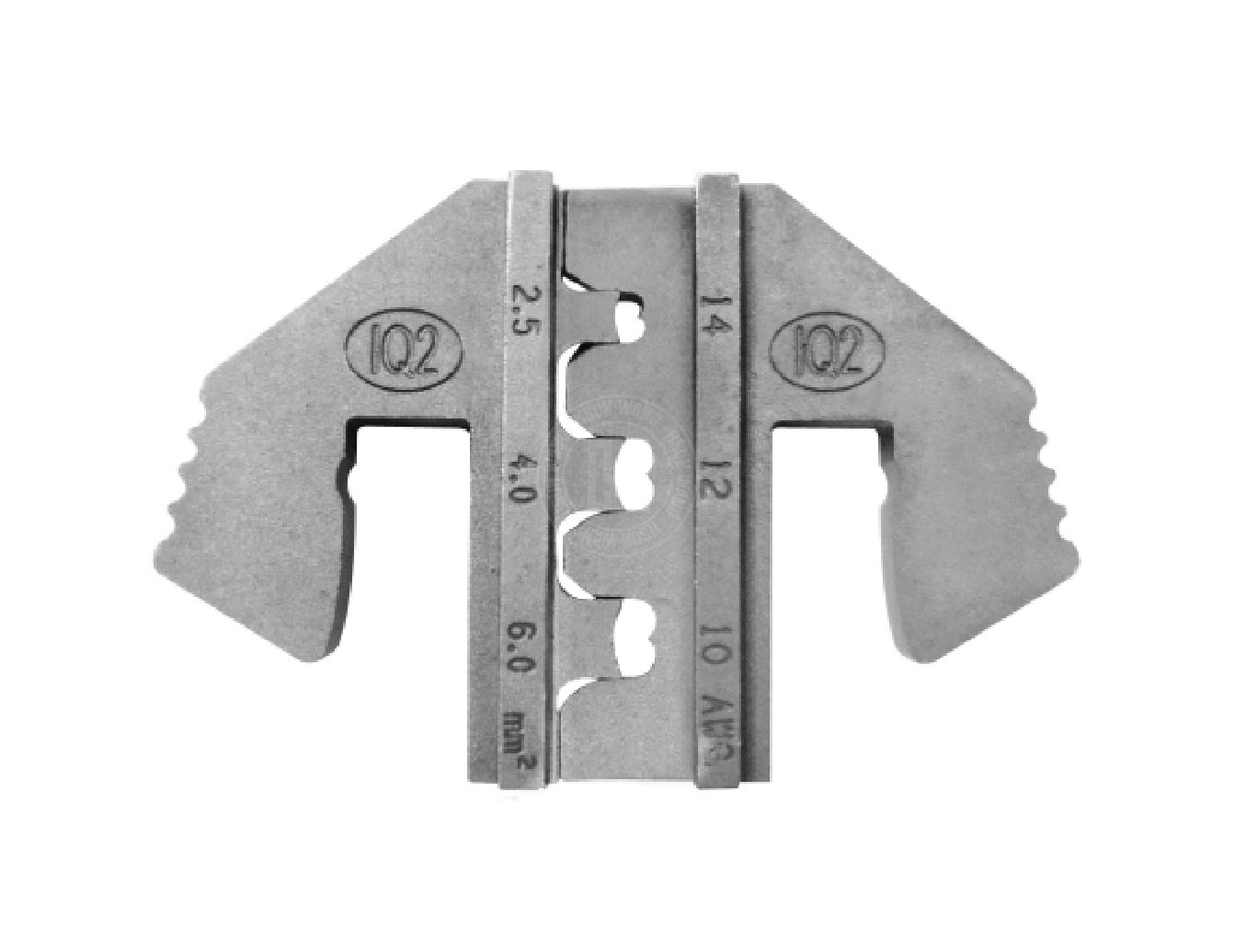

Die for MC4 Solar Connector / Item No. :J12JIQ2

Jaw For MC4 Solar Connector -AWG 14/12/10
Item No. :J12JIQ2

Product Introduction

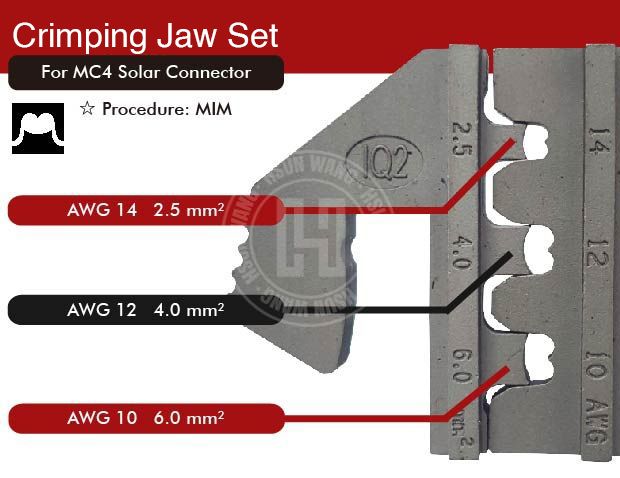

 Item No. :J12JIQ2  Quick Change Crimping Jaw For MC4 Solar Connector-AWG 14/12/10

Suitable for
● AWG 14/12/10

● DIN 2.5/4.0/6.0 mm2

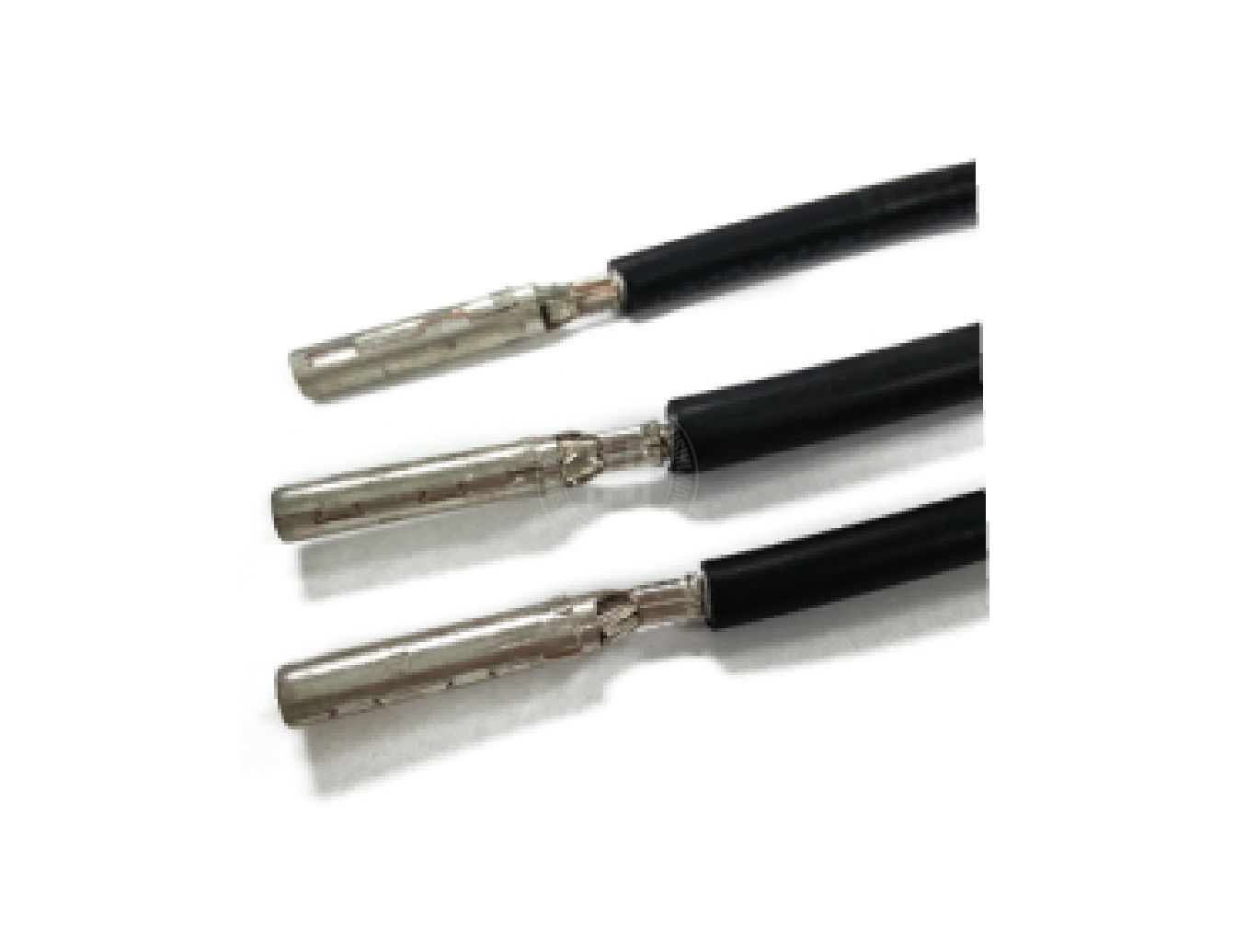

Confined crimp for B Crimp(F Crimp) Single Crimp .
Procedure: Precision crimping Jaw sets with MIM procedure for excellent crimping.(Made by MIM for precise crimping).The jaw structure is precise to ensure firmly grasps the wires after crimping . (Made by MIM for precise crimping)

Applicable: SOLAR PANNEL

DESIGNED FOR SOLAR CONNECTORS - Works with solar connectors 14/12/10 AWG.

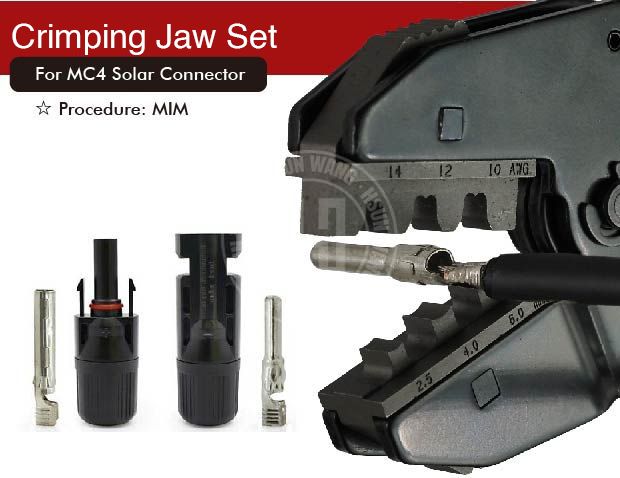

For MC4 Solar Connector
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

Material: AISI- 4140
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan
Packing List:  120/240/CTN/14.6/15.6/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  60.7g
