Die for Non-Insulated Terminal / Item No. : J12JB1

  • Quick Change Crimping Jaw J12JB1
  • Indent-Crimp J12JB1
  • J12JB1 Jaw for Non-Insulated Terminal
  • large amperage device J12JB1
  • Designed by Germany J12JB1
For Non-Insulated Contacts

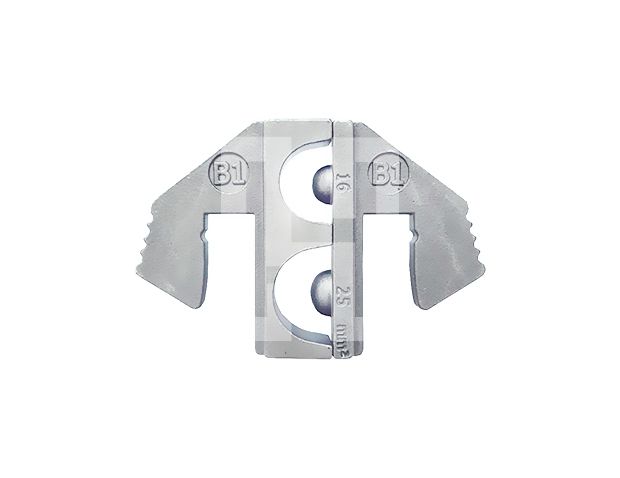

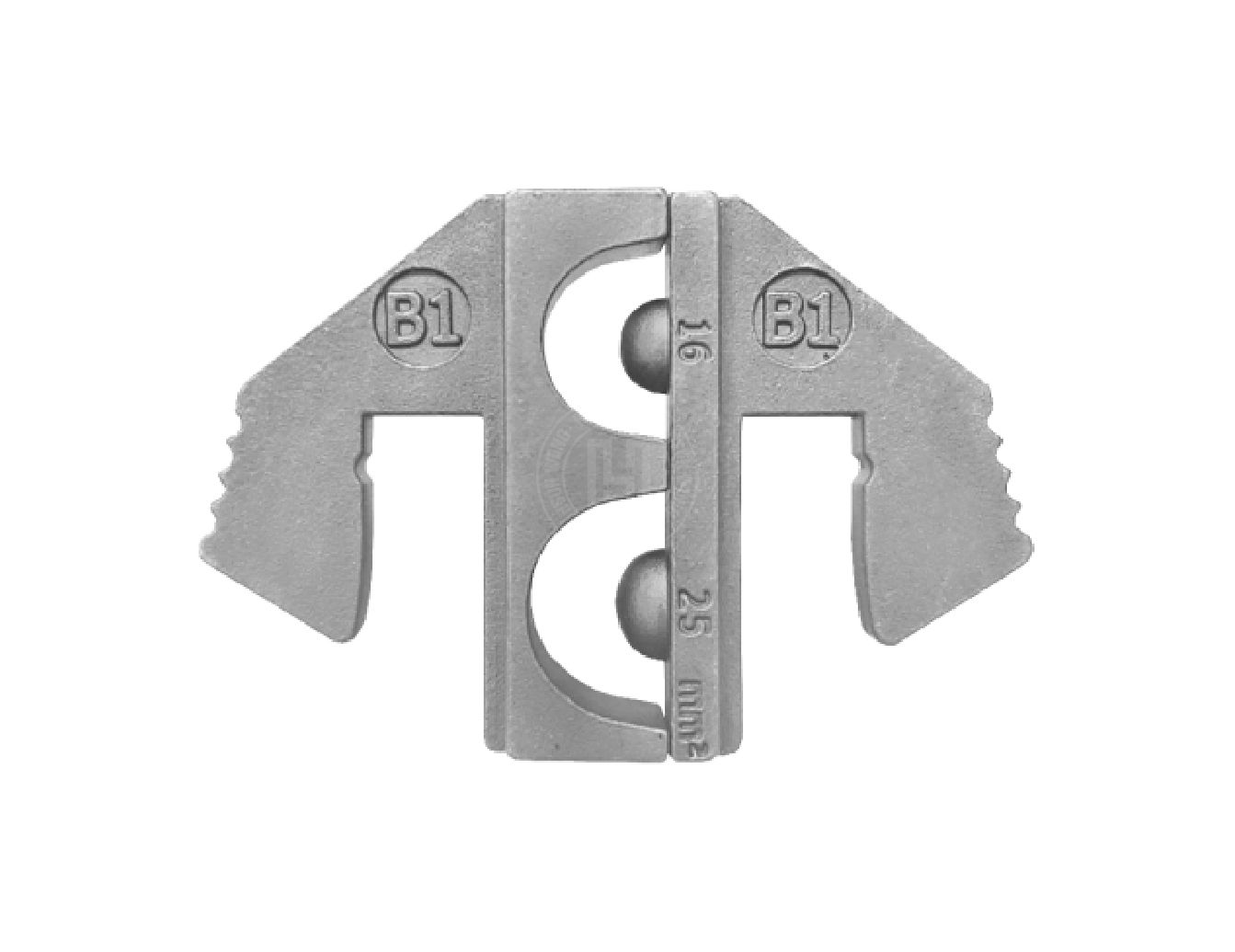

Die for Non-Insulated Terminal / Item No. : J12JB1

Makes a single 3D crimp which ensures maximum crimping strength for non-insulated terminals. Works with 6-4 AWG connectors.
Item No. : J12JB1

Product Introduction

 Item No. : J12JB1 Quick Change Crimping Jaw for Non-Insulated Terminal-AWG 6/4

Suitable for

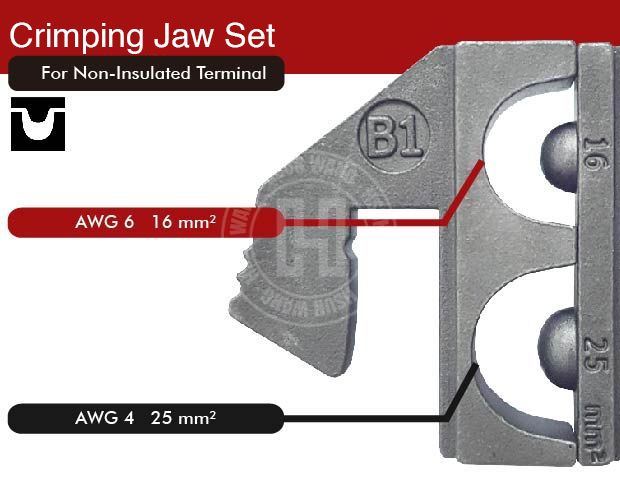

● AWG 6/4

● DIN 16/25 mm2

FOR Non-Insulated Terminals & Non-Insulated Copper Terminals

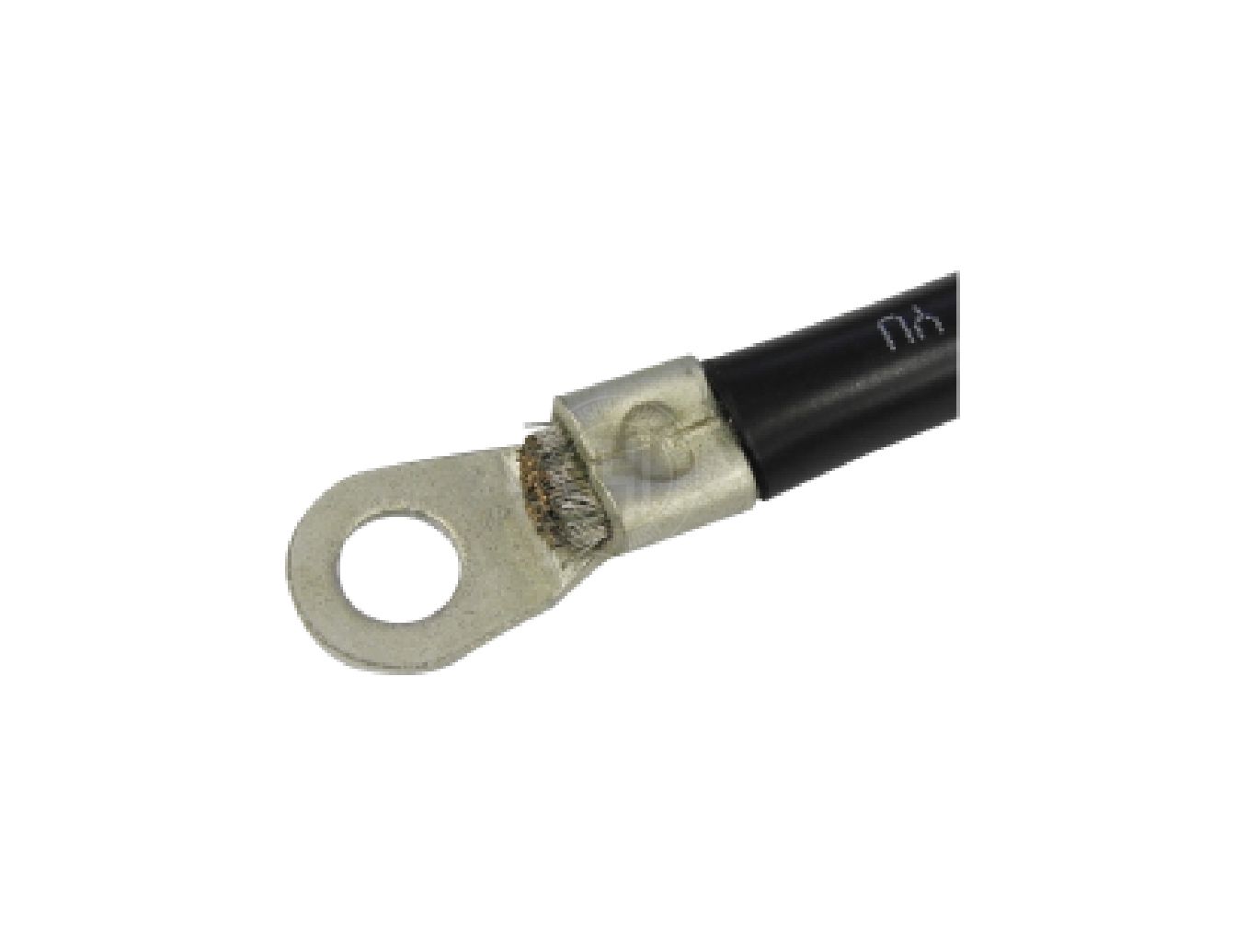

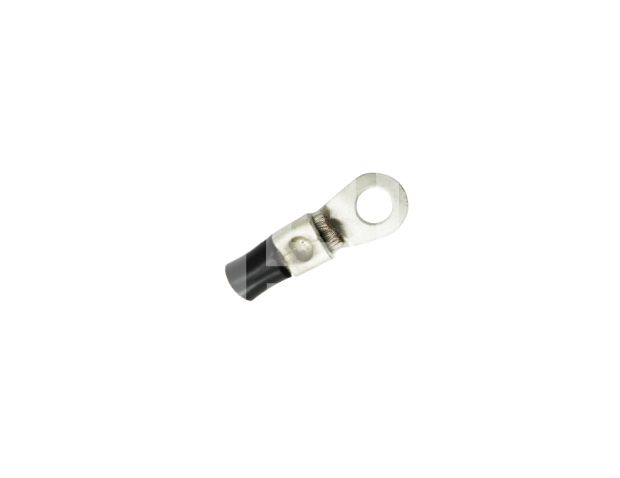

Confined crimp for closed barrel terminals: Indent-Crimp
Strong, uniform crimps
Cosistent and uniform crimps
Crimps the entire area of the terminal barrel.Wire harness mostly use for large amperage device.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.


DESIGNED FOR LARGER DIAMETER NON INSULATED TERMINALS - Makes a single 3D crimp which ensures maximum crimping strength for non-insulated terminals. Works with 6-4 AWG connectors.

Applicable: Auto Repair / Machine Wiring / Electrical & ElectronicDevice. Industrial / electrical / automotive /
These dies are not compatible with the fixed die crimping tools.

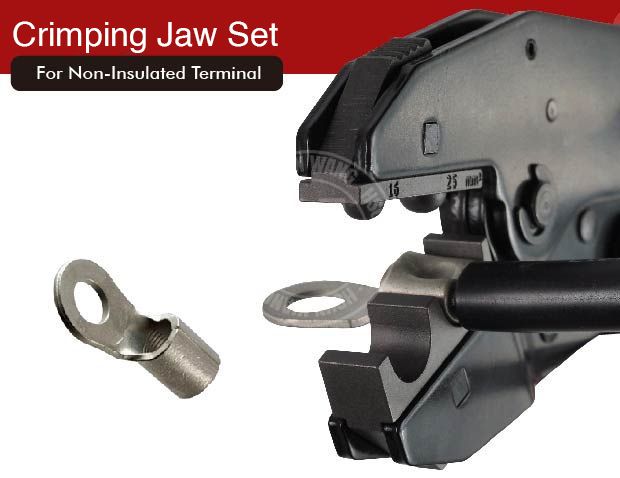

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/14.3/15.3/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  59.4g
