Die for Heat Shrink Butt Connector / Item No. : J12JA1

Jaw For Heat Shrink Butt Connector & Butt Connector
Item No. : J12JA1

Product Introduction

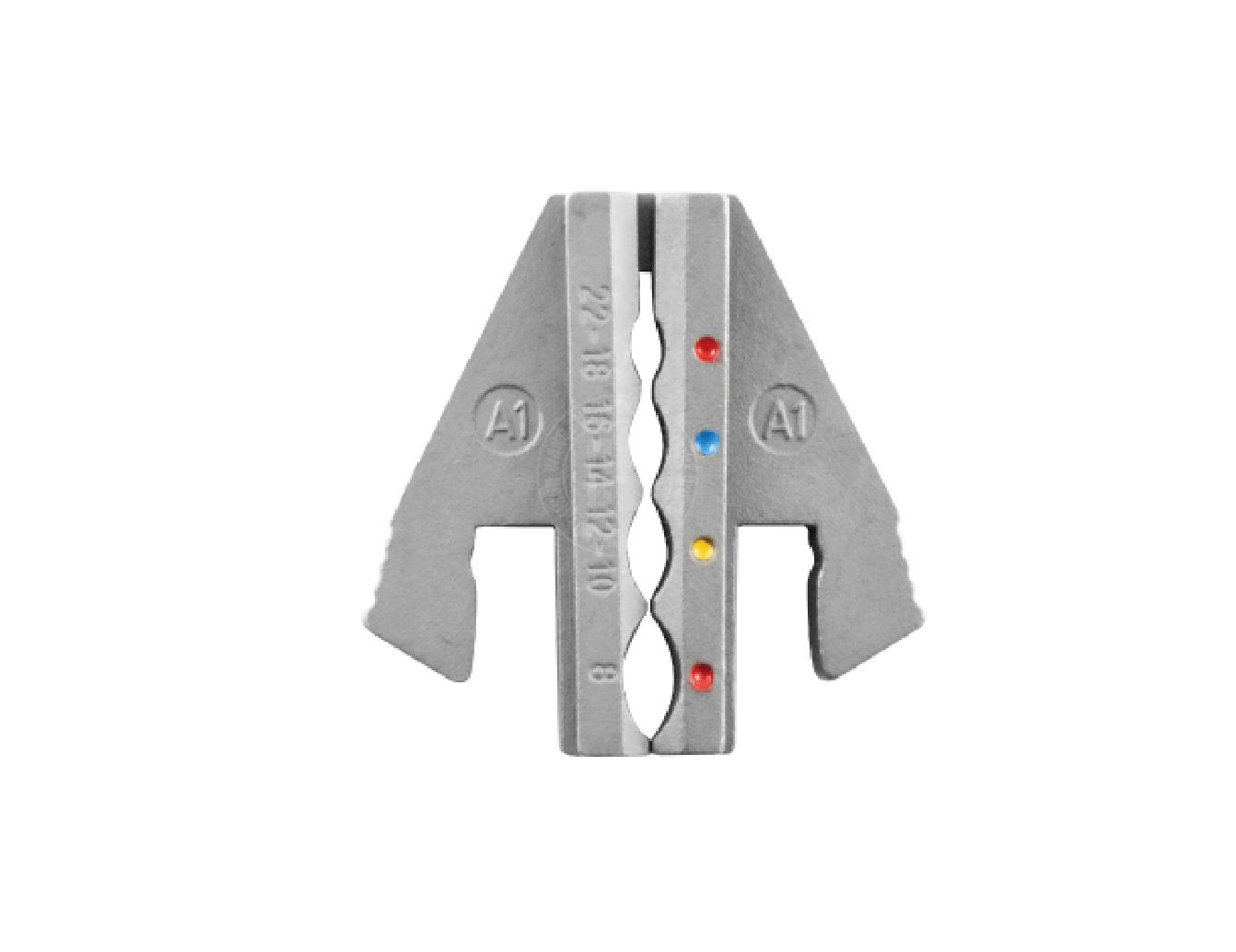

 Item No. : J12JA1 Quick Change Crimping Jaw for Heat Shrink Butt Connector AWG 22-8

Suitable for

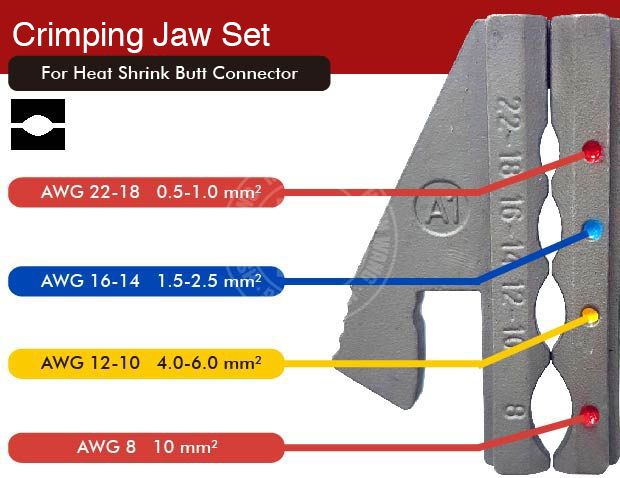

● AWG 22-18/16-14/12-10/8

● DIN 0.5-1.0/1.5-2.5/4-6/10 mm2

Confined crimp for closed barrel terminals: Indent-Crimp

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

Confined crimp for closed barrel terminals: Indent-Crimp. Ths jaw is marked with red/blue/yellow for easy identification.

Applicable: Auto/ Machine Wiring / Electrical & ElectronicDevice

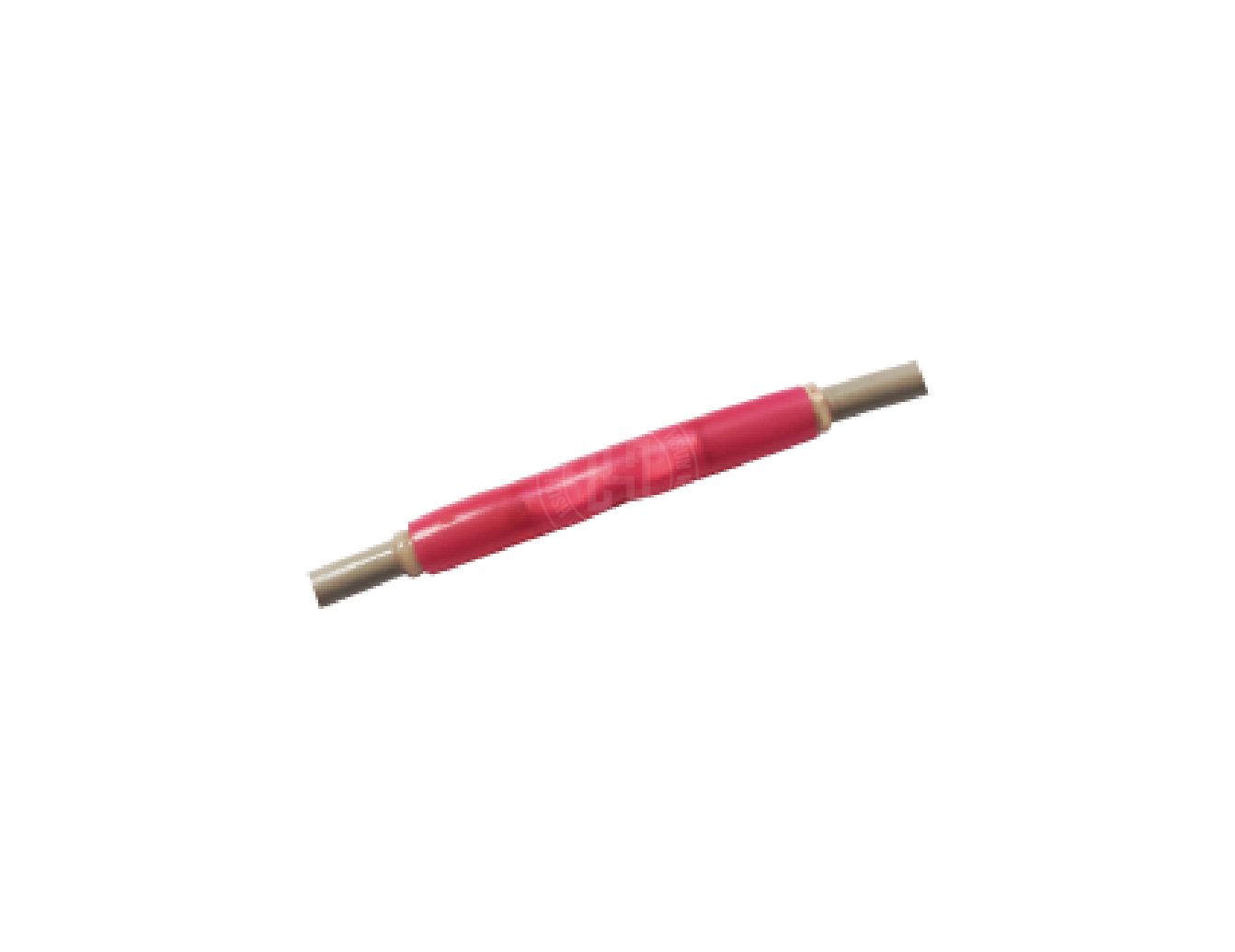

For: Heat Shrink Butt Connector & Butt Connector
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan


Packing List:  120/240/CTN/20.4/21.4/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  84.9g
