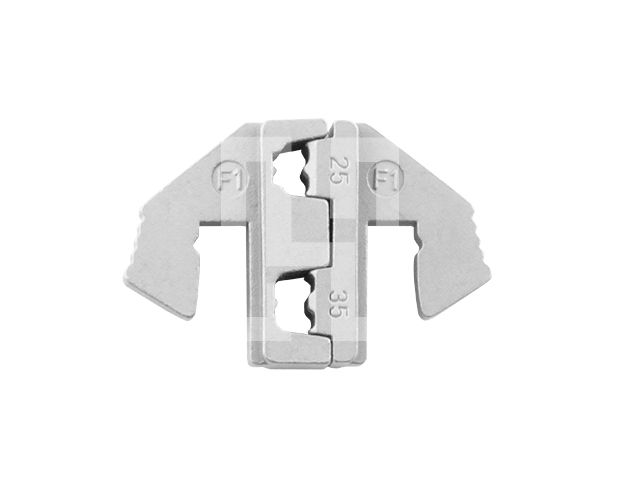

J12JF1 Quick Change Crimping Jaw for Ferrule Terminals and Insulated Cable End(25-35mm²)

Item No. : J12JF1 Quick Change Crimping Jaw for Ferrule Terminals and Insulated Cable End(25-35mm²)

Suitable for
● AWG 4/2

● DIN 25/35 mm²

Applicable: Terminal Block/ Control Panel

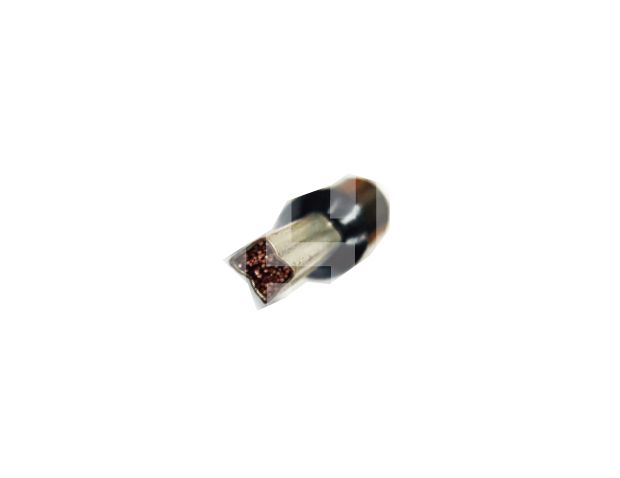

For: Non-Insulated Cord End Terminals(Ferrule) / Nylon-Cord End Terminals(Ferrule) / Twin Cord End Terminals(Ferrule)
These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List: 120/240/CTN/17.6/18.6/KGS/1.2'
Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 73g
