Die for Cord End Terminal (0.5-4.0mm²) / Item No. : J12JD

  • J12JD  Jaw for Ferrule Terminals
  • Quick Change Crimping Jaw  J12JD
  • Jaw  for  Ferrule Terminals and Insulated Cable End J12JD
  • J12JD  Ferrule Terminals and Insulated Cable End
  • Made in Taiwan
For Cord End Contacts

Die for Cord End Terminal (0.5-4.0mm²) / Item No. : J12JD

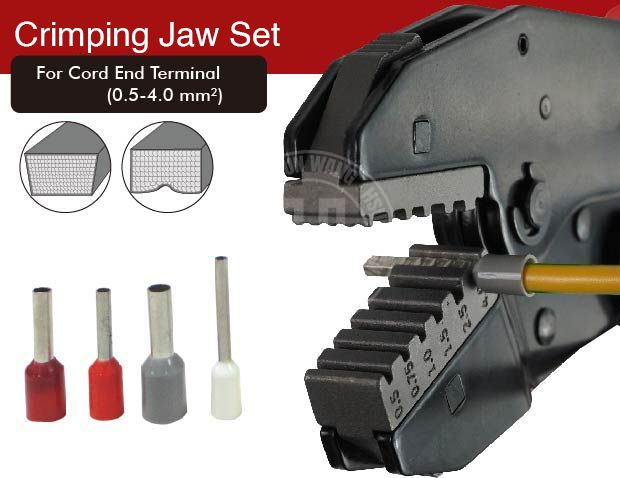

Quick Change Crimping Jaw for Ferrule Terminals and Insulated Cable End - DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm2
Item No. : J12JD

Product Introduction

Item No. : J12JD  Quick Change Crimping Jaw for Ferrule Terminals and Insulated Cable End - DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm2

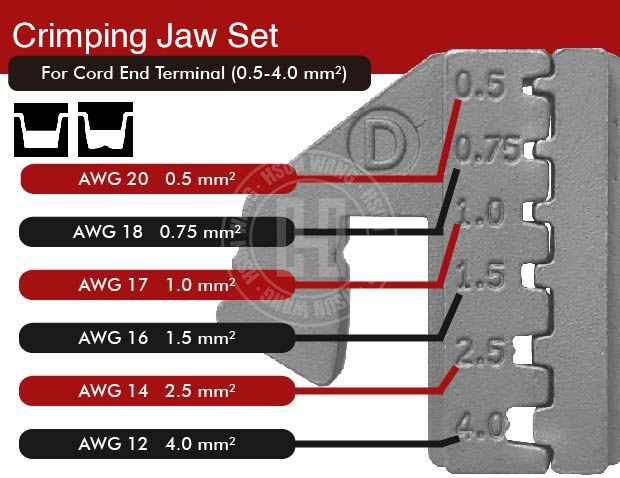

Suitable for
● AWG 20/18/17/16/14/12

● DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm2

Confined crimp :Trapezoid-Crimp & WM-Crimp

Applicable: Terminal Block/Control Pannel

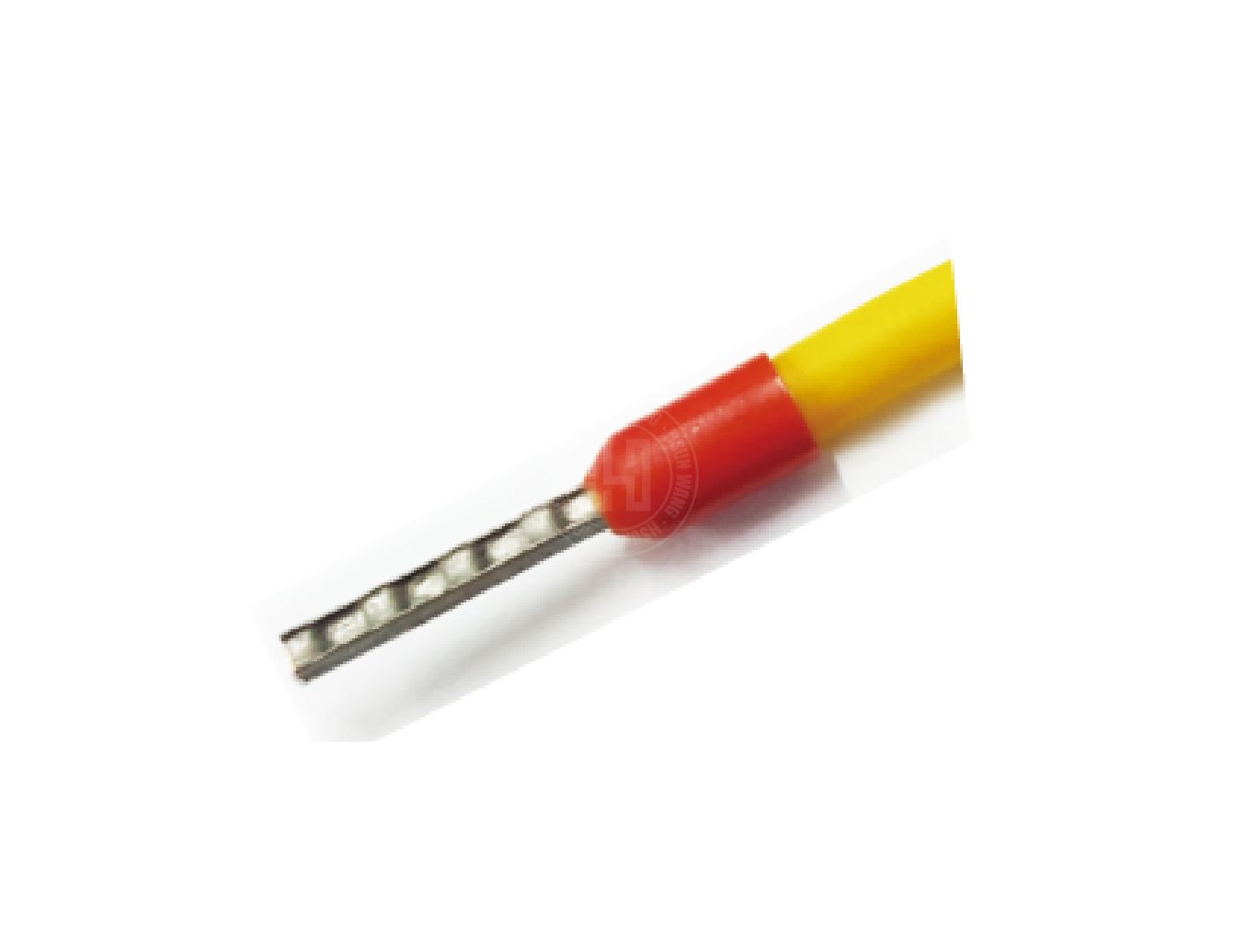

DESIGNED FOR FERRULE TERMINALS - This crimping die will make clean trapezoid shaped crimps for ferrule wire ends 22-12 AWG.
These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

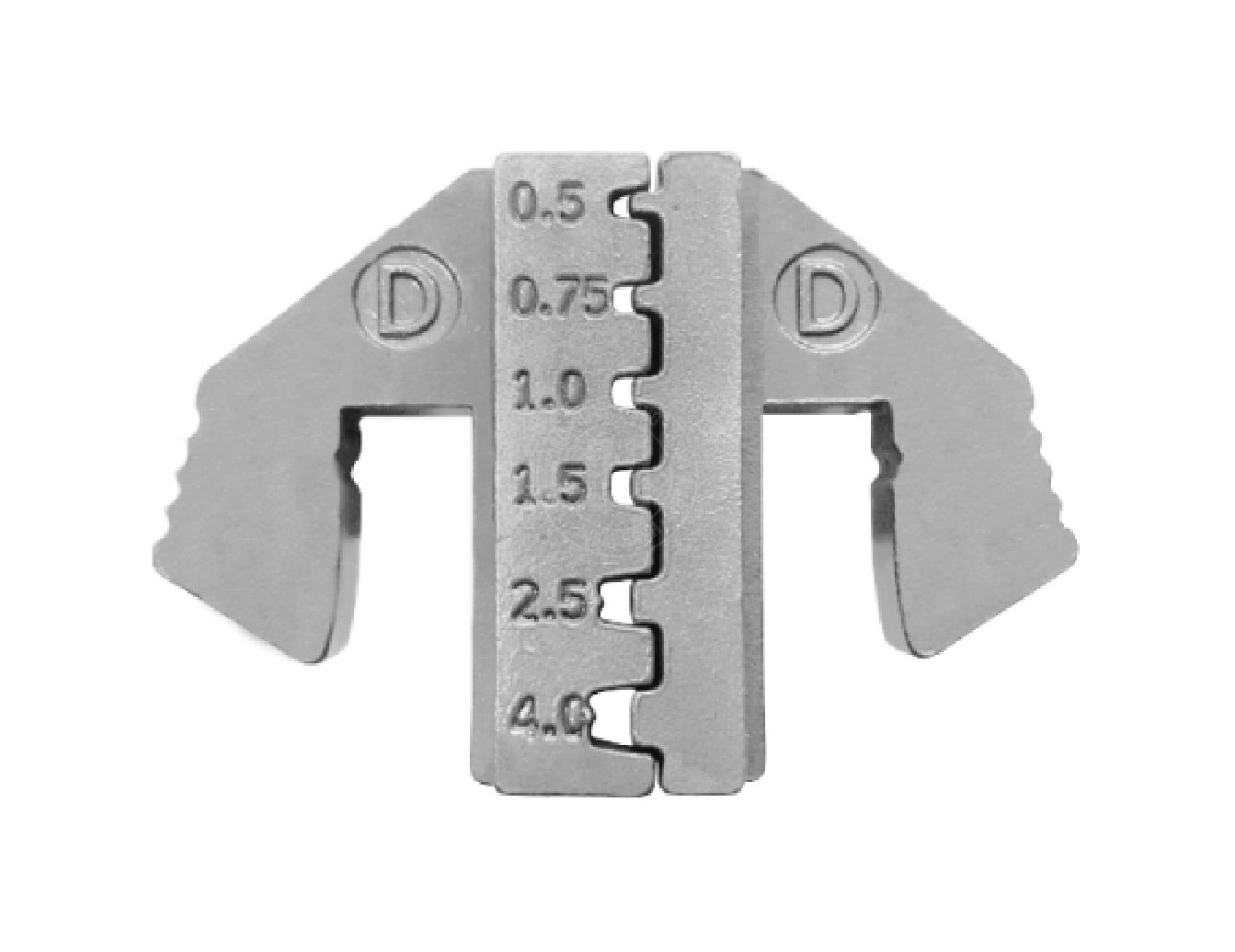

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/18.4/19.4/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  76.6g
