Die for Closed End Connector & Heat Shrink Terminal / Item No. : J12JA5

  • J12JA5 Quick Change Crimping Jaw
  •  Quick Change Crimping Jaw -J12JA5
  • Jaw for Closed End Connector  J12JA5
  • heat shrink terminals J12JA5
For Insulated Contacts

Die for Closed End Connector & Heat Shrink Terminal / Item No. : J12JA5

Jaw for Closed End Connector & Heat Shrink Terminal -AWG 22-16/16-14/12-10
Item No. : J12JA5

Product Introduction

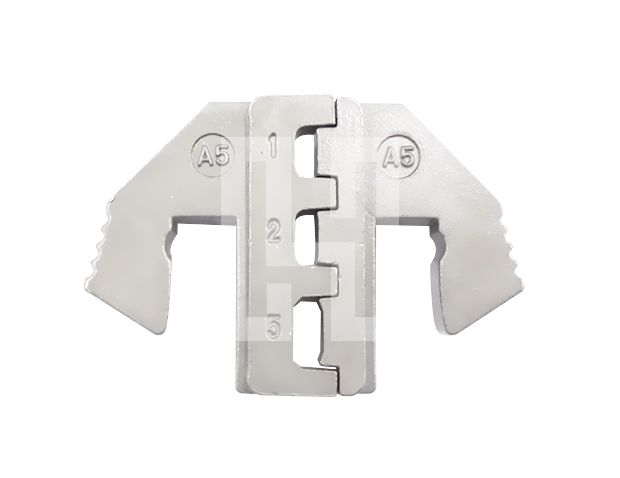

 Item No. : J12JA5  Quick Change Crimping Jaw for Closed End Connector & Heat Shrink Terminal AWG 22-10

Suitable for
● AWG 22-16/16-14/12-10

● DIN 0.5-1.5/1.5-2.5/4-6 mm2

Confined crimp for closed barrel terminals: Indent-Crimp

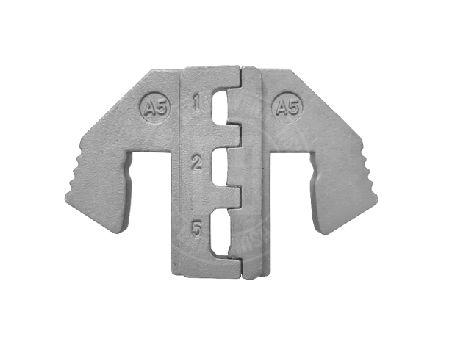

This jaw is marked with red/blue/yellow for easy identification.

Applicable: Auto/ Machine Wiring / Electrical & ElectronicDevice

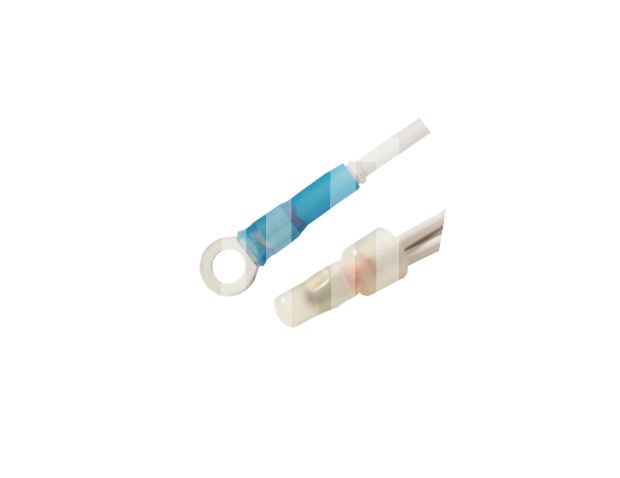

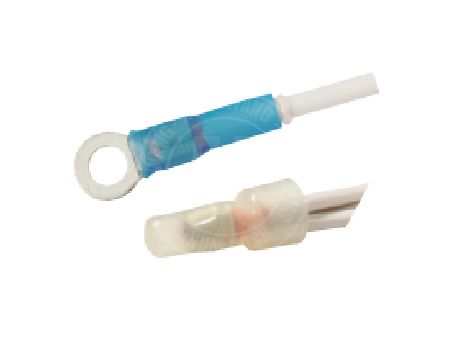

DESIGNED FOR HEAT SHRINK CONNECTORS - Single wide crimping die will ensure strong crimps without damaging heat shrink insulation. Works with 22-10 AWG heat shrink terminals.These dies are not compatible with the fixed die crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment.Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/14.6/15.6/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  61g
