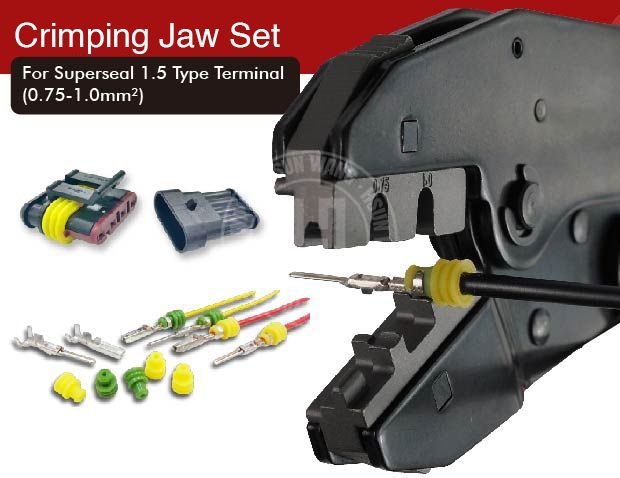

Die for AMP Superseal 1.5 Type Terminal (0.75-1.0mm²) / Item No. : J12JH3

  • Quick Change Crimping Jaw j12
  • Jaw for AMP Superseal 1.5 crimper J12
  • Jaw for AMP Superseal 1.5 J12JH3
  • AMP Superseal 1.5 J12JH3
  • made in taiwan J12JH3
For Waterproof Contacts

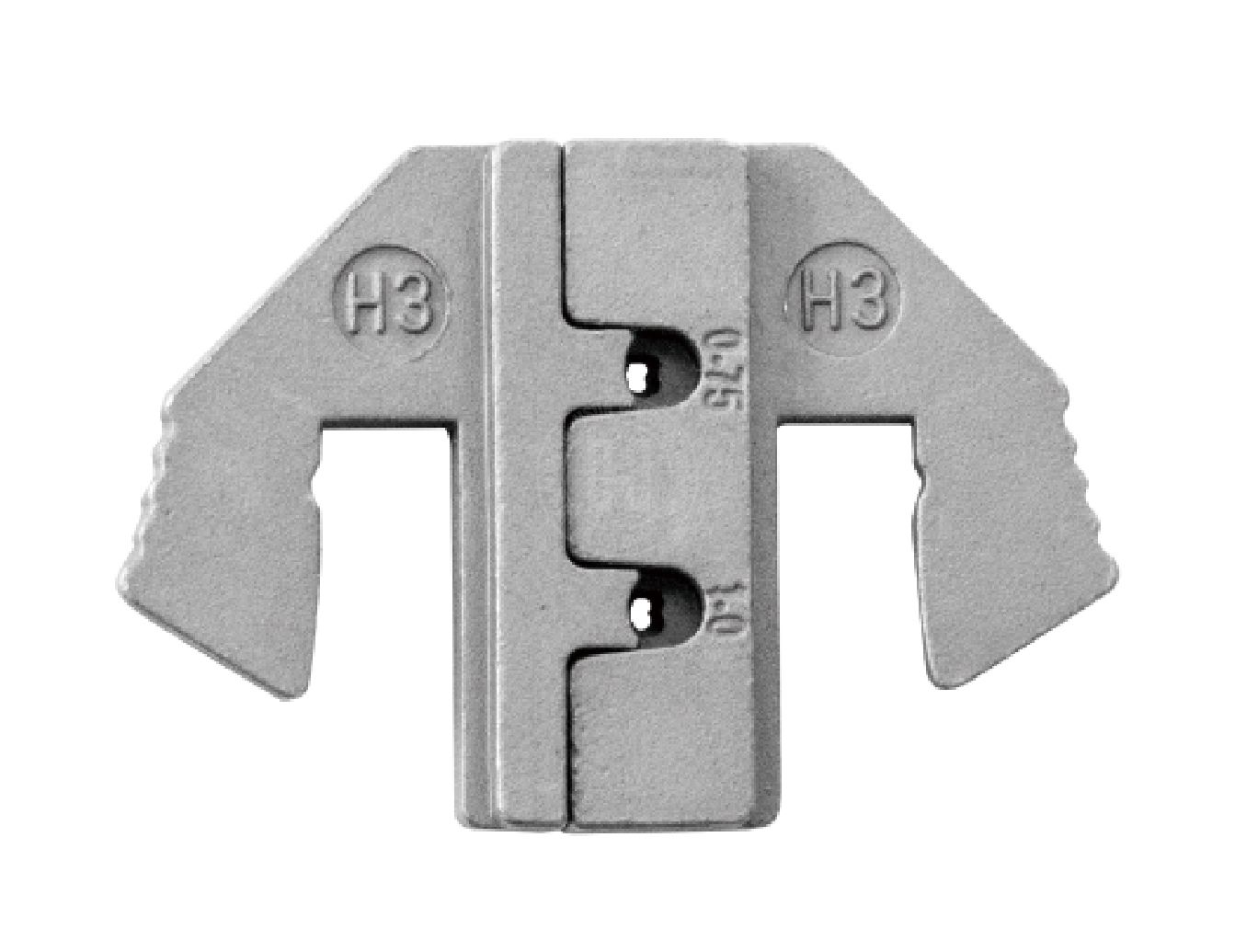

Die for AMP Superseal 1.5 Type Terminal (0.75-1.0mm²) / Item No. : J12JH3

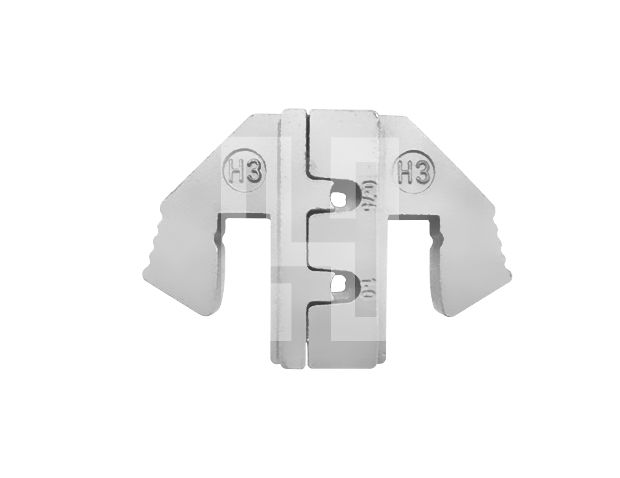

Quick Change Crimping Jaw for AMP Superseal 1.5 Type Terminal -DIN 0.75/1.0 mm2
Item No. : J12JH3

Product Introduction

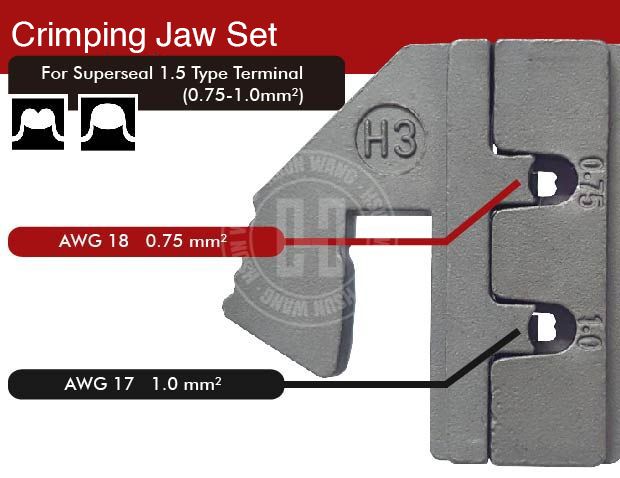

 Item No. : J12JH3 Quick Change Crimping Jaw for AMP Superseal 1.5 Type Terminal ★ AWG 18/17

Suitable for
● AWG 18/17

● DIN 0.75/1.0 mm2

Confined crimp for: B Crimp(F Crimp)& Overlap crimp
The jaw structure is precise to ensure firmly grasps the wires after crimping .

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural

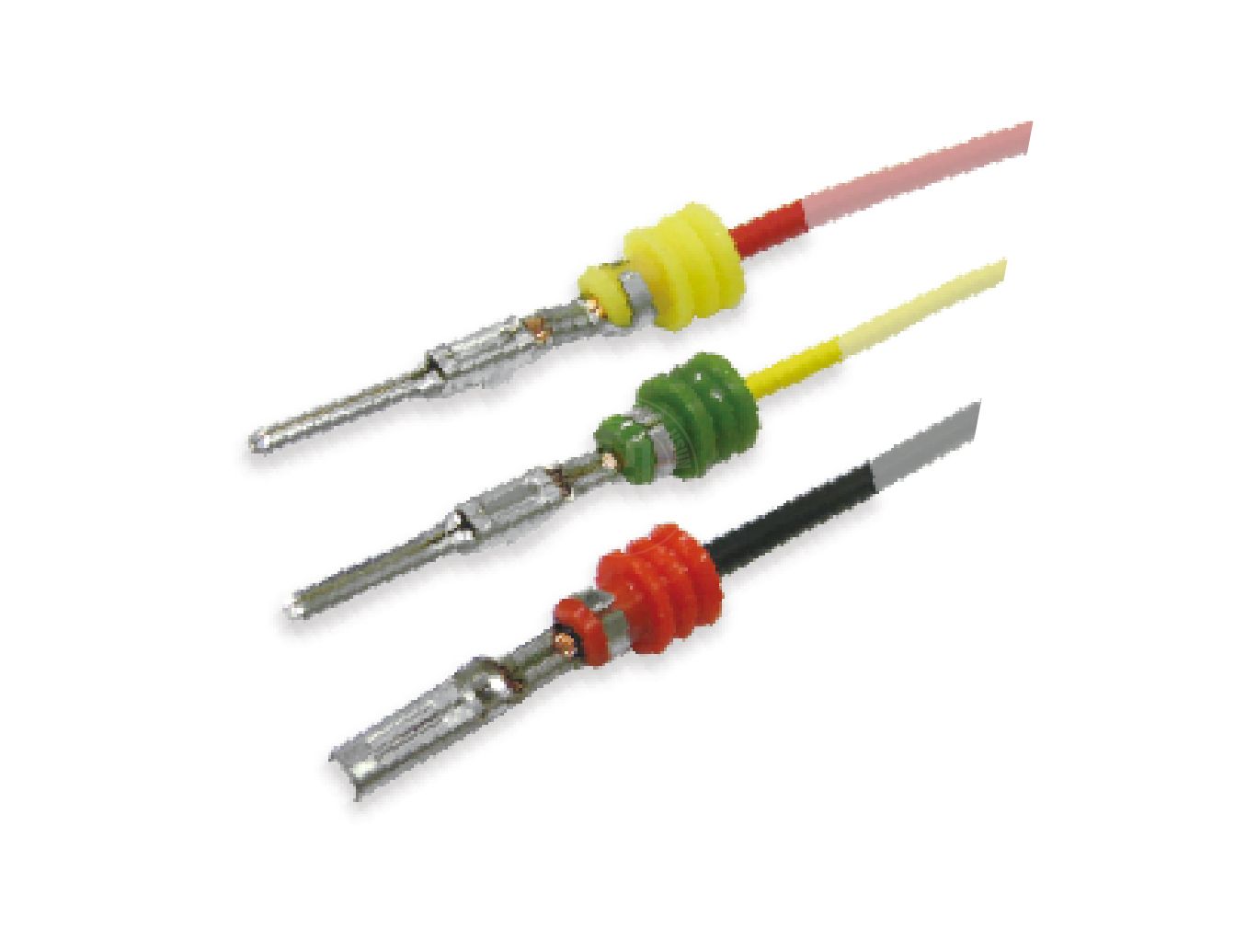

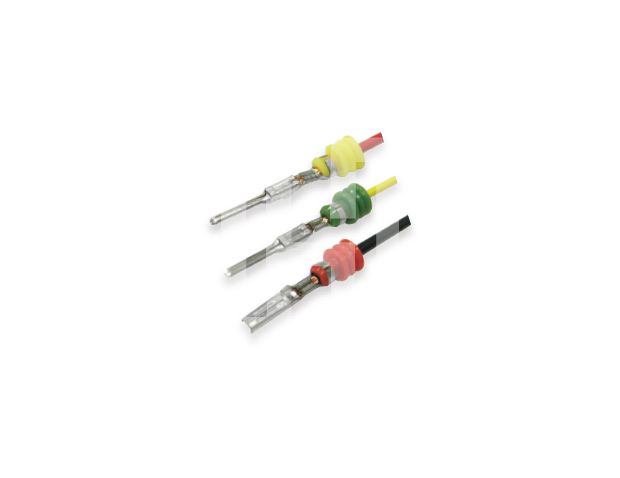

For AMP Superseal 1.5 Type Terminal
These dies are not compatible with the fixed die crimping tools.

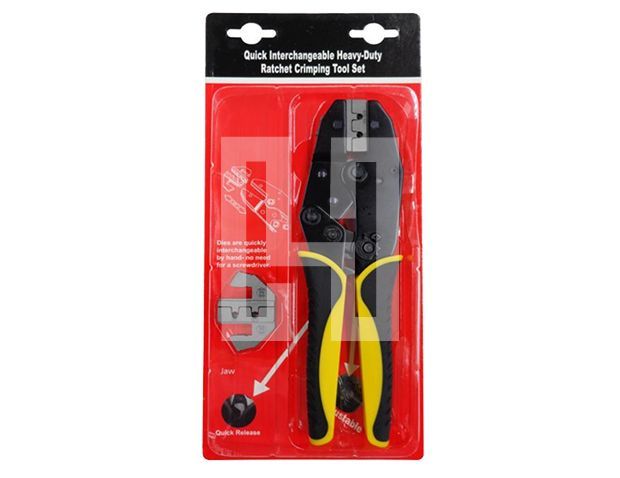

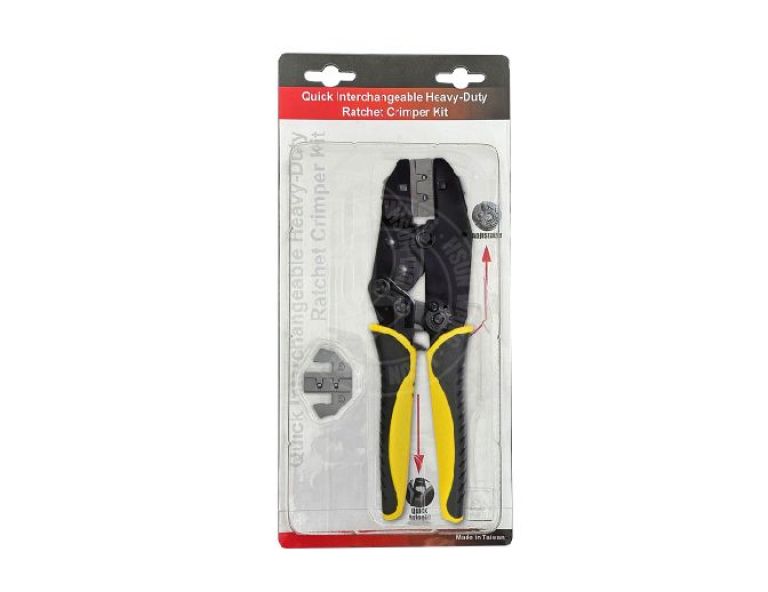

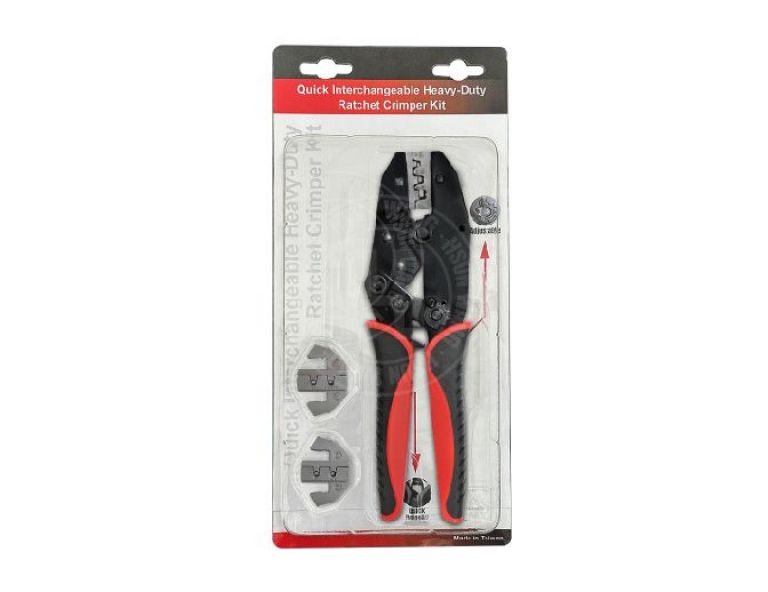

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/17.6/18.6/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  65.5g
