Die for AMP Superseal 1.5 Type Terminal (0.35-1.5mm²) / Item No. : J12JH2

  • Quick Change Crimping Jaw j12
  • AMP Superseal 1.5 Type Terminal J12JH2
  • AMP Superseal 1.5 Type Terminal j12 licrim
  • made in taiwan J12JH2
For Waterproof Contacts

Die for AMP Superseal 1.5 Type Terminal (0.35-1.5mm²) / Item No. : J12JH2

Quick Change Crimping Jaw for AMP Superseal 1.5 Type Terminal -AWG 22-20/16
Item No. : J12JH2

Product Introduction

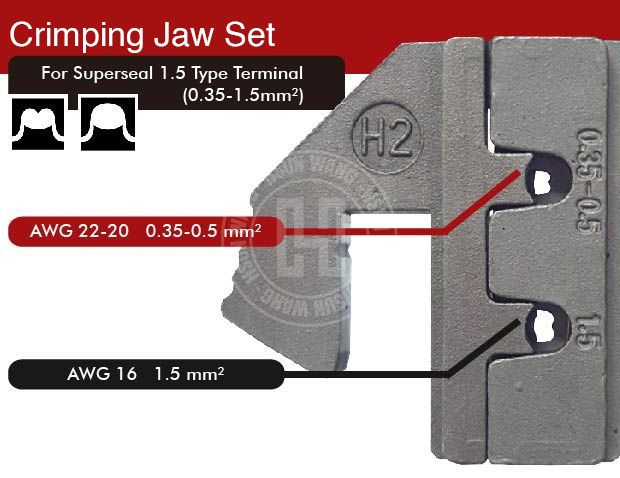

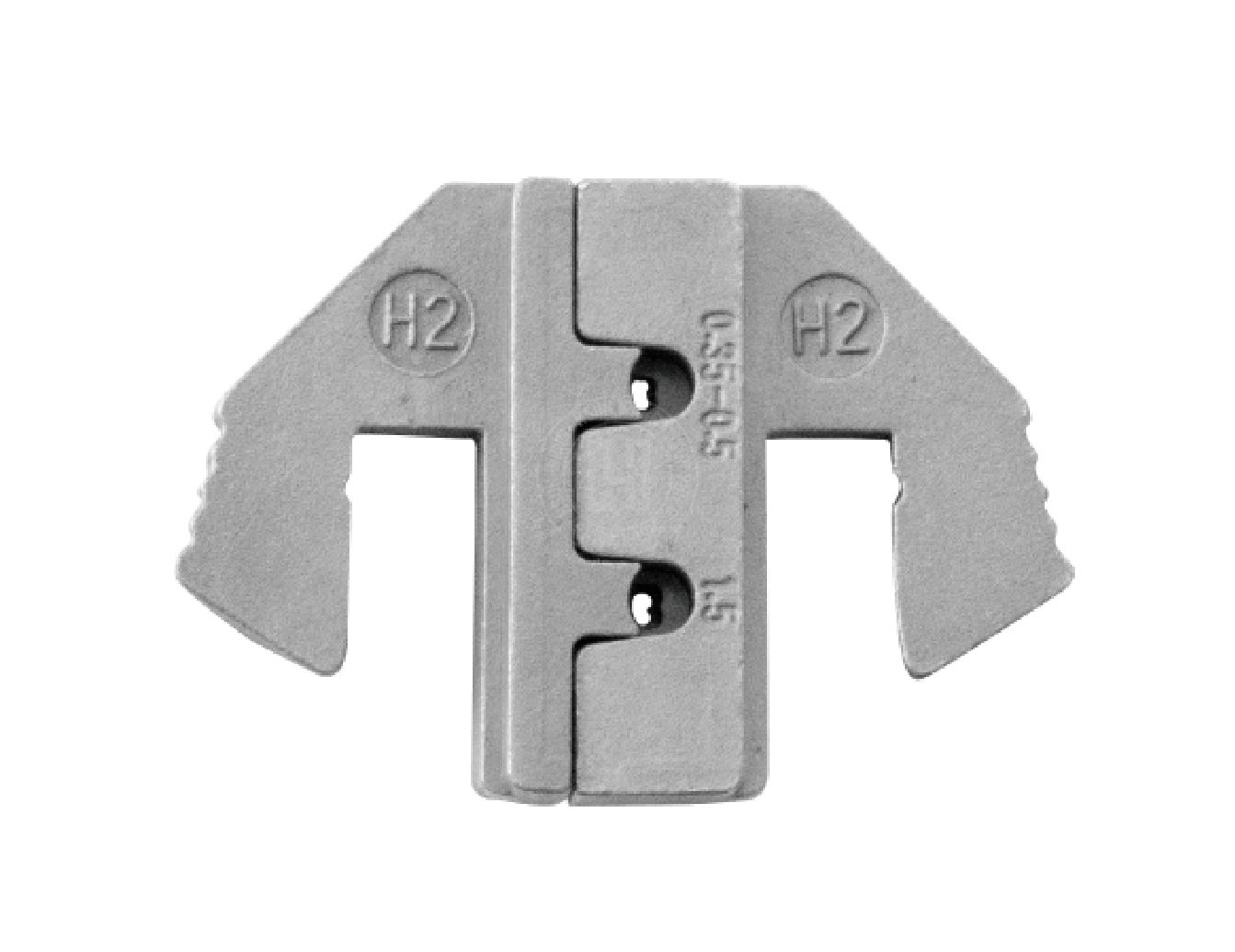

 Item No. : J12JH2 Quick Change Crimping Jaw for AMP Superseal 1.5 Type Terminal ★ AWG 22-20/16

Suitable for
● AWG 22-20/16

● DIN 0.35-0.5/1.5 mm2

Confined crimp for: B Crimp(F Crimp)& Overlap crimp
The jaw structure is precise to ensure firmly grasps the wires after crimping .

Applicable: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural.

These dies are not compatible with the fixed die crimping tools.

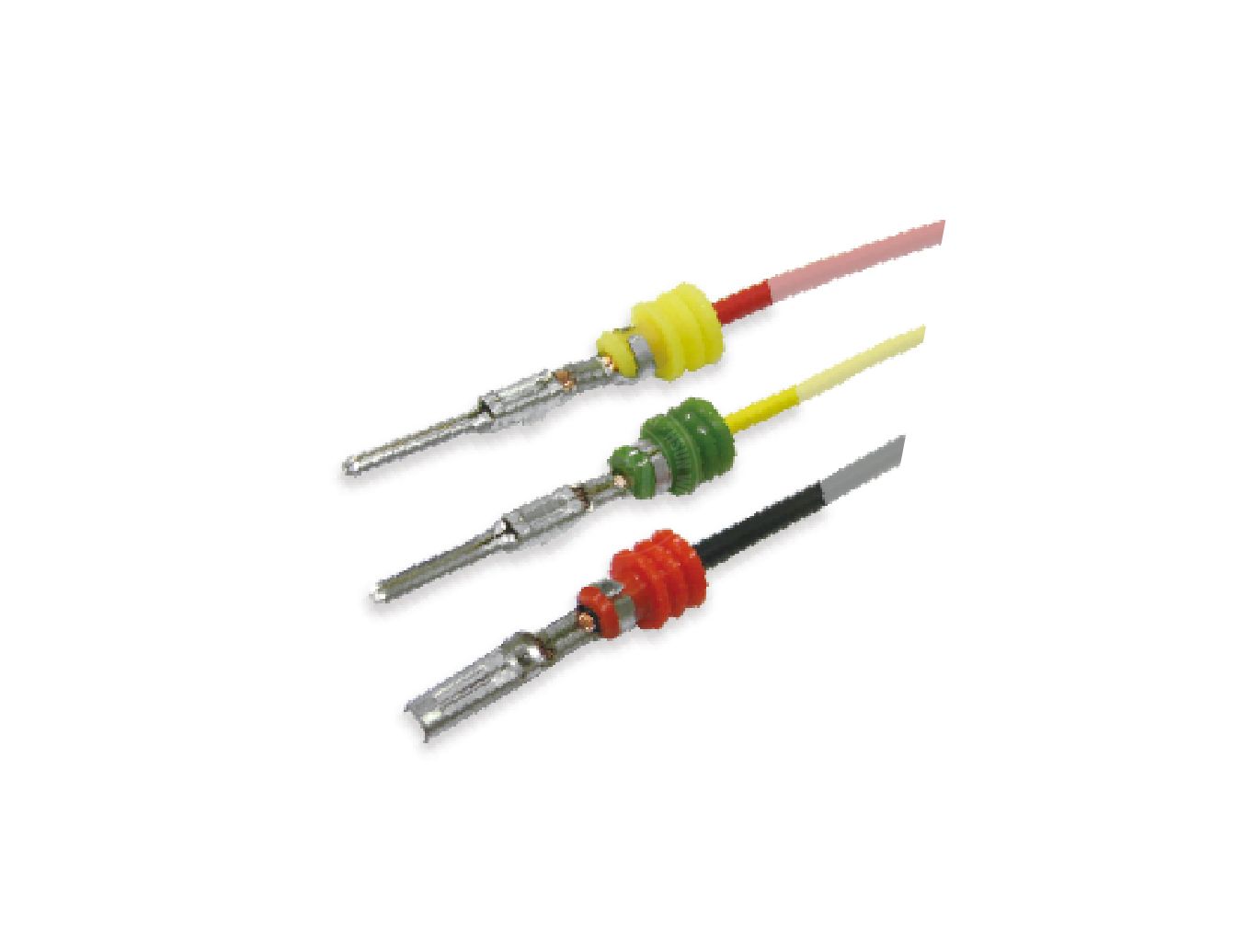

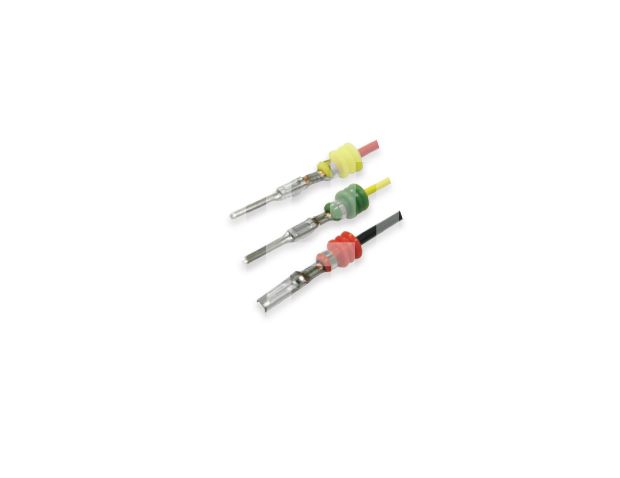

For AMP Superseal 1.5 Type Terminal

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/15.7/16.7/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  65.4g
