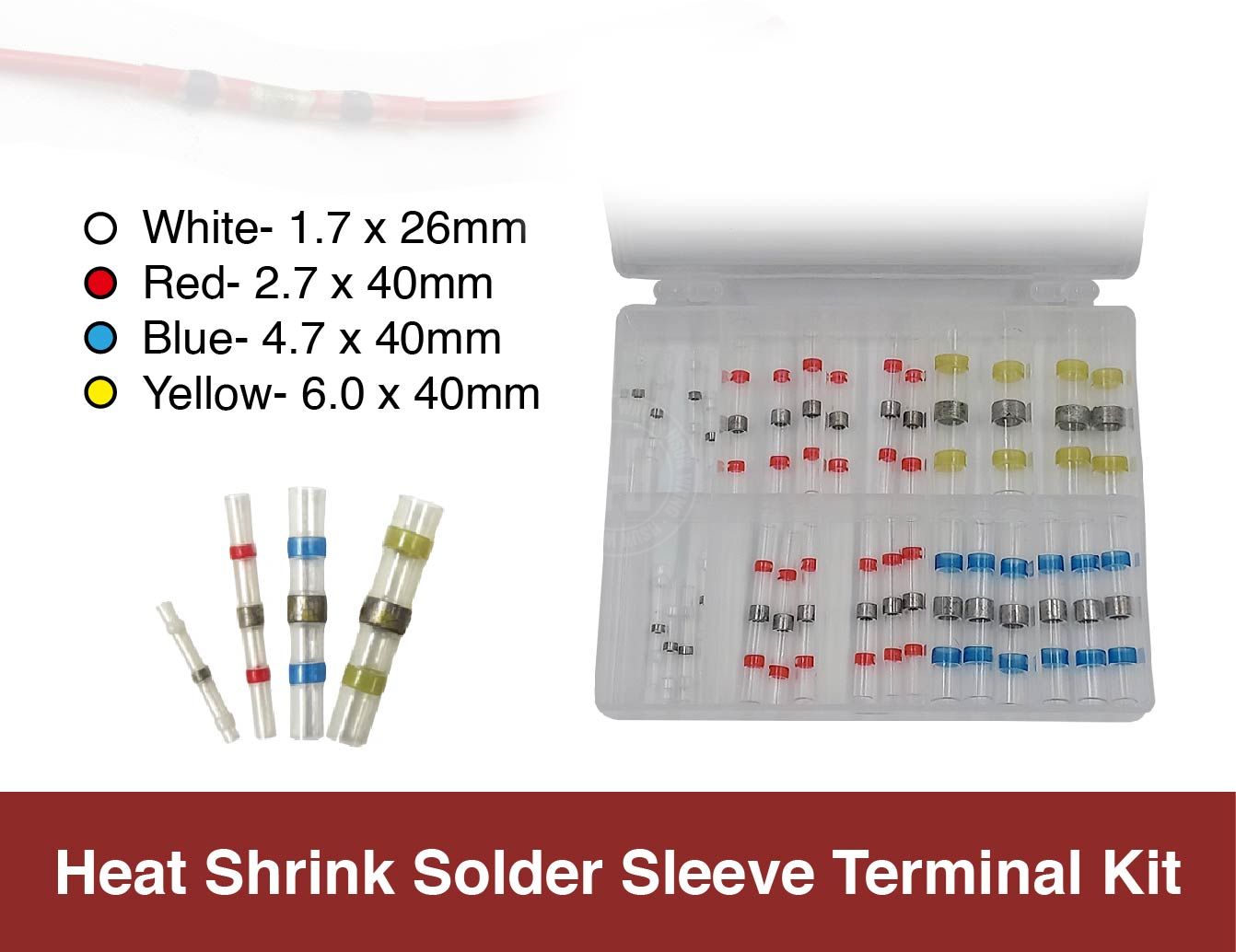

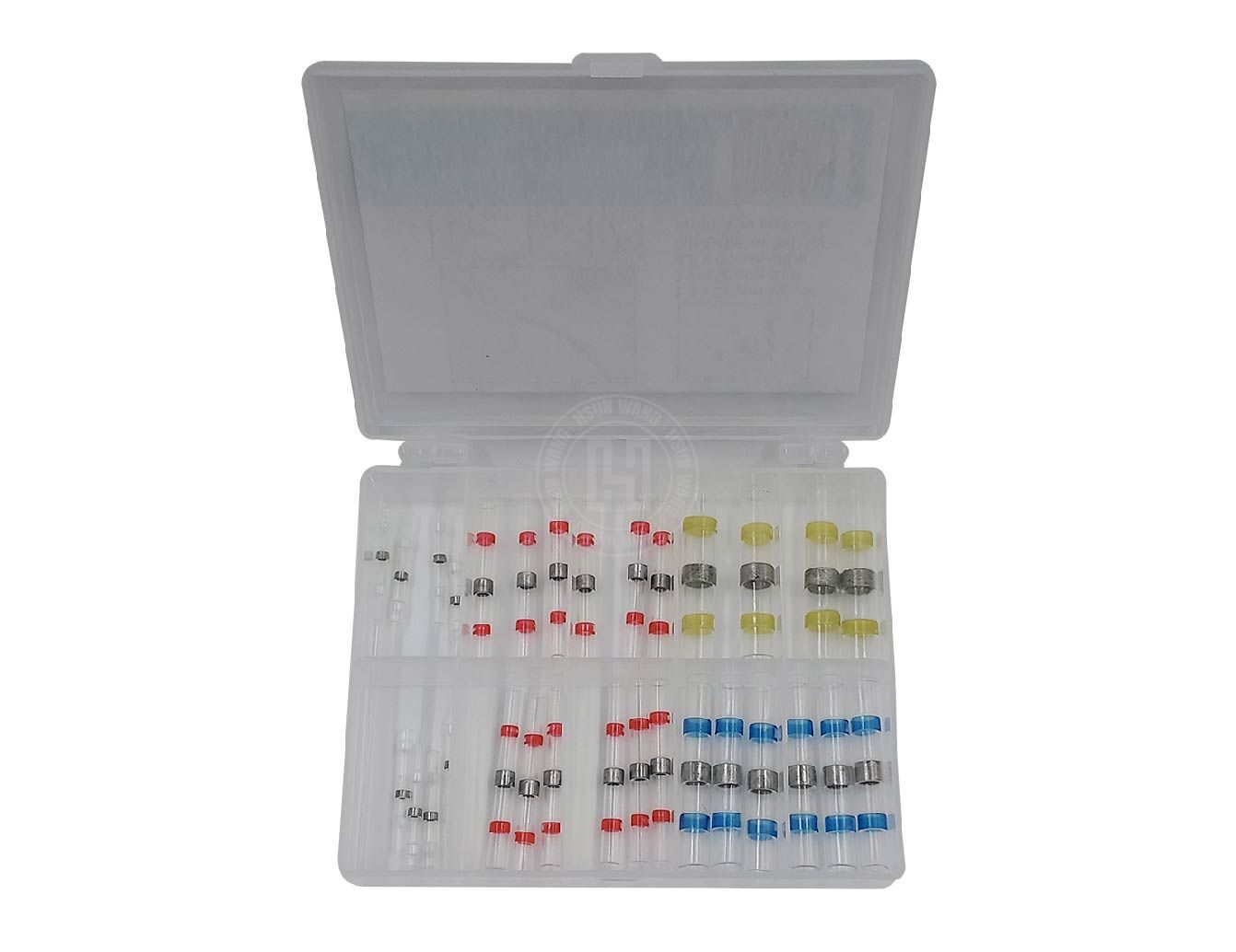

30PCE Solder Sleeve Wire Splices Heat Shrink Tube Set / Item No: E2330KA

Item No: E2330KA   30PCE Solder Sleeve Wire Splices Heat Shrink Tube Set

• Solder Sleeve Wire Splices Heat Shrink Tube [1.7 x 26mm]-White
• Solder Sleeve Wire Splices Heat Shrink Tube [2.7 x 40mm]-Red
• Solder Sleeve Wire Splices Heat Shrink Tube [4.7 x 40mm]-Blue
• Solder Sleeve Wire Splices Heat Shrink Tube [6.0 x 40mm]-Yellow

The E2330KA Heat Shrink Solder Sleeve Terminal Kit provides a reliable, waterproof, and easy-to-use solution for wire splicing and electrical repairs. Each terminal integrates low-temperature solder, heat-activated adhesive, and a transparent polyolefin sleeve, enabling strong mechanical bonding and excellent environmental sealing.

With four color-coded sizes designed for different wire gauges, this kit supports quick installation and consistent results—ideal for automotive, marine, industrial, and general electrical wiring applications.
Simply insert the wires, apply heat, and achieve a secure, sealed, and professional-grade connection every time.

Key Features

• Waterproof protection for wiring splices
• Integrated solder ring ensures reliable bonding
• Heat-activated adhesive provides strong sealing
• Transparent sleeve allows visual inspection during installation
• Easy, tool-free soldering process—just apply heat
• 2:1 shrink ratio for a snug and secure fit
• Suitable for automotive, marine, industrial, and home electrical application

Specifications

• perating Temperature: –55°C to 125°C
• Minimum Shrink Temperature: 80°C
• Minimum fully recovery temperature: 125°C
• Starting temperature of solder melt: 138°C
• Shrink Ratio: 2:1

Packing List: 24/144/CTN/8.7/9.7/KGS/2'
                       PP Box
PP Box Size: 12 x 9 x 2.2 cm
Unit Weight: 60 g

For more information please contact us.
