JB-8.7" Quick Change Crimpers & Kits
Product Introduction

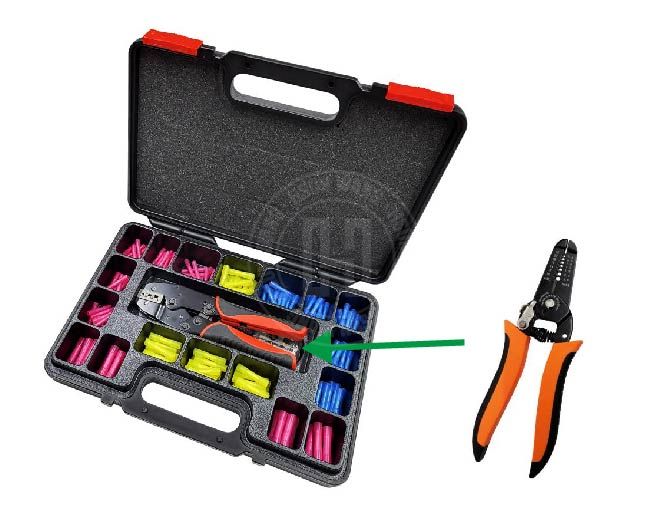

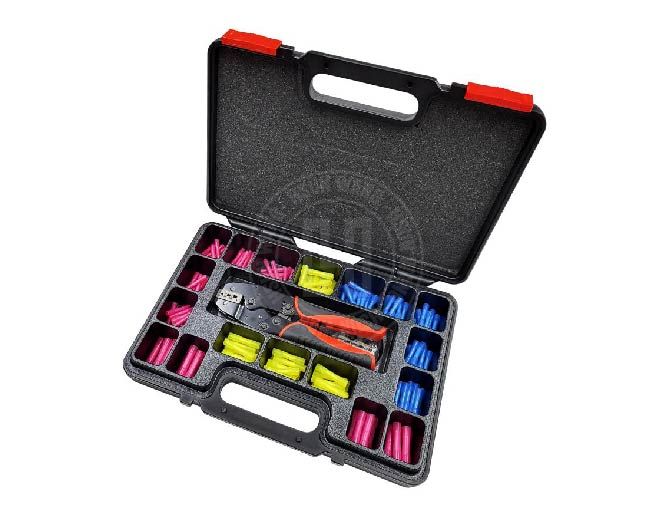

Item No: JB164AA33 164PCE Heat Shrink Butt Connector W/ Crimper Kit
The JB164AA33 kit is a complete solution for heat shrink butt connector applications in automotive and electrical work. This 164-piece set includes:
-

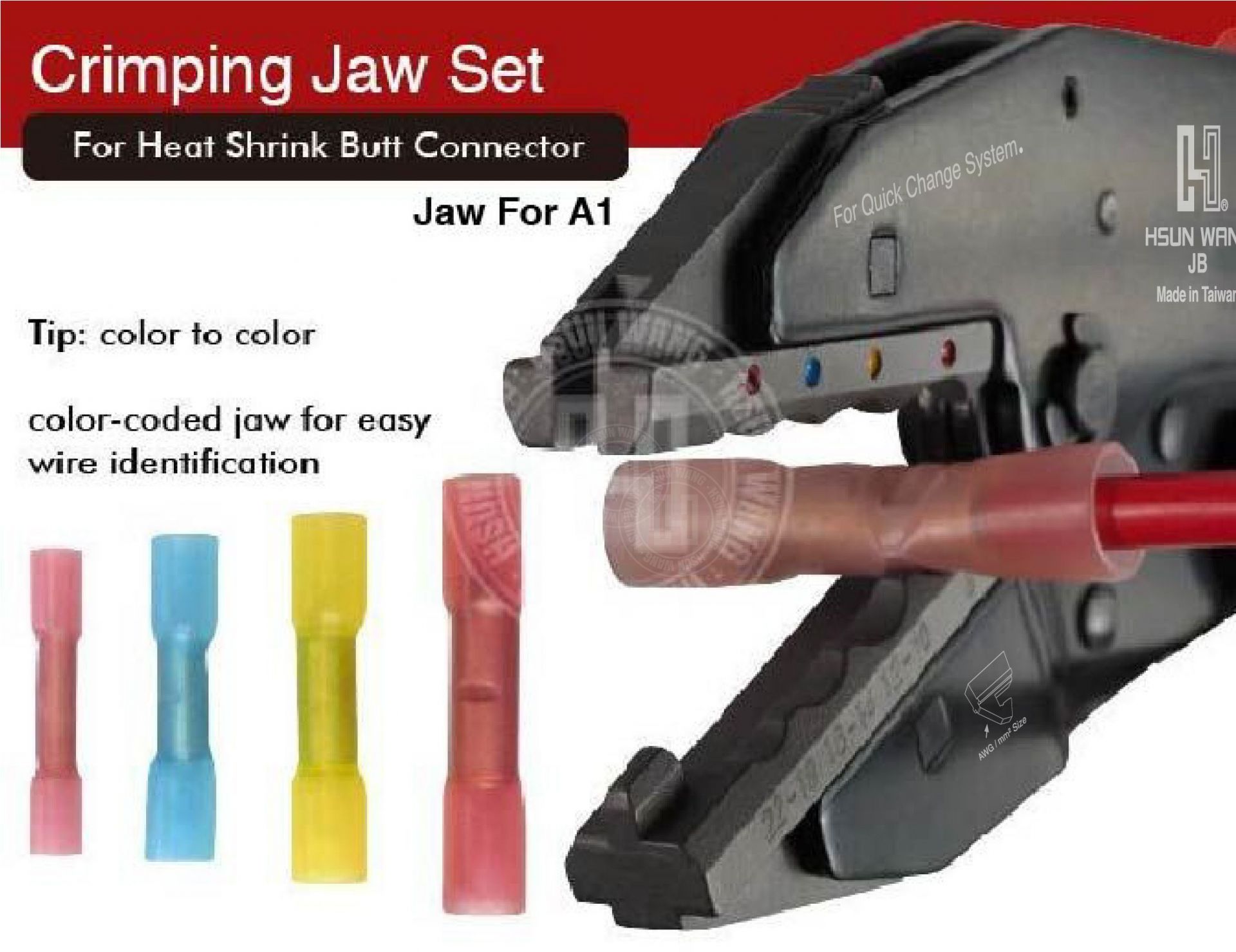

Heat Shrink Butt Connectors
• AWG 22–16 (0.5–1.5 mm²)
• AWG 16–14 (1.5–2.5 mm²)
• AWG 12–10 (4–6 mm²)
• AWG 8 (8 mm²)
All components are securely packed in a blow-molded case for easy carrying and protection against impact.
Key Features
-

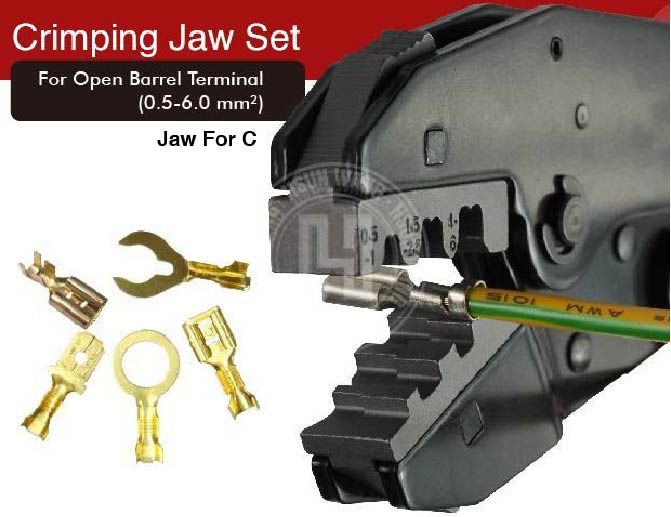

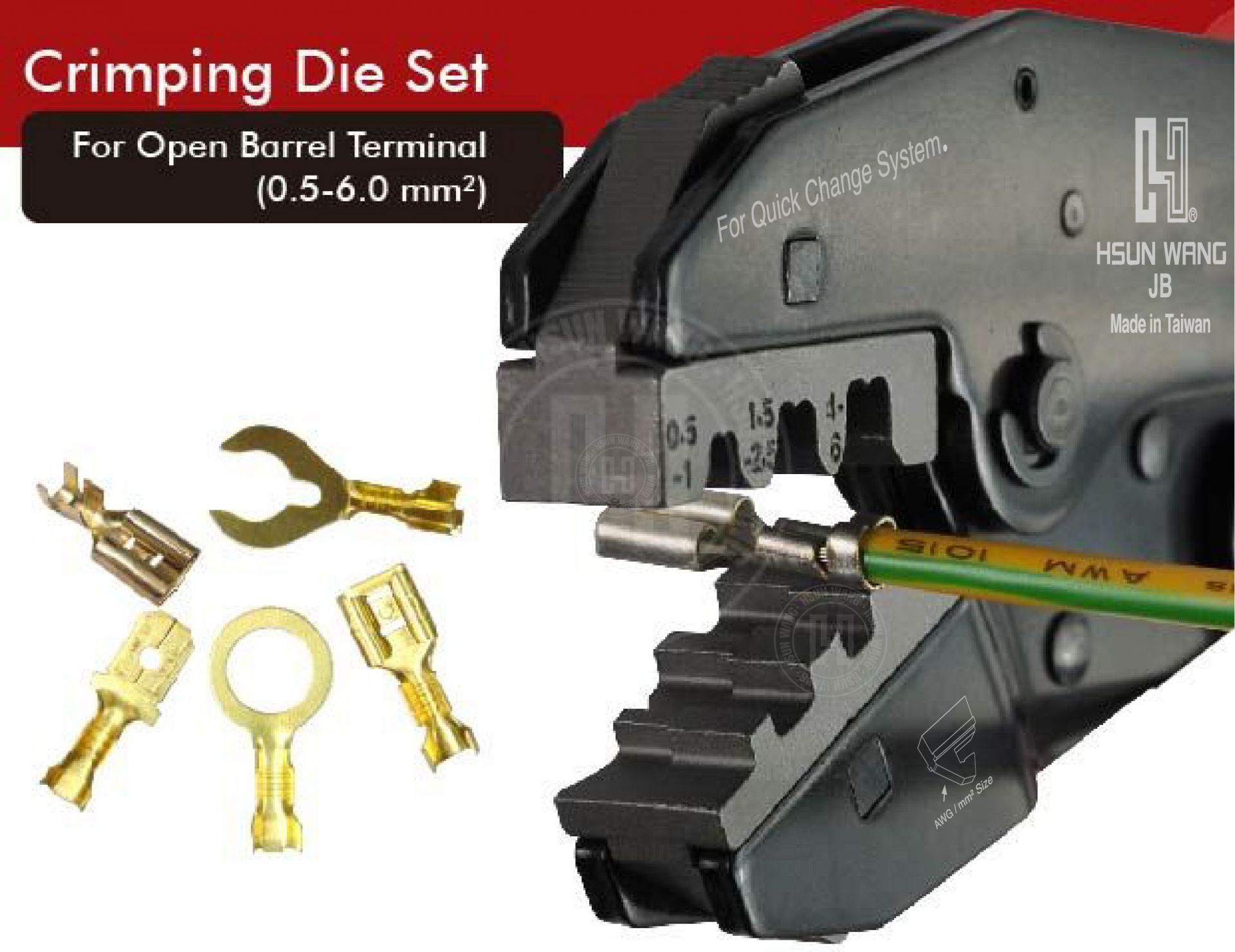

Crimper jaws made from AISI-4140 alloy steel, precision-cast and heat-treated with zinc phosphate finish
-
Connectors feature copper terminals and PE insulation
-
Shrink temperature: 150°C; Operating temperature: -10°C to +105°C
-
Shrink ratio: 3:1; Rated up to 600V
-
Waterproof insulation for secure and sealed connections
-
Compatible with LiCrim quick-change crimper system
-
Designed in Germany, Made in Taiwan
Applications
Ideal for automotive, marine, and machinery wiring projects requiring strong, sealed, and professional-grade connections.
Packing List: 10/CTN/18.3/19.3/KGS/2.7'
Blow Case and Color Sleeve
Blow Case Size: 37 x 27.5 x 7 cm
Unit Weight: 1.83 kgs
For more information please contact us.
