Twin Quick Change Ratchet Crimper Series

1003PCE Twin Quick Change Ratchet Crimper Kit / Item No: H031003BC

Item No: H031003BC PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.

Crimping tool for wire connectors design features with precise ratchet structure and ergonomic handle. Make the crimp firm and tight. The quick release lever feature means that anyone can easily master it. It is a general purpose tool in wiring projects.

Product Introduction

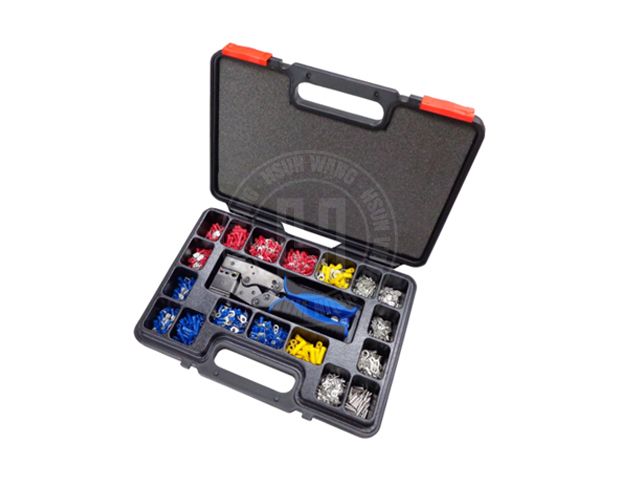

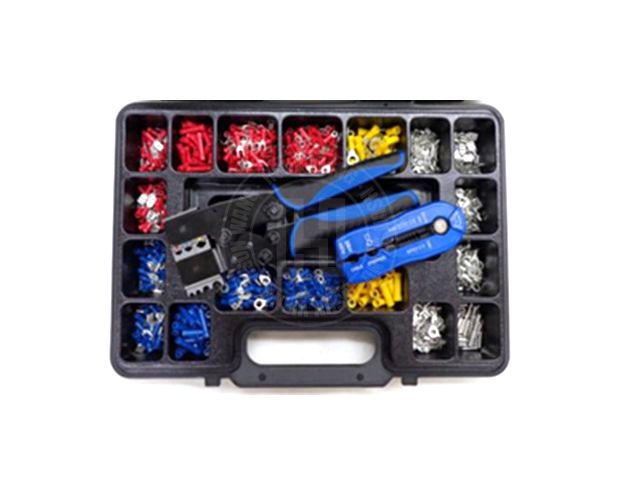

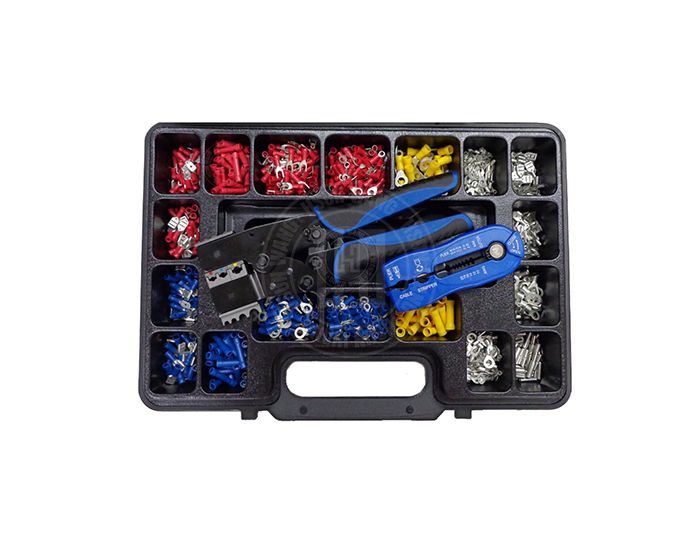

Item No: H031003BC  1003PCE Twin Quick Change Ratchet Crimper Kit

  • Twin Quick Change Ratchet Crimper / Item No: H03

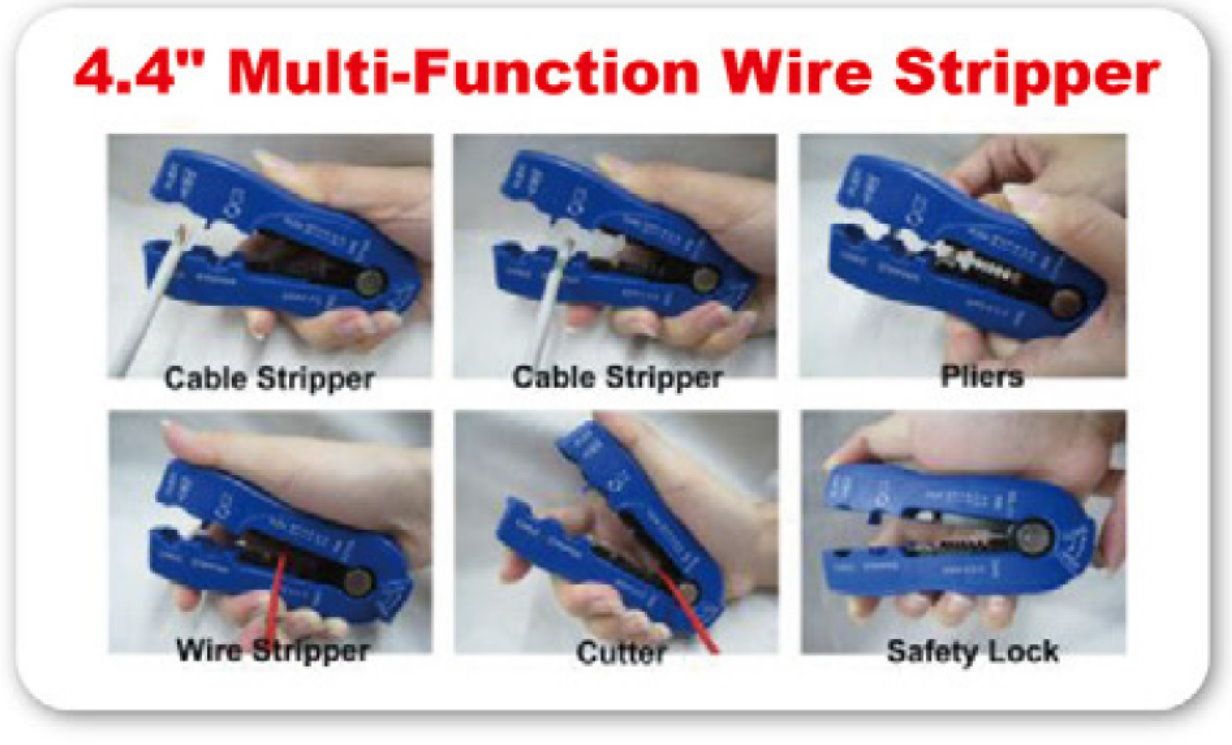

  • 4.4" Multi-Function Wire Stripper
  • Disconnectors list: Ins-Ring Terminal / Bullet Disconnectors / Disconnectors /  Quick Splice
  • Disconnectors list: Non-Ins-Ring Terminal / Bullet Disconnectors / Disconnectors /  Quick Splice

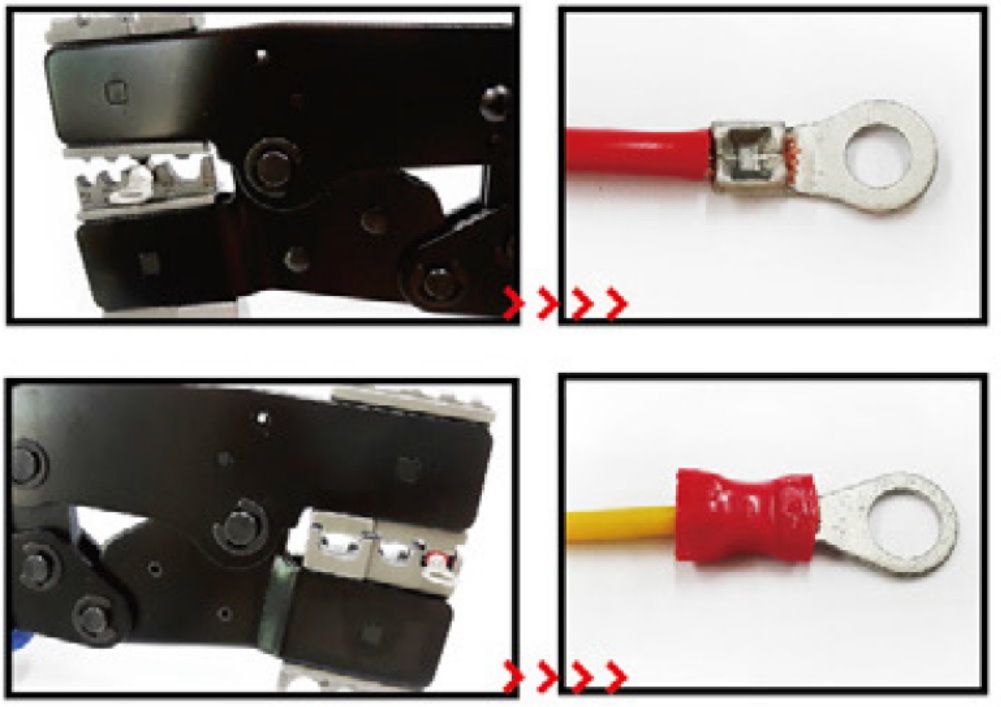

Quick change jaw crimping tool has a ratcheting mechanism for accurate and positive crimping for insulated and non insulated terminals.
addition of built in wire stripper offers an all-in-one tool for loom work and wire repairs .

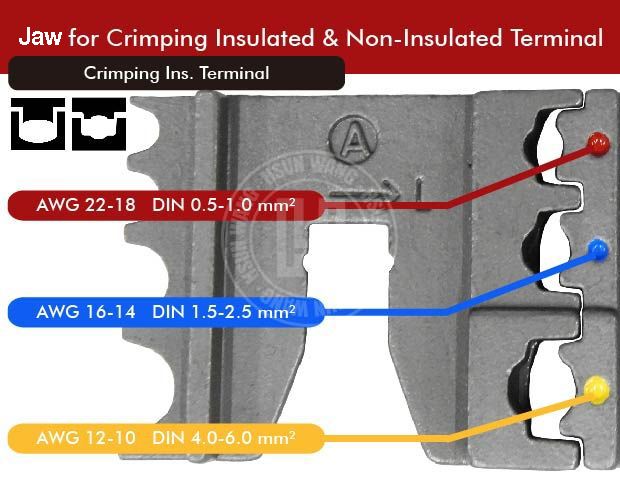

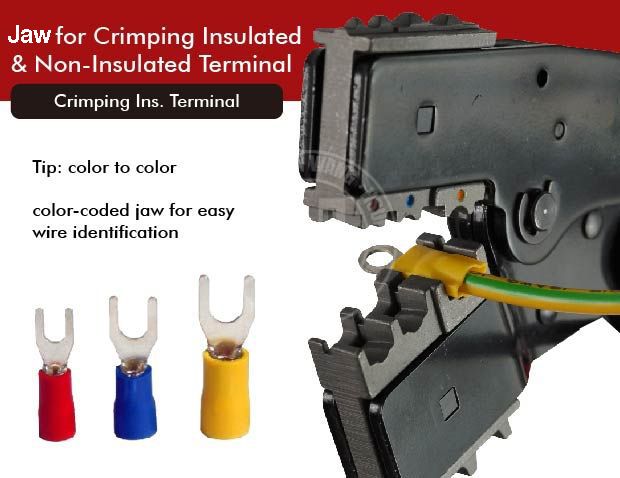

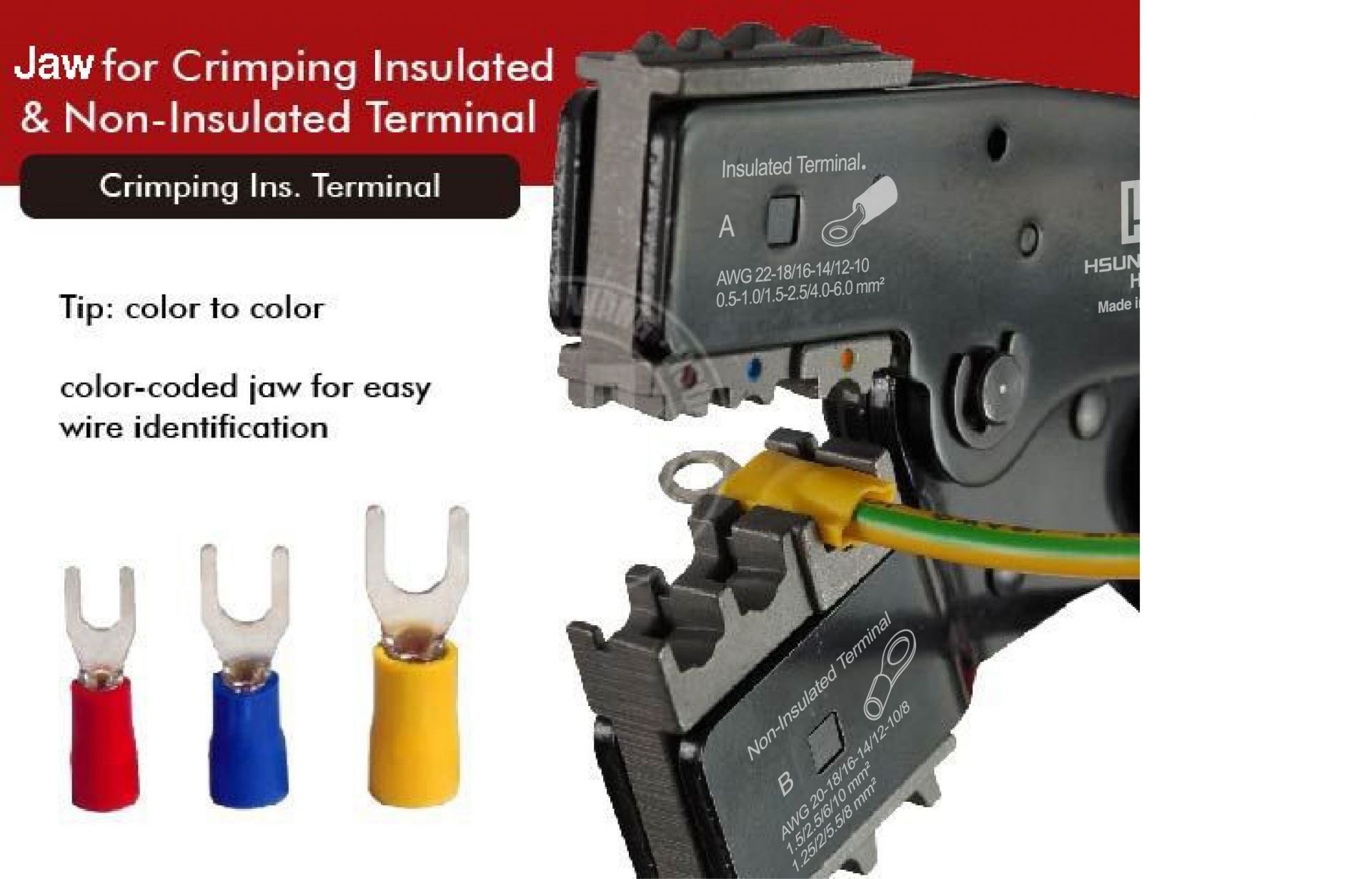

●Insulated terminals:
red channel AWG 22-18 / blue channel AWG 16-14 / yellow channel AWG 12-10
Confined crimp for closed barrel terminals: Indent-Crimp
Vinyl Insulated (Single Crimp) & Indent-Crimp

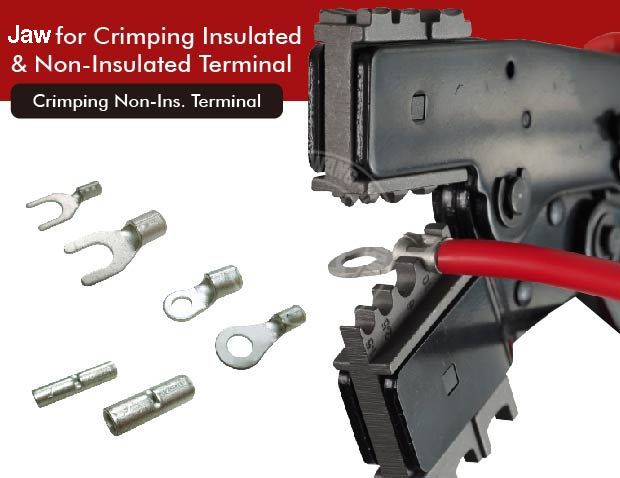

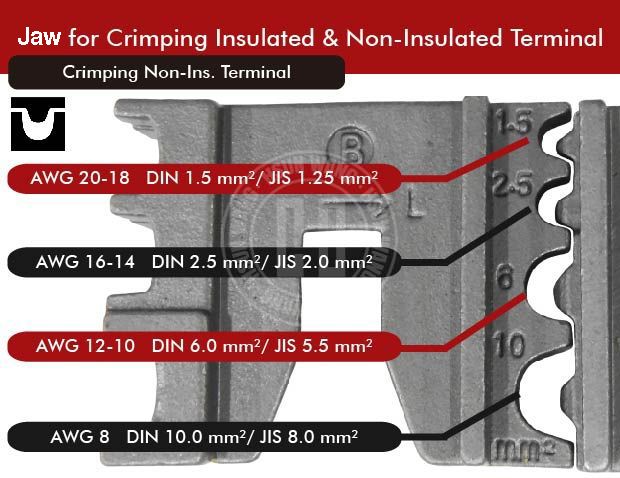

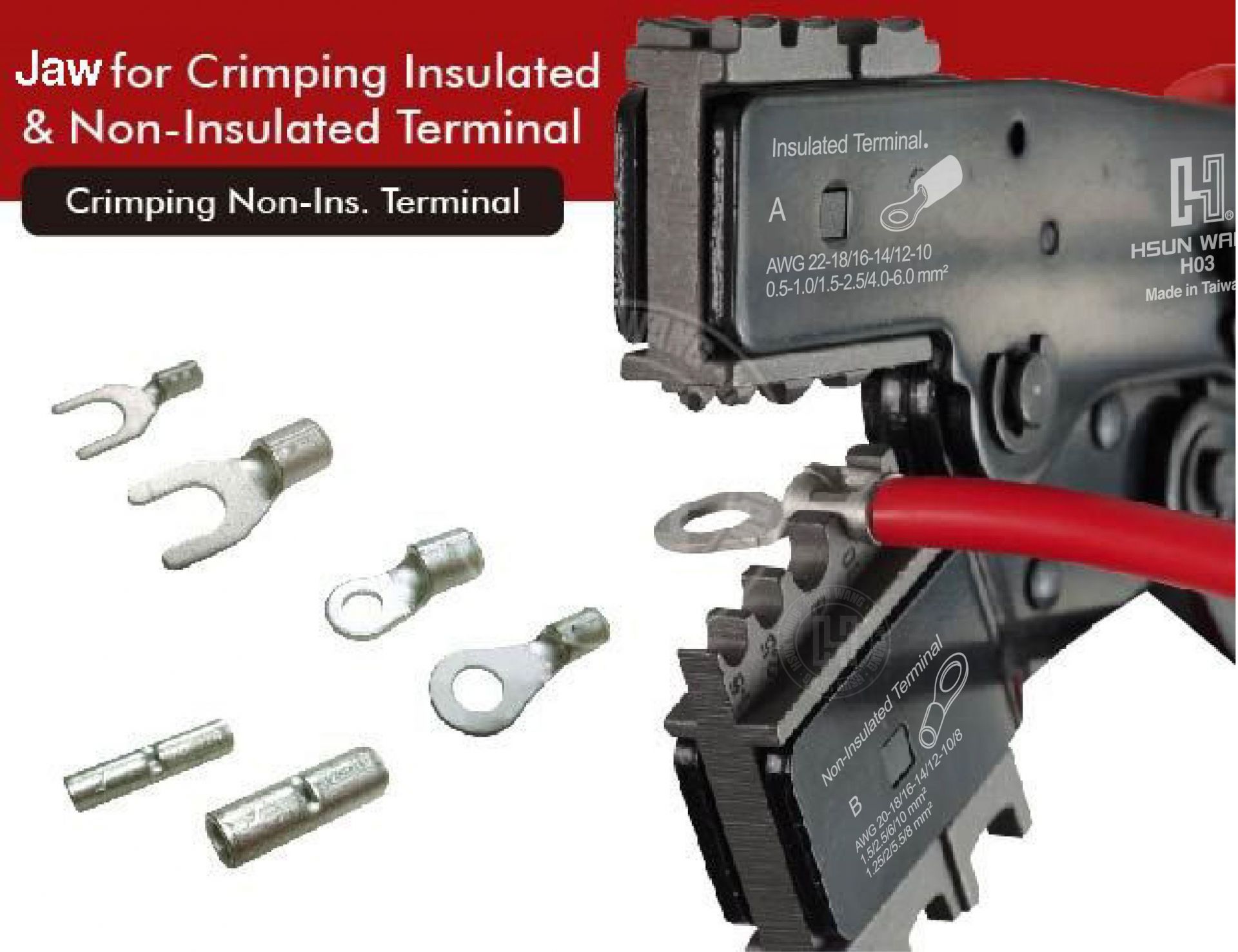

●Non insulated terminals : AWG 20-18/ 16-14/ 12-10/ 8
Confined crimp for closed barrel terminals: Indent-Crimp & Double-Indent-Crimp
Strong, uniform crimps, Cosistent and uniform crimps
Crimps the entire area of the terminal barrel.





Made in TAIWAN-More LiCrim Crimper Function : Please Press the button "Download" to get it.

●Handily Crimping: Replace the required crimping jaws just a few seconds.The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan .
●PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
●Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.

●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.

●Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loosen. Adjustable crimp height of star wheel, to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.No tools required. These jaws are not compatible with the fixed jaw crimping tools.


Packing List:
10/CTN/21.2/22.2/KGS/2.7'

                        Blow Case and Color Sleeve

Blow Case Size: 37 x 27.5 x 7 cm
Unit Weight:  2.12 kgs
