Twin Quick Change Ratchet Crimper / Item No: H03D

Item No: H03D Twin Quick Change Ratchet Crimper

Product Introduction

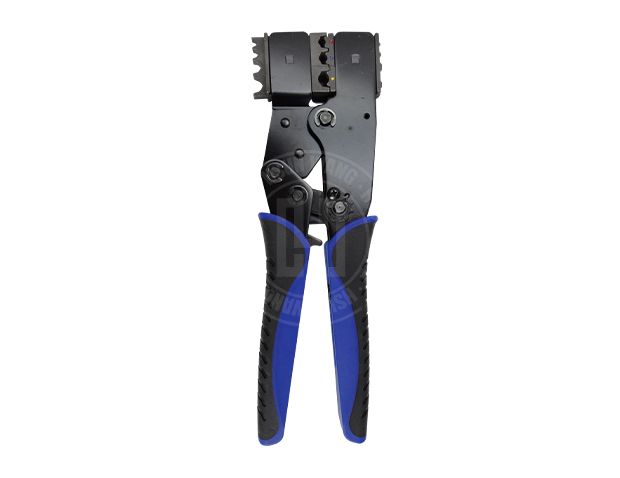

Item No: H03D Twin Quick Change Ratchet Crimper

Quick change jaw crimping tool has a ratcheting mechanism for accurate and positive crimping for insulated and non insulated terminals.
addition of built in wire stripper offers an all-in-one tool for loom work and wire repairs .
●Insulated terminals:
red channel AWG 22-18 / blue channel AWG 16-14 / yellow channel AWG 12-10
Confined crimp for closed barrel terminals: Indent-Crimp
Vinyl Insulated (Single Crimp) & Indent-Crimp

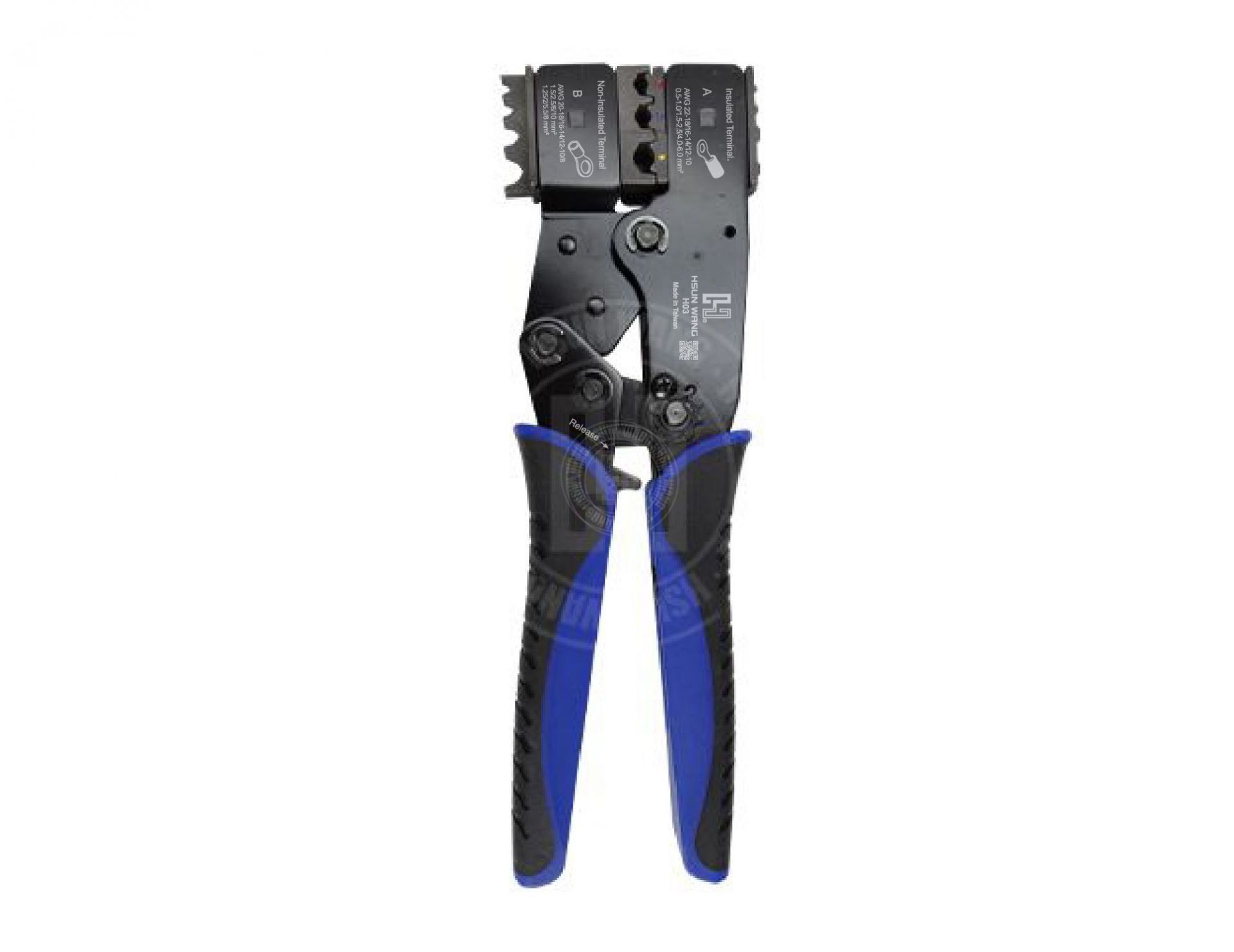

●Non insulated terminals : AWG 20-18/ 16-14/ 12-10/ 8
Confined crimp for closed barrel terminals: Indent-Crimp & Double-Indent-Crimp
Strong, uniform crimps,Cosistent and uniform crimps
Crimps the entire area of the terminal barrel.

Material: Body: Carbon Steel Handle: PP+TPR(PAHs Approved)


●Handily Crimping: Replace the required crimping dies just a few seconds.The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan .
●PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
●Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.
●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It also conveniently enables you to secure a wire connector in the die before inserting the stripped wire into the barrel.
●Adjustable Compression Wheel- Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist right to tighten and left to loosen.Adjustable crimp height of star wheel,to ensure the right amount of crimping force.The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.No tools required. These dies are not compatible with the fixed die crimping tools.

Packing List:  12/36/CTN/21.1/22.1/KGS/1.2'

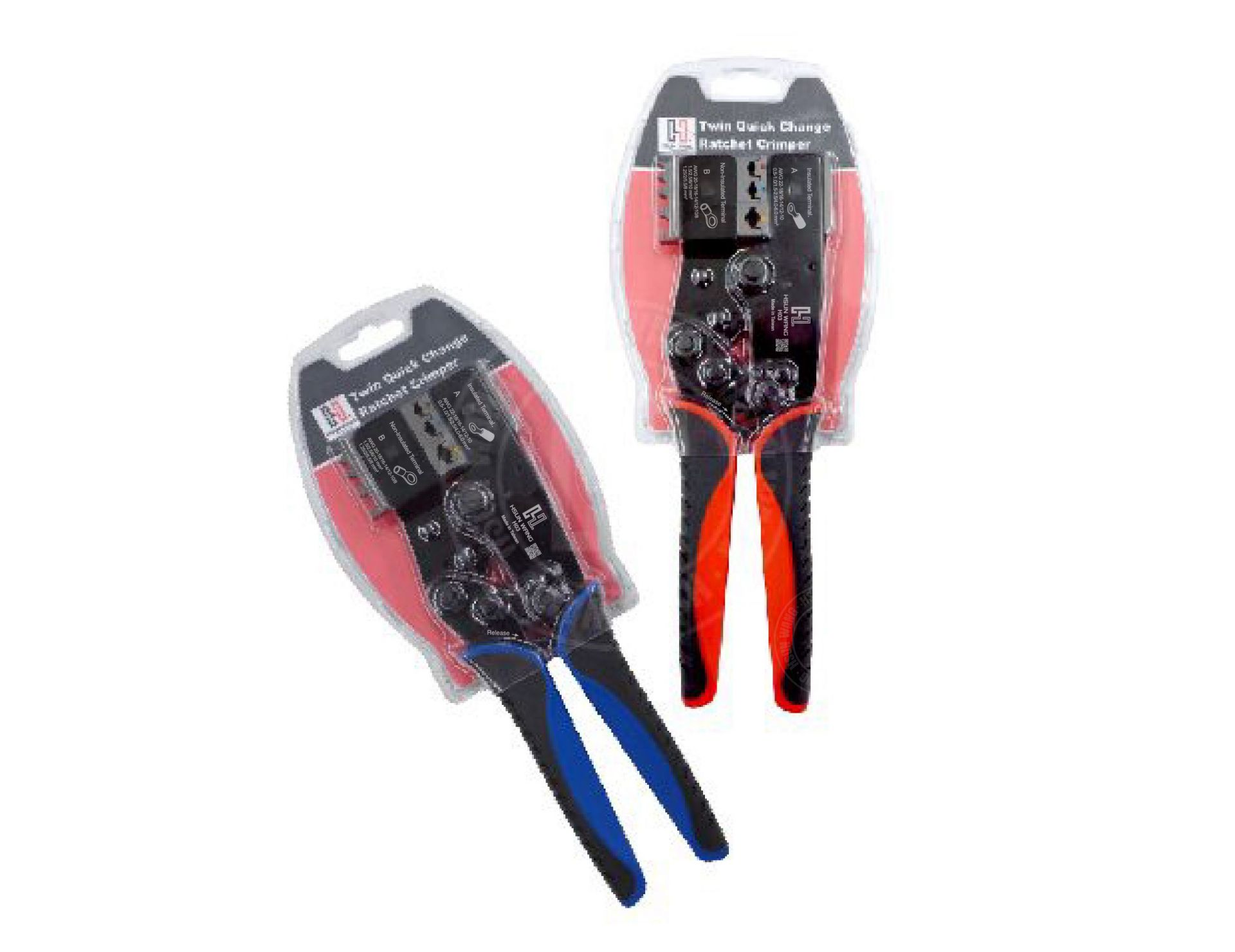

                        Double Blister

Blow Case Size:  16.9 x 11.8 x 2.9cm
Unit Weight:  585g
