Jaw for Open Barrel Terminal (0.5-6.0mm²) / Item No. : J12JCM
Item No. : J12JCM

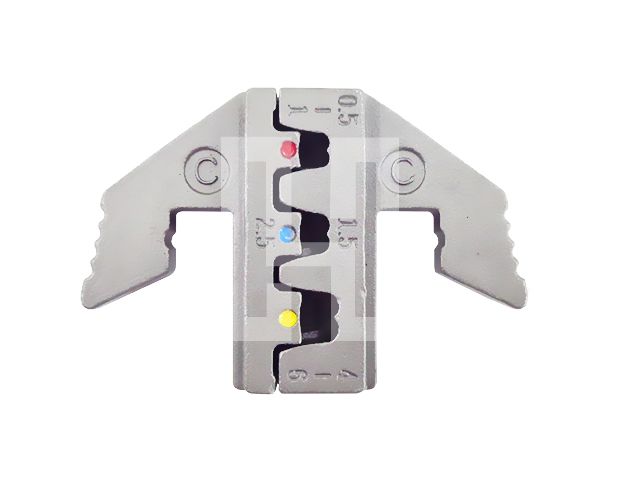

Item No. : J12JCM Quick Change Crimping Jaw for Open Barrel Terminal
● AWG 20-18/16-14/12-10
●DIN 0.5-1.0/1.5-2.5/4-6 mm2
Confined crimp for B Crimp(F Crimp)This jaw is marked with red/blue/yellow for easy identification as UL486 standard.
Applicable: Auto Repair /Machine Wiring /Electrical & Electronic Device
DESIGNED FOR OPEN BARREL TERMINALS-AWG 20-18/16-14/12-10.
These jaws are not compatible with the fixed jaw crimping tools.
Compatible with LiCrim Quick Change crimper frames system as below:
Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.
Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate
AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.
COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan
Packing List: 120/240/CTN/16.7/17.7/KGS/1.2'
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight: 69.6g
