For Open Barrel Contacts

Jaw for Open Barrel Splice / Item No. : J12JI4

Quick Change Crimping Jaw For Open Barrel Splice ,Could be linked by 2 or 3 wire together,Brass U shaped cable joining crimps
Item No. : J12JI4

Product Introduction

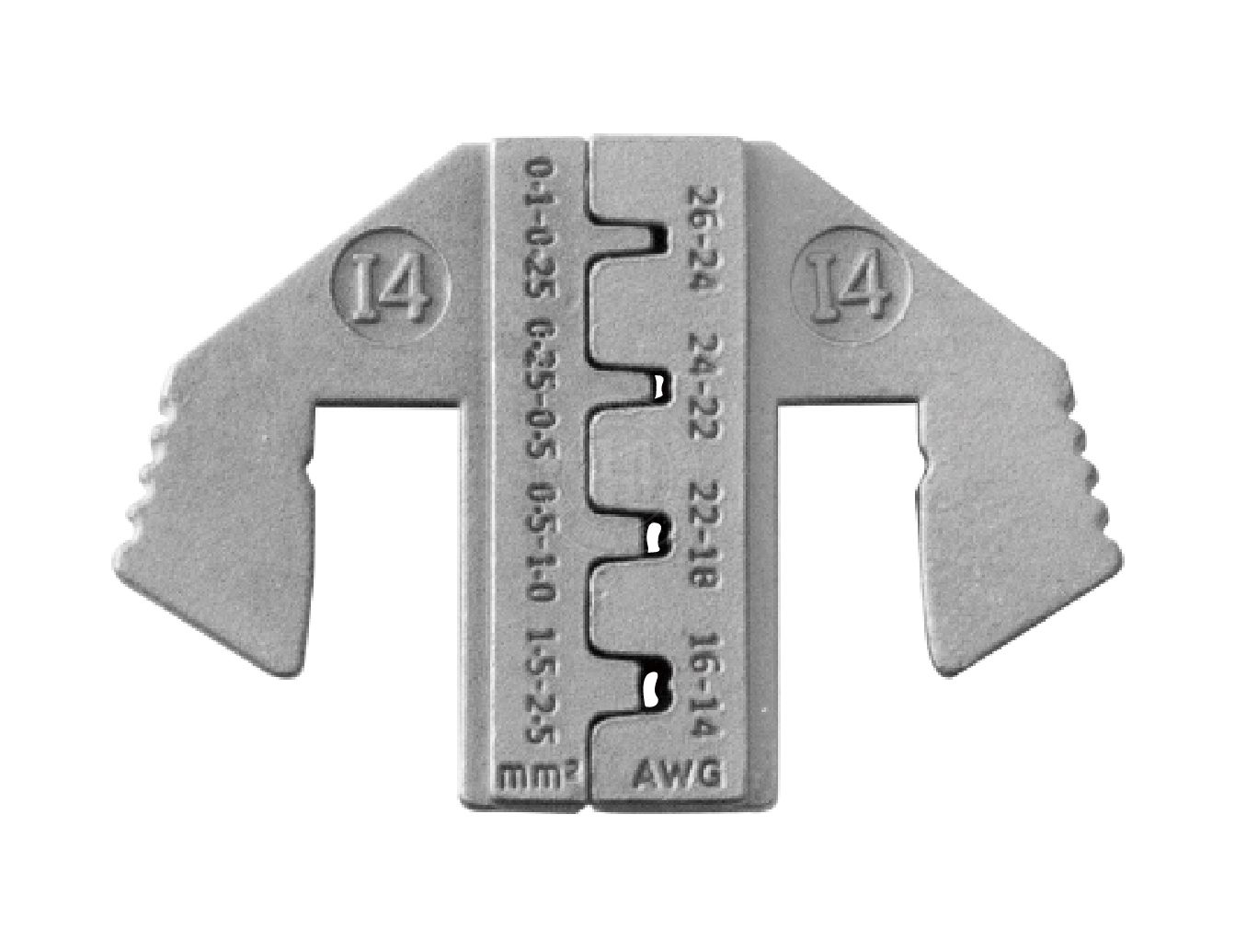

Item No. : J12JI4   Quick Change Crimping Jaw For Open Barrel Splice AWG 26-24/24-22/22-18/16-14


Suitable for

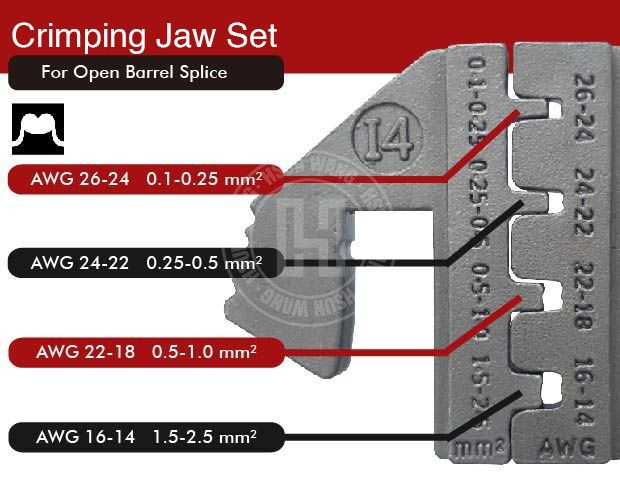

● AWG 26-24/24-22/22-18/16-14

● DIN 0.1-0.25/0.25-0.5/0.5-1.0/1.5-2.5 mm2

Confined crimp For B Crimp(F Crimp).

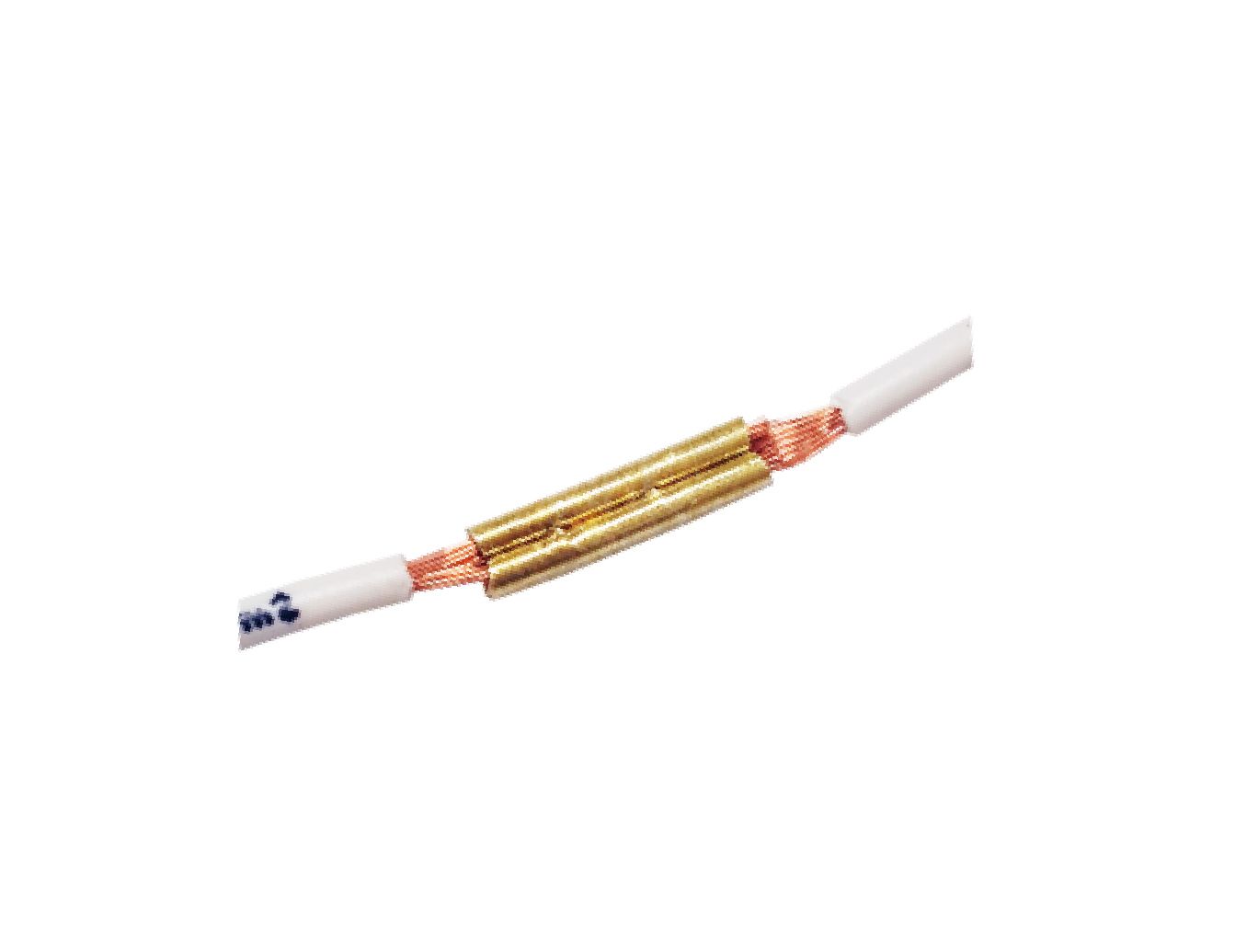

Could be linked by 2 or 3 wire together

Works with Open Barrel Splice connectors 26-24/24-22/22-18/16-14 AWG.

For Open Barrel Splice
These jaws are not compatible with the fixed jaw crimping tools.

Compatible with LiCrim Quick Change crimper frames system as below:

Application: Motor / Relay / Transformers / indicator / lamps / Auto magnet wire

Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan



Packing List:  120/240/CTN/15.1/16.1/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  63g
