Die for Insulated Flag Terminal / Item No. : J12JA6

Jaw for Insulated Flag Terminal -AWG 12-10 /90 degree terminal work use
Item No. : J12JA6

Product Introduction

 Item No. : J12JA6 Quick Change Crimping Jaw for Insulated C-AWG 12-10

Suitable for
● AWG 12-10

● DIN 4-6 mm2

Confined crimp for closed barrel terminals: Indent-Crimp.

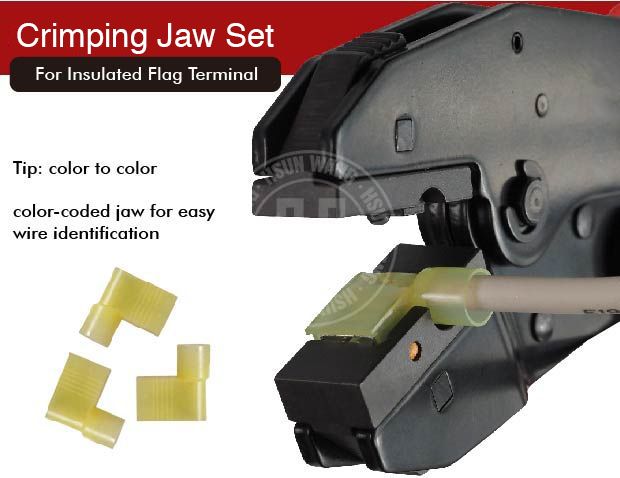

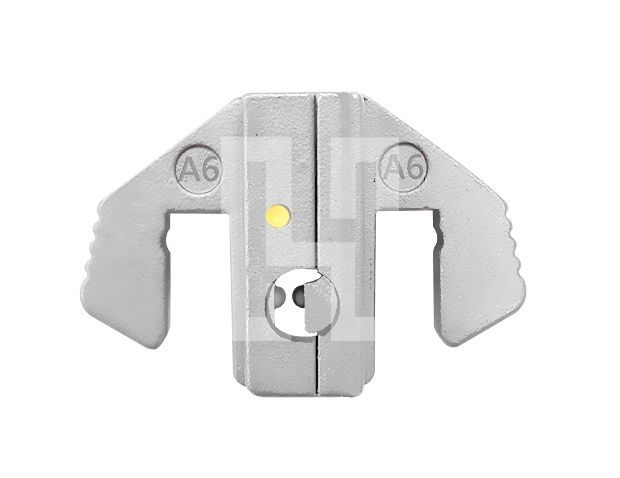

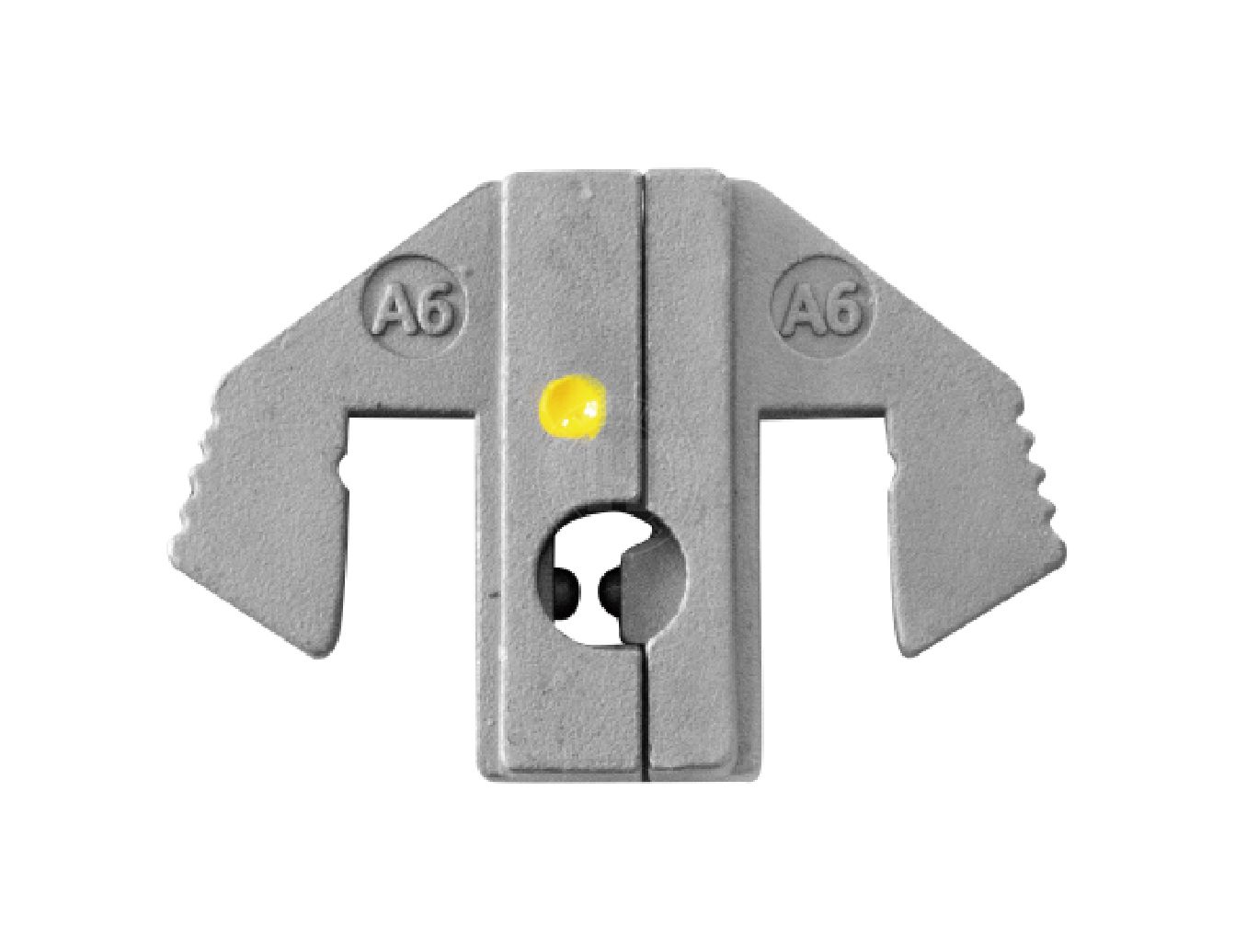

This jaw is marked with Yellow for easy identification.Ideal for wire harness in limited space International color coded. Easy to distinguish the wire gauge without harness mistake. Unique die cavity for 90 degree terminal work use

Applicable: Auto/ Machine Wiring / Electrical & ElectronicDevice / Industrial device / compressor / motorcycle wire added

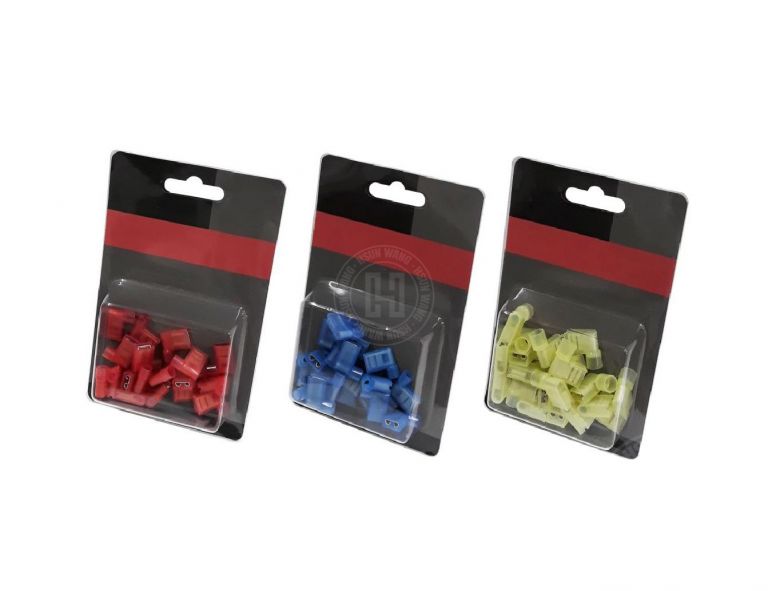

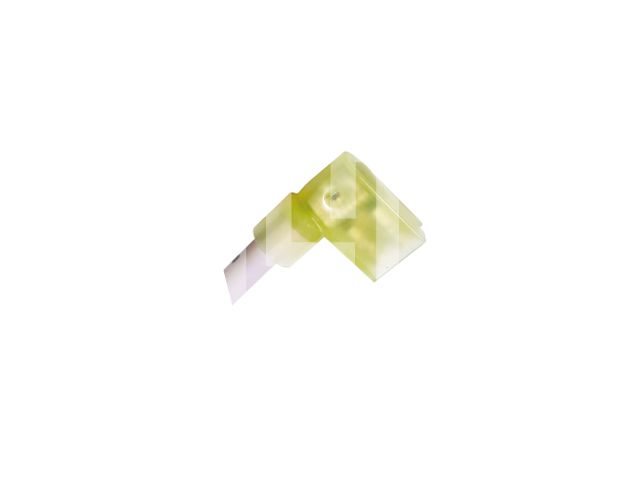

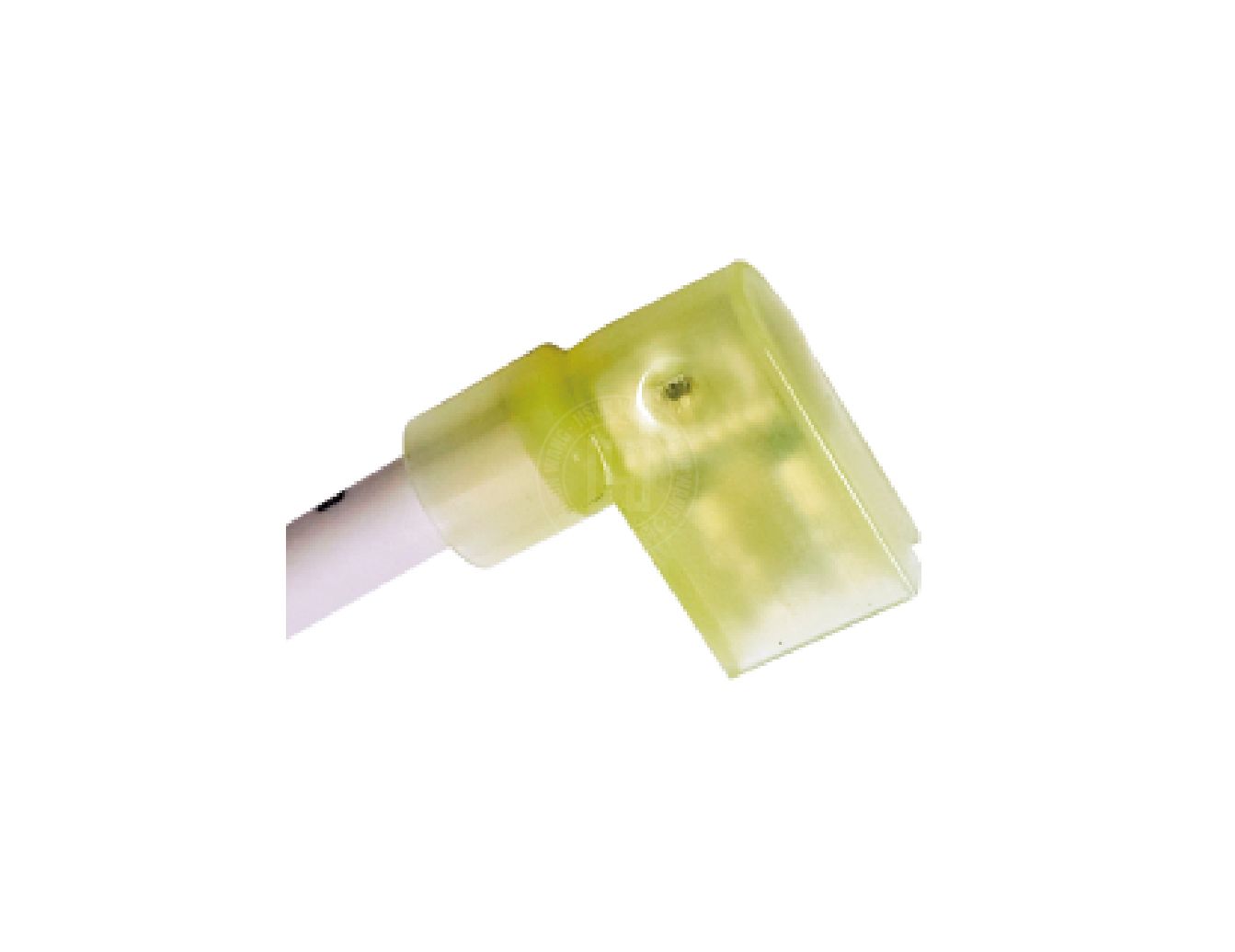

DESIGNED FOR INSULATED FLAG TERMINALS - Allows to conveniently crimp 12-10 gauge nylon flag connectors without damaging the insulation.
PRECISION CRIMPING DIES - High precision technology allows to achieve excellent crimping accuracy.
These dies are not compatible with the fixed die crimping tools.

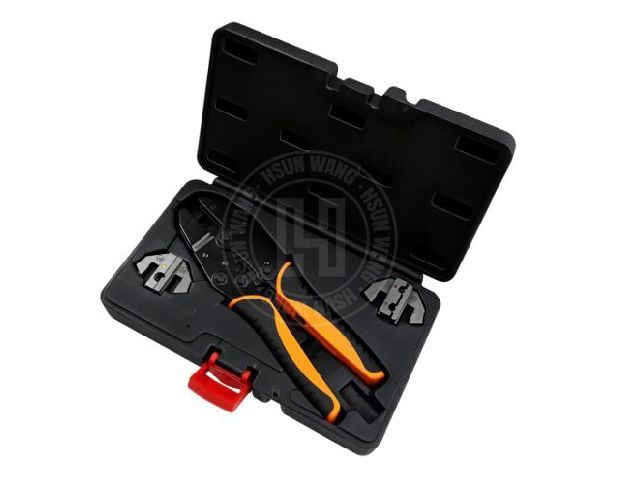

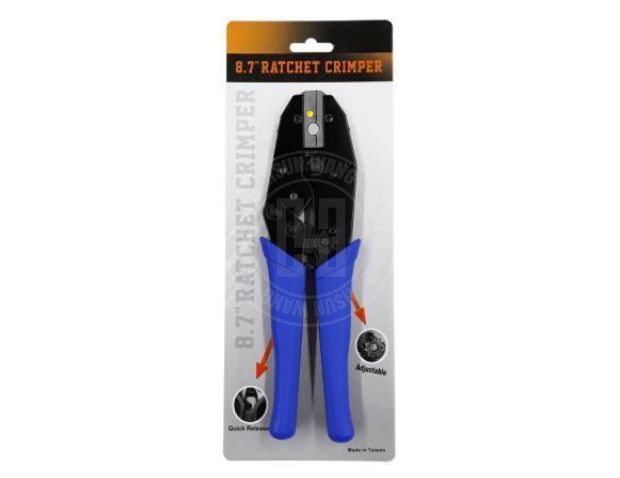

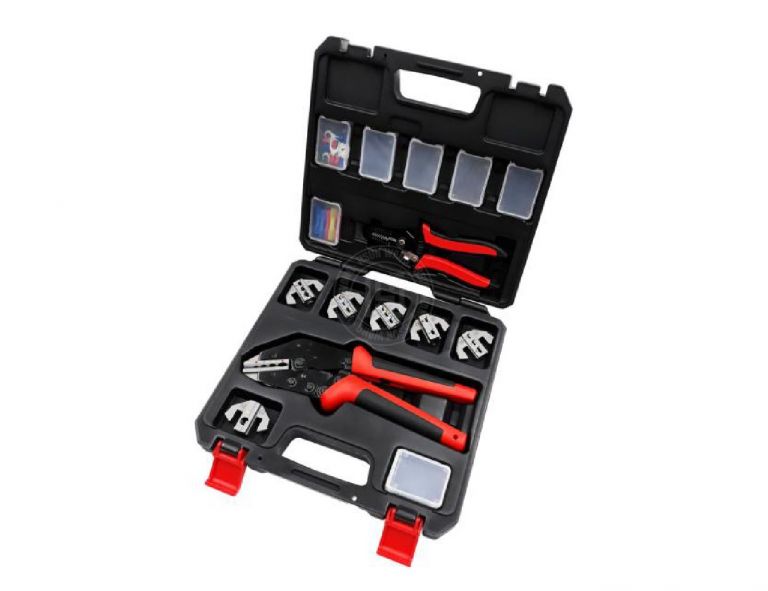

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/16.8/17.8/KGS/1.2'
                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  70g
