Die for Insulated Flag Terminal / Item No. : J12JA4

  • Jaw for Insulated Flag Terminal J12JA4
  • J12JA4
  • 90 degree terminal J12JA4
  • nylon flag connectors J12JA4
For Insulated Contacts

Die for Insulated Flag Terminal / Item No. : J12JA4

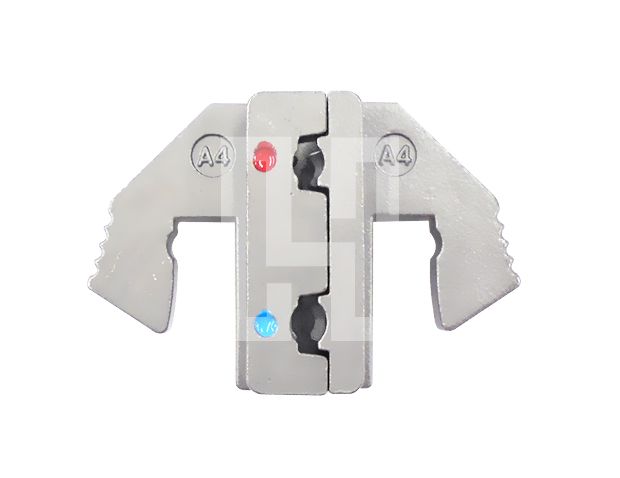

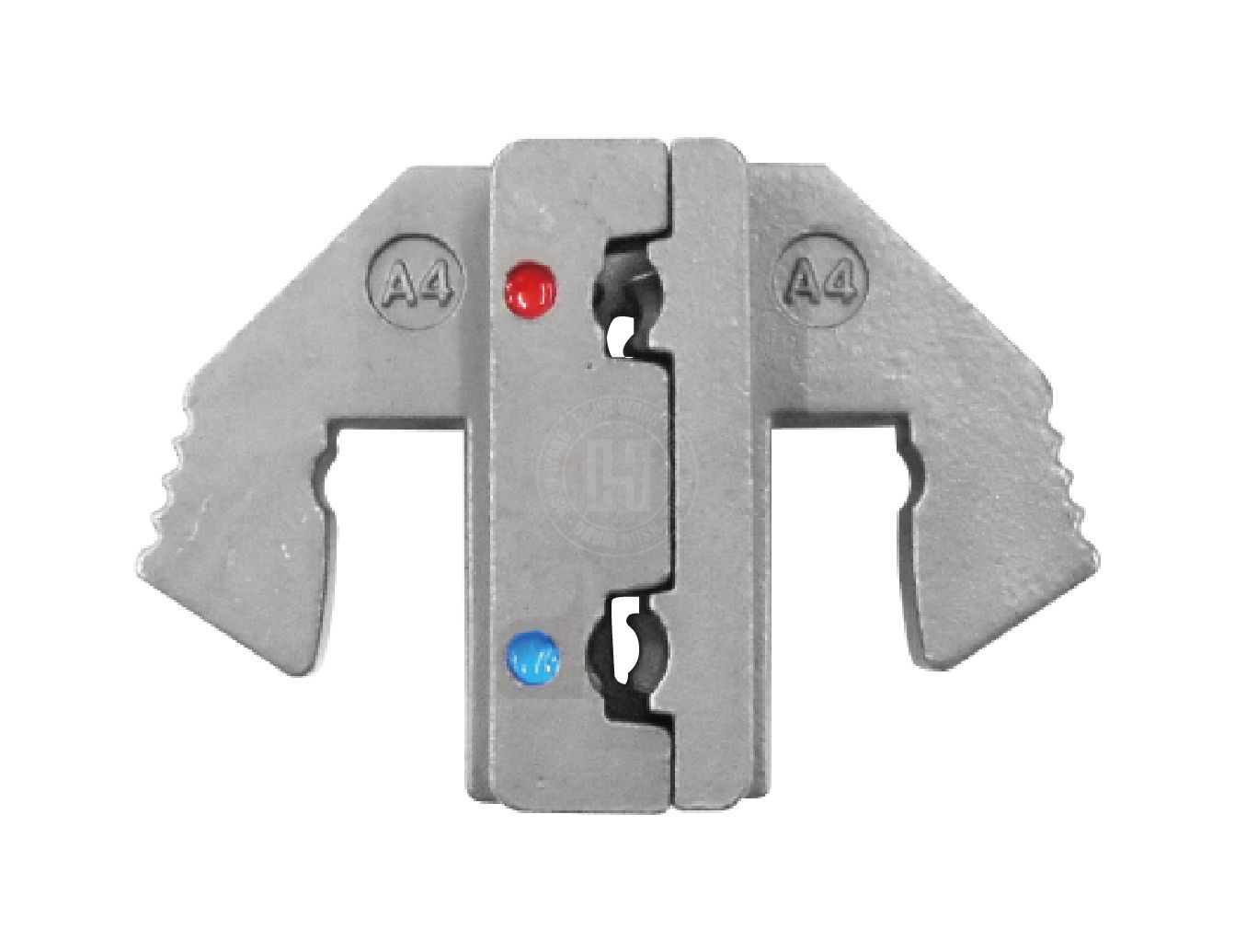

This jaw is marked with red/blue for easy identification.Unique die cavity for 90 degree terminal work use.
Item No. : J12JA4

Product Introduction

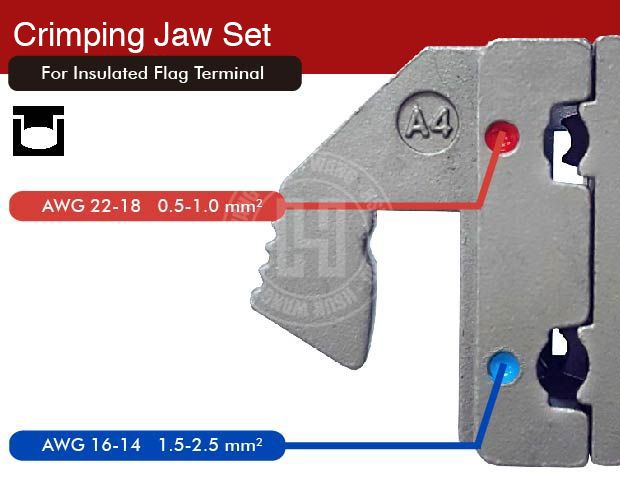

 Item No. : J12JA4 Quick Change Crimping Jaw for Insulated Flag Terminal-AWG 22-18/16-14

Suitable for
● AWG 22-18/16-14

● DIN 0.5-1.0/1.5-2.5 mm2

Confined crimp for closed barrel terminals: Indent-Crimp
This jaw is marked with red/blue for easy identification.Unique die cavity for 90 degree terminal work use.

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

Applicable: Auto/ Machine Wiring / Electrical & ElectronicDevice / Industrial device / compressor / motorcycle wire added

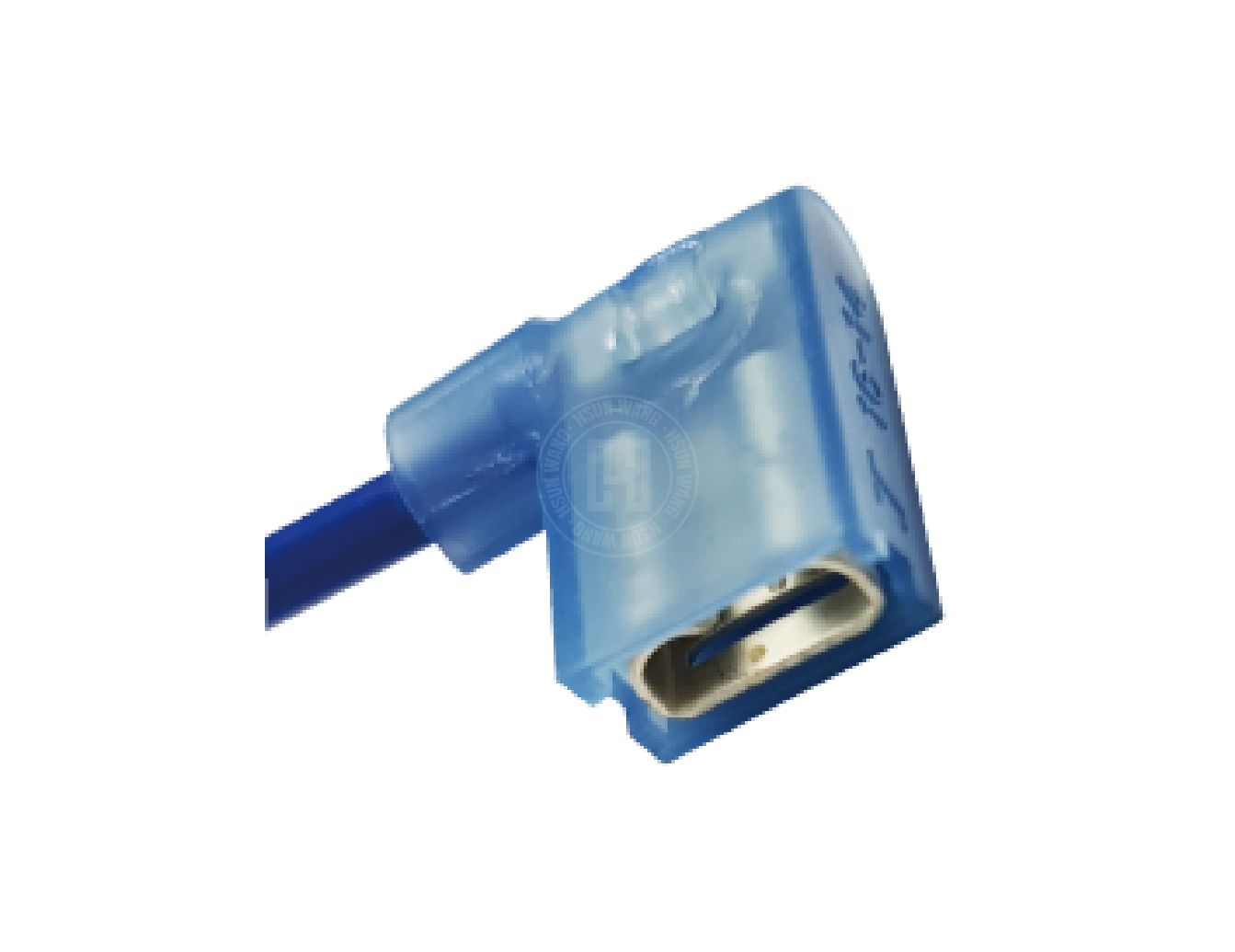

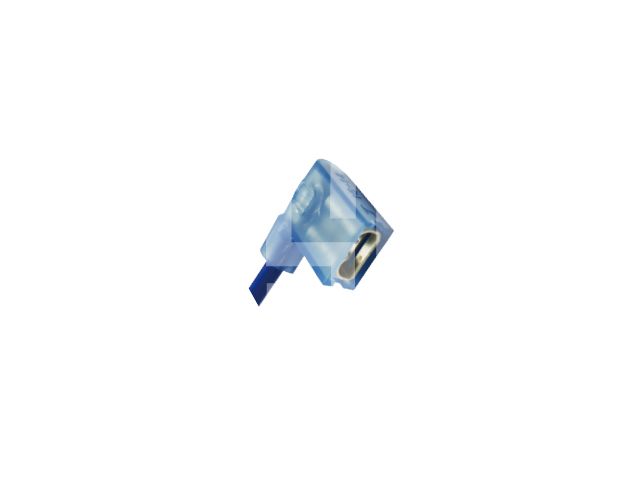

DESIGNED FOR INSULATED FLAG TERMINALS - Allows to conveniently crimp 22-16 gauge nylon flag connectors without damaging the insulation.
PRECISION CRIMPING DIES - High precision technology allows to achieve excellent crimping accuracy.
These dies are not compatible with the fixed die crimping tools.

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/14.6/15.6/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  61g
