For Insulated Contacts

Jaw for Fully Insulated Quick Disconnect / Item No. : J12JA2

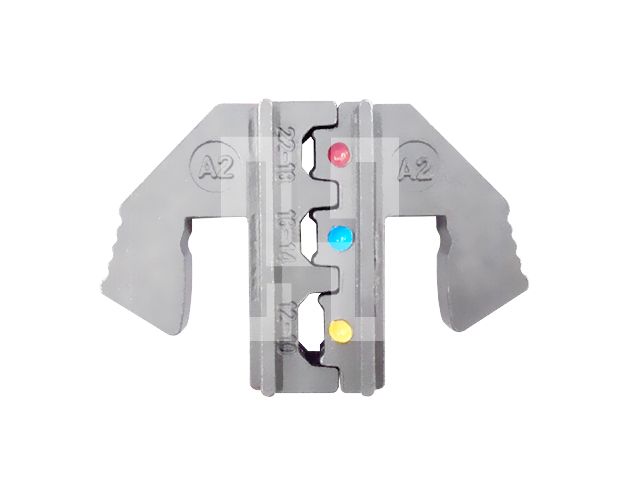

Quick Change Crimping Jaw for Fully Insulated Quick Disconnect -AWG 22-18/16-14/12-10
Item No. : J12JA2

Product Introduction

Item No. : J12JA2     Quick Change Crimping Jaw for Fully Insulated Quick Disconnect-AWG 22-18/16-14/12-10

Suitable for

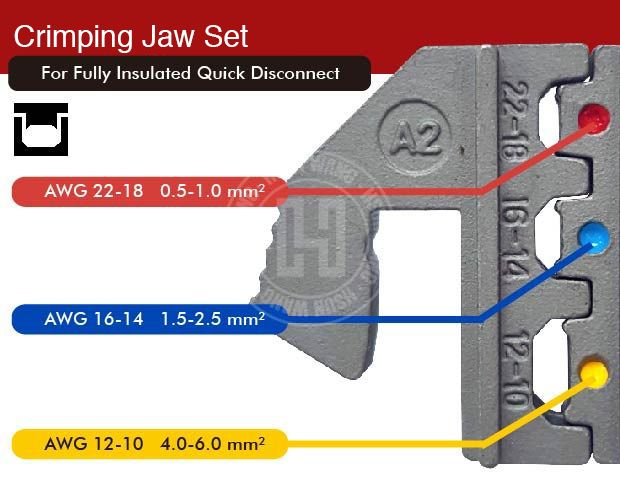

● AWG 22-18/16-14/12-10

● DIN 0.5-1.0/1.5-2.5/4-6 mm2

Confined crimp for closed barrel terminals: Indent-Crimp

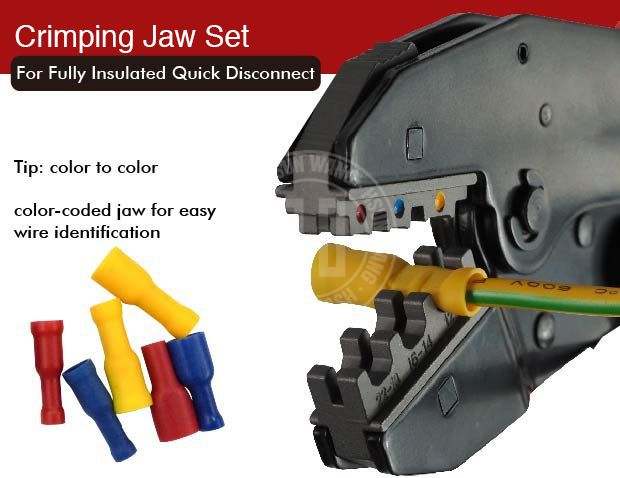

This jaw is marked with red/blue/yellow for easy identification.

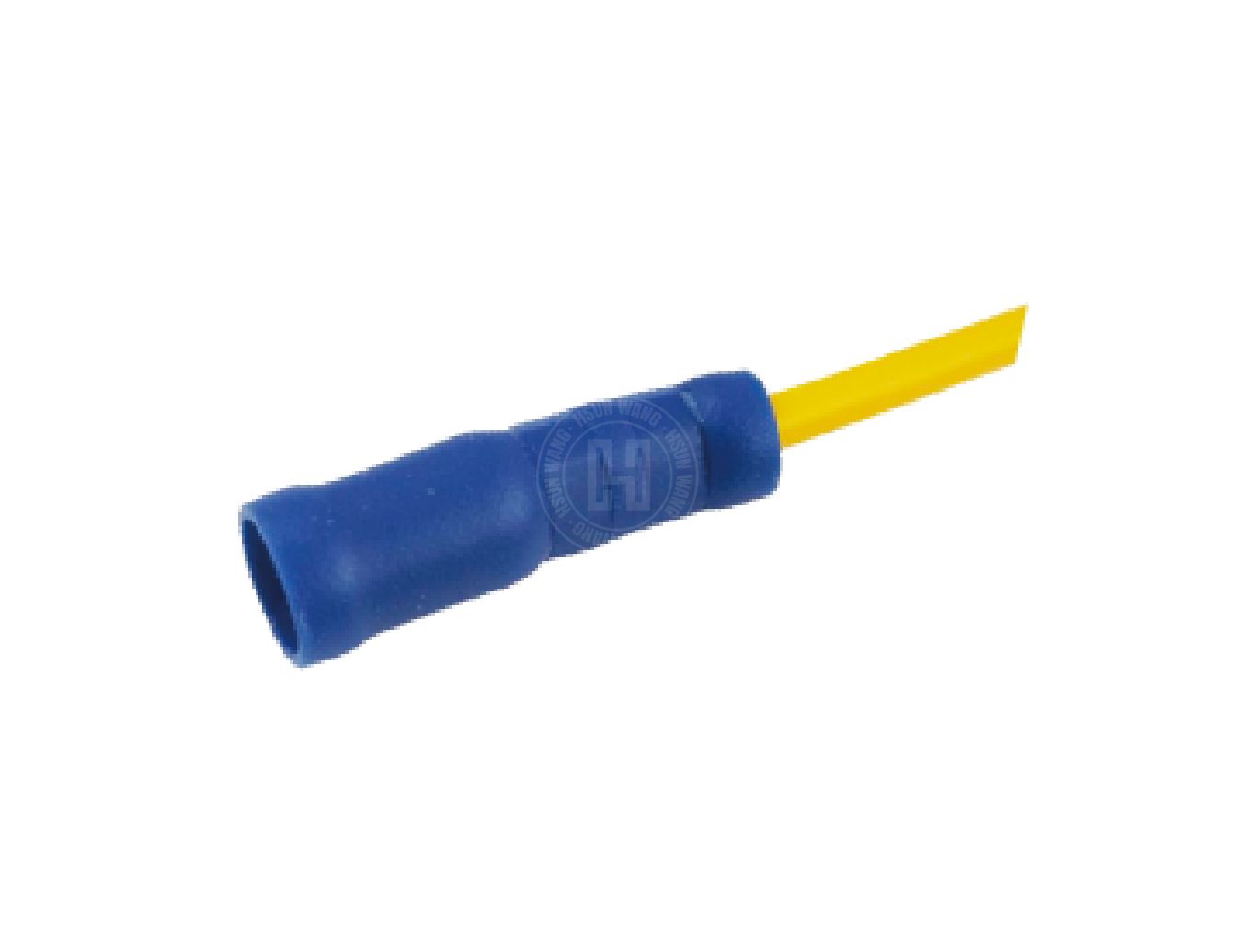

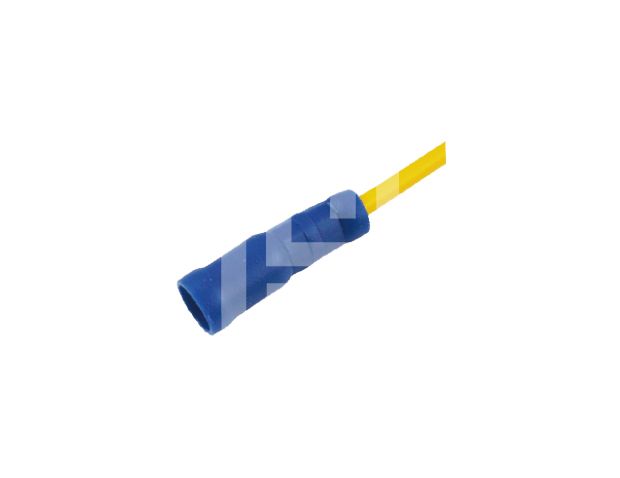

For: Fully Insulated Quick Disconnect

Compatible with LiCrim Quick Change crimper frames system as below:



●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The jaws are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping jaws will work with our crimping tools with quick change locking mechanism.
No tools required. The jaws can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Applicable: Auto/ Machine Wiring/ Electrical & Electronic Device

These jaws are not compatible with the fixed jaw crimping tools.



Packing List:  120/240/CTN/16.1/17.1/KGS/1.2'

                         Sliding Card
Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  66.9g



For more information please contact us.
