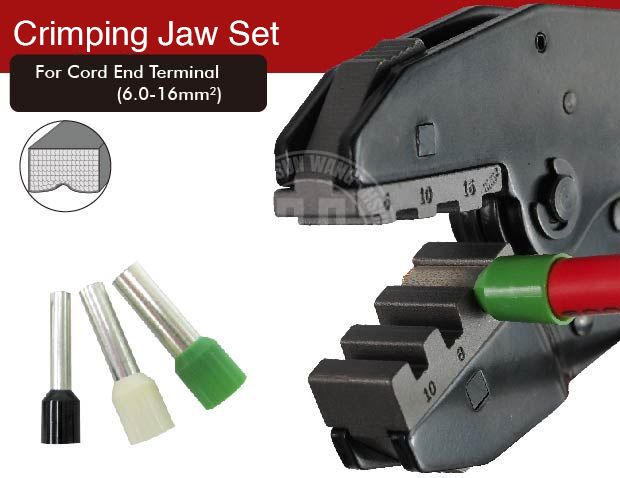

Die for Cord End Terminal (6.0-16mm²) / Item No. : J12JF

  • J12JF Jaw for Ferrule Terminals
  • Jaw for Ferrule Terminals and Insulated Cable End J12JF
  • Quick Change Crimping Jaw J12JF
  • Ferrule Terminals and Insulated Cable End J12JF
  • Made in Taiwan
For Cord End Contacts

Die for Cord End Terminal (6.0-16mm²) / Item No. : J12JF

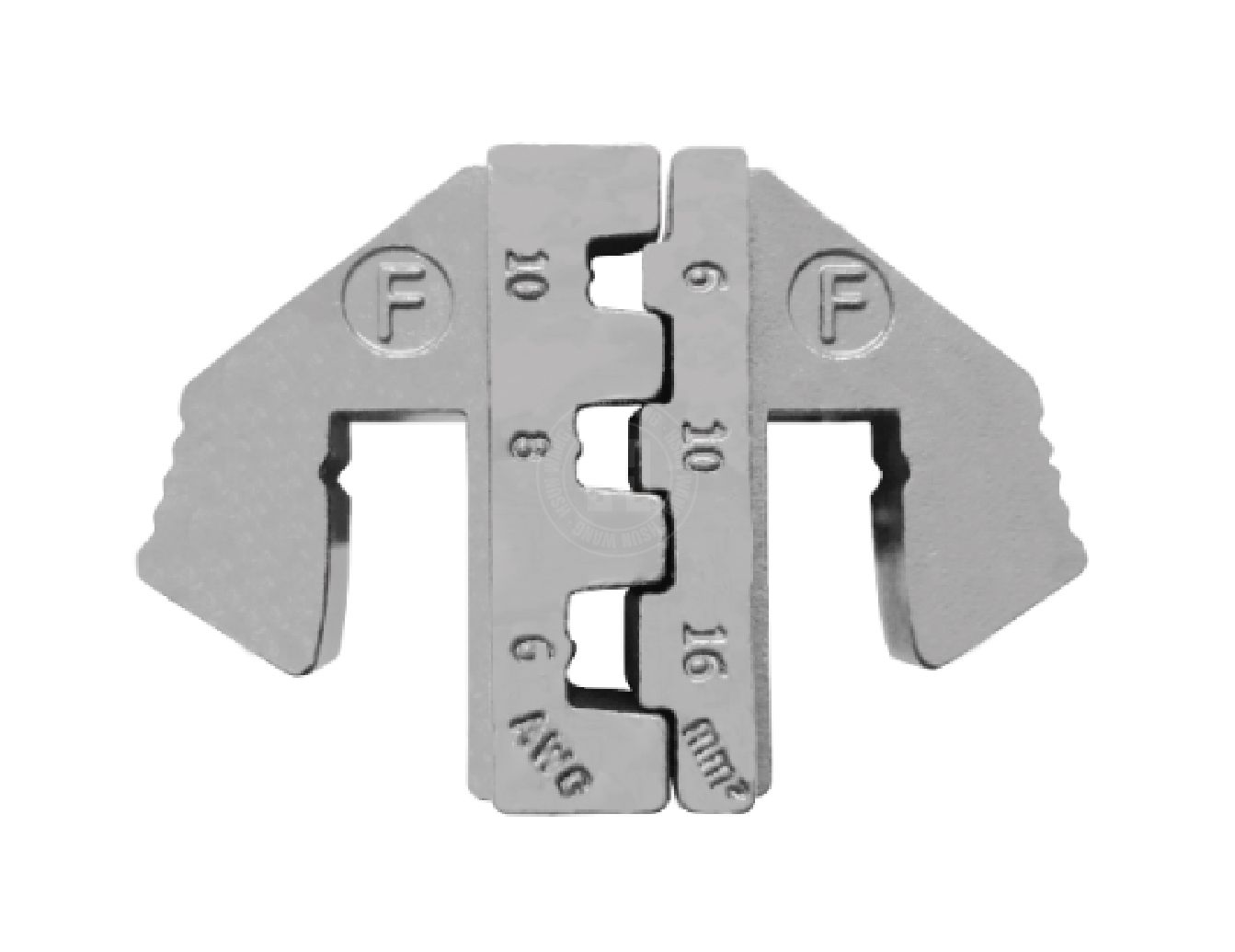

Crimping Jaw for Ferrule Terminals and Insulated Cable End(6-16mm2)
Item No. : J12JF

Product Introduction

 Item No. : J12JF Quick Change Crimping Jaw for Ferrule Terminals and Insulated Cable End(6-16mm2)

Suitable for

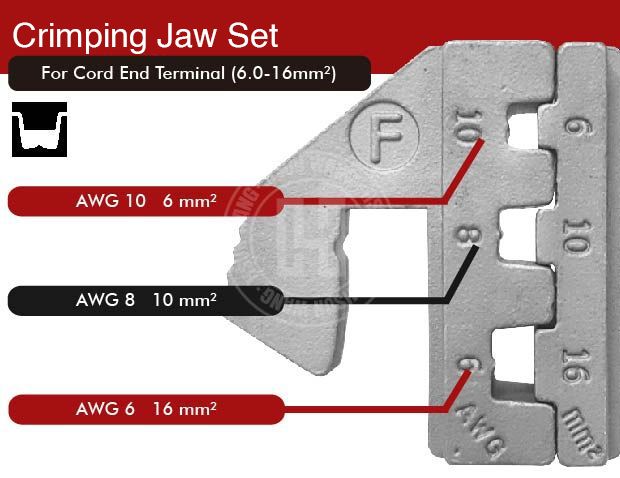

● AWG 10/8/6

● DIN 6/10/16 mm2

Confined crimp :Trapezoid-Crimp & WM-Crimp

Applicable: Terminal Block/Control Pannel

For: Non-Insulated Cord End Terminals(Ferrule) / Nylon-Cord End Terminals(Ferrule) / Twin Cord End Terminals(Ferrule)
DESIGNED FOR FERRULE TERMINALS - This crimping die will make clean trapezoid shaped crimps for ferrule wire ends 10/8/6 AWG.
These dies are not compatible with the fixed die crimping tools.

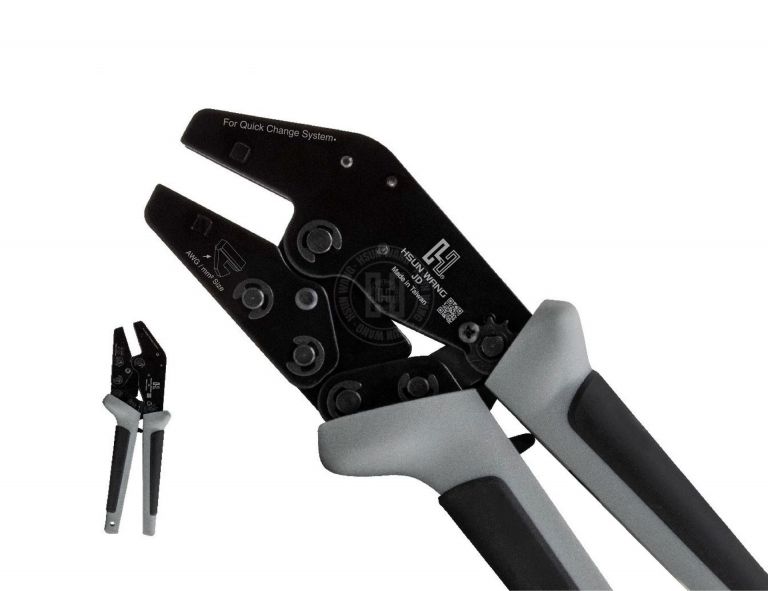

Compatible with LiCrim Quick Change crimper frames system as below:

●Made in TAIWAN-More LiCrim Crimper Single Function : Please Press the button "Download" to get it.

Material: AISI- 4140
Procedure: Precision and Wax-lost Casting
Treatment: Finished with heat treatment
Surface treatment : Zinc Phosphate

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. The dies are heat treated and have a zinc phosphate surface treatment
Designed by Germany, Made in Taiwan.

COMPATIBILITY - Individual crimping dies will work with our crimping tools with quick change locking mechanism.
No tools required. The dies can be replaced in 5 seconds. Slide in, slide out. Patented in USA, Germany, China, Taiwan

Packing List:  120/240/CTN/18.1/19.1/KGS/1.2'
                         Sliding Card

Sliding Card Size: 11.3 x 8.3 x 1.5 cm
Unit Weight:  75.6g
