9" Plus Ratchet Crimper (For MC3 Solar Connector) / Item No: Q21IIQ1

Ratcheting mechanism with adjustable clamping force allows for precise, repeatable crimps ,Compound action design puts more crimping power into each squeeze,The high quality crimping jaw creates a secure crimp that resists pull-out.

Product Introduction

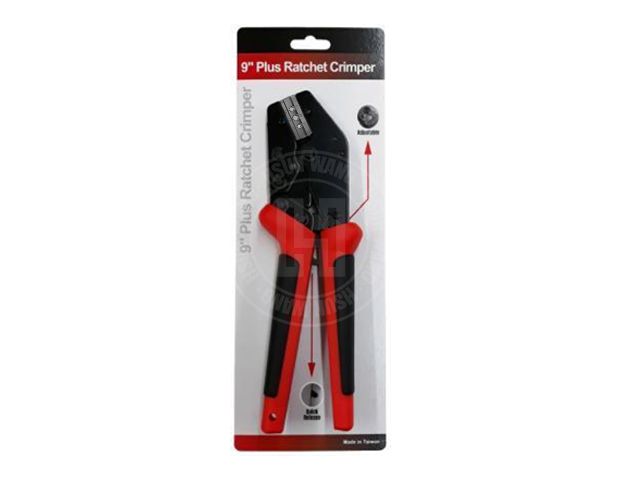

Item No:Q21IIQ1   9" Plus Ratchet Crimper (For MC3 Solar Connector)

Ratcheting mechanism with adjustable clamping force allows for precise and repeatable crimping.

The compound action design provides greater crimping force for each extrusion process

Dual crimp jaw to create a secure crimp that prevents pullout.

Suitable for MC3 Solar Connector

Procedure: Precision crimping Jaw sets with MIM procedure for excellent crimping. (Made by MIM for precise crimping)The jaw structure is precise to ensure firmly grasps the wires after crimping.

Confined crimp for Square shaped-Crimping

Applications: For solar pannel connection.

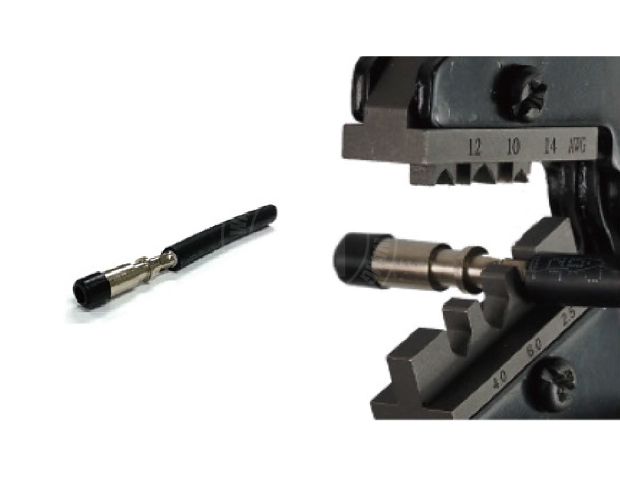

●DESIGNED FOR SOLAR CONNECTORS - Works with solar connectors 12/10/14 AWG.

●PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
●Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.

●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.

●Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loosen. Adjustable crimp height of star wheel, to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.No tools required.

Jaw:
Material: AISI-4140
Procedure: Metal Injection Molding(MIM)
Treatment: Finished with Heat Treatment
Surface Treatment: Zinc Phosphate

★Designed by Germany. Made in Taiwan.



9" Plus Ratchet Crimper:
Material:
Body: Carbon Steel
Handle:  PP+TPR (RoHS Approved)



Sliding Card Size:29 x 12 x 2.5 cm

Unit Weight : 647g



For more information please contact us.
