326PCE Ratchet Crimping Tool Kit / Item No:I03326BC

Terminal Ratchet Crimper -Double crimp: Steel jaw contains color-coded wire size markings for red (22-18 AWG), blue (16-14 AWG), and yellow (12-10 AWG) terminals | Ergonomic bi-material handles offer a comfortable, secure grip

Product Introduction

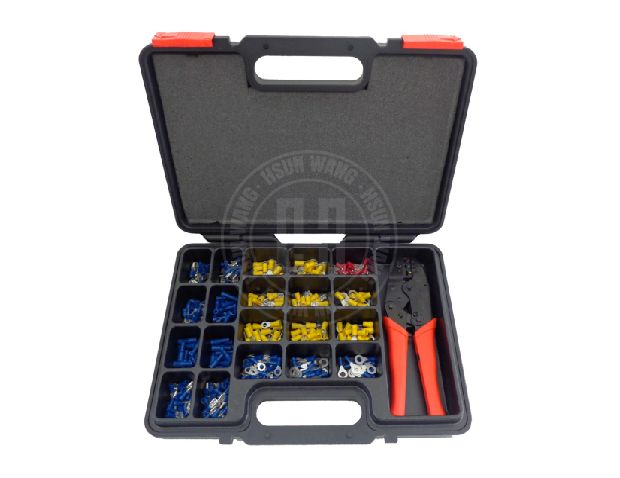

Item No:I03326BC      326PCE Ratchet Crimping Tool Kit

  • Ins-Bullet Disconnectors
  • Ins-Fully Female Disconnectors
  • Ins-Piggy Back Disconnectors
  • Ins-Butt Connectors
  • Ins-Male Disconnectors
  • Ins-Ring Terminal
  • Ins-Female Disconnectors
  • 8.7" Ratchet Crimper(I00)



Ideal for nylon insulated solderless terminals - It is not recommended to be used with heat-shrink connectors.
Double Crimp: Crimping jaw is constructed to produce a double crimp, which creates a secure crimp and improves wire retention.

Double Crimp Function: The crimping jaw is constructed to create a double crimp, resulting in a strong crimp and improved wire retention.

Double crimp: Steel jaw contains color-coded wire size markings for red (22-18 AWG), blue (16-14 AWG), and yellow (12-10 AWG) terminals for easy identification .Ergonomic bi-material handles offer a comfortable, secure grip. This jaw is marked with red/blue/yellow colors for easy identification. Comply with UL486 standard.

Ratcheting mechanism with adjustable clamping force allows for precise and repeatable crimping.
The compound action design provides greater crimping force for each extrusion process.
Dual crimp jaw create a secure crimp that prevents pullout.
The ratchet feature allows you to securely install the wire connector in the jaws and then insert the stripped wire into the barrel.

●Made in TAIWAN-More LiCrim Crimper Function : Please Press the button "Download" to get it.

Material: Body: Carbon Steel Handle: PP+TPR(PAHs Approved)
●PROFESSIONAL CRIMPING TOOL - precisely calibrated hand crimper tool delivers proper crimps for any terminal type and size.
●Quick release lever frees the crimper jaws in any position and when crimp is complete, acts as a built-in safety measure that can open the handles whenever tool is jammed or stuck.

●EFFICIENT RATCHETING MECHANISM - This crimper will release automatically, applying the same amount of crimping force every time. Ratcheting action allows for precise, repeatable crimps and prevents over crimping that would damage wire and terminal. It's easy to secure the wire connector in the jaws before insert the stripped wire.

●Adjustable Compression Wheel - Adjustable clamping force coupled with ratcheting mechanism enables precise, repeatable crimps. Compression wheel can be adjusted by removing screw. Twist left to tighten and right to loossen. Adjustable crimp height of star wheel,to ensure the right amount of crimping force. The star wheel to adjust the crimping force with (+) and (-) indicators. The minus (-) direction provides less crimping force, while the plus (+) direction increases the crimping force.
●ERGONOMIC HANDLES - These enlarged, non-slippery handles were designed to ensure strong and comfortable grip in any condition.No tools required.



Packing List:  10/CTN/16.2/17.2/KGS/2.7'
                        Blow Mold Case and Color Sleeve
Blow Case Size:  37 x 27.5 x 7 cm
